AT2040 VIBRATION SENSOR TEST SET AT2040 OVERVIEW AT2040

AT-2040 VIBRATION SENSOR TEST SET

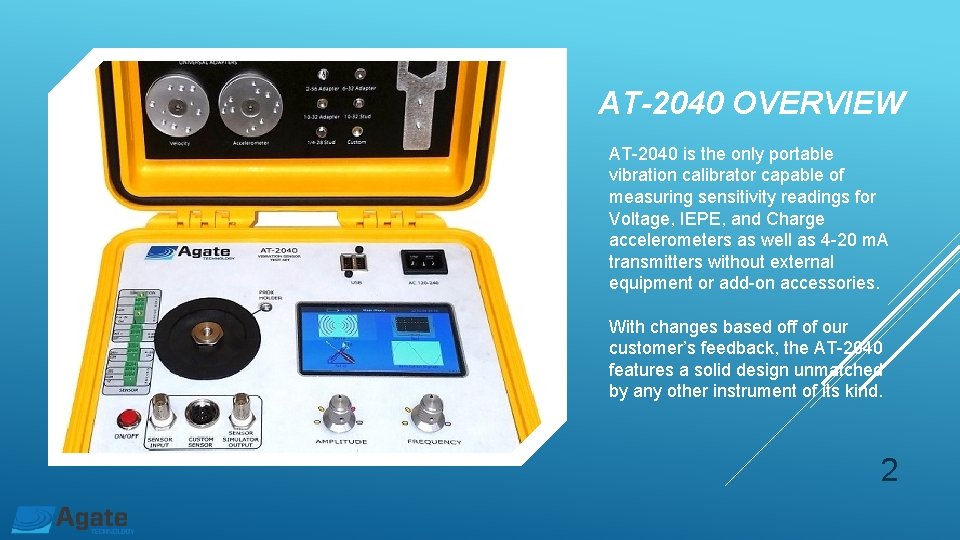

AT-2040 OVERVIEW AT-2040 is the only portable vibration calibrator capable of measuring sensitivity readings for Voltage, IEPE, and Charge accelerometers as well as 4 -20 m. A transmitters without external equipment or add-on accessories. With changes based off of our customer’s feedback, the AT-2040 features a solid design unmatched by any other instrument of its kind. 2

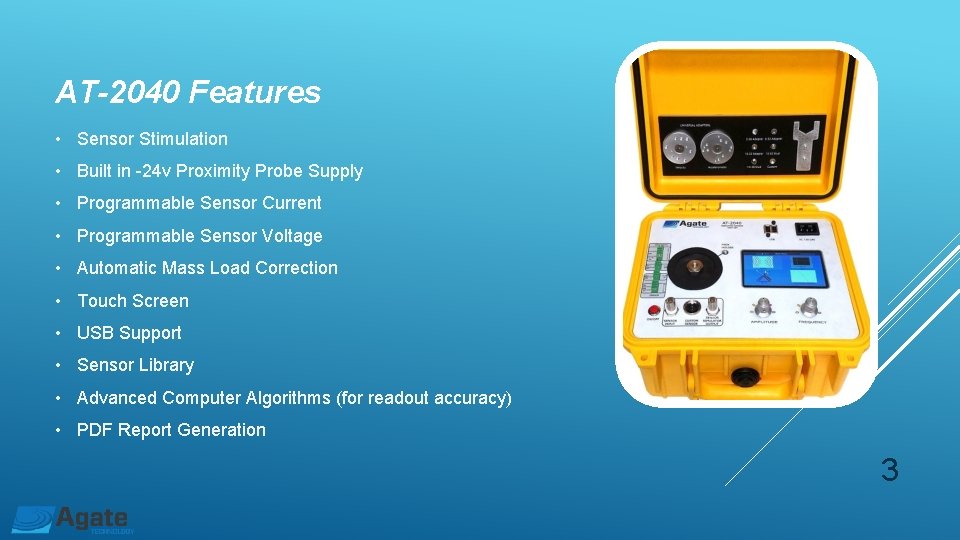

AT-2040 Features • Sensor Stimulation • Built in -24 v Proximity Probe Supply • Programmable Sensor Current • Programmable Sensor Voltage • Automatic Mass Load Correction • Touch Screen • USB Support • Sensor Library • Advanced Computer Algorithms (for readout accuracy) • PDF Report Generation 3

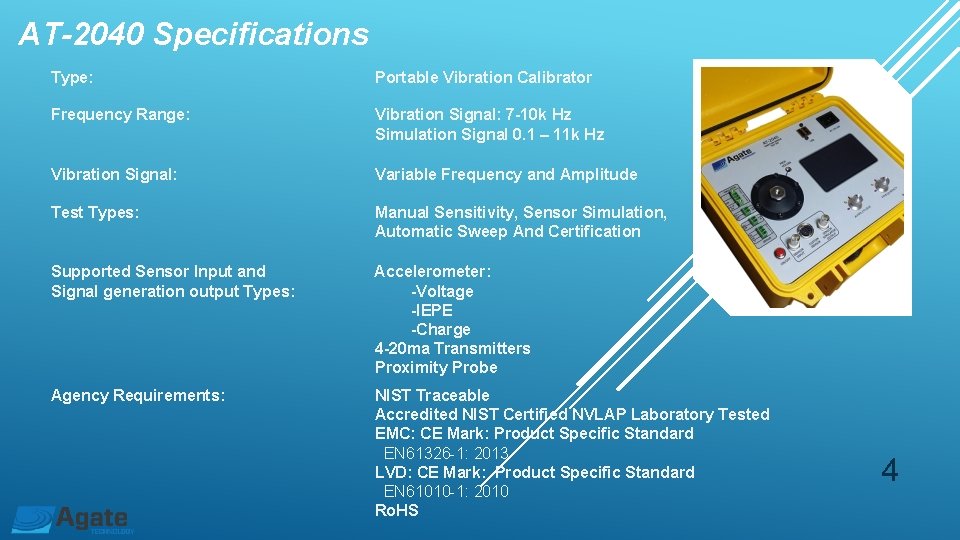

AT-2040 Specifications Type: Portable Vibration Calibrator Frequency Range: Vibration Signal: 7 -10 k Hz Simulation Signal 0. 1 – 11 k Hz Vibration Signal: Variable Frequency and Amplitude Test Types: Manual Sensitivity, Sensor Simulation, Automatic Sweep And Certification Supported Sensor Input and Signal generation output Types: Accelerometer: -Voltage -IEPE -Charge 4 -20 ma Transmitters Proximity Probe Agency Requirements: NIST Traceable Accredited NIST Certified NVLAP Laboratory Tested EMC: CE Mark: Product Specific Standard EN 61326 -1: 2013 LVD: CE Mark: Product Specific Standard EN 61010 -1: 2010 Ro. HS 4

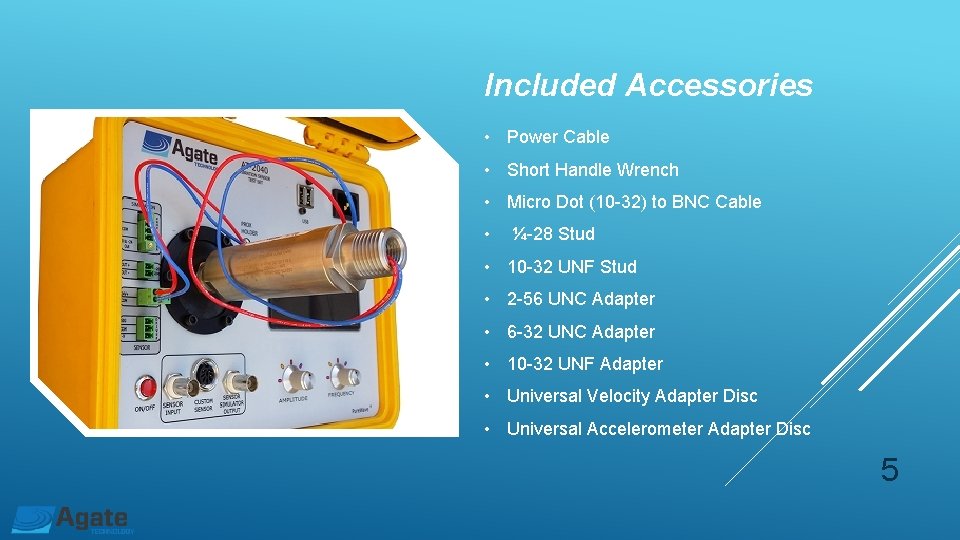

Included Accessories • Power Cable • Short Handle Wrench • Micro Dot (10 -32) to BNC Cable • ¼-28 Stud • 10 -32 UNF Stud • 2 -56 UNC Adapter • 6 -32 UNC Adapter • 10 -32 UNF Adapter • Universal Velocity Adapter Disc • Universal Accelerometer Adapter Disc 5
