Asymptotic Giant Branch Stars Ashley Nord December 3
Asymptotic Giant Branch Stars Ashley Nord December 3, 2007
What are Asymptotoic Giant Branch (AGB) Stars? • Stars with masses ≤ 8 M on the second ascent into the Red Giant Region • Often AGBs are Long-Period Variables • Can lose 50 -70% of their mass during this period - major producer of interstellar dust
History of AGB Stars • “Bifurcation of the Red Giant Branch” (Arp, Baum, Sandage, 1953) • 1970’s: IRAS catalog- circumstellar dust envelopes • 1980’s: Radio observations- mass loss processes
Globular Cluster M 5
http: //www. noao. edu/outreach/press/pr 03/sb 0307. html

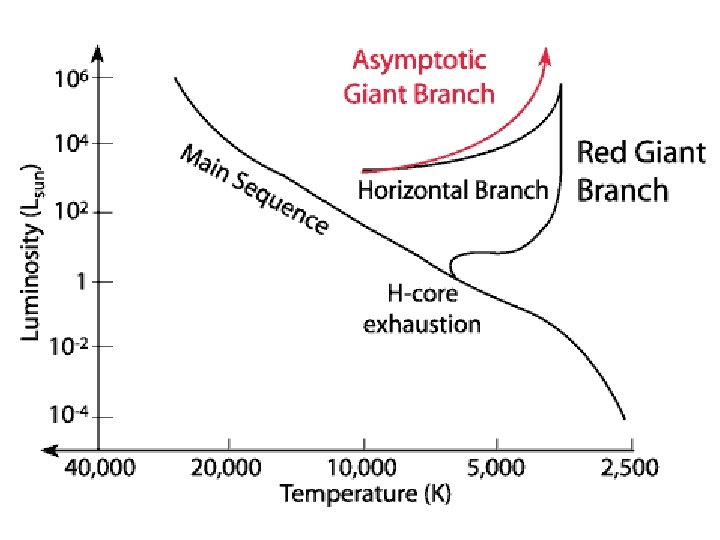

Main Sequence Red Giant Branch Asymptotic Giant Branch Horizontal Branch
The Early (E-AGB) Stage • Contraction of core and expansion of envelope lead to a rapid increase in luminosity. • He burning in the shell produces most of the energy. • Stellar envelope ~ 1013 cm • Envelope becomes pulsationally unstable
The Thermally Pulsing (TP-AGB) Stage • Once the AGB reaches about 3000 L , the star is able to burn both He and H in shells. • Thin He layers burn rapidly into C, and falls onto the core • Produces “thermal pulse” or “He-shell flash” and a luminosity modulation • Between thermal pulses, the AGB again burns H. • Convection often carries C into the envelope.
The Atmosphere • The outer part of the envelope is cool enough to form molecules. • Pulsation causes shocks. At high enough altitudes, grain condensation occurs. • The AGB will eventually start to lose mass in the form of a slow wind. • The rate of ejection of matter is higher than the growth rate of the core.
Stellar Wind • As layers of the envelope blow away, they expose hotter layers- strengthens stellar wind • Faster winds collide with slower winds- produces dense shells of gas, some of which cool to form dust • The distribution of dust is not always uniform, as is the case with IRC+10216.
IRC+10216 at 2. 2 micro-meter, evolution 1995 -2001 (Weigelt et al. 2002, Astronomy and Astrophysics 392, p. 131 -141)
Why Asymmetric Winds? Freiburg, 2006
Dynamics of Stellar Winds • Dust grains form close to the star where the gas is dense and cool • Dust particles absorb stellar photons and accelerate outward, dragging gas with them • Further from the star, flow instabilities (e. g. Raleigh-Taylor) fragment outward moving shells, producing small-scale sub-structures
Woitke, Peter, 2006
Woitke, Peter, 2006. Astronomy and Astrophysics.
Woitke, Peter, 2006. Astronomy and Astrophysics.
Woitke, Peter, 2006. Astronomy and Astrophysics.
How Do We Recognize AGB Stars? • Often difficult to distinguish between AGB and RGB. • Stars more luminous than the tip of the RGB are usually AGB stars. • Thermal pulses cause an abundance of heavier elements in the outer atmosphere, compared to RGB. • Long-period Pulsations • Mass-loss
End Result • Once the entire outer shell has been expelled, a white dwarf remains. • The white dwarf ionizes the surrounding ejected matter, resulting in a planetary nebula. • The fossil AGB stellar wind can now be optically studied as spatial structures of gas and dust in the PN.
The Eskimo Nebula, Hubble Space Telescope, WFPC 2
Conclusion • Stars ≤ 8 M will evolve into AGB stars. • These stars have an inert C-O core, surrounded by a He shell, a H shell, and a H envelope. • The envelope expands and becomes unstable • The star pulsates, causing shock waves which eject mass through stellar winds. • AGBs lose 50 -70% of their mass, end as white dwarfs and planetary nebula.
References Asymptotic Giant Branch Stars. http: //www. noao. edu/outreach/press/pr 03/sb 0307. html Clayton, Donald. Principles of Stellar Evolution and Nucleosynthesis. The University of Chicago Press, Chicago, IL. 1968. Harm and Olofsson, Hans. Asymptotic Giant Branch Stars. Springer-Verlag New York, Inc. 2004 http: //www. astro. uu. se/~bf/publications/2006_06_12_Freib urg_RSG/agbmovie. htm Winters, et al. Mass loss from dust y, low outflow-velocity AGB Stars. II. A&A 475, 2, 559 -568. Woitke, P. 2 D Models for Dust-driven AGB Stars. A&A 452, 537 -549
