ASUS Networking Copyright 2004 ASUSTek Computer All rights
- Slides: 57
ASUS Networking Copyright © 2004. ASUSTek Computer, All rights reserved.
Agenda • Networking Business Introduction • • ASUS UNIQUE features ASUS Naming rule ASUS Trend/ Roadmap /GA model Why ASUS is better? • Product introduction – Switch – Router • Q&A. Copyright © 2004. ASUSTek Computer, All rights reserved.
Networking Product Segmentation High-end (Core) • For service provider, carrier • Multi-service switch/router, core router Middle-end (Distribution) • For enterprise, and middle size office. • Managed switch, Layer 3 switch, ASUS middle-end router, VPN gateway. Low-end (Access) - For SOHO market - ADSL modem/router, Cable modem/router, - IP sharing gateway, VOIP gateway, 802. 11 - modem/AP, unmanaged low port switch Copyright © 2004. ASUSTek Computer, All rights reserved.
ASUS Price Strategy Cisco Price 3 Com ASUS Linksys Netgear D-Link Copyright © 2004. ASUSTek Computer, All rights reserved.
What do you want from your Networking equipment? Copyright © 2004. ASUSTek Computer, All rights reserved.
Advanced EMI Testing Advanced Thermal Testing Winner of Taiwan 2004 “Symbol of Excellence” Award Winners Giga. X 2048 Giga. X 2024 Winner of Taiwan 2005 “Symbol of Excellence” Award Winners Winner of Taiwan 2006 “Symbol of Excellence” Award Winners Giga. X 3112 F Giga. X 1024 P Giga. X 2024 B Giga. X 2024 X Giga. X 2008 EX SL 1000 Giga. X 1116 SL 500 Copyright © 2004. ASUSTek Computer, All rights reserved. RX 3042 H Giga. X 1108 N
榮獲台灣精品獎的肯定!! Winner of Taiwan " Symbol of Excellence" award 最高品質與超強功能!!!! Copyright © 2004. ASUSTek Computer, All rights reserved.
Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction – Switch – Router • Q&A. Copyright © 2004. ASUSTek Computer, All rights reserved.

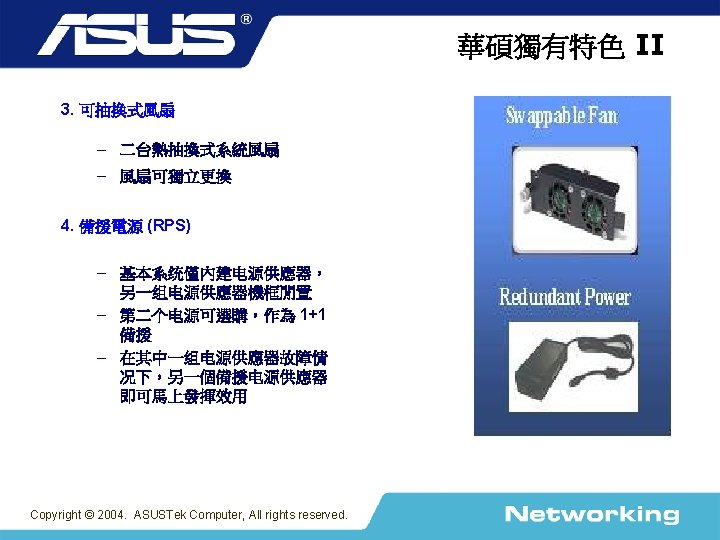

Extra Secure Brackets Swappable Fan Module Copyright © 2004. ASUSTek Computer, All rights reserved. USB + RS 232 Console Redundant Power Supply
Copyright © 2004. ASUSTek Computer, All rights reserved. Tagged VLAN IP Filtering Permit/Deny Port/VLAN ID and Priority Link Aggregation Spanning Tree SNMP Traffic Monitoring
Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction – Switch – Router • Q&A. Copyright © 2004. ASUSTek Computer, All rights reserved.
交換器命名原則 1 0 2 4 P 3 1 1 2 F 1 st digit = Layer 2 nd digit = Speed 3 rd & 4 th digits = # of ports 1 = unmanaged layer 2 2 = managed layer 2 3 = managed layer 3/Router 0 = 10/100 Mbps (FE) 1 = 10/1000 Mbps (Gb. E) 08 = 8 ports 12 = 12 ports 24 = 24 ports E = Po. E N = Internal PSU P/I = Smart S = Stacking F = Fiber X = Cost Effective M = Modulized H = High PS = Printer Server Performance B = 2 nd version. D = Desktop So a Giga. X 1124 B is a unmanaged Gb. E 24 -port switch Copyright © 2004. ASUSTek Computer, All rights reserved.
Router Naming Principle SL series RX 3 0 4 2 H SL: Security Router 1 st digit = Layer SL-200 / SL-300 / SL-1200 (VPN Router) 3 = Router 2 nd digit = Speed H = High 0 = 10/100 Mbps (FE) 1 = 10/1000 Mbps (Gb. E) Performance D = Desktop 3 rd digits = # of LAN ports; 4 th digits = # of WAN pots 41 = 4 LAN + 1 WAN 42 = 4 LAN + 2 WAN So RX 3041 is a 4 LAN + 1 WAN Router Copyright © 2004. ASUSTek Computer, All rights reserved.
Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction – Switch – Router • Q&A. Copyright © 2004. ASUSTek Computer, All rights reserved.
Switch Roadmap Giga. X 3112 F 12 -port combo Gb. E L 3 Giga. X 2124 X 24 -port Gb. E L 2 Giga. X 3024 X 24 -port FE +2 -port Gb. E L 3 Giga. X 2024 M 24 FE + 2 Gb. E Managed L 2 PR Oct. MP: Mar. Enterprise Giga. X 2024 B 24 FE + 2 Gb. E Managed L 2 MP: Nov. Giga. X 2016 X/2024 X 16/24 FE + 2 Gb. E Managed L 2 Giga. X 2008 EX 8 -port FE + 2 Gb. E Managed L 2 w/POE Giga. X 1124 i+ 24 -port Gb. E Smart L 2 Giga. X 1116 i+ 16 -port Gb. E Smart L 2 SMB Giga. X 1124 B 24 -port Gb. E L 2 Giga. X 1116 B 16 -port Gb. E L 2 Giga. X 1024 i+ 24 -port FE Smart L 2 Giga. X 1016 16 -port FE L 2 Switch Giga. X 1108 N 8 -port Gb. E L 2 (internal PSU) Giga. X 1105 N 5 -port Gb. E L 2 (internal PSU) Home / SOHO Giga. X 1008 N 8 -port FE L 2 (internal PSU) Giga. X 1005 N 5 -port FE L 2 (internal PSU) Giga. X 1008 B 8 -port FE L 2 MP: Oct. Giga. X 1005 B 5 -port FE L 2 MP: Oct Q 3 Q 4 Q 1 2007 NOW Copyright © 2004. ASUSTek Computer, All rights reserved. Q 2 2007
2007 Router Roadmap SL 1200 PR: Nov, MP: Dec. Security Router VPN Tunnel: 60 SMB RX 3042 H MP: Nov. 10/100 Mbps Router 4 LAN +2 WAN RX 3141 Gigabit Router 4 LAN + 1 WAN WIFI Vo. IP Router AX-112 W Vo. IP ATA/AP/Router/Firewall PR: Feb. MP: Mar SL 300 PR: Feb, MP: Mar. Security Router VPN Tunnel: 3 SL 200 PR: Dec. MP: Jan. Security Router VPN Tunnel: 2 Home/SOHO RX 3041 10/100 Mbps: SOHO Router/ 4 LAN +1 WAN NX 1101 Gb. E PCI LAN Card NX 1001 10/100 Mbps PCI LAN Card Q 3 Q 4 2006 NOW Copyright © 2004. ASUSTek Computer, All rights reserved. Q 2 2007 Q 1 2007
Agenda • • Networking Business Introduction ASUS UNIQUE features ASUS Naming rule ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction – Switch – Vo. IP • Q&A. Copyright © 2004. ASUSTek Computer, All rights reserved.

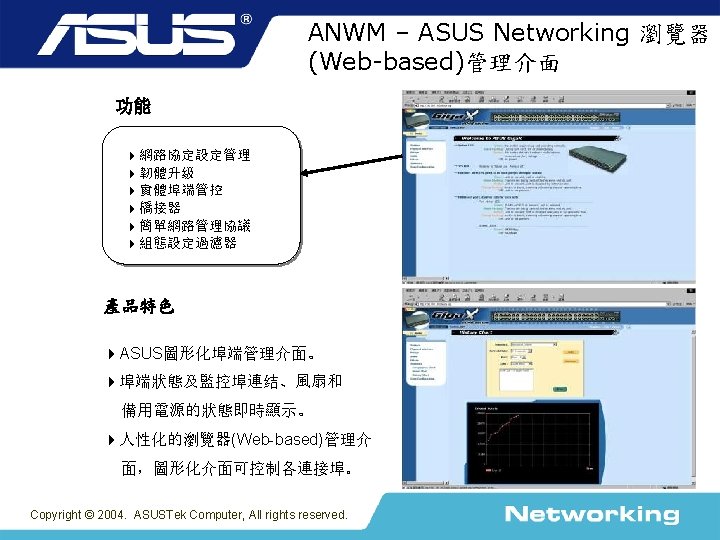

ASUS Switch Web GUI Static Addresses Table Static Multicast Tagged VLAN IP Filtering Permit/Deny Physical Interfaces Spanning Tree Co. S Queue Mapping Link Aggregation Dynamic Addresses Table Port/VLAN ID and Priority MAC Filtering Permit/Deny SNMP Traffic Monitoring Copyright © 2004. ASUSTek Computer, All rights reserved.
ASUS Centralized Network Management Innovative management Software for all ASUS Smart Switches Windows-based system: • For Windows 2000, ME and XP. Full-function Configurations • Trunk and Link Aggregation • VLAN, port-based with tag recognition • Bandwidth control • Co. S and Qo. S Priority Queues. Real-time Network Monitoring: • Port traffic comparison, Traffic History Auto Discovery • Discover all switches on the LAN automatically. Topology Tree • Display the relationships of switch nodes in a tree list. Copyright © 2004. ASUSTek Computer, All rights reserved.
啟動網路安全防護 Dynamic VLAN Assignment within 802. 1 x 允許動態 VLAN 分派(assignment)的 IEEE 802. 1 x Copyright © 2004. ASUSTek Computer, All rights reserved.
Greater Productivity and Security Meeting room Unwanted Guest Your Current Network No Security Connected to Sales LAN Sales Copyright © 2004. ASUSTek Computer, All rights reserved. Connected to Finance LAN Finance
Greater Productivity and Security 具備動態 VLAN 分派(assignment)的 IEEE 802. 1 x --可允許動態 VLAN 分派到個別使用者,無論使用者在哪連線 Connected to Finance LAN Meeting room Connected to Sales LAN Sales Copyright © 2004. ASUSTek Computer, All rights reserved. Your Network Made Better With ASUS 802. 1 x Security with Dynamic VLAN Assignment Connected to Sales LAN Finance
Greater Productivity and Security Your Network Made Better With ASUS Unauthorized NO Connection Unwanted Guest 802. 1 x Security with Dynamic VLAN Assignment Meeting room IEEE 802. 1 x 不允許沒有 802. 1 x 的客戶端存取 VLAN Sales Copyright © 2004. ASUSTek Computer, All rights reserved. Finance
Agenda • • • Networking Business Introduction ASUS UNIQUE features ASUS Naming rule ASUS Trend/ Roadmap /GA model Why ASUS is better? • Product introduction – Switch – Router • Q&A. Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 3112 F 12 埠 10/1000 Mbps + 12 埠 Combo SFP擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D Spanning Tree Protocol w 802. 1 p COS w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w RIPv 1, RIPv 2 and OSPF w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 8 priority queues w Multicast filtering and snooping w Access Control Lists 管理介面 w Web GUI, Console via RS-232, USB, Telnet and SSH Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 3112 12埠 10/1000 Mbps + 2埠Giga Combo (1000 Base-T/SFP) 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D Spanning Tree Protocol w 802. 1 p COS w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w RIPv 1, RIPv 2 and OSPF w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 8 priority queues w Multicast filtering and snooping w Access Control Lists 管理介面 w Web GUI, Console via RS-232, USB, Telnet and SSH Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 3024 X 24 埠 10/100 Mbps + 2 埠Giga Combo (1000 Base-T/SFP) 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D Spanning Tree Protocol w 802. 1 p COS w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w RIPv 1, RIPv 2 and OSPF w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 4 priority queues w Multicast filtering and snooping w Access Control Lists 管理介面 w Web GUI, Console via RS-232, USB, Telnet and SSH Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 2124 X 24埠 10/1000 Mbps + 4埠Combo SFP 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D Spanning Tree Protocol w 802. 1 w Rapid Spanning Tree Protocol w 802. 1 p Co. S w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 4 priority queues w Multicast filtering and snooping 管理介面 w Web GUI, Console via RS-232, USB, and Telnet Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 2024 M 24埠 10/100 Mbps + 2 埠Giga Combo (1000 Base-T/SFP) 擴充槽+擴充模組 (Modual slot) ----每一個RJ-45埠均具備自動切換 10/100 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 S MSTP, 802. 1 D Spanning Tree Protocol w 802. 1 w Rapid Spanning Tree Protocol w 802. 1 p Co. S w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 4 priority queues w Multicast filtering and snooping w Access Control Lists w Stacking Modual 管理介面 w Web GUI, Console via RS-232, USB, and Telnet w Cisco-like Command Line Interface Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 2048 48 埠 10/100 Mbps + 2 埠Giga Combo (1000 Base-T/SFP) 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D Spanning Tree Protocol w 802. 1 w Rapid Spanning Tree Protocol w 802. 1 p Co. S Priority Queues w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 4 priority queues w Multicast filtering and snooping w Access Control Lists 管理介面 w Web GUI, Console via RS-232, USB, Telnet and SSH Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 2024 B 24 埠 10/100 Mbps + 2 埠Giga Combo (1000 Base-T/SFP) 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D, 802. 1 w, 802. 1 s Spanning Tree Protocols w 802. 1 p Co. S Priority Queues w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 4 priority queues w Multicast filtering and snooping w Access Control Lists 管理介面 w Web GUI, Console via RS-232, USB, Telnet and SSH w Cisco-like Command Line Interface Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 2024 X 24 埠 10/100 Mbps + 2 埠Giga Combo (1000 Base-T/SFP) 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D Spanning Tree Protocol w 802. 1 w Rapid Spanning Tree Protocol w 802. 1 p Co. S w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 4 priority queues w Multicast filtering and snooping 管理介面 w Web GUI, Console via RS-232, USB, and Telnet Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 2008 EX 8 埠 10/100 Mbps + 1 埠Giga Combo (1000 Base-T/SFP) 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 w Rapid Spanning Tree Protocol w 802. 1 p Co. S w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w POE (Power over Ethernet) support on all 8 Fast Ethernet ports, max 350 m. A, or continuous operation at 15. 4 W per port w Redundant Power Supply w Qo. S support by 4 priority queues w Multicast filtering and snooping 管理介面 w Web GUI, Console via RS-232, and Telnet Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1116 i+/1124 i+ 16/24 埠 10/1000 Mbps + 4 埠Giga Combo (SFP) 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D Spanning Tree Protocol w 802. 1 w Rapid Spanning Tree Protocol w 802. 1 p Co. S w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 4 priority queues w Multicast filtering and snooping w Source IP filtering 管理介面 w Web GUI , CLI and Telnet Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1024 i+ 24 埠 10/100 Mbps + 2 埠Giga 1000 Base-T+2埠 Giga SFP 擴充槽 ----每一個RJ-45埠均具備自動切換 10/1000 M速度 ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • • • 支援標準 w 802. 1 D Spanning Tree Protocol w 802. 1 w Rapid Spanning Tree Protocol w 802. 1 p Co. S w 802. 1 q VLAN Tagging Protocol w 802. 3 x Flow Control w 802. 3 ad Link Aggregation w 802. 1 x Security with RADIUS support w Dynamic VLAN Assignment within 802. 1 x 產品特色 w Qo. S support by 4 priority queues w Multicast filtering and snooping w SNMP v 1, v 2, v 3 管理介面 w Web GUI and Telnet Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1024 P 24埠 10/100 Mbps + 2 埠Giga 1000 Base-T 擴充槽 • 19” Rackmount Design • Auto Negotiation for Speed and Duplex Mode • 每一個RJ-45埠均具備自動MDI/MDIX切換功能 • Non-Blocking Wire Speed Performance • 802. 3 x 流量控制 • 2 Copper 1000 Base-T on GX 1024 P switch • Easy to read LEDs • Provides quick overview of connection status • CNM Lightly Managed Switch w Bundle with window based software to • Discover switches in the LAN • Configure features on switches • Monitor status and get statistics • Bandwidth control w Price competitive with unmanaged switches Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1024 i 24 -port Fast Ethernet Lightly-Managed Smart Layer 2 Switch • 19” Rackmount Design • Auto Negotiation for Speed and Duplex Mode • Auto MDI/MDIX • Non-Blocking Wire Speed Performance • 802. 3 x Flow Control • Easy to read LEDs • Provides quick overview of connection status • CNM Lightly Managed Switch w Bundle with window based software to • Discover switches in the LAN • Configure features on switches • Monitor status and get statistics • Bandwidth control w Price competitive with unmanaged switches Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1124 B and Giga. X 1116 B 16/24埠 10/1000 Mbps + 4 埠Giga Combo SFP 擴充槽 • 16/24 -port 10/1000 Mbps Copper Gigabit Ethernet (RJ-45) • Allows for easy migration to Gigabit using your existing Category 5 cables • No need to deal with complicated fiber. • 4 SFP ports for Gigabit Fiber support (1000 Base-X) • Plug and Play • Auto MDI/MDIX detection and correction • Auto-sensing on speed and duplex mode • Easy to read LEDs • Provides quick overview of connection status • Up to 2 Gbps for all ports • Non-Blocking Wire Speed Performance • 802. 3 x Flow Control • Source Address Learning and Aging Function • 19” 1 U Rackmount design Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1108 N and Giga. X 1105 N 8 or 5 port Gb. E (RJ-45) Gigabit Unmanaged Layer 2 Switch • Port Attributes w 8 or 5 ports 10/1000 Mbps Copper Gigabit Ethernet (RJ-45) • RJ-45 Copper Gigabit ports • easy migration to Gigabit using your existing Category 5 cables, no need to deal with complicated fiber. • Plug and Play • Auto MDI/MDIX • Auto sensing on speed and duplex mode • Multiple Placement Options • Desktop placement, magnet mount and wall mount • Fan-less Design – quiet operation • Easy to read LEDs • Provides quick overview of connection status • 8192 MAC addresses and 4096 VLAN support (IEEE 802. 1 q). • Up to 2 Gbps for all ports • Non-Blocking Wire Speed Performance • Source Address Learning and Aging Function • 802. 3 x Flow Control • Superior Engineering - FCC and VCCI Class B Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1024 X 24 -port Fast Ethernet Unmanaged Layer 2 Switch • Port Attributes w 24 ports 10/100 Mbps Fast Ethernet (RJ-45) • 19” Rackmount Design • Plug and Play • Auto Negotiation for Speed and Duplex Mode • Auto MDI/MDIX • Non-Blocking Wire Speed Performance • Source Address Learning and Aging Function • 802. 3 x Flow Control • Easy to read LEDs • Provides quick overview of connection status • Internal Universal Power Supply Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1016 D 16 -port Fast Ethernet Unmanaged Layer 2 Switch • Port Attributes w 16 ports 10/100 Mbps Fast Ethernet (RJ-45) • Plug and Play • Auto Negotiation for Speed and Duplex Mode • Auto MDI/MDIX • Non-Blocking Wire Speed Performance • Source Address Learning and Aging Function • 802. 3 x Flow Control • Easy to read LEDs • Provides quick overview of connection status • Internal Universal Power Supply Copyright © 2004. ASUSTek Computer, All rights reserved.
Giga. X 1008 B and Giga. X 1005 B 5 -port Fast Ethernet Layer 2 Switch 8 -port Fast Ethernet Layer 2 Switch Plug and Play • Auto MDI/MDIX • Auto sensing on speed and duplex mode • Multiple Placement Options – desktop placement, and wall mount • Fan-less Design – silent operation • Easy to read LEDs – provides quick overview of connection status • Up to 200 Mbps for all ports • Non-Blocking Wire Speed Performance • Source Address Learning and Aging Function • 802. 3 x Flow Control GX- 1005 B Copyright © 2004. ASUSTek Computer, All rights reserved. GX 1008 B
◆ 產品配置 -具備 4埠 10/1000 Mbps LAN 埠,支援自動偵測交換埠 -具備 1埠 10/100 Mbps WAN 埠,支援 PPPOE/ADSL/Cable Modem連線 ◆ 產品規格 -MAC/SPI/Domain/URL/IP過濾功能 -支援DHCP Server/Client, 靜態路由, PPPo. E, PPTP -內建NAT功能 -支援一組DMZ埠設定 -提供安全事件紀錄 -TCP/IP V 4, UDP, ICMP -VPN pass through: L 2 TP, PPTP, IPSec -802. 3 x flow control ◆ 產品特性 -9. 6 KB Jumbo Frame Support -多樣的配置選擇 -支援隨插即用(UPn. P) -簡單易懂LED面板顯示 -無風扇設計,系統運作超安靜 Copyright © 2004. ASUSTek Computer, All rights reserved. RX 3141 超高速寬頻路由器
勝 Winner of Taiwan " Symbol of Excellence" award 最高品質與超強功能!!!! Copyright © 2004. ASUSTek Computer, All rights reserved. Only ASUS VPN Routers to Win Award! 榮獲台灣精品獎的肯定!!
3 in 1 VPN 路由器 3 in 1 ◆ Firewall - SPI, ACL, 29 Do. S Protection, 20+ ALGs, URL Filtering, Application Command Filtering, Remote Access ◆ NAT -Static and Dynamic NAT -PAT -Virtual Server 路由器 + 虛擬私人網路(VPN) + 防火牆(Firewall) ◆ Performance -VPN: Up to 80 M (1430 bytes packet) -Firewall: Up to 100 M -NAT: up to 90 M (512 bytes packet) ◆ VPN: - IKE (Internet Key Exchange) Pre-shared key/Manual key - D-H 1/2/5 (Diffie-Hellman group 1/2/5), AH/ESP - Hardware accelerated encryption: DES(56 -bit)/3 DES (168 -bit) - SL 1000: up to 25 VPN tunnels - SL 500: up to 5 VPN tunnels Copyright © 2004. ASUSTek Computer, All rights reserved.
市場定位 性能 直 接 競 争 者 Zyxel - Zy. WALL 5 Zyxel – Zy. WALL 2+ SL 1000 SL 500 價錢 SL 500/1000 V. S 競争者 Copyright © 2004. ASUSTek Computer, All rights reserved. Prepared by : John Kuo
Copyright © 2004. ASUSTek Computer, All rights reserved.
RX 3042 H High Speed IP Sharing Router for the Office • • 2 WAN ports for combining 2 separate broadband connections for greater bandwidth and redundancy. Integrated 4 port Fast Ethernet Switch • Large memory supports up to 15, 000 concurrent sessions • Integrated IP/NAT Accelerator • Support for up to 253 users • PPPo. E, PPTP, Static or Dynamic IP, Big Pond • Keep-alive with re-connect • PPTP, IPsec and L 2 TP VPN Passthrough • Advanced Firewall and filtering • DMZ and ALGs (Application Layer Gateway) support • Multiple Placement Options • Desktop placement, magnet mount and wall mount • Fan-less Design – quiet operation • Easy to read LEDs • Provides quick overview of connection status • Non-Blocking Wire Speed Performance • 802. 3 x Flow Control Copyright © 2004. ASUSTek Computer, All rights reserved.
Model Full Name Appearance 眾至 ASUS LB-2205 RX 3042 H 網路負載平衡器 負載平衡高速路由器 基本規格(Basic Spec. ) LAN connection ( 10/100) 1 4 WAN connection 2 2 2/1/1 2/4/1 - 2 防火牆Firewall SPI (Stateful Packet Inspection) Y Y Do. S (Denial of Service) Y Y DDo. S Y - ALGs Y Y ACL (L 2~L 4) Y Y Performance 效能 70 Mbps 100 Mbps 20, 000 32, 000 WAN/LAN/DMZ USB storage Throughput ( 寬頻接入) Session(同時連線數) Copyright © 2004. ASUSTek Computer, All rights reserved.
RX 3041寬頻IP分享器 ◆ 產品配置 -具備 4埠 10/100 Mbps LAN 埠,支援自動偵測交換埠 -具備 1埠 10/100 Mbps WAN 埠,支援 PPPOE/ADSL/Cable Modem連線 ◆ 產品規格 -MAC/網域(Domain)/URL/IP過濾功能 -支援DHCP Server/Client, 靜態路由, PPPo. E, PPTP -內建NAT功能 -支援一組虛擬DMZ埠設定,支援ALG (Application Layer Gateway) -提供安全事件紀錄 -TCP/IP, UDP -VPN pass through: L 2 TP, PPTP, IPSec -802. 3 x flow control ◆ 產品特性 -超大記憶体容量,支援即時連線數可達 4000條 -支援隨插即用(UPn. P) -簡單易懂LED面板顯示 -機台可直立,散熱效果佳 -虛擬DMZ可設定多組IP -支援Telnet Copyright © 2004. ASUSTek Computer, All rights reserved.
Thank You! Copyright © 2004. ASUSTek Computer, All rights reserved.
