Astronomy 305 Exam Topics Exam I Star Charts
- Slides: 29
Astronomy 305 Exam Topics ¬ Exam I – Star Charts ¬ Exam II –Coordinate Systems and Telescopes ¬ Exam III – Planets, Comets and Asteroids ¬ Exam IV – Stars and Deep Sky Objects

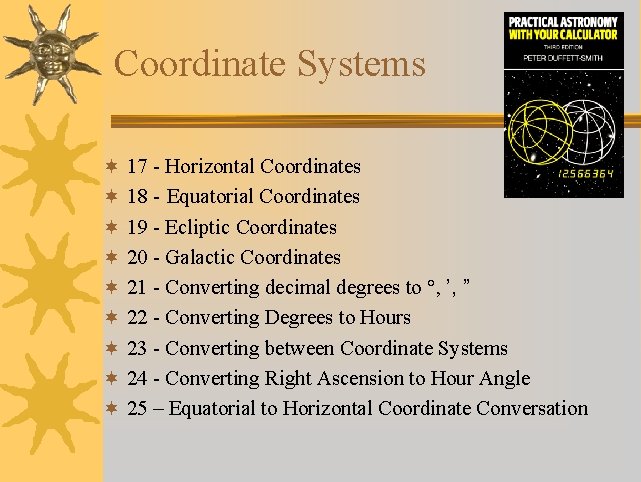

Coordinate Systems ¬ 17 - Horizontal Coordinates ¬ 18 - Equatorial Coordinates ¬ 19 - Ecliptic Coordinates ¬ 20 - Galactic Coordinates ¬ 21 - Converting decimal degrees to °, ’, ” ¬ 22 - Converting Degrees to Hours ¬ 23 - Converting between Coordinate Systems ¬ 24 - Converting Right Ascension to Hour Angle ¬ 25 – Equatorial to Horizontal Coordinate Conversation
Celestial Coordinate Systems ¬These are coordinate systems with two angular measurements: • Geographical • Horizontal • Equatorial • Ecliptic • Galactic
Geographical System ¬Latitude (f) – the angle of a city above the equator ¬Longitude (L) – the angle around the equator from the Prime Meridian
17 - Horizontal System ¬Altitude (a) – the angle of a star above the horizon ¬Azimuth (A) – the angle around the horizon from the north point; measured eastward
18 - Equatorial System ¬Declination (d) ¬Right Ascension (a) ¬Hour Angle (H) – the difference between the right ascension of your meridian and the right ascension an object
24 – Converting between a and H ¬LST = Local Sidereal Time – LST is the same as the right ascension of the meridian on your star charts ¬H = LST – a ¬Examples: – What is the hour angle of Regulus at 11: 00 PM tonight? – What is the hour angle of Sirius at 8: 00 PM tonight?
Celestial Meridian d H Celestial Equator 90°- f S HORIZON
Celestial Meridian d Celestial Equator a 90°- f S HORIZON
19 - Ecliptic System ¬ Ecliptic Latitude (b) – the angle of a star above the ecliptic ¬ Ecliptic Longitude (l) – the angle around the ecliptic from the vernal equinox – measured eastward – labeled along the ecliptic on the star charts ¬ Obliquity (e) – the angle between the ecliptic and the celestial equator and is approximately 23. 5 degrees
20 - Galactic System ¬Galactic Latitude (b) – the angle of a star above the galactic plane ¬Galactic Longitude (l) – the angle around the galactic plane – measured eastward from the galactic center
Examples Problem ¬For all of the planets find… – their ecliptic longitudes – the host constellation – their equatorial coordinates ¬Hint: Use Appendix 11
Planet Positions Planet Mercury Venus Mars Jupiter Saturn Uranus l a d Constellation

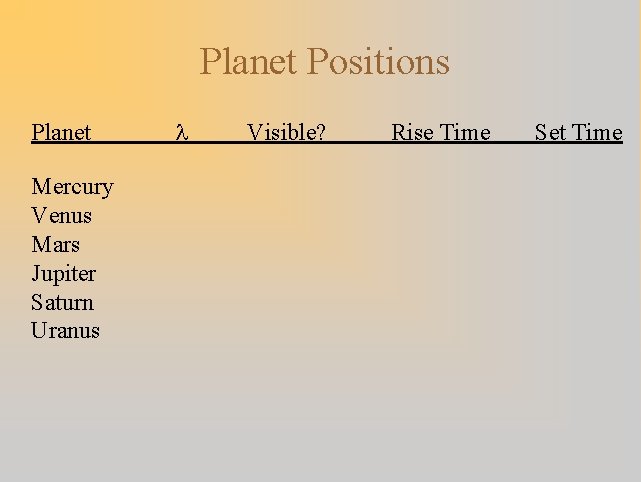

Planet Positions Planet Mercury Venus Mars Jupiter Saturn Uranus l Visible? Rise Time Set Time
Example Problems ¬Calculate the altitude and azimuth of Capella for 11: 00 PM tonight.
25 - Equatorial to Horizontal ¬Step 1 Find a, LST and H is decimal hours. ¬Step 2 Convert H to degrees. ¬Step 3 Convert d to decimal degrees.

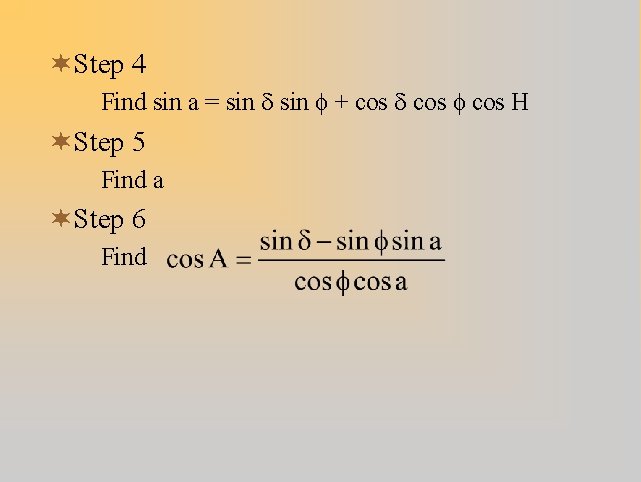

¬Step 4 Find sin a = sin d sin f + cos d cos f cos H ¬Step 5 Find a ¬Step 6 Find

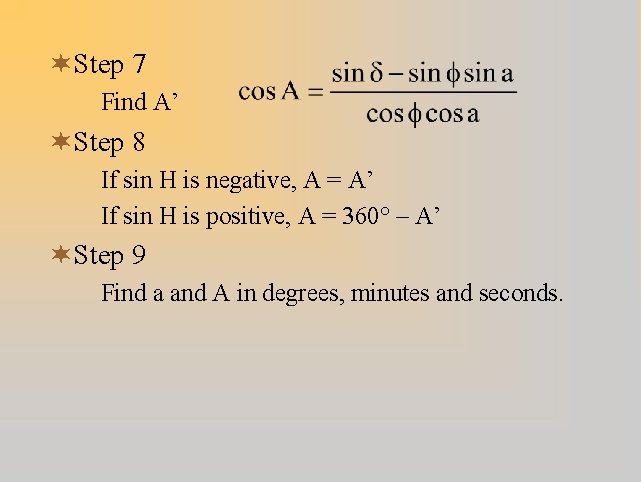

¬Step 7 Find A’ ¬Step 8 If sin H is negative, A = A’ If sin H is positive, A = 360° – A’ ¬Step 9 Find a and A in degrees, minutes and seconds.
More Examples ¬ What are the coordinates of Jupiter on May 5, 2005 at 8: 00 PM? ¬b ¬l ¬a ¬d ¬ LST ¬H ¬a ¬A
Reading Assignment ¬Chapter 2 – A Tour of the Sky ¬Chapter 3 – The Monthly Sky Maps ¬Chapter 16 – Telescopes and Binoculars
More Examples ¬ What are the coordinates of Venus tonight at 7: 00 pm? ¬b ¬l ¬a ¬d ¬ LST ¬H ¬a ¬A
25 - Equatorial to Horizontal ¬Step 1 Find a, LST and H is decimal hours. ¬Step 2 Convert H to degrees. ¬Step 3 Convert d to decimal degrees.
¬Step 4 Find sin a = sin d sin f + cos d cos f cos H ¬Step 5 Find a ¬Step 6 Find
¬Step 7 Find A’ ¬Step 8 If sin H is negative, A = A’ If sin H is positive, A = 360° – A’ ¬Step 9 Find a and A in degrees, minutes and seconds.
More Examples ¬Suppose that the Moon occults the star Antares on Feb 6 th. Find the following for the Moon: ¬a ¬d ¬b ¬l
Ecliptic Coordinates ¬Step 1 Find a and d. ¬Step 2 Find a and d in decimal degrees. ¬Step 3 Find sinb = sind cose – cosd sine sina
¬Step 4 Find b. ¬Step 5 Find y = sina cose + tand sine ¬Step 6 Find x = cosa
¬Step 7 Find l.
More Examples ¬On what day does Vega cross the meridian at 8: 00 PM? ¬What is the maximum altitude of the Sun for today in Nacogdoches? ¬At approximately what time does the Sun cross the meridian today? ¬What is the maximum altitude of the Sun over one year?
