Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA EFDA ITER - Goal Oriented Training Program Port Plug Engineering - Maintainability associated to ITER Component Lifecycle Tutor : Jen-Pierre MARTINS julien. wagrez@cea. fr 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 1

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Objectives of my program Ø Short presentation of an Eq port plug Ø Kinematic & FE Analysis on the Transfer Cask System with Samtech Ø Maintenance of the TBM with HAS 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 2

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Objectives üBackground Cause = nuclear fusion reactions for long term Þ high magnetic fields Þ produces high energy neutron Þ generates very high temperatures Consequence = maintenance in nuclear environment Þ make first wall components highly constrained and causes its wear Þ many parts of this region must be replaced or refurbished during the reactor’s life Þ maintenance of a reactor in exploitation is a critical point, because it directly affects the availability of the machine and its economical productivity üProgram motivations § Even if the goal of ITER is not to be an industrial reactor, it is essential to consider its maintainability for at least two major reasons: Þ To have powerful available experimental equipment Þ To demonstrate that the maintenance by remote handling is possible for the further steps (DEMO) § Because remote handling is one of the most important technical issues of the whole project 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 3

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Equatorial Port Plug üDimension : 3. 5 m x 2. 2 m x 1. 7 m üWeight : 45 t üFirst Wall Component (= high activation) 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 4

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Kinematic & FE Analysis on the Transfer Cask System with Samtech üCollaboration with SAMTECH : § Collection of input data § Definition of the analysis methodology and study cases § Setup and delivery of the CATIA V 5 configuration models for the study § Idealization of the CAD geometry, in order to have a model that will be more oriented to computation § Delivery of the specifications the simulation activity 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 5

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Transfer Cask System (TCS) : Ports dedicated maintenance platform. It has to carry the first wall component to the Hot Cells (nuclear maintenance room). ü Envelope : it docks to the port and provide the confinment. ü Pallet : it permits to align the envelope with the port. ü Air cushion : it moves the all system inside the building. 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 6

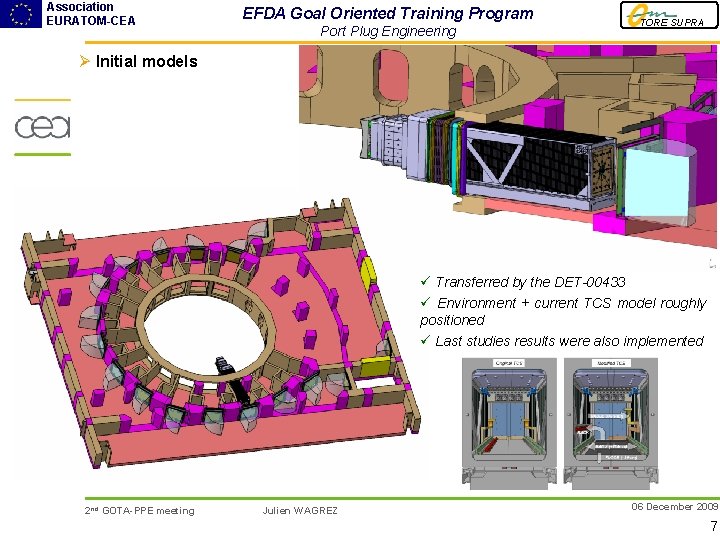

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Initial models ü Transferred by the DET-00433 ü Environment + current TCS model roughly positioned ü Last studies results were also implemented 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 7

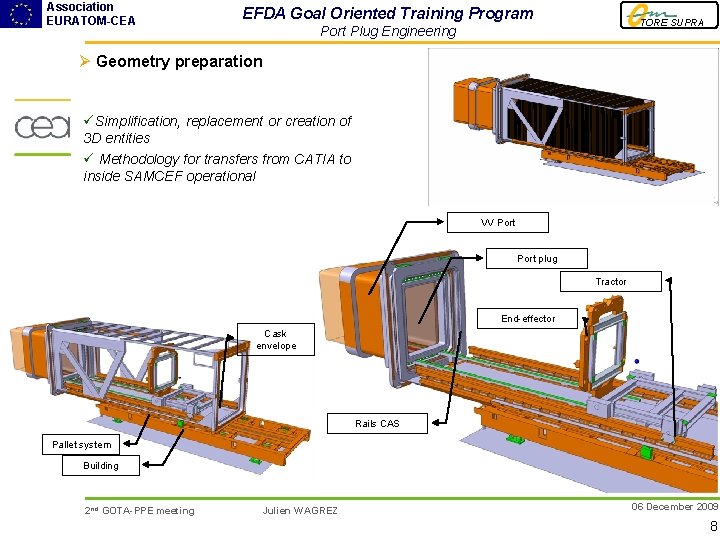

Association EURATOM-CEA EFDA Goal Oriented Training Program TORE SUPRA Port Plug Engineering Ø Geometry preparation üSimplification, replacement or creation of 3 D entities ü Methodology for transfers from CATIA to inside SAMCEF operational VV Port plug Tractor End-effector Cask envelope Rails CAS Pallet system Building 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 8

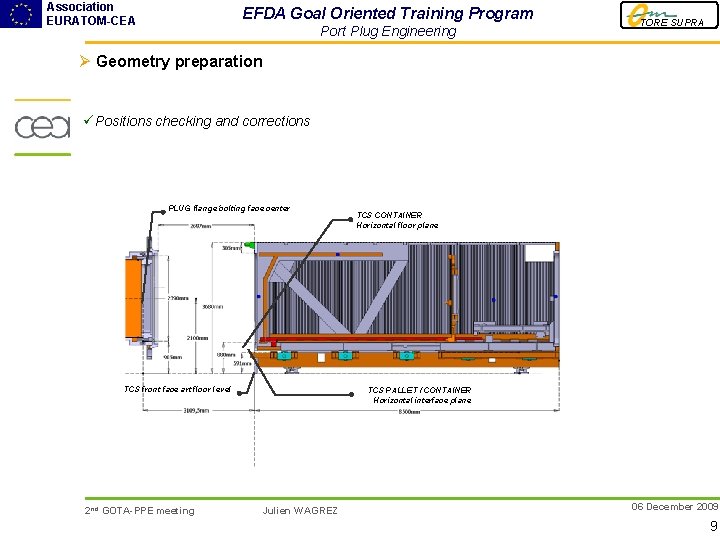

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Geometry preparation üPositions checking and corrections PLUG flange bolting face center TCS front face art floor level 2 nd GOTA-PPE meeting TCS CONTAINER Horizontal floor plane TCS PALLET / CONTAINER Horizontal interface plane Julien WAGREZ 06 December 2009 9

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Boundary conditions üLocalization of surfaces forces reactions on the structure üIdentification of the surfaces in contact 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 10

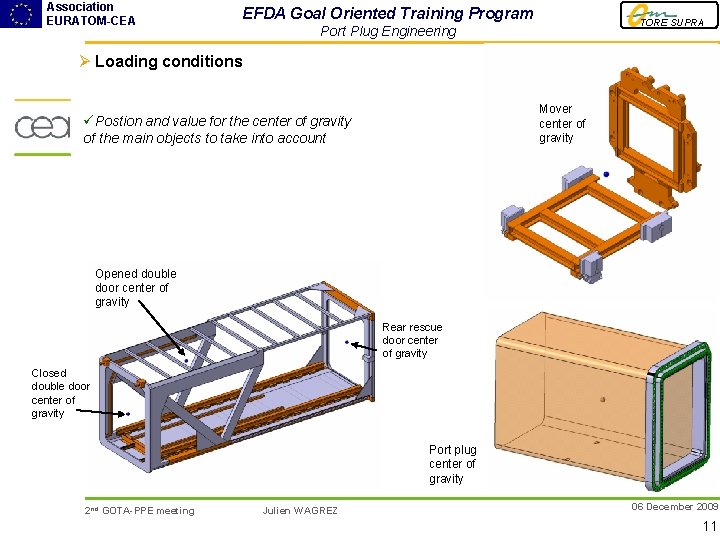

Association EURATOM-CEA EFDA Goal Oriented Training Program TORE SUPRA Port Plug Engineering Ø Loading conditions Mover center of gravity üPostion and value for the center of gravity of the main objects to take into account Opened double door center of gravity Rear rescue door center of gravity Closed double door center of gravity Port plug center of gravity 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 11

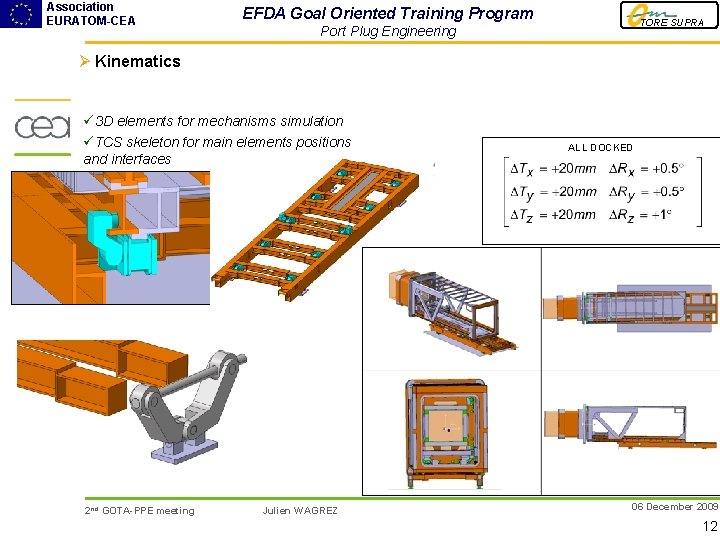

Association EURATOM-CEA EFDA Goal Oriented Training Program TORE SUPRA Port Plug Engineering Ø Kinematics ü 3 D elements for mechanisms simulation üTCS skeleton for main elements positions and interfaces 2 nd GOTA-PPE meeting Julien WAGREZ ALL DOCKED 06 December 2009 12

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Kinematics üDiagram of the mechanical links between the different subsystems 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 13

Association EURATOM-CEA EFDA Goal Oriented Training Program Port Plug Engineering TORE SUPRA Ø Conclusion ü Geometry is fixed üBoundary and loading conditions are defined ü Kinematics preparation is fully operational in CATIA ü The report finalizing the 80% of the CEA contribution is about to be officially delivered to SAMTECH 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 14

Association EURATOM-CEA TBM -TG 04 Kick off Meeting TORE SUPRA Task 19 : Design and development plan of the port cell dis-/assembly RH system Ø TBS Layout ü Main technical components of the TBM system § TBMs ( 2 vertical modules per equatorial port plug) VV § Plug frame, ultra high vacuum sealing, mechanical attachment and cooling pipes (IF 2 a) § Manifold set for TBM feeding (Pipe forest) Port Cell § Bioshield § Ancilary Equipment Unit (AEU) : Pb. Li-loop, measurement equipment, valves, tanks, … T Plant § Tritium plant dedicated area IF 1 IF 2 a IF 2 b Vacuum Vessel IF 3 + AEU Tritium plant equipment Port Duct Port Extension Port Cell Door Bioshield VV Port Cell T Plant Main components of the installed TBM system in port cell (EU current study) 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 15

Association EURATOM-CEA TBM -TG 04 Kick off Meeting Task 19 : Design and development plan of the port cell dis-/assembly RH system TORE SUPRA Ø Maintenance conditions hypothesis for the current study ü Interface 2 a is accessible even if AEU is connected => robot carriage must be installed in AEU structure ü A maintenance corridor is available on the side to allow human / machine access to the interfaces ü The bio-shield contains a dedicated maintenance door to give access to the pipe forest ü The cutting task is considered prior to the welding operation, because this is the most critical operation in terms of exposure 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 16

Association EURATOM-CEA TBM -TG 04 Kick off Meeting Task 19 : Design and development plan of the port cell dis-/assembly RH system TORE SUPRA Ø Pipe Forest preliminary design ü Pipe forest integration taking into account maintenance access (man / robot) ü Pipes insulation thickness = 100 mm 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 17

Association EURATOM-CEA TBM -TG 04 Kick off Meeting Task 19 : Design and development plan of the port cell dis-/assembly RH system TORE SUPRA Ø Robotic simulations first results ü Industrial arm mounted on a commercial based elements 4 dofs platform designed by HAS ü After some modifications on the pipes and robotic tool design, first preliminary result have not revealed any killing issue 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 18

Association EURATOM-CEA TBM -TG 04 Kick off Meeting Task 19 : Design and development plan of the port cell dis-/assembly RH system TORE SUPRA Ø Remaining work and outlook ü First test with one dexterous industrial robot arm have been performed for cutting accessibility ü A more realistic cutting tool coming from HAS work is about to be integrated in order to replace the current simplified shape ü The remote removal of the insulation “half-shells” is about to start ü Other industrial robotic arms will be implemented in order to check the feasibility with different kind of robot providers. This is in order to avoid any exclusive robotic arm architecture and provider. ü An important handling equipment is required to transport the pipe forest during maintenance operations. A first assessment of this tool is starting. ü A preliminary design of the bio-shield will specify it’s main interfaces 2 nd GOTA-PPE meeting Julien WAGREZ 06 December 2009 19
