Asset Management Asset ID Tags RFID Tag location

Asset Management Asset ID Tags

RFID Tag location Guide • An RFID tag should be attached so it is visible when the device is placed in its final location. • The tag should not interfere with the operation of the device. • The location shown is preferable, but another location can be used if: – The preferred location will not allow the device to operate, and; – The alternative location has been approved by the TOC Project Manager. • Alternate tag location considerations. Attach the Tag directly to the device, not to a cable or other removable part. – The mounting surface to be flat; – Does not cover vent holes; – Tag to be places parallel to the device edge; (Cont’d)

RFID Tag location Guide • Alternate tag location considerations: (Cont’d) – Tag is placed so it is protected as much as possible. – Tag to be fully supported with no overhang that might create a catch point. – Does not cover factory applied stickers or text, such as model or serial number, device name or manufacturer information. • Attaching the tag: – Attaching the tag with the adhesive strip is preferred, unless shown otherwise; – Coated stainless steel tie straps can be used it the adhesive strip cannot be used. , or; – A stainless steel twisted wire and lead seal can be used only if the adhesive strip or coated stainless steel tie strap cannot be used.

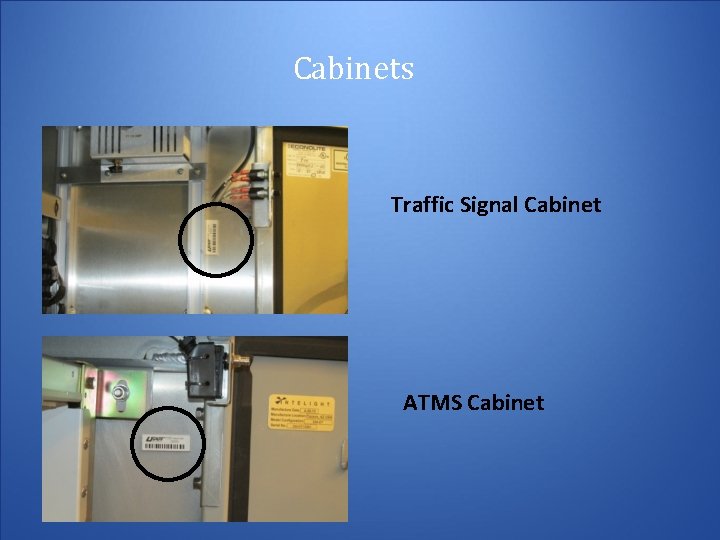

Cabinets Traffic Signal Cabinet ATMS Cabinet

Cameras Pelco Esprit Camera Vicon Dome Camera

Cameras Pelco Dome Camera FLIR Camera

Cameras V Brick Encoder Teleste Encoder

Cameras Pelco Remote Data Port Signal Detection Camera

Communication Ruggedcom Fiber Switch Cisco Catalyst 2955 Fiber Switch

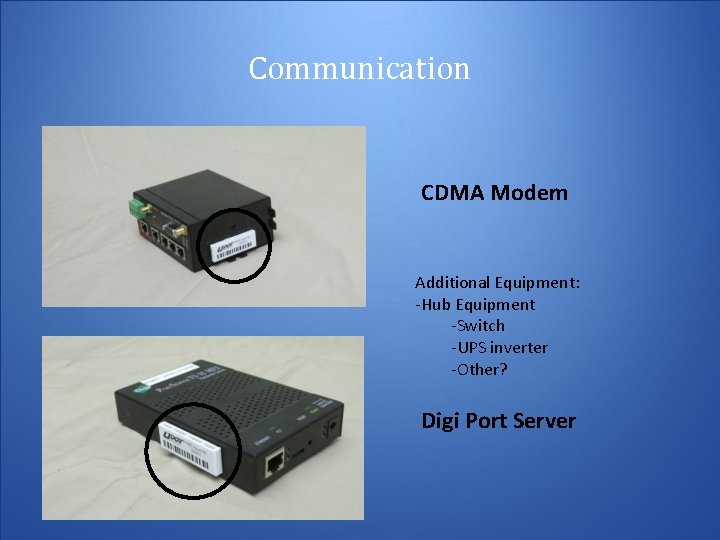

Communication CDMA Modem Additional Equipment: -Hub Equipment -Switch -UPS inverter -Other? Digi Port Server

Communication Redline Ethernet Radio Encom type Ethernet Radio

Detection Equipment Econolite Detection Card EDI Detection Card

Detection Equipment Sensys Access Point Sensys Repeater

Detection Equipment - Nonintrusive NID Detector - Place tag near plug, visible to ground , if possible.

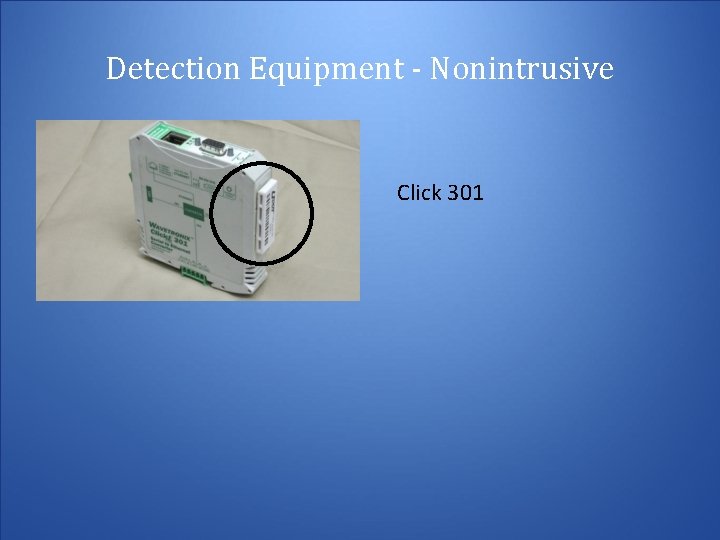

Detection Equipment - Nonintrusive Click 301

Detection Equipment Image not available Additional Equipment: -Click 4 XX - Click 6 XX Image not available - Preemption Card - Click 4 XX Click 6 XX

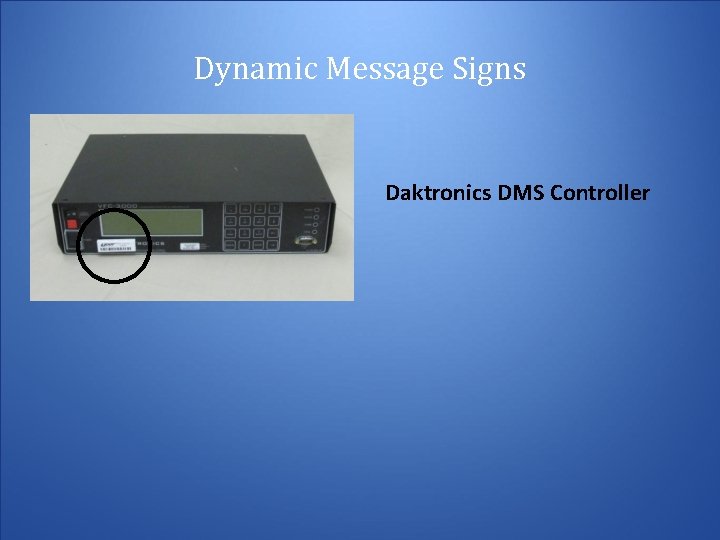

Dynamic Message Signs Daktronics DMS Controller

Dynamic Message Signs Type 1 VMS Cabinet Other DMS Equipment such as other VMS, Flex Lane signs, Variable Speed Limit Signs, Speed or Curve Warnings Signs, Prepare to Stop signs, etc: Place tag on bottom of Dynamic Message Sign cabinet, visible from the ground.

Equipment Controllers Econolite ASC/3 2100 Econolite ACS/2 2000

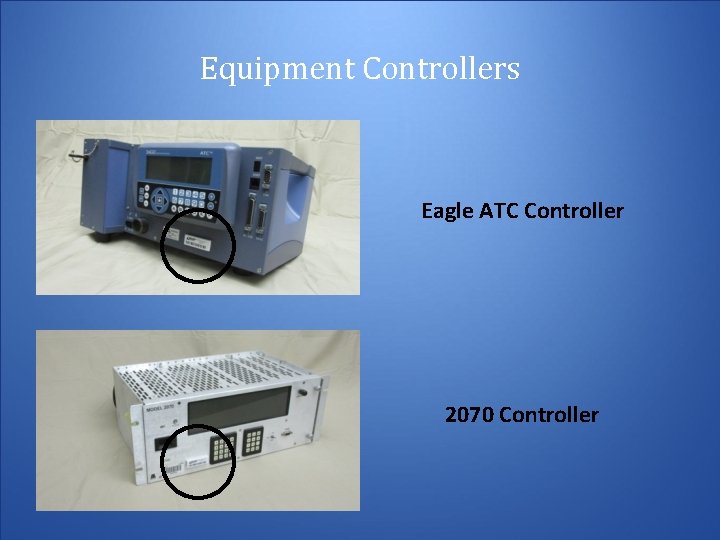

Equipment Controllers Eagle ATC Controller 2070 Controller

Highway Advisory Radios HAR Transmitter

Power Equipment Battery Backup Power Inverter

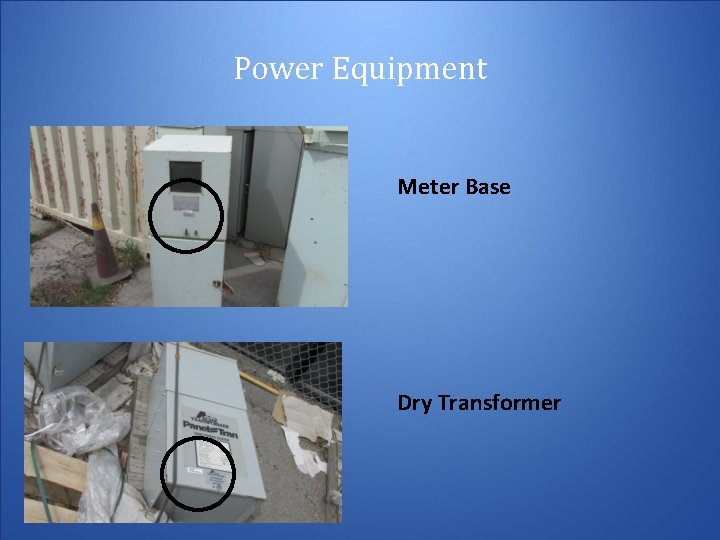

Power Equipment Meter Base Dry Transformer

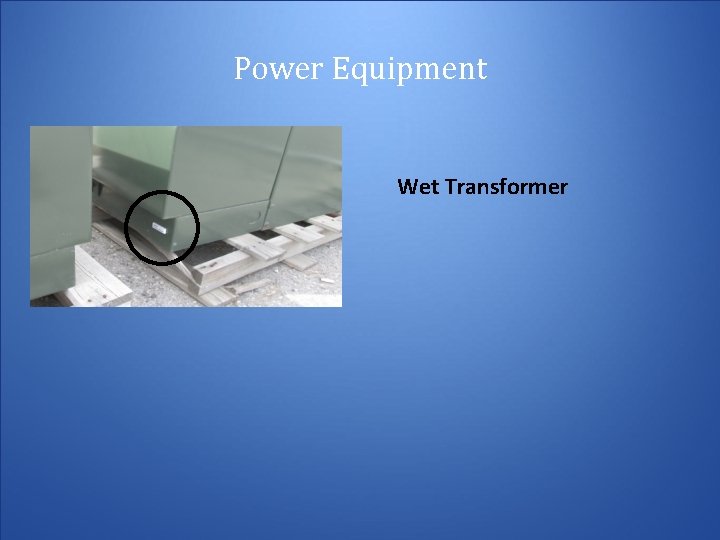

Power Equipment Wet Transformer

Roadway Weather Information Sations Road Surface Sensor Visibility Sensor

Signals Equipment Econolite MMU Reno MMU
