Assessment of environmental estrogens on commercial species of fish health and their habitat in

Assessment of environmental estrogens on commercial species of fish health and their habitat in mariculture areas in southern Fujian, China and XXXX, USA Yusheng ZHANG Third Institute of Oceanography State Oceanic Administration, China June 13, 2011

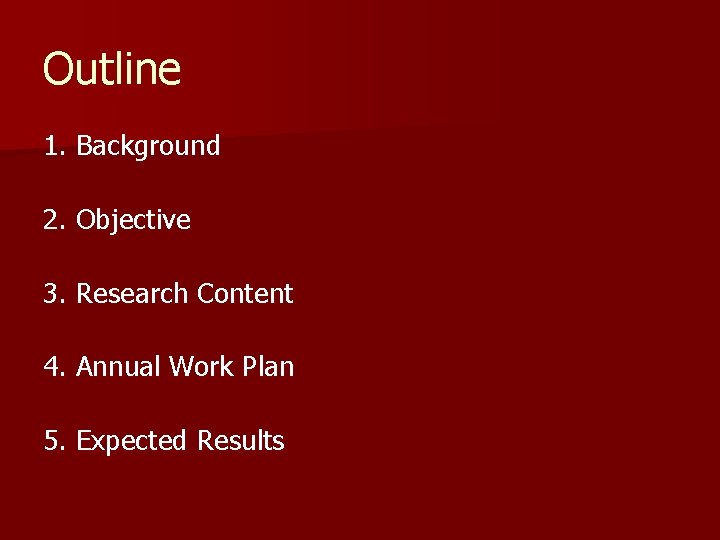

Outline 1. Background 2. Objective 3. Research Content 4. Annual Work Plan 5. Expected

Outline 1. Background 2. Objective 3. Research Content 4. Annual Work Plan 5. Expected Results

1. Background

1. Background

EEs n Endocrine disruptors (EDs) are a group of structurally diverse compounds that may

EEs n Endocrine disruptors (EDs) are a group of structurally diverse compounds that may adversely affect the health of humans, wildlife, or their progenies by interaction with the endocrine system. n EDs e. g. EEs (environmental estrogens) or EDCs (endocrine disrupting compounds).

Where are EEs from? (1) Air source: waste burning; industrial leakage; building material and

Where are EEs from? (1) Air source: waste burning; industrial leakage; building material and furniture volatile commodity; (2) Water source: industrial waste water, sewage, rainwater etc; (3) Food source: contaminated food with pesticides, food additives, preservatives etc; (4) soil source :industrial and agricultural activities.

Major abnormal function of EEs animal reproductive organs, reproductive function and reproductive behavior, metabolic

Major abnormal function of EEs animal reproductive organs, reproductive function and reproductive behavior, metabolic disorders etc.

How many kinds of EEs? (1).

How many kinds of EEs? (1).

How many kinds of EEs? (2) n about 70 kinds: several heavy metals Cd,

How many kinds of EEs? (2) n about 70 kinds: several heavy metals Cd, Pb, Hg etc; 67 organic compounds including 44 pesticides; some other dyes, fragrants, paints, detergents, surfactants, plastic product additives, pharmaceuticals, food additives, animal and plant hormones

EEs action mechanism EEs→Receptor → EEs-R complex →DNA (VTG gene)→m. RNA → protein (VTG)

EEs action mechanism EEs→Receptor → EEs-R complex →DNA (VTG gene)→m. RNA → protein (VTG) EEs: persistent, accumulating→ great number of VTG →abnormal physiological function!!

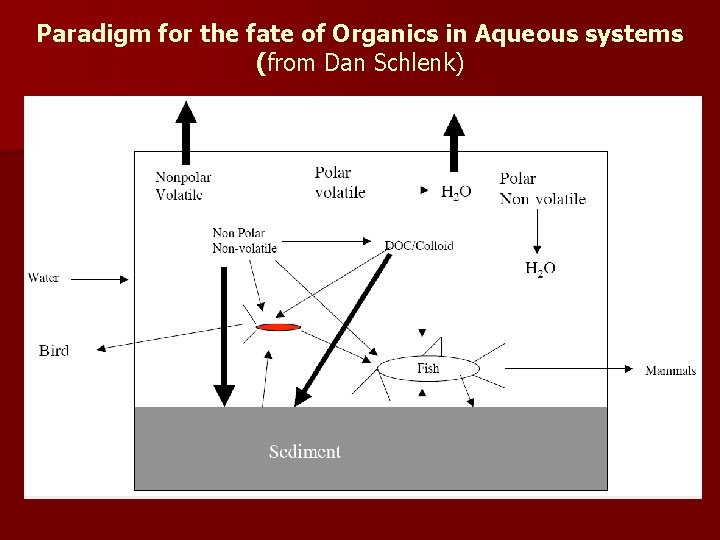

Paradigm for the fate of Organics in Aqueous systems (from Dan Schlenk)

Paradigm for the fate of Organics in Aqueous systems (from Dan Schlenk)

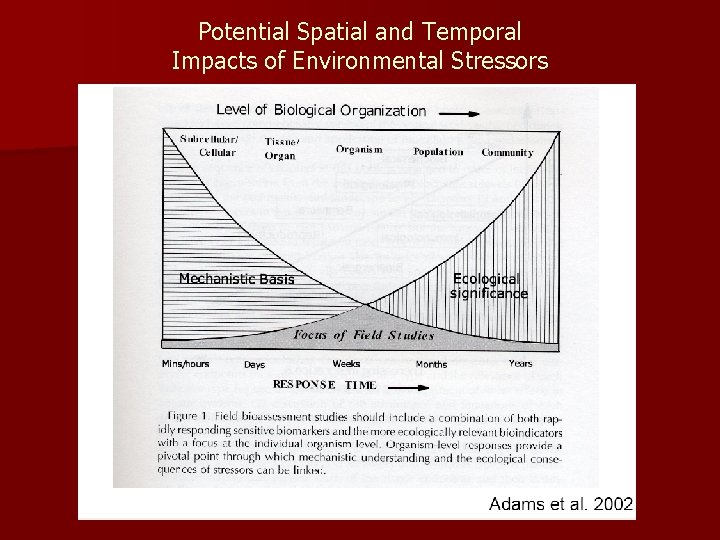

Potential Spatial and Temporal Impacts of Environmental Stressors

Potential Spatial and Temporal Impacts of Environmental Stressors

2. Objective More and more attention has been paid to the effects of environmental

2. Objective More and more attention has been paid to the effects of environmental estrogens on fishery resources health. Fish: top predator; Food safety. n Fish biomarkers will be studied and applied to understand assess the effects of environmental estrogens on commercial species of fish health and their habitat in mariculture areas in southern Fujian, P. R. China and XXX, California, USA. n Moreover, a strategy will be suggested to prevent and control the effects of environmental estrogen contamination/pollution on commercial species of fish in mariculture area for local governmental department concerned.

* Taiwan

* Taiwan

Location of Dngshan island

Location of Dngshan island

Mariculture area of Dongshan in southern Fujian, China Location: Between the East China Sea

Mariculture area of Dongshan in southern Fujian, China Location: Between the East China Sea the South China Sea 117. 29 °~ 117. 57 °E, 23. 56 °~ 23. 79 °N n Dongshan island/county ——subtropic area population: 0. 248 million 33 islands, the largest one 194 km 2 average 20. 8℃ (12. 9℃ -27. 4℃ ) many bays; 317. 5 km 2 (<2 km) n One of 4 most important counties for mariculture in china n

Mariculture area of Dongshan in southern Fujian, China n High biodiversity 1352 species phytoplankton:

Mariculture area of Dongshan in southern Fujian, China n High biodiversity 1352 species phytoplankton: 211 species zooplankton: 167 species benthos: 793 species neckton: 181 species n The Cross area of Minnan and Huidong fish grounds.

Mariculture of Dongshan in 2007 n Caged fish culture: 63. 6 ,6515 t; n

Mariculture of Dongshan in 2007 n Caged fish culture: 63. 6 ,6515 t; n Eel: 384 he 2 ,2060 t; n Shellfish: 5283 he 2, 11622 t; n Shrimp: 994 he 2 ,2119 t; n …… Total: 8548 he 2 ,151328 t。

Caged culture

Caged culture

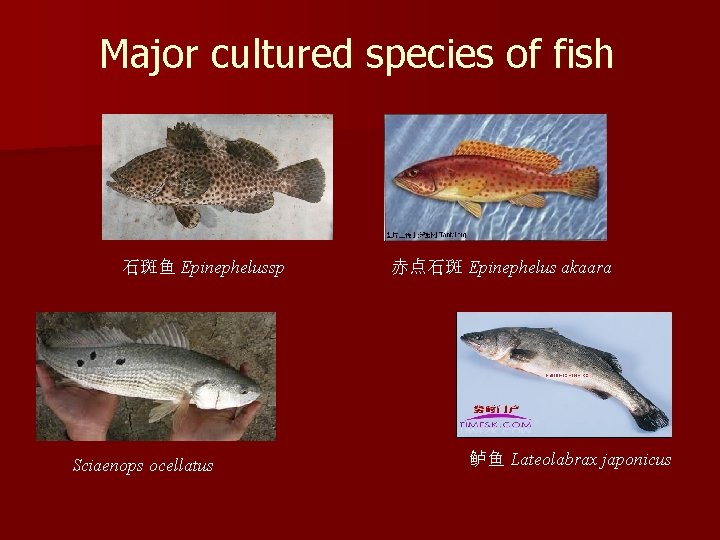

Major cultured species of fish 石斑鱼 Epinephelussp Sciaenops ocellatus 赤点石斑 Epinephelus akaara 鲈鱼 Lateolabrax

Major cultured species of fish 石斑鱼 Epinephelussp Sciaenops ocellatus 赤点石斑 Epinephelus akaara 鲈鱼 Lateolabrax japonicus

蓝子鱼 Siganus virgatus 赤鯮鱼 Dentex tumifrons 黄鳍鲷 Sparus latus Houttuyn 鮸鱼Miichthys miiuy 黑鲷Sparus macrocephalus

蓝子鱼 Siganus virgatus 赤鯮鱼 Dentex tumifrons 黄鳍鲷 Sparus latus Houttuyn 鮸鱼Miichthys miiuy 黑鲷Sparus macrocephalus 鲻鱼 Mugil cephalus Major cultured species of fish

九孔鲍 Haliotis diversicolor 菲律宾蛤Ruditapes philippinarum 太平洋牡蛎 Crassostrea gigas 龙须菜 Gracilaria sp. 太平洋牡蛎 Crassostrea gigas

九孔鲍 Haliotis diversicolor 菲律宾蛤Ruditapes philippinarum 太平洋牡蛎 Crassostrea gigas 龙须菜 Gracilaria sp. 太平洋牡蛎 Crassostrea gigas 海带 Thallus Laminariae 紫菜 Porphyra yezoensis Major cultured shellfish and algea

Marine endangered species in Dongshan waters

Marine endangered species in Dongshan waters

3. Research Content Ⅰ n The following contents are included in the present study:

3. Research Content Ⅰ n The following contents are included in the present study: 1). To select a proper mariculture area and some commercial species of fish from the mariculture area from each country for cooperative study, respectively; 2). To study and establish marine fish biomarkers, such as VGT and CYP 1 A western blot and ELISA, “comet ” assay etc.

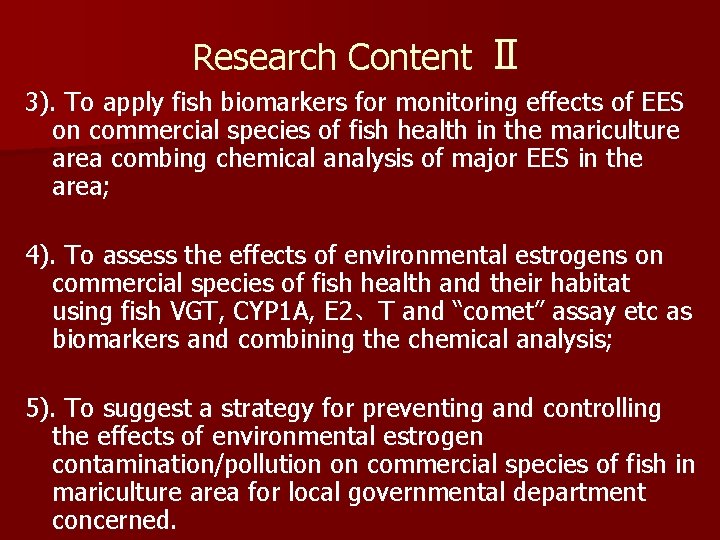

Research Content Ⅱ 3). To apply fish biomarkers for monitoring effects of EES on

Research Content Ⅱ 3). To apply fish biomarkers for monitoring effects of EES on commercial species of fish health in the mariculture area combing chemical analysis of major EES in the area; 4). To assess the effects of environmental estrogens on commercial species of fish health and their habitat using fish VGT, CYP 1 A, E 2、T and “comet” assay etc as biomarkers and combining the chemical analysis; 5). To suggest a strategy for preventing and controlling the effects of environmental estrogen contamination/pollution on commercial species of fish in mariculture area for local governmental department concerned.

4. Annual Work Plan n 1).July, 2011 ~ December, 2011 To work out the

4. Annual Work Plan n 1).July, 2011 ~ December, 2011 To work out the proposal for cooperative study on effects and assessment of environmental estrogens on commercial species of fish health and their habitat in the mariculture areas in southern Fujian, P. R. China and XXXX, USA; To select a proper mariculture area from each country for cooperative study, respectively; To choice some proper commercial fish species from the mariculture area in each country for the study.

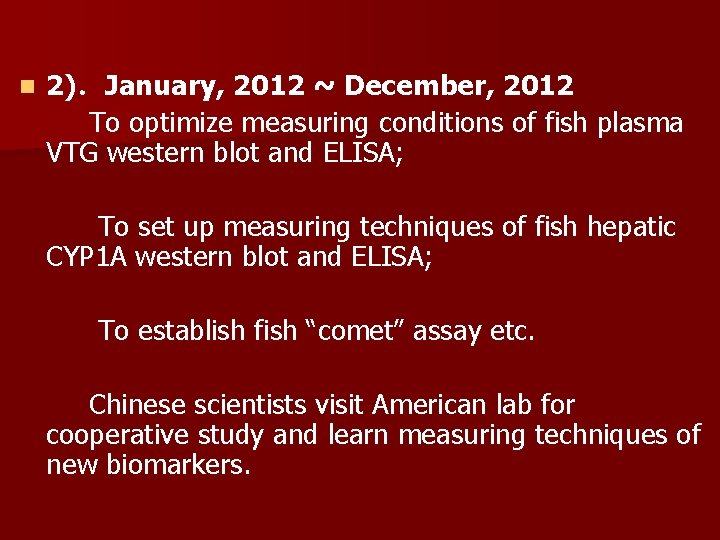

n 2).January, 2012 ~ December, 2012 To optimize measuring conditions of fish plasma VTG

n 2).January, 2012 ~ December, 2012 To optimize measuring conditions of fish plasma VTG western blot and ELISA; To set up measuring techniques of fish hepatic CYP 1 A western blot and ELISA; To establish fish “comet” assay etc. Chinese scientists visit American lab for cooperative study and learn measuring techniques of new biomarkers.

n 3).January, 2013 ~ December, 2013 The 1 st year of field study: To

n 3).January, 2013 ~ December, 2013 The 1 st year of field study: To monitor biochemical effects of environmental estrogens of commercial species of fish health in maricuture areas in southern Fujian, P. R. China and XXXX, USA for both the cooperative labs using fish VGT, CYP 1 A, E 2、T and “comet” assay etc as biomarkers. To conduct chemical analysis of environmental estrogens in water and sediment samples from the mariculture areas for the bilateral partners. American scientists visit China to exchange the 1 st year of field study results etc.

n 4).January, 2014 ~ December, 2014 The 2 nd year of field study: To

n 4).January, 2014 ~ December, 2014 The 2 nd year of field study: To monitor biochemical effects of environmental estrogens of commercial species of fish health in maricuture areas in Southern Fujian, P. R. China and XXXX, USA for both the cooperative labs using fish VGT, CYP 1 A, E 2、T and “comet” assay etc as biomarkers. To conduct chemical analysis of environmental estrogens in water and sediment samples from the mariculture areas for the bilateral partners.

n 5).January, 2015 ~ December, 2015 To conduct data interpreting and summarize research results

n 5).January, 2015 ~ December, 2015 To conduct data interpreting and summarize research results on effects and assessment of environmental estrogens on commercial species of fish health and their habitat in mariculture areas in southern Fujian, P. R. China and XXXX, USA, respectively; To compare the results about effects and assessment of environmental estrogens on commercial species of fish health and their habitat in mariculture areas in southern Fujian, P. R. China and XXXX, USA; To write papers for publication; To finish a proposal on prevention and control of environmental estrogen contamination/pollution in mariculture area for the both labs, respectively; To hold a workshop on effects and assessment of environmental estrogens on commercial species of fish health and their habitat in mariculture areas if it is necessary; To discuss the possibility for further cooperative study.

5. Expected Results 1). Research report: Effects and assessment of environmental estrogens on commercial

5. Expected Results 1). Research report: Effects and assessment of environmental estrogens on commercial species of fish health and their habitat in mariculture area in southern Fujian, P. R. China; 2). Research report: Effects and assessment of environmental estrogens on commercial species of fish health and their habitat in mariculture area in XXXX, USA; 3). A strategy to prevent and control the effects of environmental estrogen contamination/pollution on commercial species of fish in mariculture area in southern Fujian, P. R. China; 4). A strategy for to prevent and control the effects of environmental estrogen contamination/pollution on commercial species of fish in mariculture area in XXXX, USA; 5). To publish 4~6 research papers totally.

Initial discussion with US partner Dan Schlenk, Ph. D. Professor n Aquatic Ecotoxicology n

Initial discussion with US partner Dan Schlenk, Ph. D. Professor n Aquatic Ecotoxicology n Department of Environmental Sciences n University of California, Riverside CA 92521 n Riverside, 951 -827 -2018 n 951 -827 -3993 -FAX n n Somebody else? ?

Thanks for your attention!

Thanks for your attention!

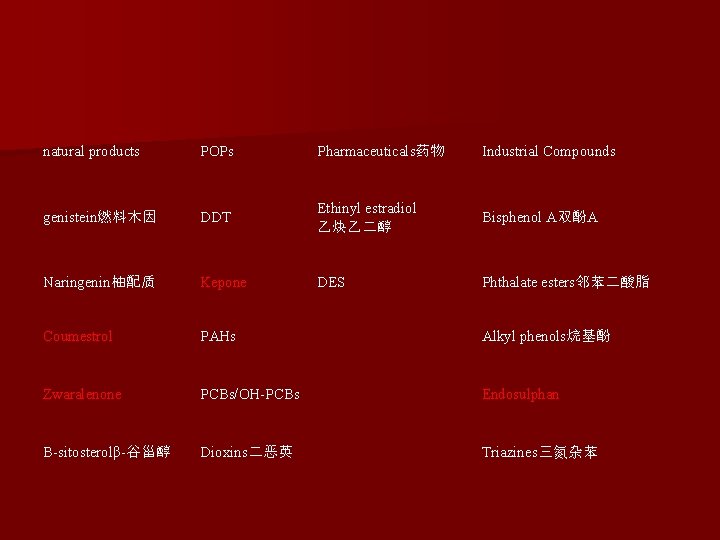

natural products POPs Pharmaceuticals药物 Industrial Compounds genistein燃料木因 DDT Ethinyl estradiol 乙炔乙二醇 Bisphenol A双酚A Naringenin柚配质

natural products POPs Pharmaceuticals药物 Industrial Compounds genistein燃料木因 DDT Ethinyl estradiol 乙炔乙二醇 Bisphenol A双酚A Naringenin柚配质 Kepone DES Phthalate esters邻苯二酸脂 Coumestrol PAHs Alkyl phenols烷基酚 Zwaralenone PCBs/OH-PCBs Endosulphan B-sitosterolβ-谷甾醇 Dioxins二恶英 Triazines三氮杂苯
