Aspire Release 3 0 Software Michael Pataky Aspire

Aspire Release 3. 0 Software Michael Pataky

Aspire Software Release 3. 00 n This presentation summarizes the new features and the major software corrections for Aspire release 3. 00 software. n The first section covers new/enhanced features. n The second section covers software corrections. n For more details, please see Aspire Release Notes.

New Features/Enhancements n Account code inter-digit timer n Alternate Carrier Access Code (New!) n ARS n Aspire Wireless n Call forwarding

New Features/Enhancements (continued) n Centralized Voice Mail n Conference n Directory Dialing – Aspire S Intra. Mail (New!) n DND n Extension Swap (New!)

New Features/Enhancements (continued) n Handset Volume Control n Incoming call timer (New!) n Internal Paging n ISDN (PRI) n Message Waiting

New Features/Enhancements (continued) n Multiple Greetings (Aspire S Intra. Mail) (New!) n Music on Hold n P Codes Provided on All CPUs (New!) n Port Copy n SIP Support (Limited release) (New!)

New Features/Enhancements (continued) n Software History Access via LAN (New!) n Station Park/Personal Park (New!) n Tie Lines n Trunk Ring Groups

New Features/Enhancements (continued) n ARS - Class of Service Matching feature n Matches ARS COS before outdialing - Can be used to set up a tenant-type configuration - Route E 911 calls in networked systems n Route back to local lines originating E 911 system n Local lines required at remote site

New Features/Enhancements (continued) n Aspire Wireless - New program for gain adjustment n Transmit n Receive - Added a service code to register/unregister Aspire Wireless handsets n Call Forwarding - Can activate/deactivate while on a call - Only for call forward – Station feature key - Transferred calls follow fixed call forward – off premises

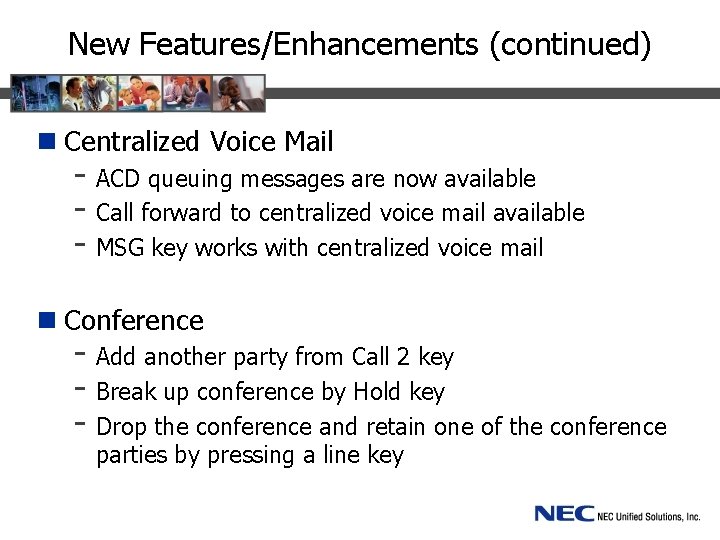

New Features/Enhancements (continued) n Centralized Voice Mail - ACD queuing messages are now available - Call forward to centralized voice mail available - MSG key works with centralized voice mail n Conference - Add another party from Call 2 key - Break up conference by Hold key - Drop the conference and retain one of the conference parties by pressing a line key

New Features/Enhancements (continued) n Directory Dialing (Intra. Mail, Aspire S Only) - Dial by name, first or last n DND - Activate/Deactivate DND while busy - COS option to disallow DND to a station n Extension Swap - Available in Tel. Pro, Web. Pro & PCPro - Swaps F-Keys, Name, Number, COS, etc.

New Features/Enhancements (continued) n Handset Volume Control - Option to retain handset volume setting or return to default setting after ending a call n Internal Page - Defaults changed as follows n Aspire – 301 -316 in Group 1; All others in Group 0 n Aspire S – 301 -308 in Group 1; All others in Group 0 n Incoming Call Timer - COS option to display timer when ringing begins.

New Features/Enhancements (continued) n ISDN - Flash function added to PRI n Centrex (2 B Channel) transfer and other features now available n Message Waiting - Option to set the color of the message waiting LED n Green/red n Red is default n Multiple Greetings (Intra. Mail, Aspire S Only) - Now supports 3 greetings

New Features/Enhancements (continued) n Music on Hold - Added option to use internal tone n P-Codes for All CPUs - Aspire 64 Port NTCPU-A 1 without PAL - Aspire S KSU - Aspire 64 Port with PALA and 256 Port already supports P-Codes n Port Copy - Copy by Port number, not only extension number

New Features/Enhancements (continued) n SIP Support (Limited availability) - SIP trunks supported n Not yet tested with any SIP trunk supplier. Ongoing. - SIP extensions supported n Various manufacturers tested n Limited functionality - Hold, transfer, originate/receive calls - Similar to H. 323 phone functionality. n Software History Access via LAN - Password Protected - Faster than existing serial port - Does not affect system operation

New Features/Enhancements (continued) n Station Park/Personal Park - Call placed on hold at extension - Dial Service code or press Station Park Key - Call parked at your extension - From another extension dial call pickup code (**XXX) - Cannot park networked trunks, stations or virtual extensions n Tie Line - Normal Station toll restriction will apply to tie line calls

New Features/Enhancements (continued) n Trunk Ring Groups - Transfer to Trunk Ring Groups now available.

Major Software Corrections n Conference n Department Groups n in. Depth n Networking n TAPI

Major Software Corrections n Conference - Can send DTMF while in conference in PRI trunks - DTMF tones sent to all trunks in conference n Department Groups - Can now transfer to a Department set for All Ring n in. Depth - Calls answered by voice mail send “P” commands

Major Software Corrections n Networking - Queuing to Centralized VM works properly - ACD queue messaged played to Centralized VM - Channel now released after pickup of a transferred call. - Incoming/Outgoing calls are not allowed if no IP - resource available. Call forward to Centralized VM works Calls across network follow off-premises call forwarding

Major Software Corrections n TAPI - Call control on calls made over a network now - available. Call control with Line. Blind. Transfer command
