Aspect Oriented Programming Carlos Oviedo Secure Systems Research

Aspect Oriented Programming Carlos Oviedo Secure Systems Research Group - FAU

Introduction • Late 90’s PARC (Palo Alto Research Center) • Object Oriented Programming & Metaobject modeling protocols • Capture cross-cutting concerns • Aspect. J Java • Under constant development Secure Systems Research Group - FAU

Cross-cutting concerns • Not encapsulated by imperative object oriented programming languages (C, C#, Java, Pascal. Etc) [Cac 04] Secure Systems Research Group - FAU

Cross-cutting concerns • Sometimes requirements relating to a particular concern are spread among multiple requirement sources. • Example: Logging • The consequence Code spread across several modules Secure Systems Research Group - FAU

Cross-cutting concerns A specific concern spread along multiple classes Secure Systems Research Group - FAU

Cross-cutting concerns • Security is a concern that has impact on each design unit. • Modifying the affected design units accordingly can be fault prone and a tedious task. • Other examples: • identity management • transaction integrity • authentication • performance Secure Systems Research Group - FAU

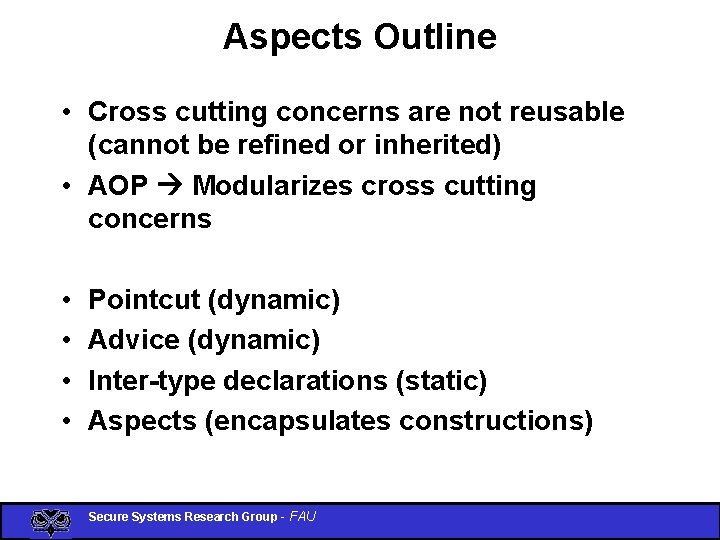

Aspects Outline • Cross cutting concerns are not reusable (cannot be refined or inherited) • AOP Modularizes cross cutting concerns • • Pointcut (dynamic) Advice (dynamic) Inter-type declarations (static) Aspects (encapsulates constructions) Secure Systems Research Group - FAU

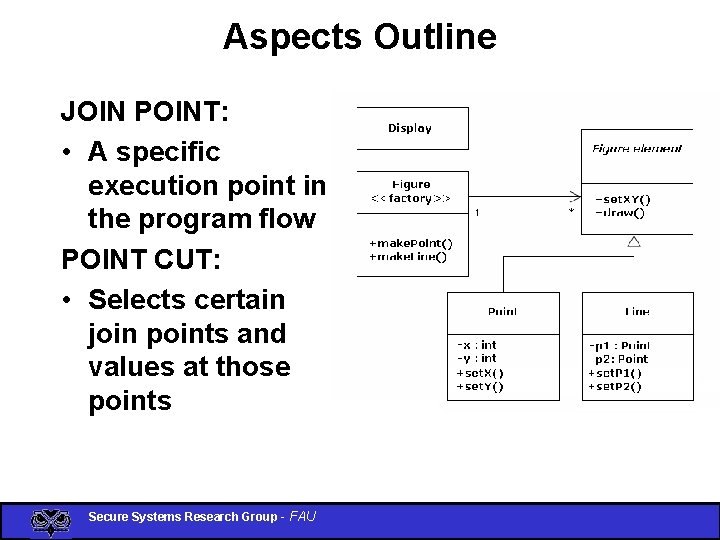

Aspects Outline JOIN POINT: • A specific execution point in the program flow POINT CUT: • Selects certain join points and values at those points Secure Systems Research Group - FAU

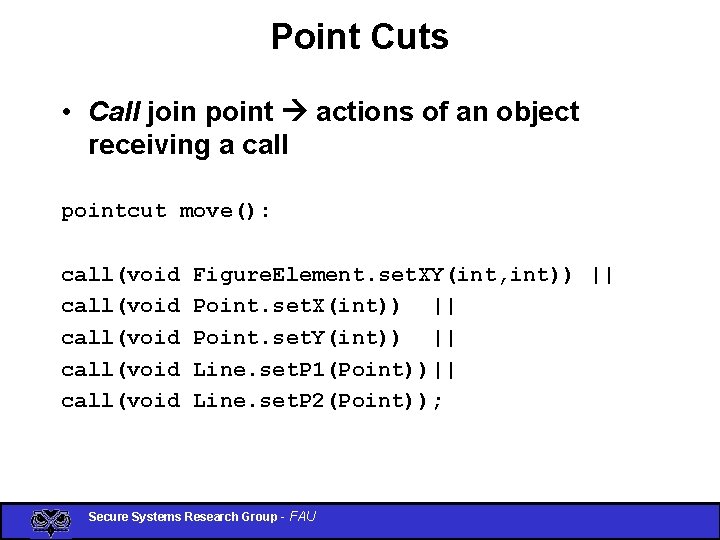

Point Cuts • Call join point actions of an object receiving a call pointcut move(): call(void call(void Figure. Element. set. XY(int, int)) || Point. set. X(int)) || Point. set. Y(int)) || Line. set. P 1(Point))|| Line. set. P 2(Point)); Secure Systems Research Group - FAU

Advices • To implement the cross cutting behaviors we use advices before(): move() { System. out. println("about to move"); } after() returning: move() { System. out. println("just successfully moved"); } Secure Systems Research Group - FAU

Aspects • Aspects are wrappers • Very similar to “object oriented” classes aspect Logging { Output. Stream log. Stream = System. err; before(): move() { log. Stream. println("about to move"); } } Secure Systems Research Group - FAU

Aspects in security • Example: Control access to a specific resource Account access by a bank officer Secure Systems Research Group - FAU

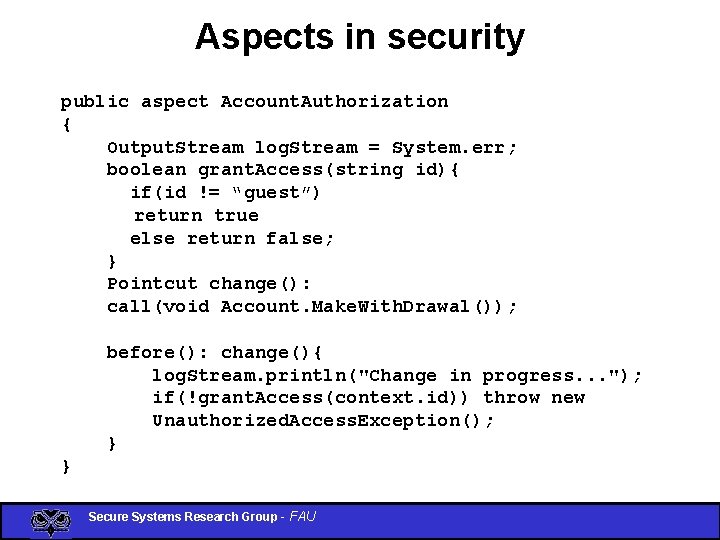

Aspects in security public aspect Account. Authorization { Output. Stream log. Stream = System. err; boolean grant. Access(string id){ if(id != “guest”) return true else return false; } Pointcut change(): call(void Account. Make. With. Drawal()); before(): change(){ log. Stream. println("Change in progress. . . "); if(!grant. Access(context. id)) throw new Unauthorized. Access. Exception(); } } Secure Systems Research Group - FAU

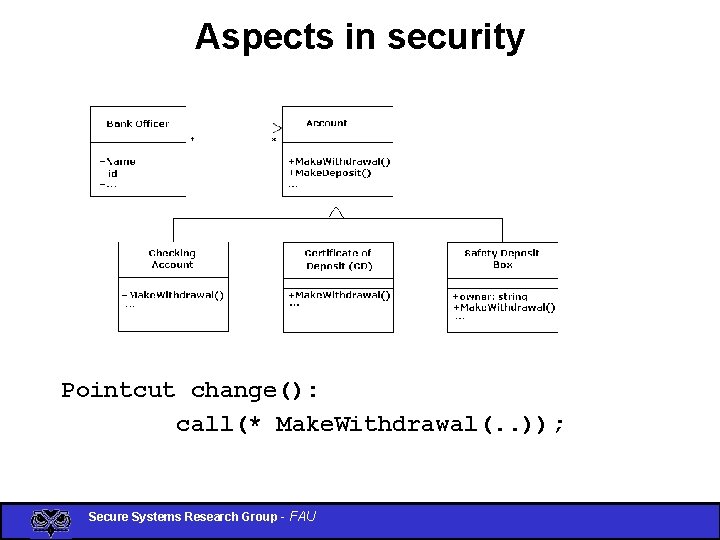

Aspects in security Pointcut change(): call(* Make. Withdrawal(. . )); Secure Systems Research Group - FAU

Aspects in security abstract aspect Simple. Authorization{ Output. Stream log. Stream = System. err; public static boolean grant. Access(string id) { if(id != “guest”) return true else return false; } abstract pointcut change(): call( * Make*(. . )); before(): change() { log. Stream. println("Change in progress. . . "); if(!grant. Access(context. id)) throw new Unauthorized. Access. Exception(); } } Secure Systems Research Group - FAU

Aspects in security • A specialization of the aspect: public aspect Transaction. Authorization extends Simple. Authorization { pointcut change(): within(Transaction) || within(Secure. Transaction); //. . . } Secure Systems Research Group - FAU

Conclusions • Aspects are capable abstract structures to capture cross cutting concerns such as security and can be applied to a system after it has been written. • Security concerns can be maintained in one place • Another example : track who did what on a system Non-repudiation • Currently this field is under constant expansion and it is worth to exploring its potential due its ability to encapsulate concerns Secure Systems Research Group - FAU

AOP: Aspect Oriented Programming Theserverside. com Secure Systems Research Group - FAU
