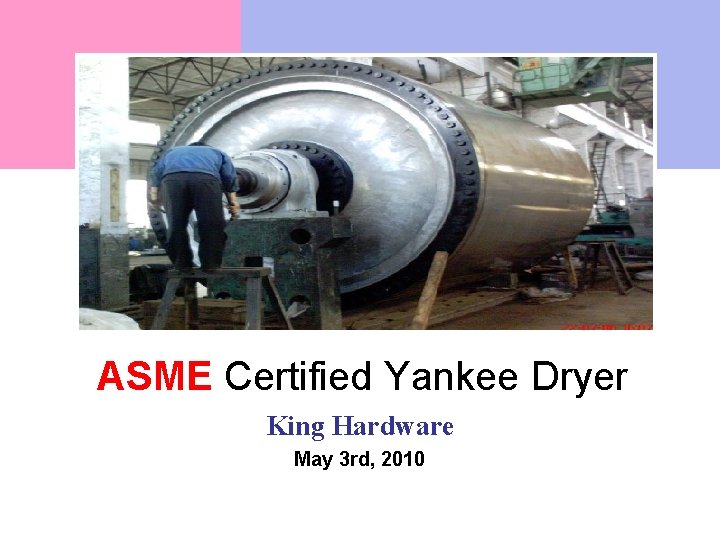

ASME Certified Yankee Dryer King Hardware May 3

ASME Certified Yankee Dryer King Hardware May 3 rd, 2010

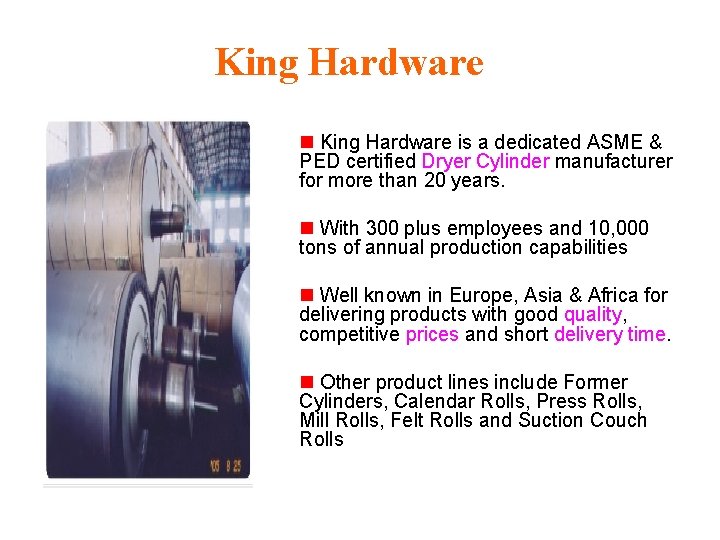

King Hardware n King Hardware is a dedicated ASME & PED certified Dryer Cylinder manufacturer for more than 20 years. n With 300 plus employees and 10, 000 tons of annual production capabilities n Well known in Europe, Asia & Africa for delivering products with good quality, competitive prices and short delivery time. n Other product lines include Former Cylinders, Calendar Rolls, Press Rolls, Mill Rolls, Felt Rolls and Suction Couch Rolls

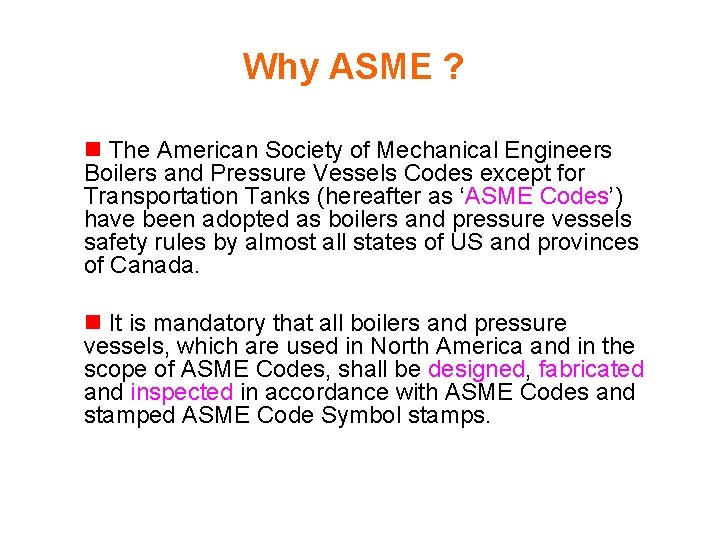

Why ASME ? n The American Society of Mechanical Engineers Boilers and Pressure Vessels Codes except for Transportation Tanks (hereafter as ‘ASME Codes’) have been adopted as boilers and pressure vessels safety rules by almost all states of US and provinces of Canada. n It is mandatory that all boilers and pressure vessels, which are used in North America and in the scope of ASME Codes, shall be designed, fabricated and inspected in accordance with ASME Codes and stamped ASME Code Symbol stamps.

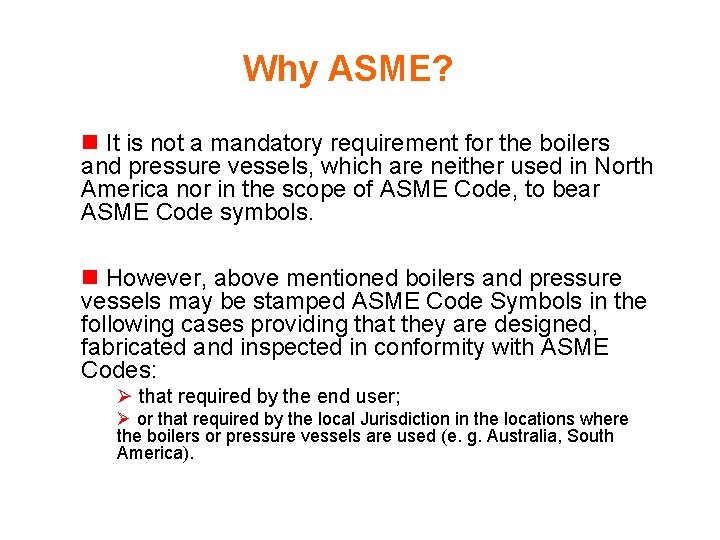

Why ASME? n It is not a mandatory requirement for the boilers and pressure vessels, which are neither used in North America nor in the scope of ASME Code, to bear ASME Code symbols. n However, above mentioned boilers and pressure vessels may be stamped ASME Code Symbols in the following cases providing that they are designed, fabricated and inspected in conformity with ASME Codes: Ø that required by the end user; Ø or that required by the local Jurisdiction in the locations where the boilers or pressure vessels are used (e. g. Australia, South America).

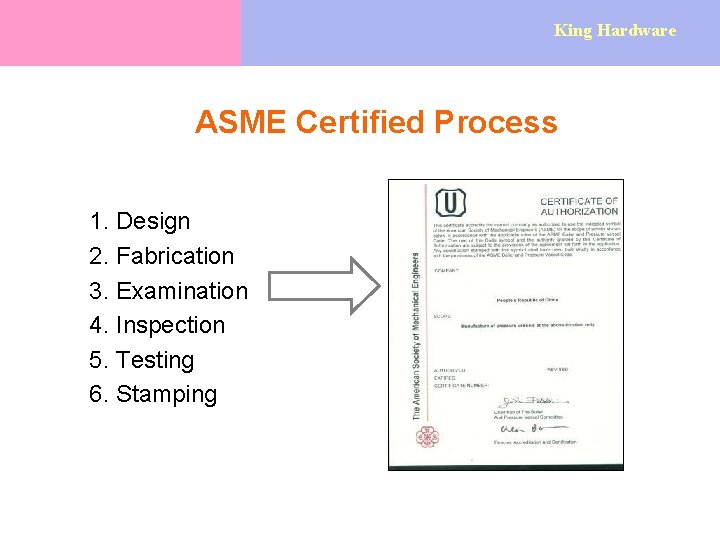

King Hardware ASME Certified Process 1. Design 2. Fabrication 3. Examination 4. Inspection 5. Testing 6. Stamping

ASME Certified Process 1. Design n Assure the drawing, design calculation and material selected meet the requirement of ASME VIII-1 n Check the service restriction and pressure-temperature limitations according to the ASME VIII-1

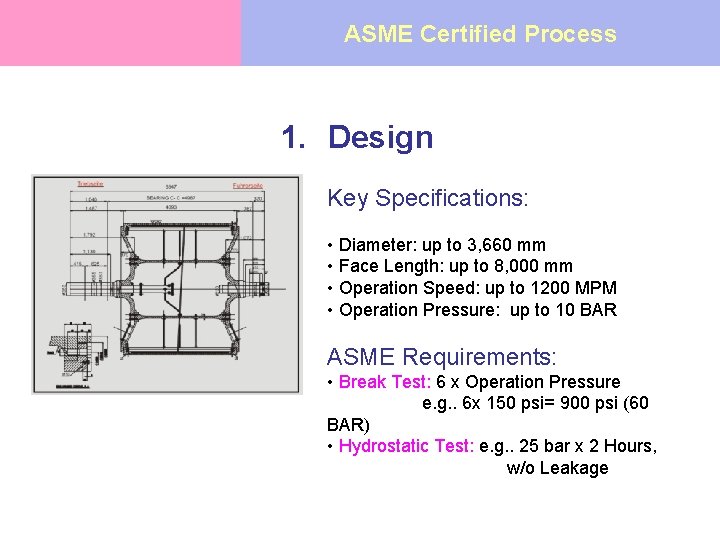

ASME Certified Process 1. Design Key Specifications: • Diameter: up to 3, 660 mm • Face Length: up to 8, 000 mm • Operation Speed: up to 1200 MPM • Operation Pressure: up to 10 BAR ASME Requirements: • Break Test: 6 x Operation Pressure e. g. . 6 x 150 psi= 900 psi (60 BAR) • Hydrostatic Test: e. g. . 25 bar x 2 Hours, w/o Leakage

ASME Certified Process 1. Design – Key Components Selection Bolts: • Material: Cr/Mo Alloy • Strength: 10. 8 class • Suppliers: Taiwan Gasket Seals: • Material: Patented • Strength: 28 BAR • Suppliers: Europe

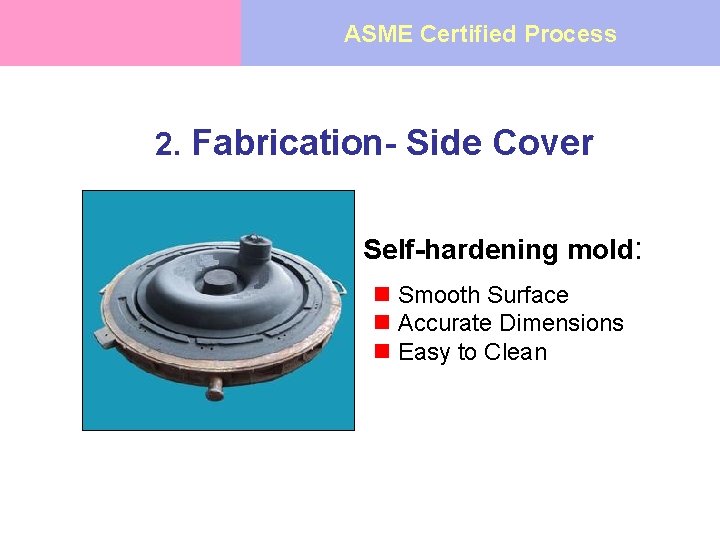

ASME Certified Process 2. Fabrication- Side Cover Self-hardening mold: n Smooth Surface n Accurate Dimensions n Easy to Clean

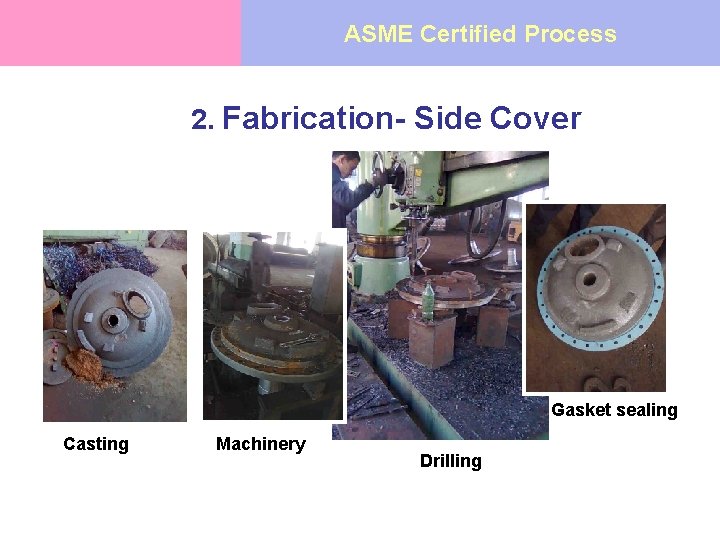

ASME Certified Process 2. Fabrication- Side Cover Gasket sealing Casting Machinery Drilling

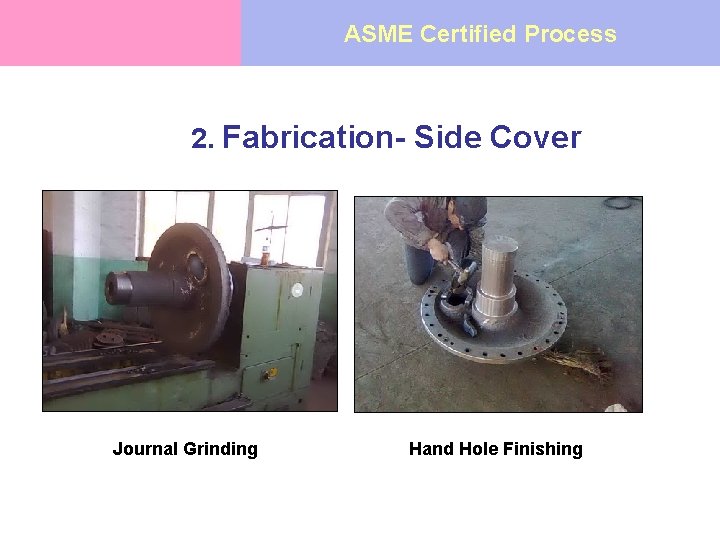

ASME Certified Process 2. Fabrication- Side Cover Journal Grinding Hand Hole Finishing

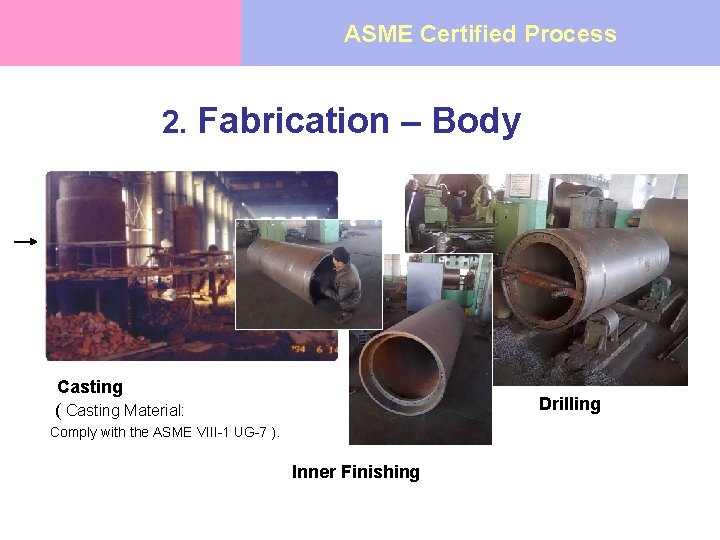

ASME Certified Process 2. Fabrication – Body Casting ( Casting Material: Drilling Comply with the ASME VIII-1 UG-7 ). Inner Finishing

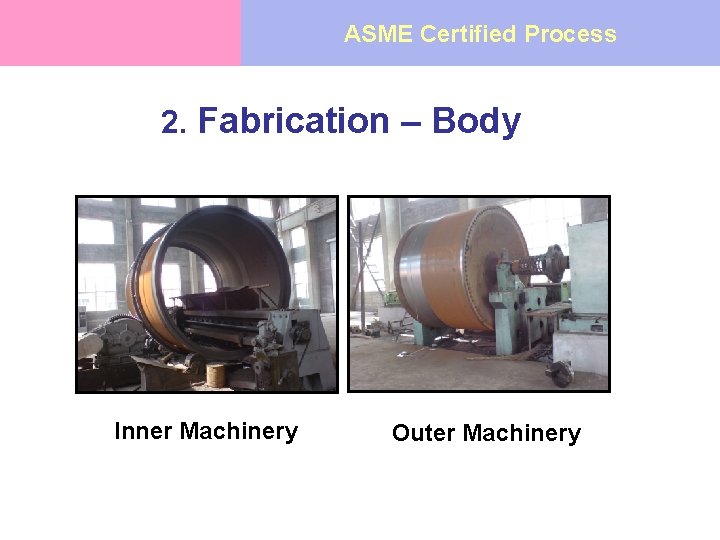

ASME Certified Process 2. Fabrication – Body Inner Machinery Outer Machinery

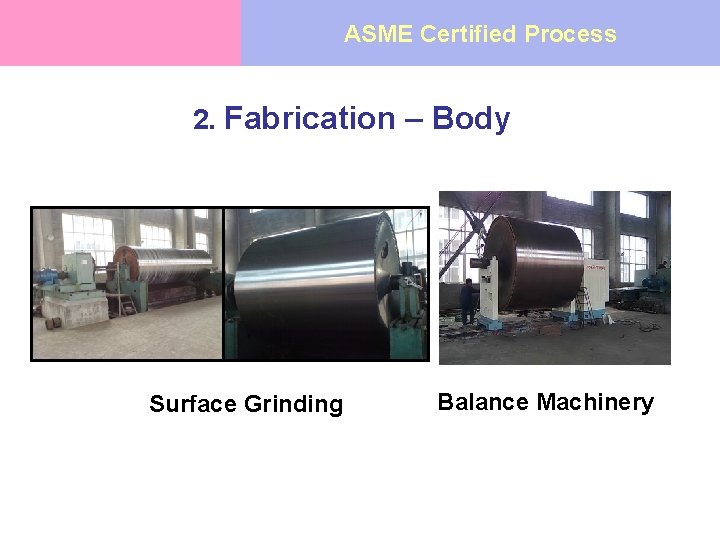

ASME Certified Process 2. Fabrication – Body Surface Grinding Balance Machinery

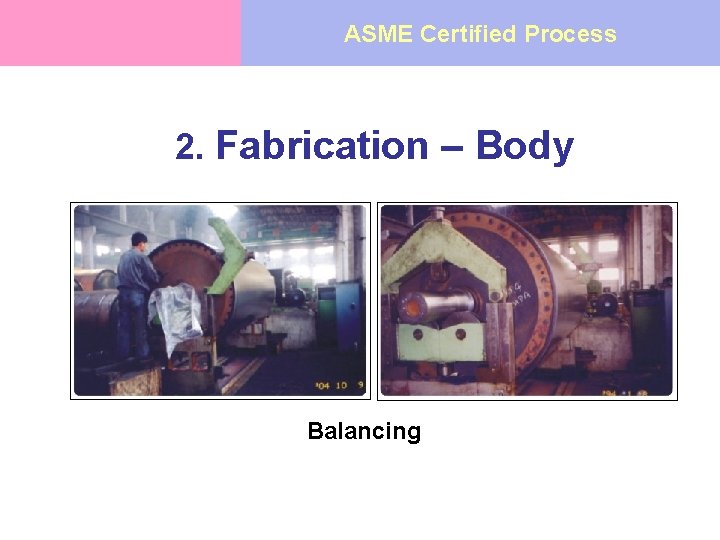

ASME Certified Process 2. Fabrication – Body Balancing

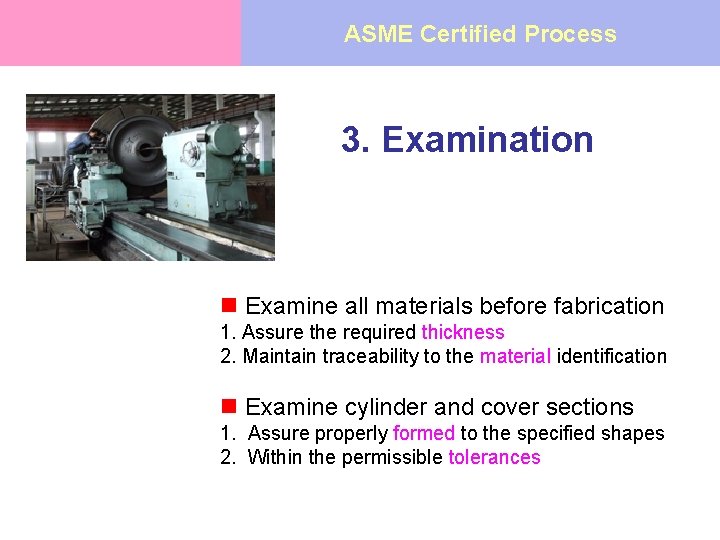

ASME Certified Process 3. Examination n Examine all materials before fabrication 1. Assure the required thickness 2. Maintain traceability to the material identification n Examine cylinder and cover sections 1. Assure properly formed to the specified shapes 2. Within the permissible tolerances

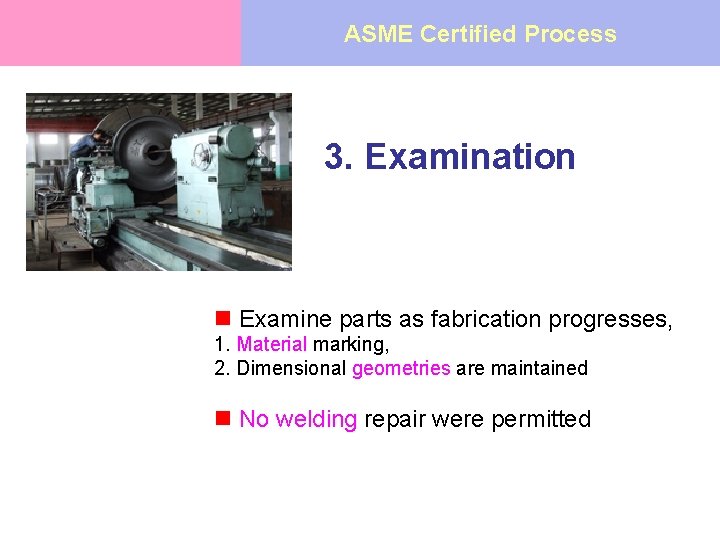

ASME Certified Process 3. Examination n Examine parts as fabrication progresses, 1. Material marking, 2. Dimensional geometries are maintained n No welding repair were permitted

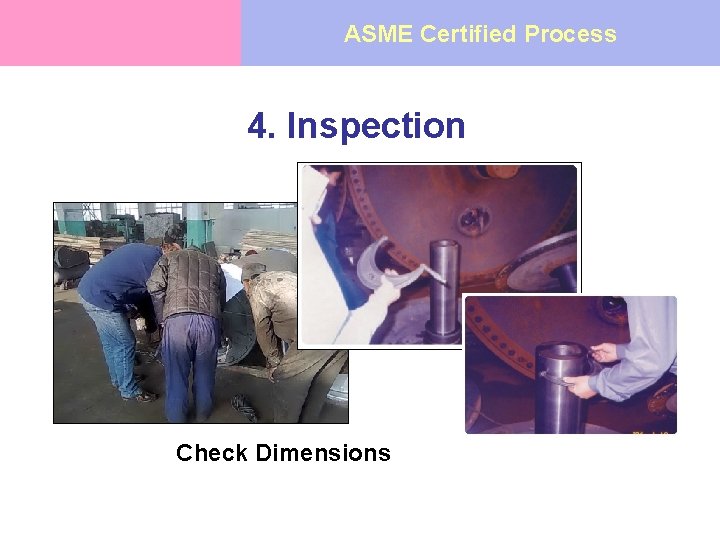

ASME Certified Process 4. Inspection Check Dimensions

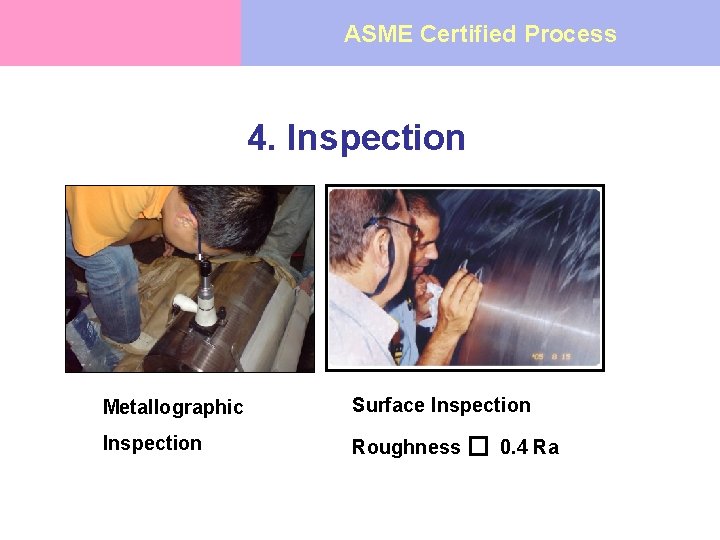

ASME Certified Process 4. Inspection Metallographic Surface Inspection Roughness � 0. 4 Ra

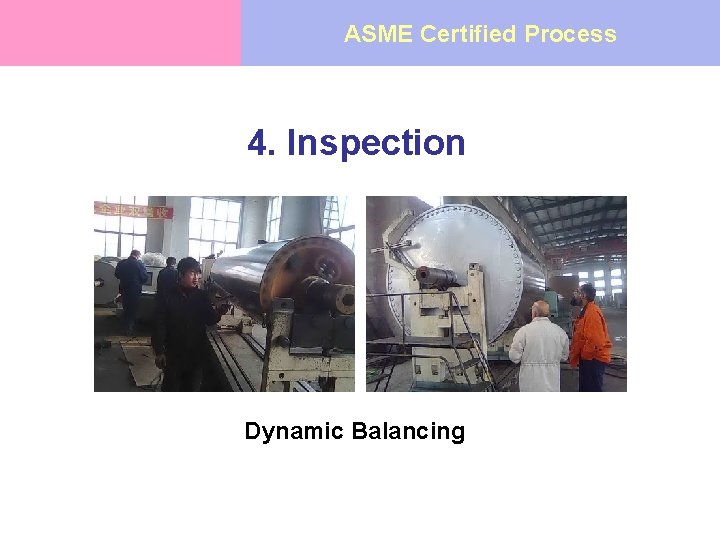

ASME Certified Process 4. Inspection Dynamic Balancing

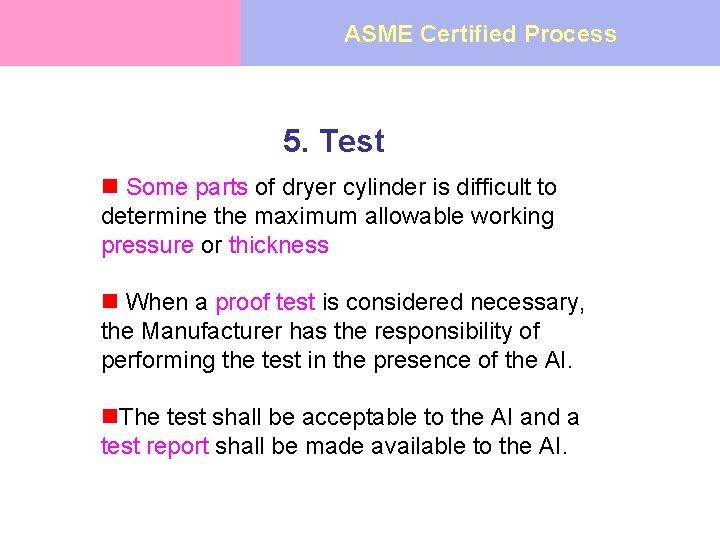

ASME Certified Process 5. Test n Some parts of dryer cylinder is difficult to determine the maximum allowable working pressure or thickness n When a proof test is considered necessary, the Manufacturer has the responsibility of performing the test in the presence of the AI. n. The test shall be acceptable to the AI and a test report shall be made available to the AI.

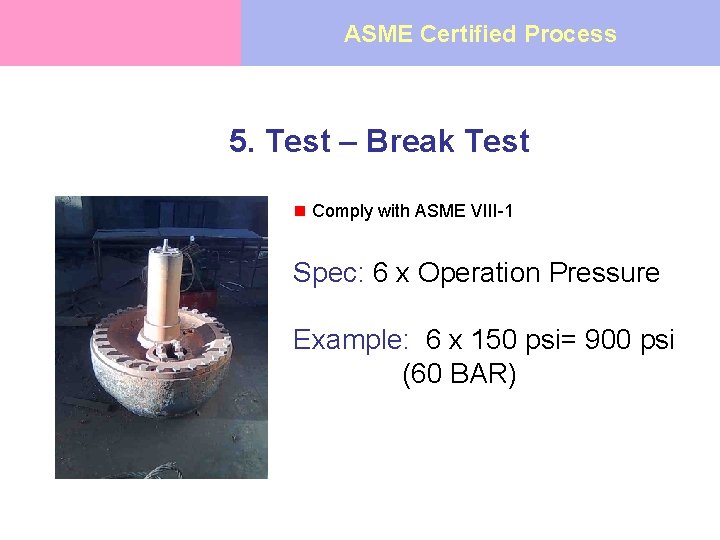

ASME Certified Process 5. Test – Break Test n Comply with ASME VIII-1 Spec: 6 x Operation Pressure Example: 6 x 150 psi= 900 psi (60 BAR)

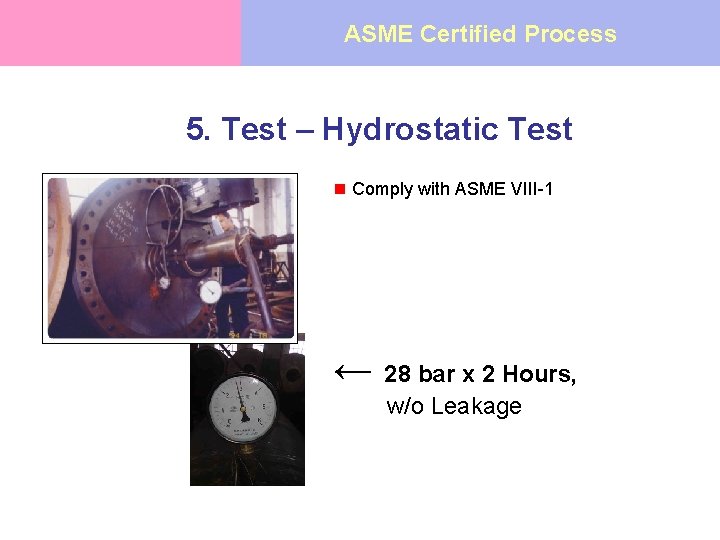

ASME Certified Process 5. Test – Hydrostatic Test n Comply with ASME VIII-1 ← 28 bar x 2 Hours, w/o Leakage

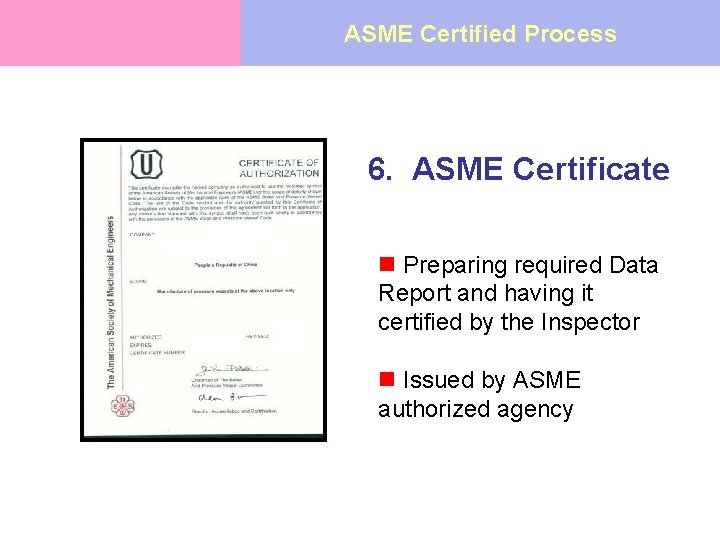

ASME Certified Process 6. ASME Certificate n Preparing required Data Report and having it certified by the Inspector n Issued by ASME authorized agency

ASME Certified Process 6. Stamping the Code Symbol n Applying the required U symbol stamping and nameplate to the cylinder n Assure it is applied to proper vessel

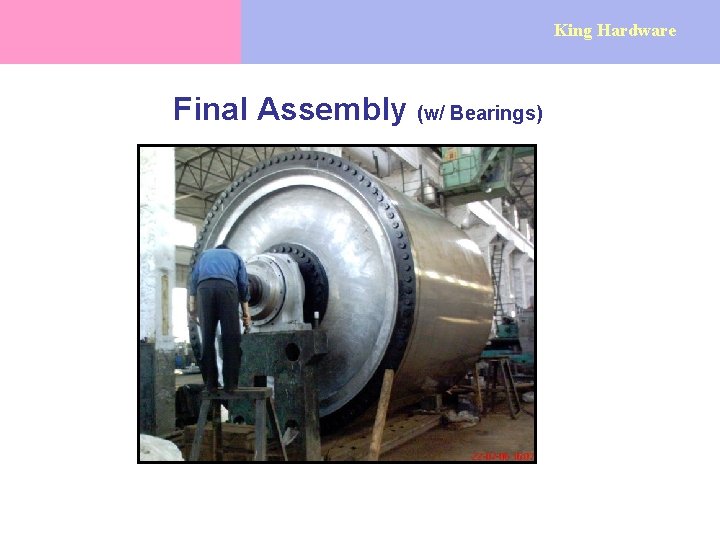

King Hardware Final Assembly (w/ Bearings)

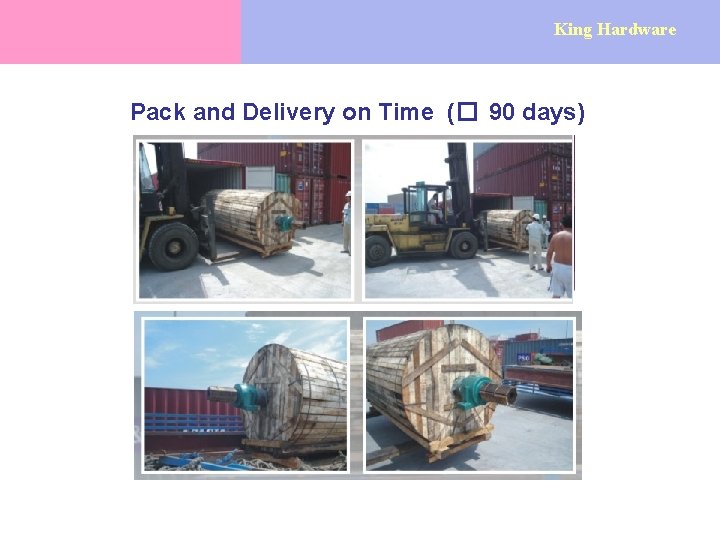

King Hardware Pack and Delivery on Time (� 90 days)

King Hardware Happy + Satisfying Customers

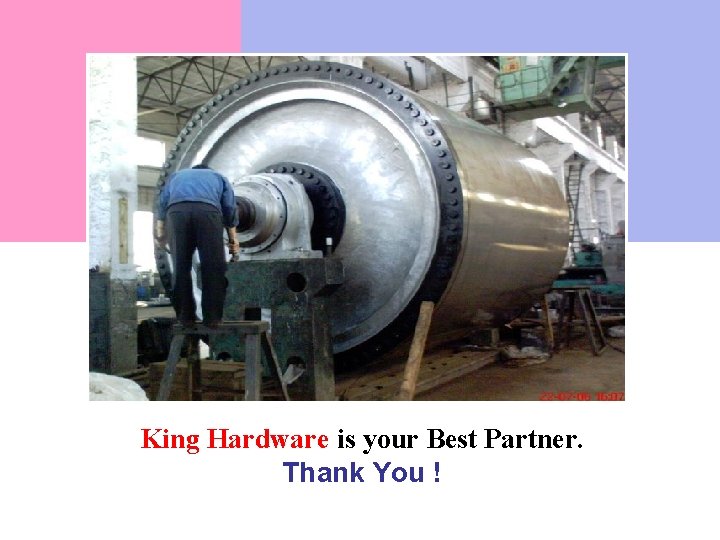

King Hardware is your Best Partner. Thank You !
