ASKAmplitude Shift Keying FSKFrequency Shift Keying PSKPhase Shift


























































- Slides: 58



디지털 신호의 변조(계속) < 디지털-대-아날로그 부호화 유형 Ü ASK(Amplitude Shift Keying) Ü FSK(Frequency Shift Keying) Ü PSK(Phase Shift Keying) Ü QAM(Quadrature Amplitude Modulation) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 3









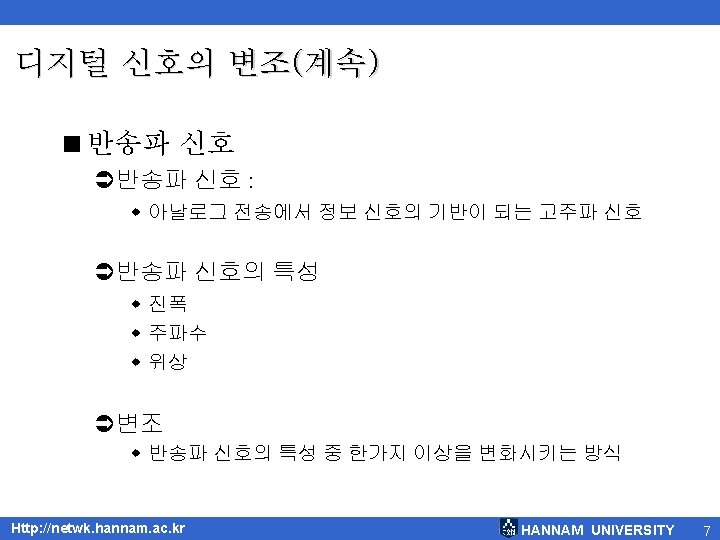

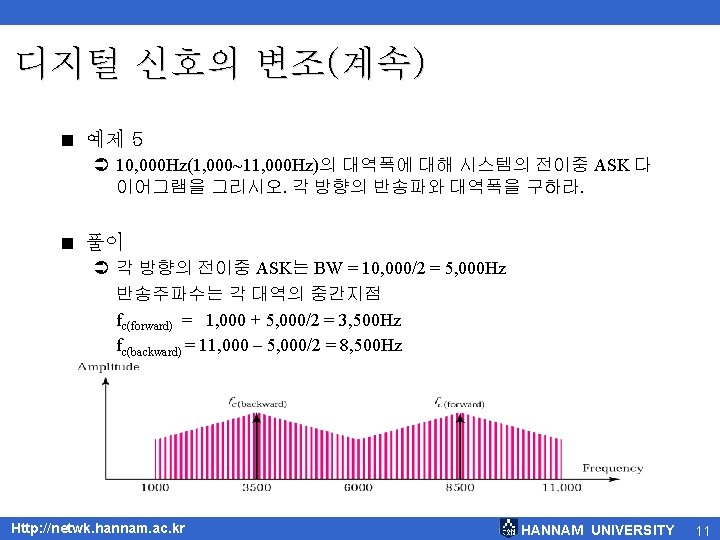

디지털 신호의 변조(계속) < 주파수 편이 변조 (FSK: Frequency Shift Keying) Ü 신호의 주파수가 2진 1 또는 0에 따라 변경 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 12

디지털 신호의 변조(계속) < FSK의 보오율과 대역폭의 관계 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 13



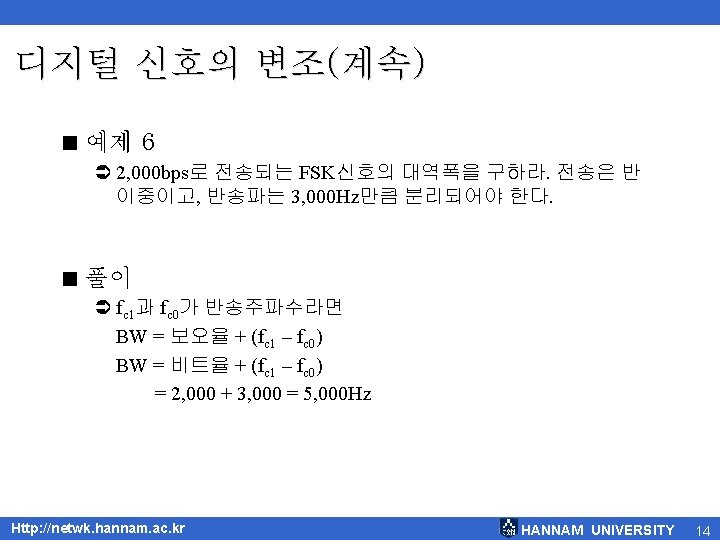

디지털 신호의 변조(계속) < 위상편이 변조 (PSK: Phase Shift Keying) Ü 위상이 2진 1 또는 0에 따라 변경 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 16

디지털 신호의 변조(계속) < PSK성운 (Constellation) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 17

디지털 신호의 변조(계속) < 4 -PSK Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 18

디지털 신호의 변조(계속) < 4 -PSK의 특성 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 19

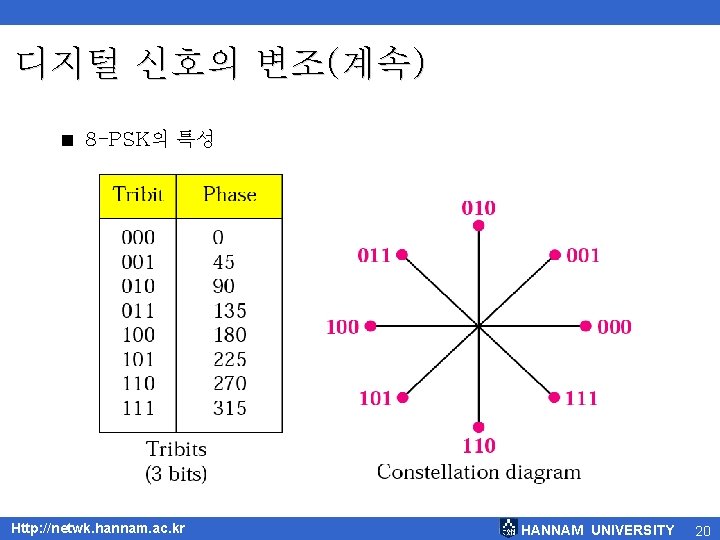

디지털 신호의 변조(계속) < 8 -PSK의 특성 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 20

디지털 신호의 변조(계속) < PSK에서 요구되는 대역폭 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 21



디지털 신호의 변조(계속) < 구상 진폭변조(QAM: Quadrature Amplitude Modulation) Ü ASK와 PSK의 조합 < 4 -QAM과 8 -QAM 성운 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 24

디지털 신호의 변조(계속) < 8 -QAM 신호의 시간 영역 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 25

디지털 신호의 변조(계속) < 16 -QAM 성운 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 26

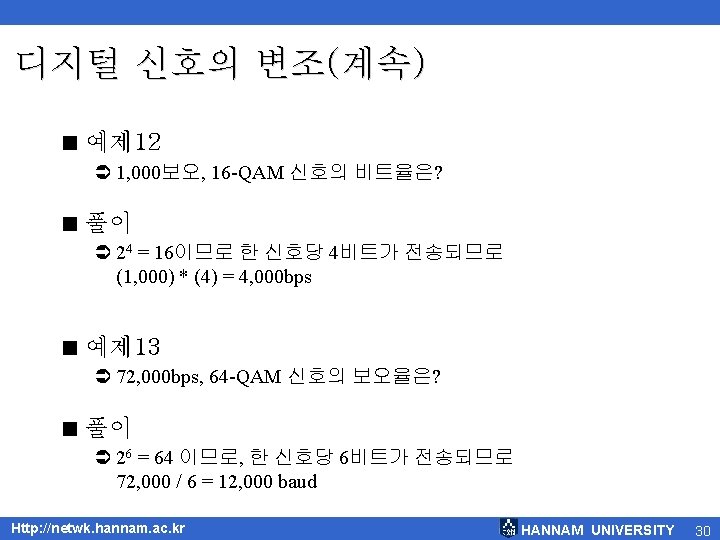

디지털 신호의 변조(계속) < 비트와 보오 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 27

디지털 신호의 변조(계속) < 비트율과 보오율 비교 Modulation Units Bits/Baud rate Bit Rate Bit 1 N N 4 -PSK, 4 -QAM Dibit 2 N 2 N 8 -PSK, 8 -QAM Tribit 3 N 3 N 16 -QAM Quadbit 4 N 4 N 32 -QAM Pentabit 5 N 5 N 64 -QAM Hexabit 6 N 6 N 128 -QAM Septabit 7 N 7 N 256 -QAM Octabit 8 N 8 N ASK, FSK, 2 -PSK Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 28

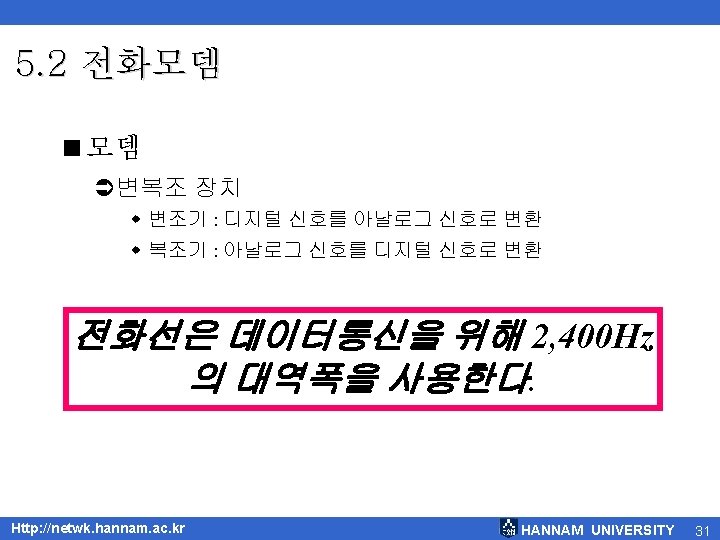

전화모뎀(계속) < 전화선 대역폭 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 33


전화모뎀(계속) < 변조와 복조 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 35

전화모뎀(계속) < V. 32 Ü 2400 보오율로 32 -QAM 전송 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 36

전화모뎀(계속) < V. 32 bis Ü 14, 400 bps를 지원하는 최초의 ITU-T 표준 Ü 2, 400 보오율로 64 -QAM 전송 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 37

전화모뎀(계속) < V. 90 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 38

전화모뎀(계속) < 56 K 모뎀 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 39

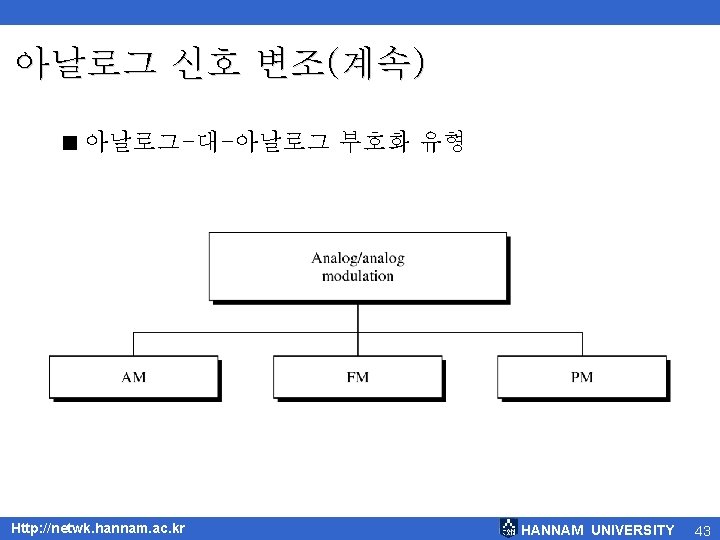

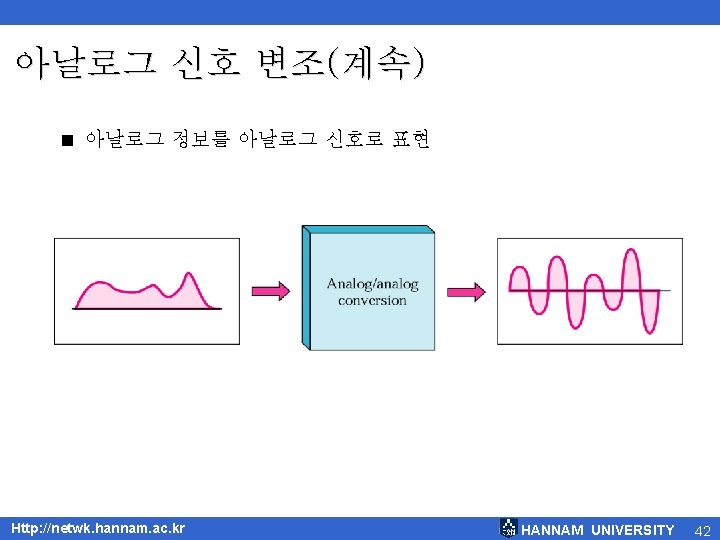

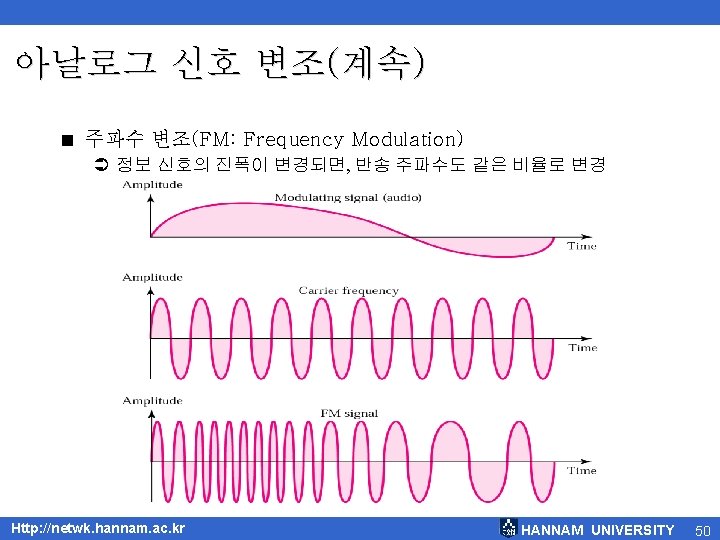

5. 3 아날로그 신호 변조 < Amplitude Modulation (AM) < Frequency Modulation (FM) < Phase Modulation (PM) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 41

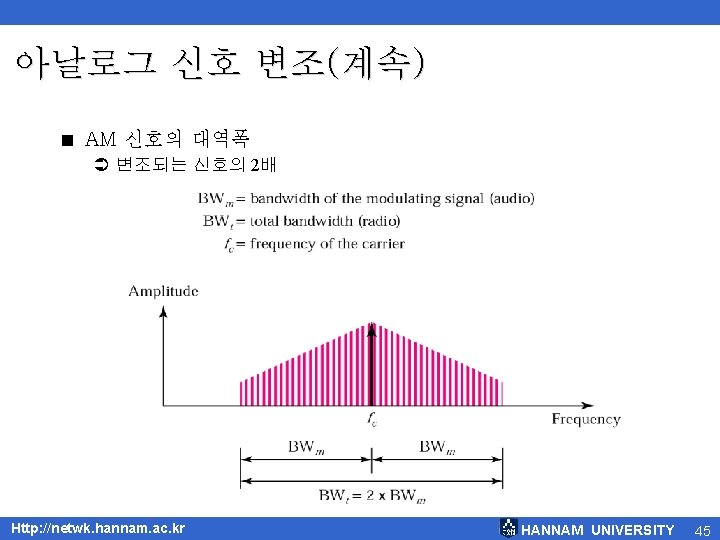

아날로그 신호 변조(계속) < AM 대역폭 할당 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 48

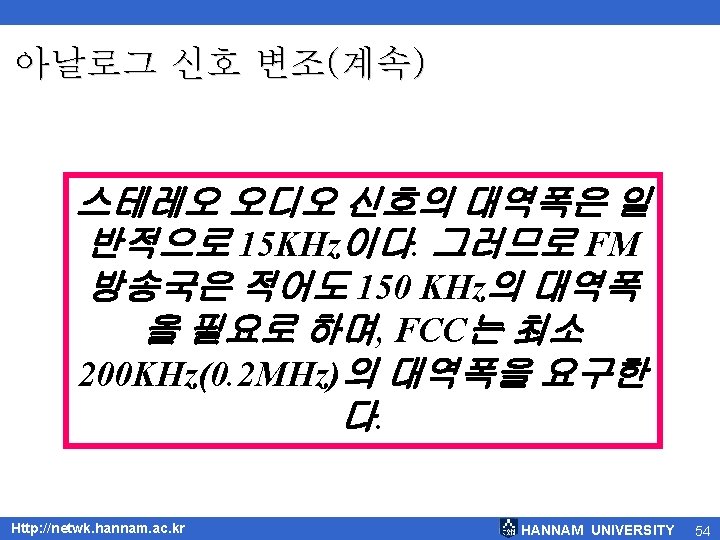

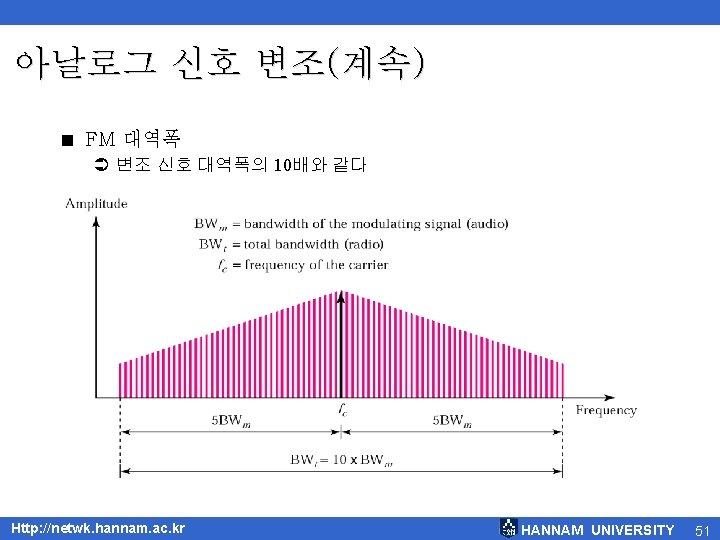

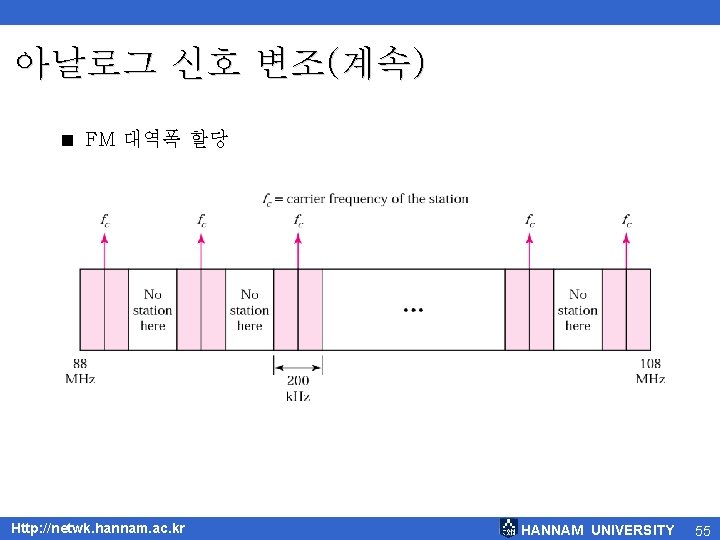

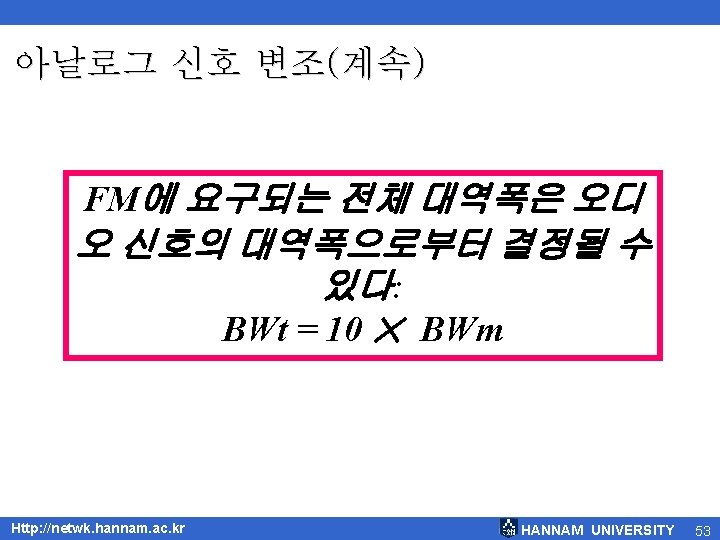

아날로그 신호 변조(계속) < FM 대역폭 할당 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 55



5. 4 요약 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 58
