ASIC 1 ASIC 2 Things still to learn

Things still to learn from ASIC 1 Test beam a) b) c) d) e)

Possible next sensors 3 weeks 4 weeks Sensor 1. 01 24/3 a) b) c)

Possible next sensors Logic/Support Test Structure 12 weeks 14/7 a) b) c) d) e)

ASIC 2 Sequencer Overview Small test pad? OVRD Bunch train state machine MODE 0

ASIC 2 Services Sensor ID code …to readout unit DOUT Setup registers Current biases

Example “ 1 -seat” logic test structure 500 x 750 um logic blocks Wire

ASIC 2 Concept • Logic columns – Power pads over the logic used to

Slides: 8

Download presentation

ASIC 1 ASIC 2 Things still to learn from ASIC 1 Options for ASIC 1. 01 1. 2 Logic test structure for ASIC 2

Things still to learn from ASIC 1 Test beam a) b) c) d) e) Check labelling & operating conditions of hits-per-BT plot (back/red) Threshold scans of all sensors shown together, one plot for each of the four pixel architectures Spatial info – locations of noisy pixels Statistics of hits – beam profile? Per-pixel efficiency? Laser e) f) g) h) Bias optimisation for signal/noise Automated scan of every pixel to compare gain/noise Crosstalk analysis –scan around a 9 x 9 block of pixels – vs threshold Linearity Bench i) j) k) Threshold scan with VTH signals buffered / externally driven Full speed operation (189 ns bunch crossing rate) Noise vs temperature

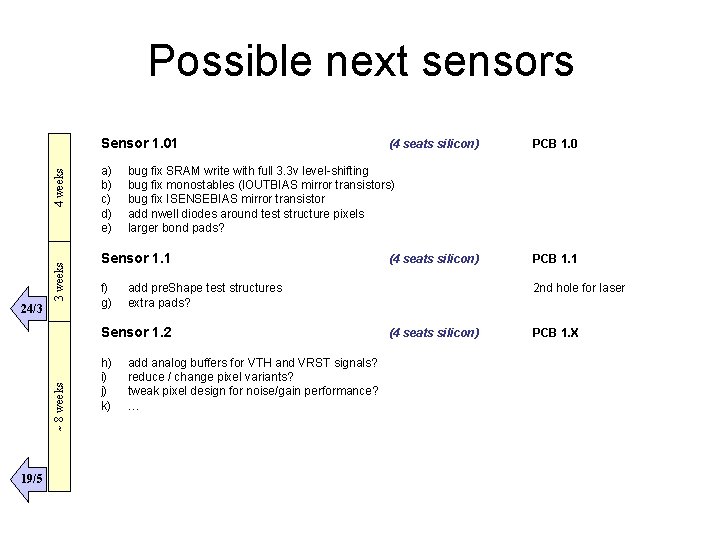

Possible next sensors 3 weeks 4 weeks Sensor 1. 01 24/3 a) b) c) d) e) ~ 8 weeks 19/5 (4 seats silicon) add pre. Shape test structures extra pads? Sensor 1. 2 h) i) j) k) PCB 1. 0 bug fix SRAM write with full 3. 3 v level-shifting bug fix monostables (IOUTBIAS mirror transistors) bug fix ISENSEBIAS mirror transistor add nwell diodes around test structure pixels larger bond pads? Sensor 1. 1 f) g) (4 seats silicon) add analog buffers for VTH and VRST signals? reduce / change pixel variants? tweak pixel design for noise/gain performance? … PCB 1. 1 2 nd hole for laser (4 seats silicon) PCB 1. X

Possible next sensors Logic/Support Test Structure 12 weeks 14/7 a) b) c) d) e) f) g) h) i) j) k) 15/9 (+1 seat silicon) New test PCB(s) required Large pad-over-logic pad cells for bump-bond tests LVDS receiver and transmitter pad circuits Gray code counter for timestamp generation Clock generator (makes all sensor internal clocks from one external clock) Bunch train state machine Readout state machine Master controller (co-ordinates preceding logic blocks, resets, power-on safe states) Configuration controller (co-ordinates mask & trim programming, adding on-chip registers for current/voltage DACs etc. Current DAC circuits Voltage DAC circuits …

ASIC 2 Sequencer Overview Small test pad? OVRD Bunch train state machine MODE 0 MODE 1 MODE SEL • PRE-SPILL • READ • IDLE REFCLK TOKIN TOKOUT SDATA Clk Gen En OVERRIDE HOLD MUX[2: 0] TIMECODE[12: 0] INIT FWD PHI 1 PHI 2 PHI 3 LATCHSAFE OF[7: 0] MSOPOR PIXEL RESETS PIXEL ENABLE Master En Readout state machine SENSE_ENABLE READENABLE[7: 0] ORE[7: 0] MUX[2: 0] DATA[30: 0]

ASIC 2 Services Sensor ID code …to readout unit DOUT Setup registers Current biases Voltage DACs CLK DIN Config controller DOUT_RDBK PHI 1 PHI 2 FAST PHI 3 PHI 1 PHI 2 SLOW PHI 3 PHI 1 PHI 2 RDBK PHI 3 DIN_CONFIG BIAS 1 BIAS 2 BIAS 3 BIAS 4 VTH+ VTHVcasc 1 Vcasc 2

Example “ 1 -seat” logic test structure 500 x 750 um logic blocks Wire bond pads for testing Bump bond pads • 240 um bump bondable pads on 1 mm pitch • Small wire-bond pads to test the generated logic signals • Implement as many of the logic blocks and signal distribution as possible • Folded design models a fullwidth logic slice serving a large array of pixels

ASIC 2 Concept • Logic columns – Power pads over the logic used to distribute global power supplies • Central row of control logic – 500 um profile – Bump Bond Pads for control & IO signals • • • Clocks Synchronisation Mode Configuration Serial data out Power
