Asfalt en bitumendag 2010 Healing van asfalt Martin
Asfalt en bitumendag 2010

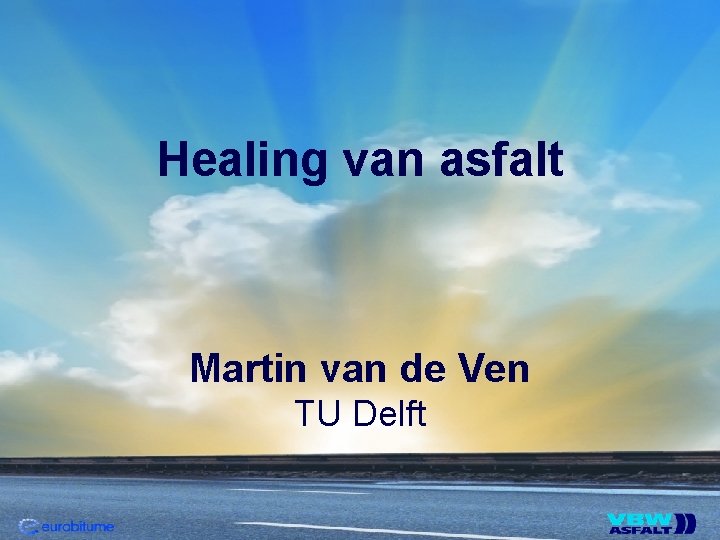

Healing van asfalt Martin van de Ven TU Delft

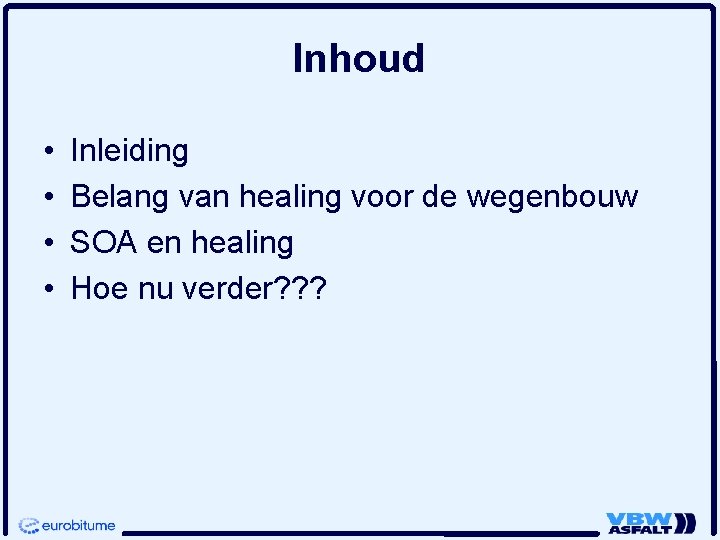

Inhoud • • Inleiding Belang van healing voor de wegenbouw SOA en healing Hoe nu verder? ? ?

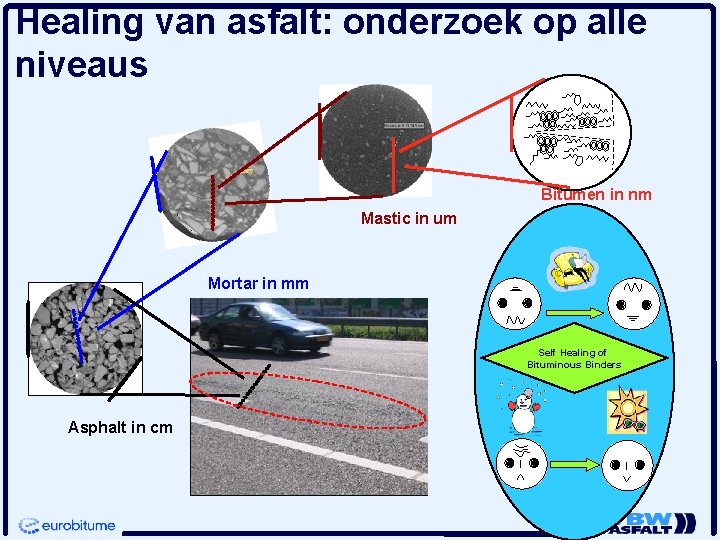

Healing van asfalt: onderzoek op alle niveaus Bitumen in nm Mastic in um Mortar in mm Self Healing of Bituminous Binders Asphalt in cm 5

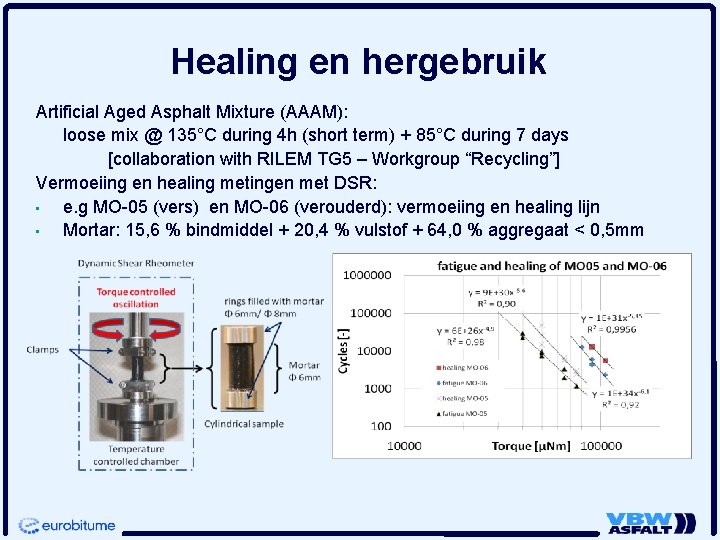

Healing en hergebruik Artificial Aged Asphalt Mixture (AAAM): loose mix @ 135°C during 4 h (short term) + 85°C during 7 days [collaboration with RILEM TG 5 – Workgroup “Recycling”] Vermoeiing en healing metingen met DSR: • e. g MO-05 (vers) en MO-06 (verouderd): vermoeiing en healing lijn • Mortar: 15, 6 % bindmiddel + 20, 4 % vulstof + 64, 0 % aggregaat < 0, 5 mm
Rafeling in ZOAB (IOP self-healing)
Capsules approach capsules Capsule bitumen Opening of cracks Oil Zoom 2 Broken capsules Bitumen+Oil aggregates crack Asphalt rejuvenated by diffusion

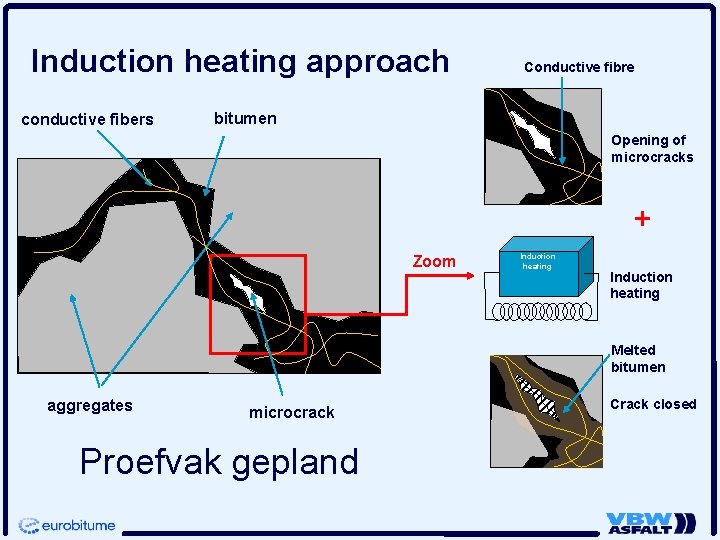

Induction heating approach conductive fibers Conductive fibre bitumen Opening of microcracks + Zoom Induction heating Melted bitumen aggregates microcrack Proefvak gepland Crack closed

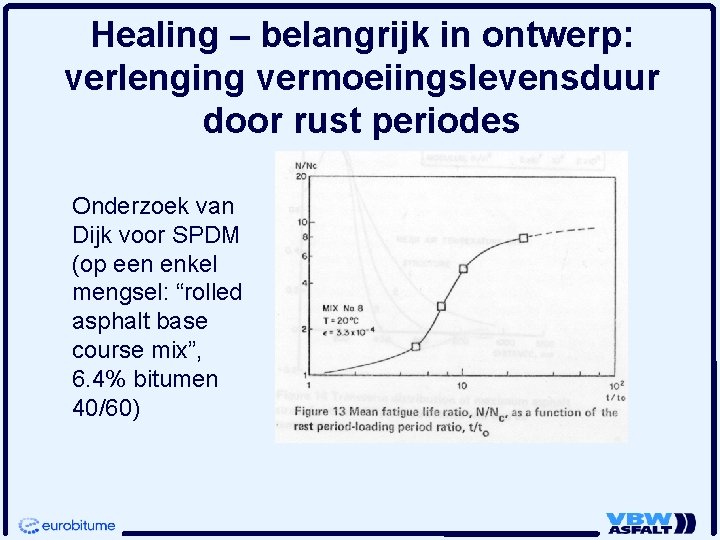

Healing – belangrijk in ontwerp: verlenging vermoeiingslevensduur door rust periodes Onderzoek van Dijk voor SPDM (op een enkel mengsel: “rolled asphalt base course mix”, 6. 4% bitumen 40/60)

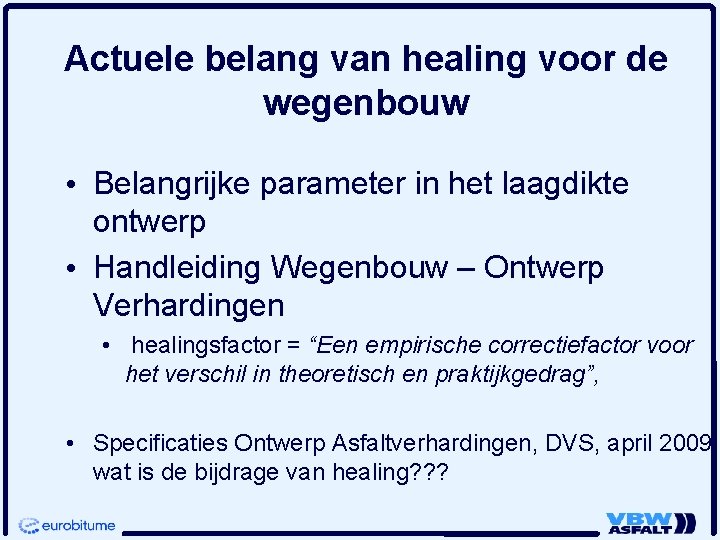

Actuele belang van healing voor de wegenbouw • Belangrijke parameter in het laagdikte ontwerp • Handleiding Wegenbouw – Ontwerp Verhardingen • healingsfactor = “Een empirische correctiefactor voor het verschil in theoretisch en praktijkgedrag”, • Specificaties Ontwerp Asfaltverhardingen, DVS, april 2009 wat is de bijdrage van healing? ? ?

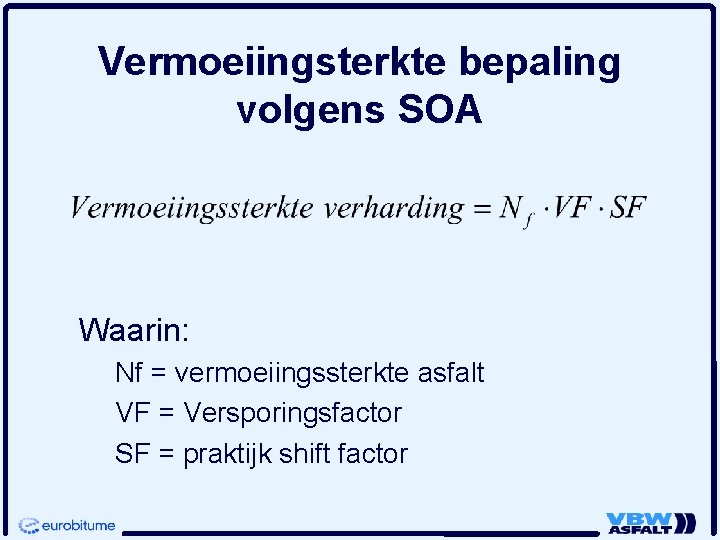

Vermoeiingsterkte bepaling volgens SOA Waarin: Nf = vermoeiingssterkte asfalt VF = Versporingsfactor SF = praktijk shift factor

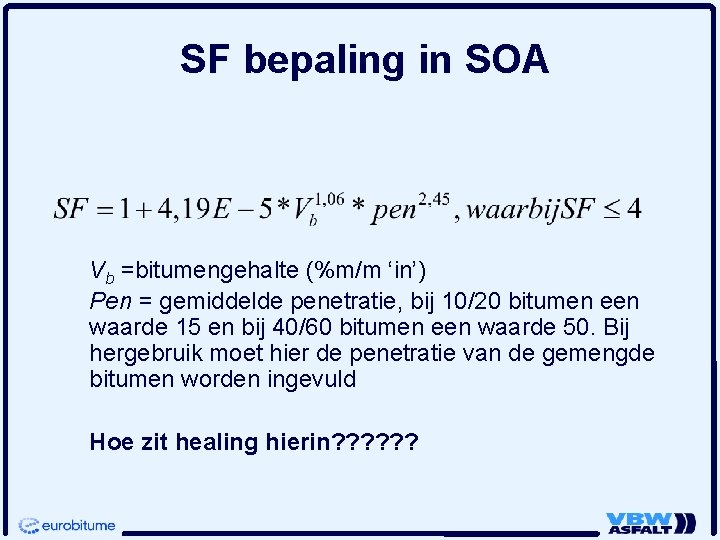

SF bepaling in SOA Vb =bitumengehalte (%m/m ‘in’) Pen = gemiddelde penetratie, bij 10/20 bitumen een waarde 15 en bij 40/60 bitumen een waarde 50. Bij hergebruik moet hier de penetratie van de gemengde bitumen worden ingevuld Hoe zit healing hierin? ? ?

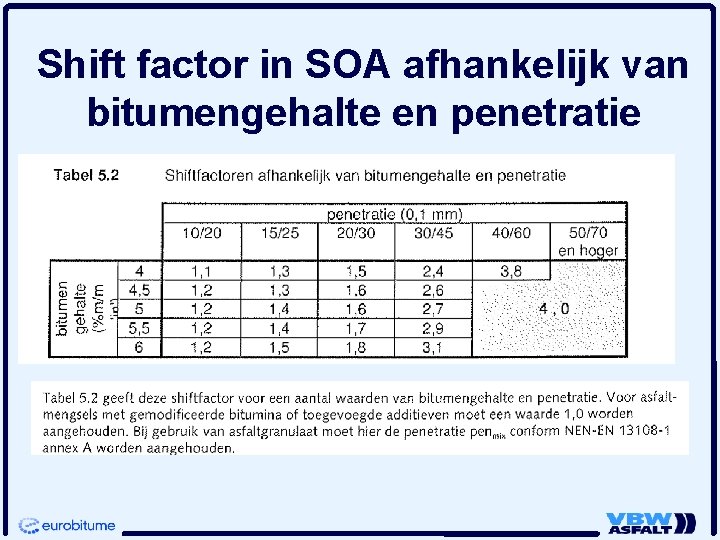

Shift factor in SOA afhankelijk van bitumengehalte en penetratie

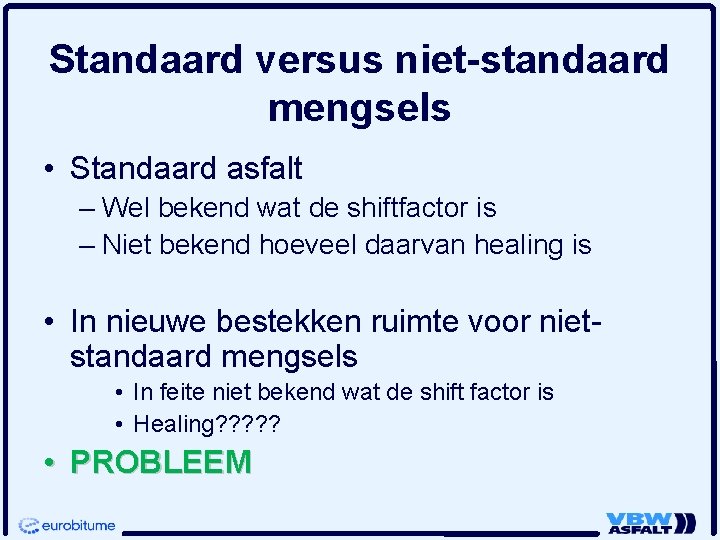

Standaard versus niet-standaard mengsels • Standaard asfalt – Wel bekend wat de shiftfactor is – Niet bekend hoeveel daarvan healing is • In nieuwe bestekken ruimte voor nietstandaard mengsels • In feite niet bekend wat de shift factor is • Healing? ? ? • PROBLEEM
Is het mogelijk de shiftfactor op te splitsen? ? EH = Echte Healing, materiaal parameter bepaald op lab schaal Em = nader vast te stellen empirische kalibratiefactor waarin de verschillen tussen laboratorium onderzoek en het praktijkgedrag

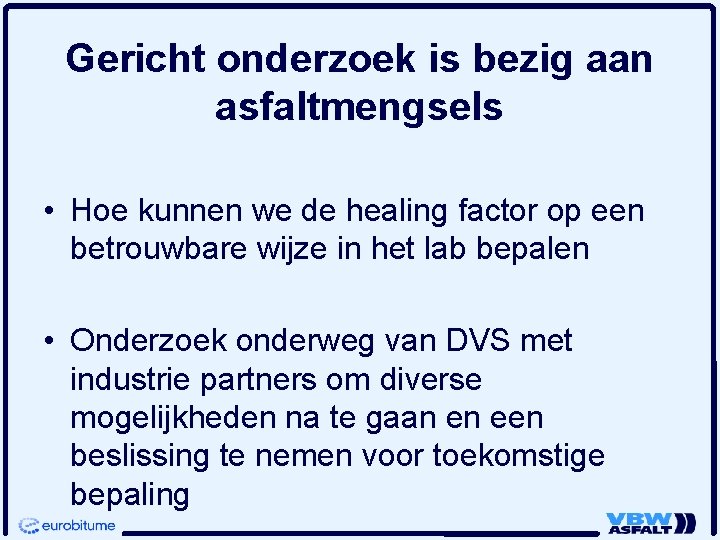

Gericht onderzoek is bezig aan asfaltmengsels • Hoe kunnen we de healing factor op een betrouwbare wijze in het lab bepalen • Onderzoek onderweg van DVS met industrie partners om diverse mogelijkheden na te gaan en een beslissing te nemen voor toekomstige bepaling

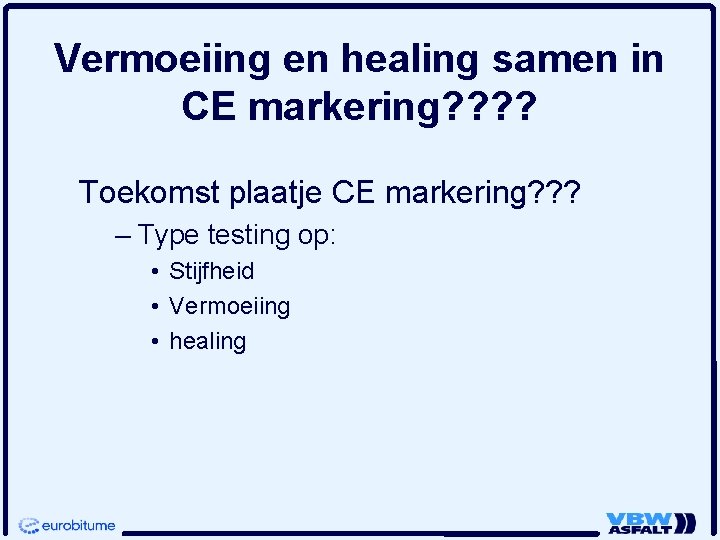

Vermoeiing en healing samen in CE markering? ? Toekomst plaatje CE markering? ? ? – Type testing op: • Stijfheid • Vermoeiing • healing
Tot slot rustperiodes zijn altijd goed voor healing (Technisch Weekblad)
