ASECNA AGENCY FOR AIR NAVIGATION SAFETY IN AFRICA

ASECNA AGENCY FOR AIR NAVIGATION SAFETY IN AFRICA & MADAGASCAR

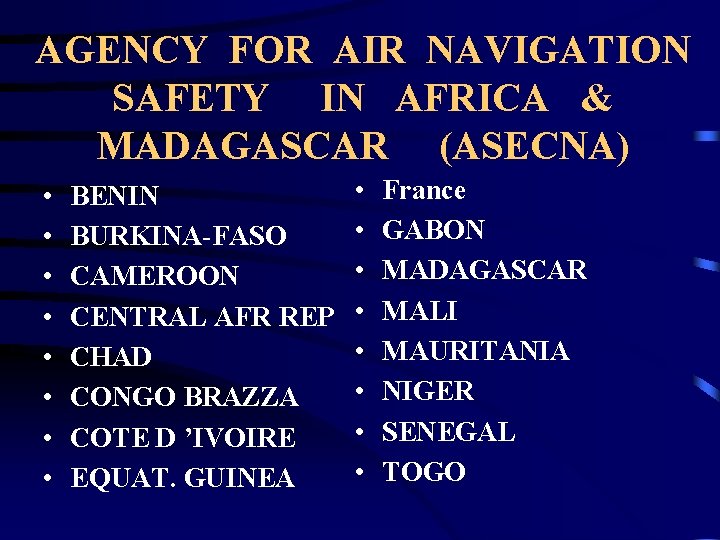

AGENCY FOR AIR NAVIGATION SAFETY IN AFRICA & MADAGASCAR (ASECNA) • • BENIN BURKINA-FASO CAMEROON CENTRAL AFR REP CHAD CONGO BRAZZA COTE D ’IVOIRE EQUAT. GUINEA • • France GABON MADAGASCAR MALI MAURITANIA NIGER SENEGAL TOGO

ORGANIZATION

16 millions sq. km 6 FIRs /5 FIC ASECNA FIR DAKAR FIR NIAMEY FIR DAKAR OCEANIC Agence pour la Sécurité de la Navigation Aérienne en Afrique et à Madagascar Siège Social : 32 -38 Av. Jean Jaurès DAKAR B. P. 3144 Tél. : 23. 10. 40 - Fax : 23. 46. 54 Bénin-Burkina-Cameroun-Centrafrique-Congo-Côted’Ivoire-France-Gabon. Guinée Equatoriale-Madagascar-Mali-Mauritanie-Niger-Sénégal-Tchad-Togo FIR NDJAMENA FIR BRAZZAVILLE FIR ANTANANARIVO

SERVICES • • • ATS COMMUNICATIONS (FIXE/MOBILE) FLIGHT INSPECTION FIRE FIGHTING ENGINEERING

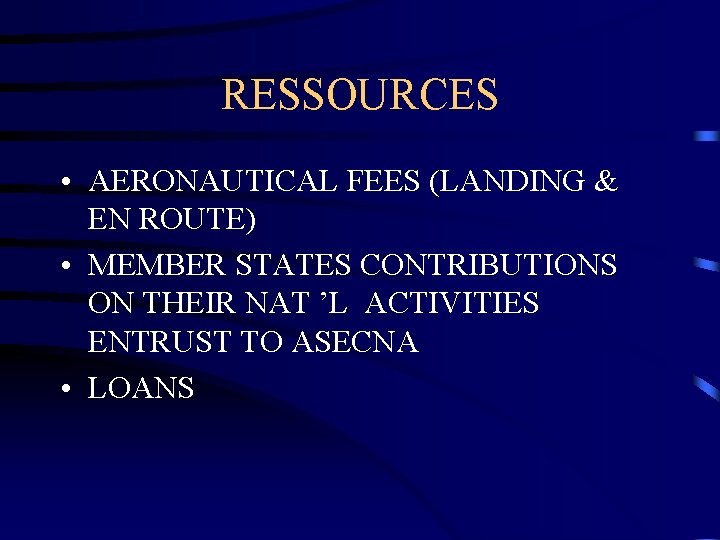

RESSOURCES • AERONAUTICAL FEES (LANDING & EN ROUTE) • MEMBER STATES CONTRIBUTIONS ON THEIR NAT ’L ACTIVITIES ENTRUST TO ASECNA • LOANS

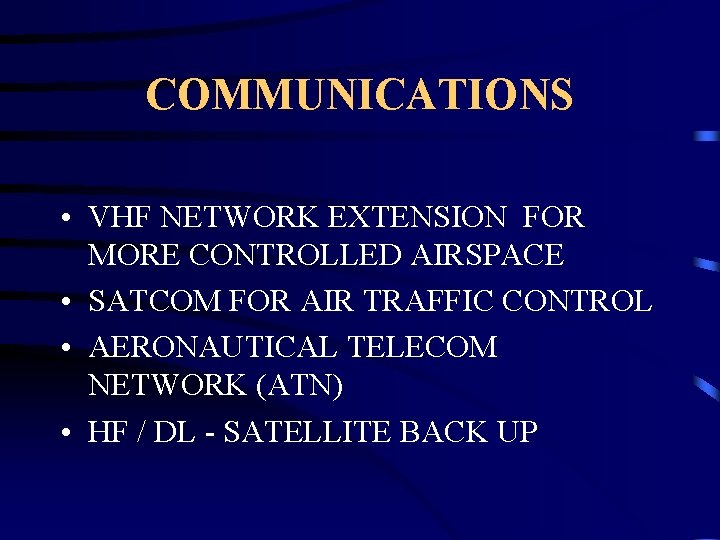

COMMUNICATIONS • VHF NETWORK EXTENSION FOR MORE CONTROLLED AIRSPACE • SATCOM FOR AIR TRAFFIC CONTROL • AERONAUTICAL TELECOM NETWORK (ATN) • HF / DL - SATELLITE BACK UP

NAVIGATION • GROUND BASED EQUIPMENTS IN CONTRIBUTION TO LOCAL OR WIDE AREA AUGMENTATION SYSTEMS

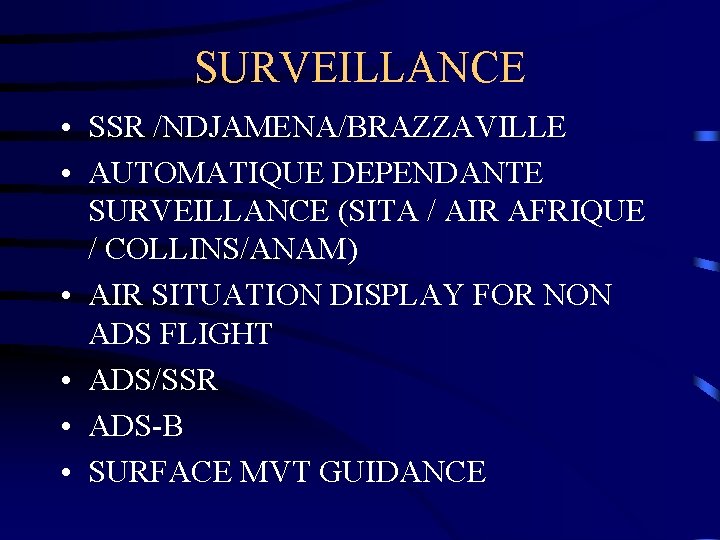

SURVEILLANCE • SSR /NDJAMENA/BRAZZAVILLE • AUTOMATIQUE DEPENDANTE SURVEILLANCE (SITA / AIR AFRIQUE / COLLINS/ANAM) • AIR SITUATION DISPLAY FOR NON ADS FLIGHT • ADS/SSR • ADS-B • SURFACE MVT GUIDANCE

ATM 1/2 • AUTOMATIC FLIGHT DATA PROCESSING • CONFLICT DETECTION AND CLEAR • FLEXIBLE AIR ROUTES (CONTINENTAL/OCEANIC ATLINDIAN) • DARPs • CPDLC • D-FIS

ATM 2/2 • REDUCED UPPER AIRSPACE • AREA TRAFFIC FLOW MANAGEMENT • HARMONIZATION OF TERMINAL AREA (TMAs) LIMITS • SUB REGIONAL ATM SYSTEMS INTEGRATION

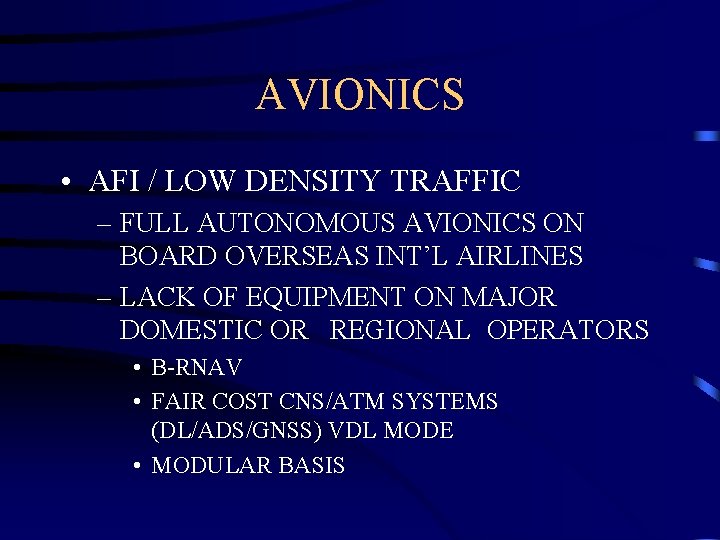

AVIONICS • AFI / LOW DENSITY TRAFFIC – FULL AUTONOMOUS AVIONICS ON BOARD OVERSEAS INT’L AIRLINES – LACK OF EQUIPMENT ON MAJOR DOMESTIC OR REGIONAL OPERATORS • B-RNAV • FAIR COST CNS/ATM SYSTEMS (DL/ADS/GNSS) VDL MODE • MODULAR BASIS

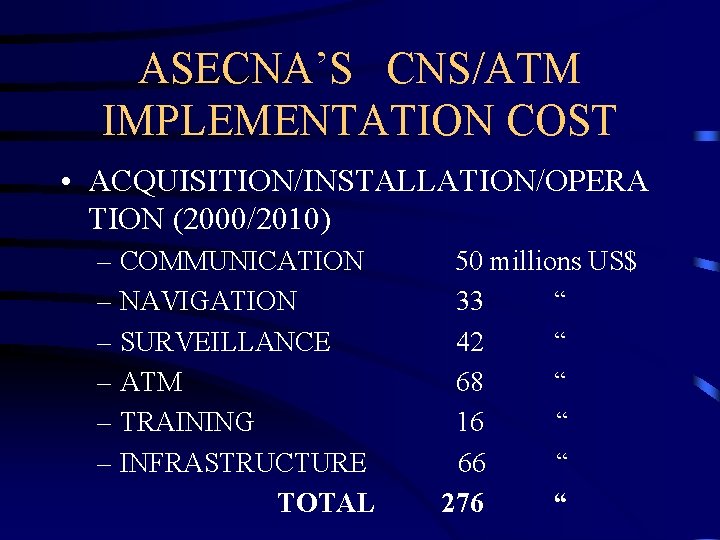

ASECNA’S CNS/ATM IMPLEMENTATION COST • ACQUISITION/INSTALLATION/OPERA TION (2000/2010) – COMMUNICATION 50 millions US$ – NAVIGATION 33 “ – SURVEILLANCE 42 “ – ATM 68 “ – TRAINING 16 “ – INFRASTRUCTURE 66 “ TOTAL 276 “

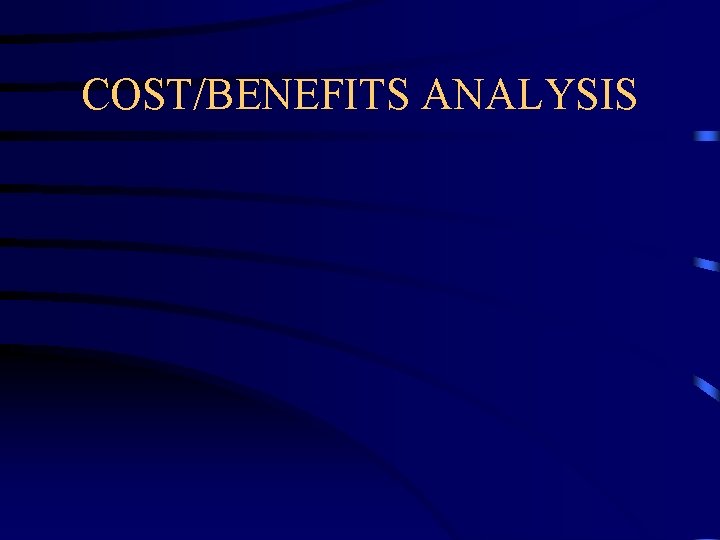

COST/BENEFITS ANALYSIS

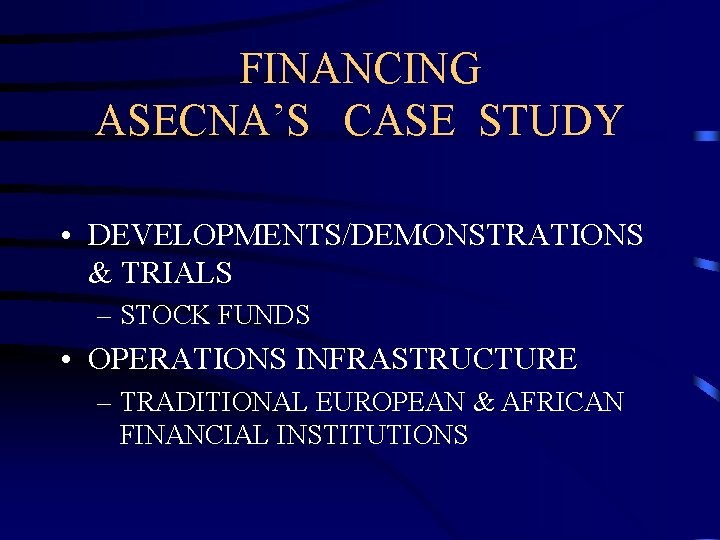

FINANCING ASECNA’S CASE STUDY • DEVELOPMENTS/DEMONSTRATIONS & TRIALS – STOCK FUNDS • OPERATIONS INFRASTRUCTURE – TRADITIONAL EUROPEAN & AFRICAN FINANCIAL INSTITUTIONS

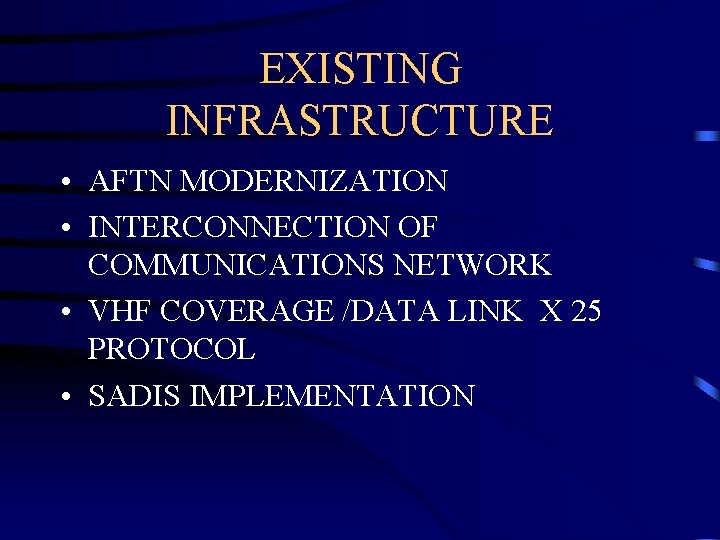

EXISTING INFRASTRUCTURE • AFTN MODERNIZATION • INTERCONNECTION OF COMMUNICATIONS NETWORK • VHF COVERAGE /DATA LINK X 25 PROTOCOL • SADIS IMPLEMENTATION

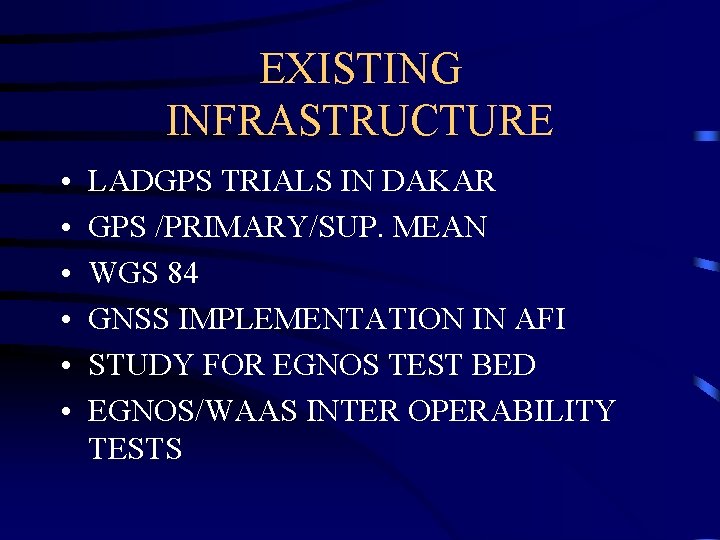

EXISTING INFRASTRUCTURE • • • LADGPS TRIALS IN DAKAR GPS /PRIMARY/SUP. MEAN WGS 84 GNSS IMPLEMENTATION IN AFI STUDY FOR EGNOS TEST BED EGNOS/WAAS INTER OPERABILITY TESTS

EXISTING INFRASTRUCTURE • ADS IN AFI WITH RKA / COLLINS /SITA • ENHANCEMENT TO FANS- /1/A

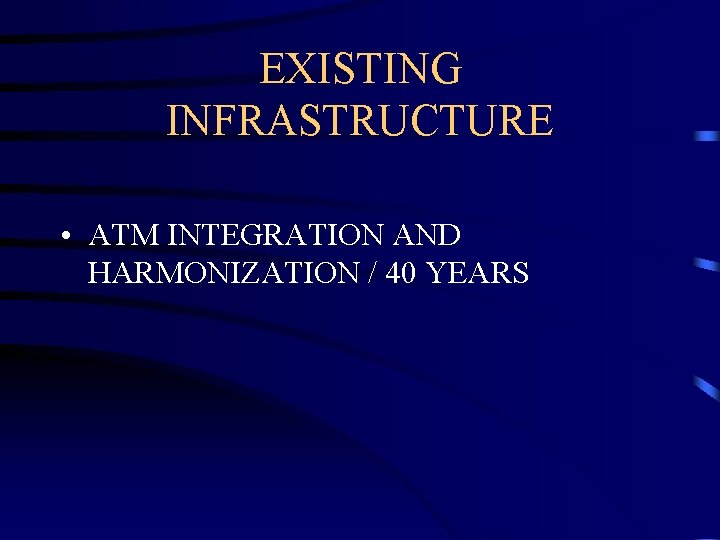

EXISTING INFRASTRUCTURE • ATM INTEGRATION AND HARMONIZATION / 40 YEARS

TRAINING • 15 SEMINARS OF SENSIBILIZATION • TRAINAIR PROGRAMM
