ASCII Code Table 7 bit UNICODE 16 bit

ASCII Code Table (7 bit) UNICODE (16 bit) ASCII - UTF-8 provides a 16 bit superset of

2’s Complement Sign Extention • Positive numbers • Negative numbers

2’s Complement Arithmetic • Addition • Subtraction • Multiplication, Division ?

Round off Errors due to inherent imprecision of computers / computation

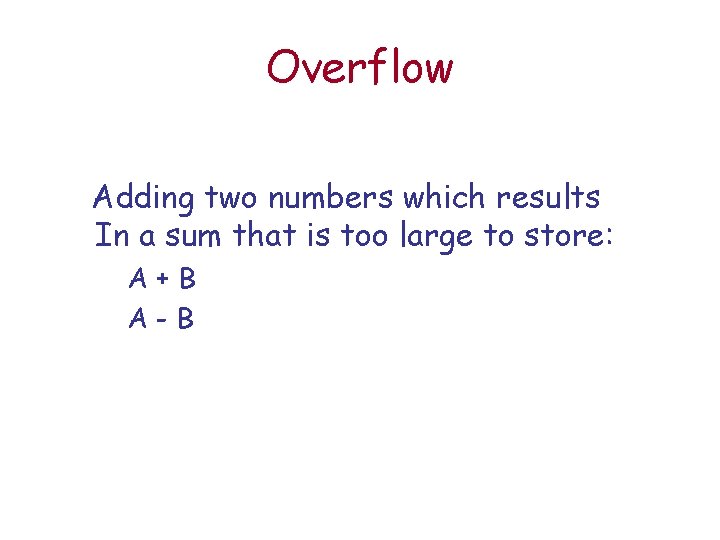

Overflow Adding two numbers which results In a sum that is too large to store: A+B A-B

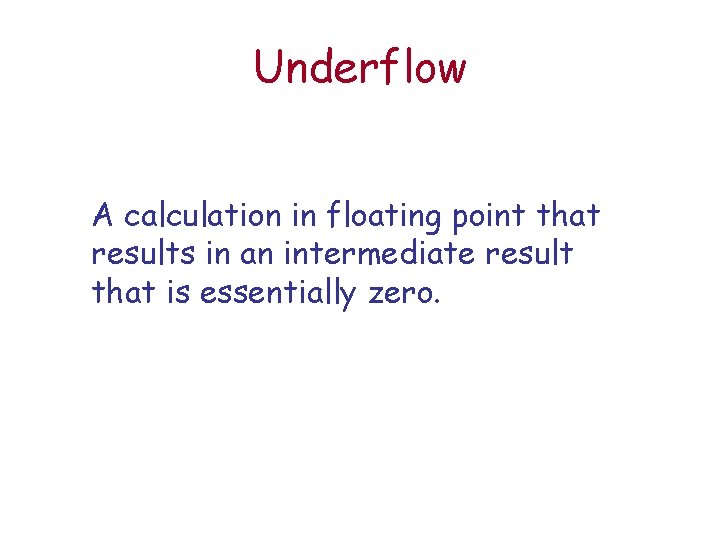

Underflow A calculation in floating point that results in an intermediate result that is essentially zero.

Floating Point Numbers Example: -56. 67534 x 10 -5 • Sign • Fraction • Exponent

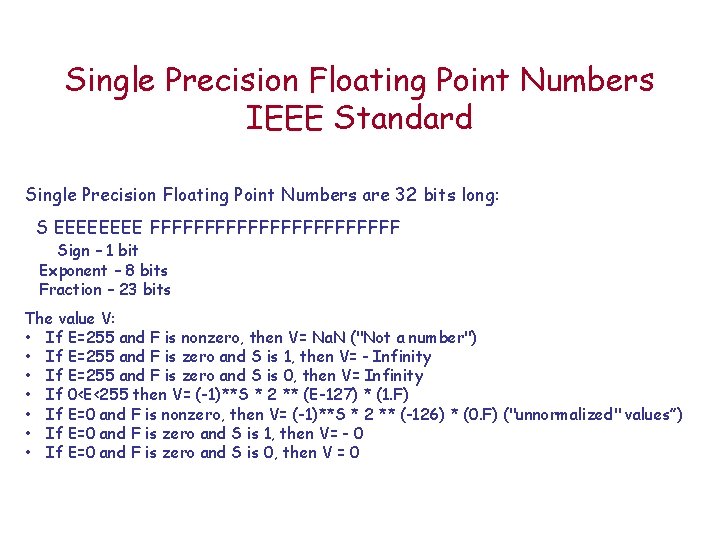

Single Precision Floating Point Numbers IEEE Standard Single Precision Floating Point Numbers are 32 bits long: S EEEE FFFFFFFFFFFF Sign – 1 bit Exponent – 8 bits Fraction – 23 bits The value V: • If E=255 and F is nonzero, then V= Na. N ("Not a number") • If E=255 and F is zero and S is 1, then V= - Infinity • If E=255 and F is zero and S is 0, then V= Infinity • If 0<E<255 then V= (-1)**S * 2 ** (E-127) * (1. F) • If E=0 and F is nonzero, then V= (-1)**S * 2 ** (-126) * (0. F) ("unnormalized" values”) • If E=0 and F is zero and S is 1, then V= - 0 • If E=0 and F is zero and S is 0, then V = 0

Double Precision Floating Point Numbers IEEE Standard Double Precision Floating Point Numbers are 64 bits long: S EEEEEE FFFFFFFFFFFFFFFFFFFFFFFFFF Sign – 1 bit Exponent – 11 bits Fraction – 52 bits The value V: • If E=2047 and F is nonzero, then V= Na. N ("Not a number") • If E=2047 and F is zero and S is 1, then V= - Infinity • If E=2047 and F is zero and S is 0, then V= Infinity • If 0<E<2047 then V= (-1)**S * 2 ** (E-1023) * (1. F) • If E=0 and F is nonzero, then V= (-1)**S * 2 ** (-1022) * (0. F) ("unnormalized" values) • If E=0 and F is zero and S is 1, then V= - 0 • If E=0 and F is zero and S is 0, then V= 0

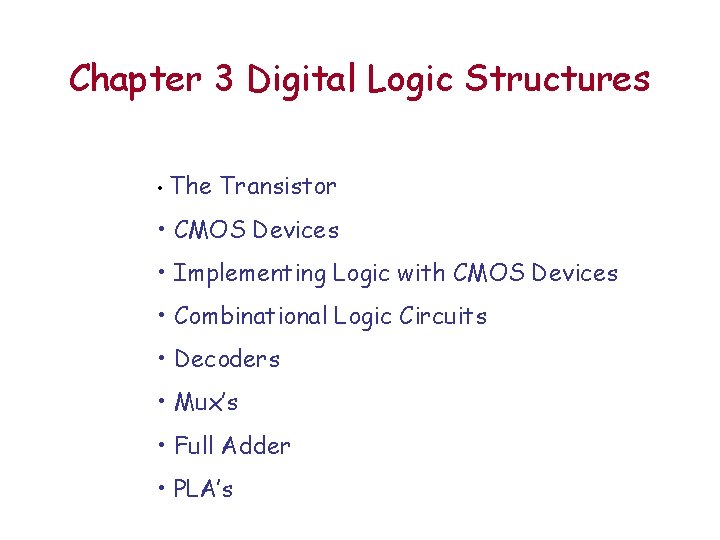

Chapter 3 Digital Logic Structures • The Transistor • CMOS Devices • Implementing Logic with CMOS Devices • Combinational Logic Circuits • Decoders • Mux’s • Full Adder • PLA’s

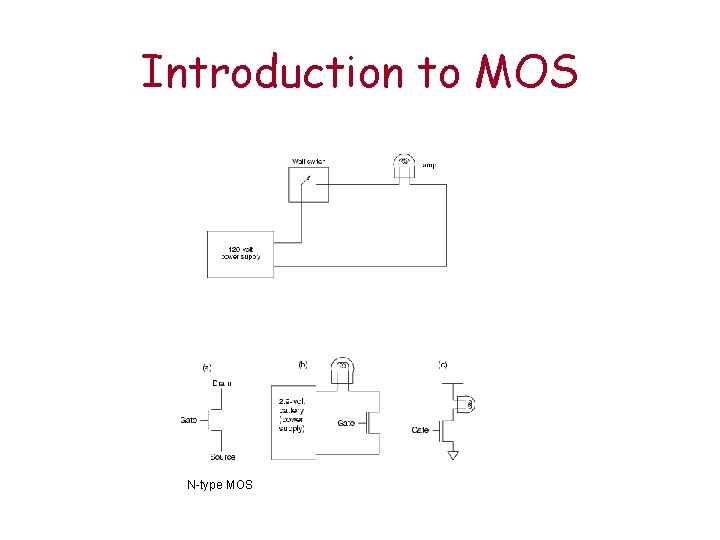

Introduction to MOS N-type MOS

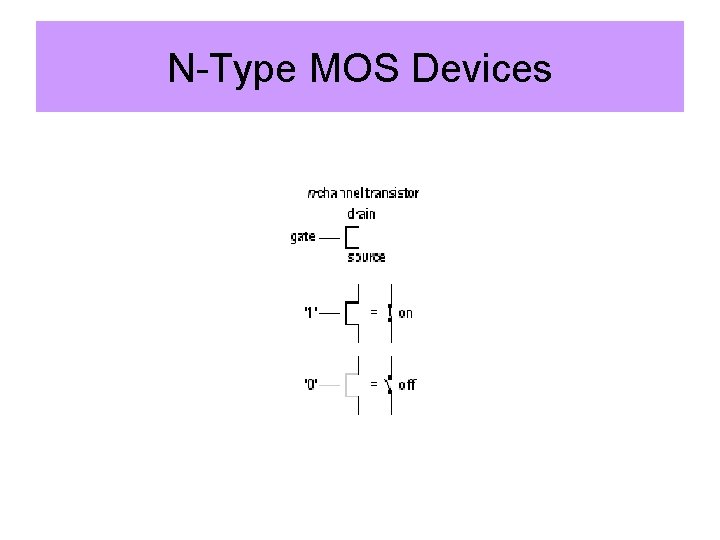

N-Type MOS Devices

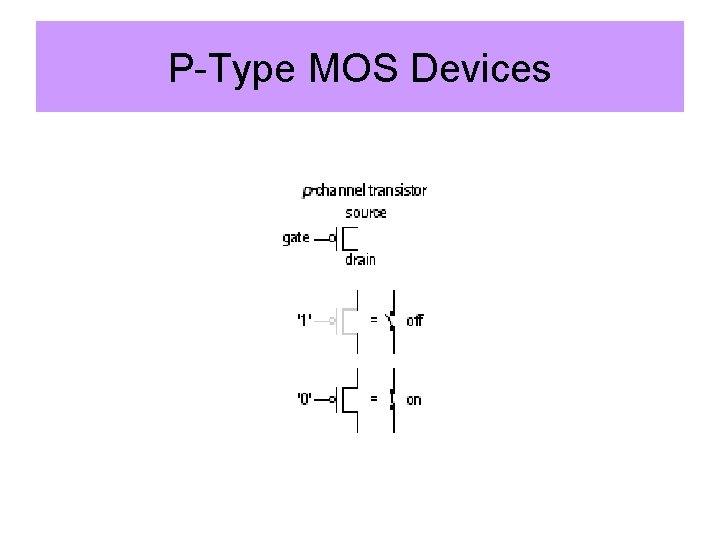

P-Type MOS Devices

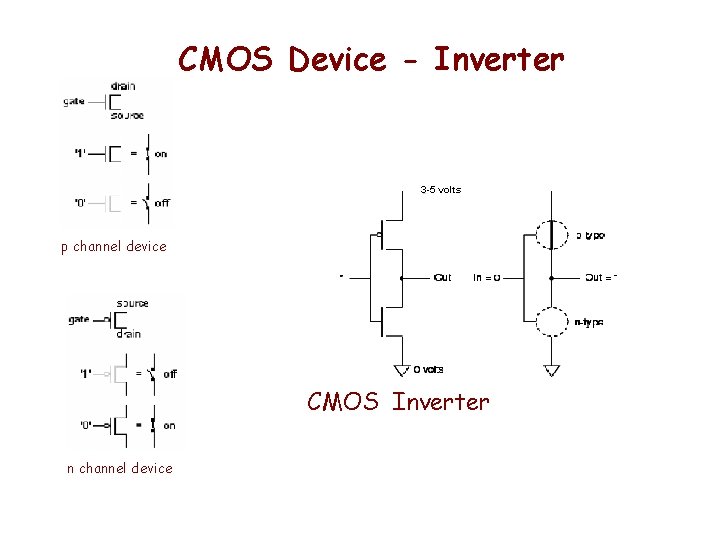

CMOS Device - Inverter 3 -5 volts p channel device CMOS Inverter n channel device

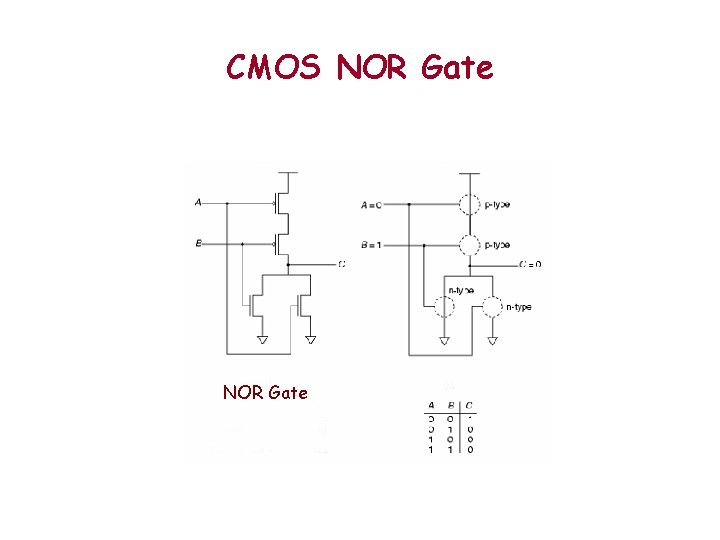

CMOS NOR Gate

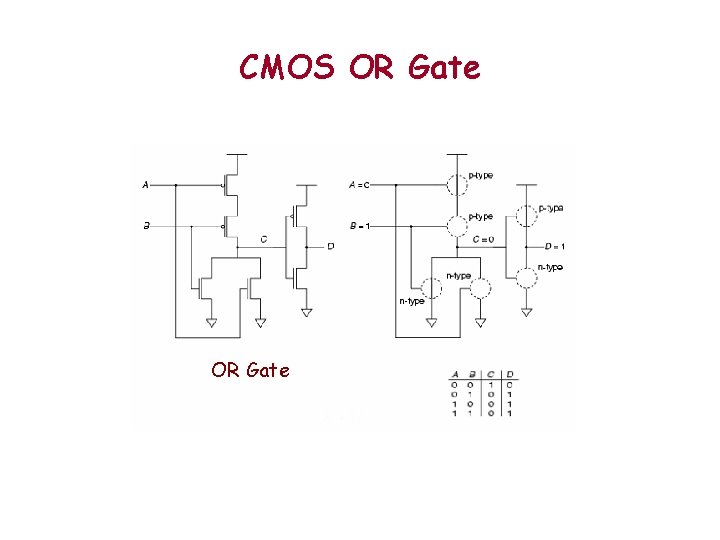

CMOS OR Gate

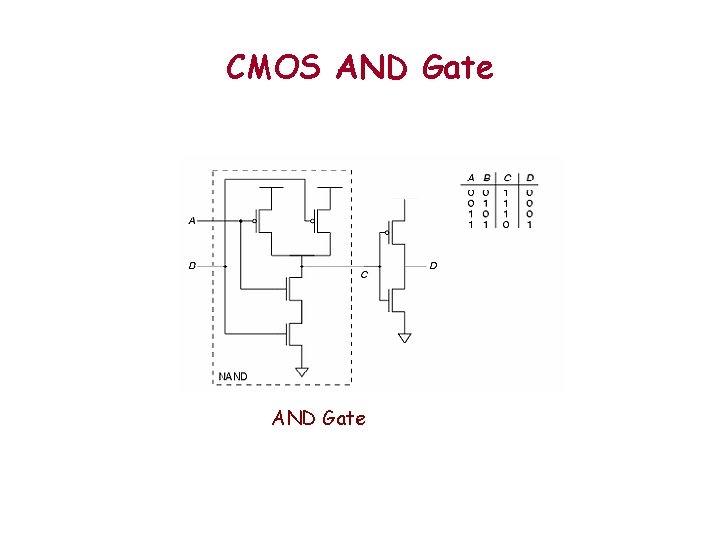

CMOS AND Gate

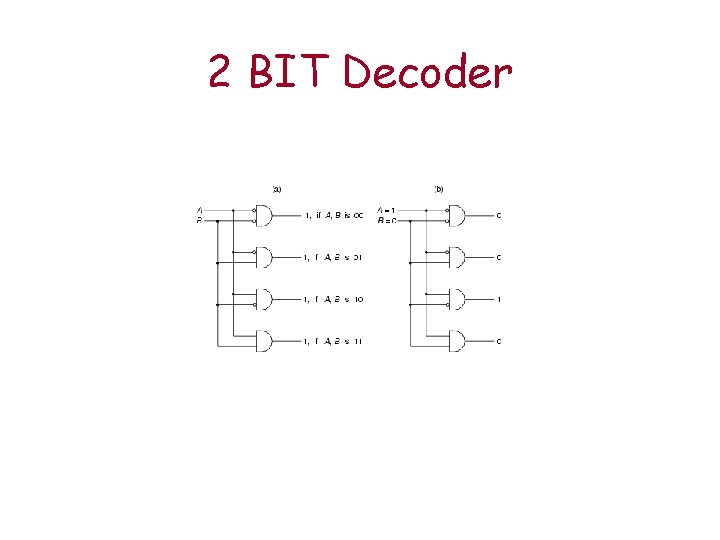

2 BIT Decoder
