ASAS Thematic Network Presented by Stéphane Marché Airbus Engineering - Avionics Airbus Status on ADS-B In / Out Update Automatic Dependent Surveillance – Broadcast (ADS-B) ASAS TN Paris April 2008 11/28/2020

Airbus Product Line A 380 Family A 340 Family A 350 Family © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. A 330 Family A 320 Family Freighters Airbus objective : Develop ADS-B (Out and In) solutions for the whole fly by wire family => Step Approach ASAS TN Paris April 2008 2

ADS-B Airbus roadmap Step 4. ASAS SEPARATION A/C instructed to maintain Separation with other aircraft ADS-B © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. ADS-B Step 3. ASAS SPACING A/C instructed to maintain Spacing with target aircraft AFR 6512 A 320 M 323 +11 Step 1. ADS-B Out A/C information broadcasted for ground use in a first step ADS-B AAL 1255 +30 ADS-B Receiver Step 2. ATSAW Display of other aircraft ADS-B Info in the cockpit ASAS TN Paris April 2008 Air Traffic Control 3

ADS-B Step 1 : ADS-B OUT New! • Certification for Non Radar Airspace operations (ED 126 document) • Certification achieved on A 380 in 2007 © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. A 380 is the first aircraft certified for Non Radar Operations (with DO-260 A) • Certification achieved on A 318/319/320/321, A 330/A 340 family (with DO-260) in early 2008 • Allow to respond to initial needs : Canada, Australia, Europe, etc. ASAS TN Paris April 2008 4

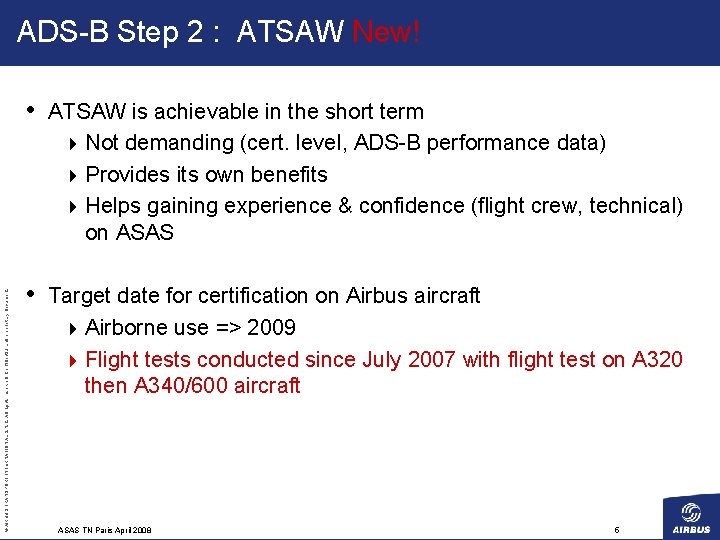

ADS-B Step 2 : ATSAW New! • ATSAW is achievable in the short term demanding (cert. level, ADS-B performance data) 4 Provides its own benefits 4 Helps gaining experience & confidence (flight crew, technical) on ASAS © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. 4 Not • Target date for certification on Airbus aircraft 4 Airborne use => 2009 4 Flight tests conducted since July 2007 with flight test on A 320 then A 340/600 aircraft ASAS TN Paris April 2008 5

ADS-B Step 2 : ATSAW in A 320/A 340 cockpit © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. Traffic Selector Additional information on MCDU ADS-B Traffic on Navigation Display • Fully integrated solution • Traffic displayed on the primary field of view • Limited impact (no new equipment) • High commonality with A 380&A 350 solution ASAS TN Paris April 2008 6

ADS-B Step 2 : ATSAW New! • Promising benefits : Fuel burn reductions 4 Visual Separation Approaches (e. g Frankfurt, USA) : Capacity increase 4 Traffic Awareness on Surface : Enhanced safety 4 In all environments => Enhanced safety © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. 4 Oceanic • CRISTAL ATSAW (EUROCONTROL, DSNA / Airbus / EGIS AVIA) 4 Use of ATSAW in continental environment 4 DSNA ATC simulator, Airbus integration simulator (Honeywell Traffic Computer) 4 Positive impact of ATSAW for safety and efficiency – Both from ATC Controllers and Pilots perspective => Report on Eurocontrol CASCADE website http: //www. eurocontrol. int/cascade/gallery/content/public/documents/CRISTAL-ATSAW%20 Final%20 Report. pdf ASAS TN Paris April 2008 7

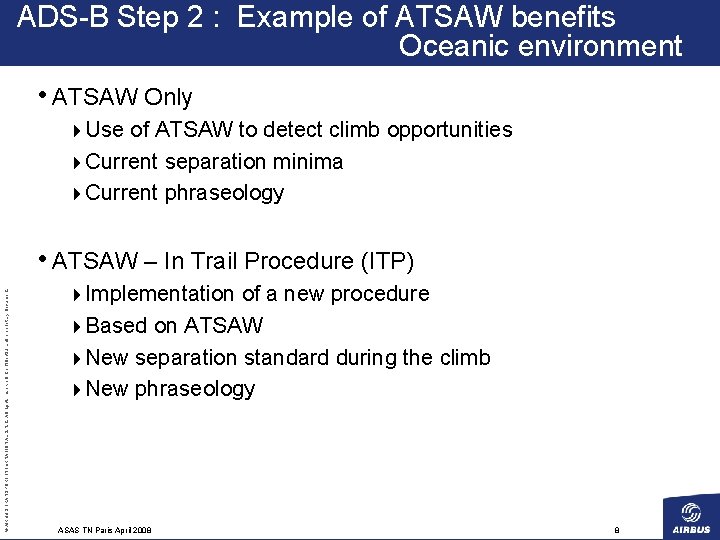

ADS-B Step 2 : Example of ATSAW benefits Oceanic environment • ATSAW Only 4 Use of ATSAW to detect climb opportunities 4 Current separation minima 4 Current phraseology © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. • ATSAW – In Trail Procedure (ITP) 4 Implementation of a new procedure 4 Based on ATSAW 4 New separation standard during the climb 4 New phraseology ASAS TN Paris April 2008 8

ADS-B Step 2 : Example of ATSAW benefits Oceanic environment 1]. ATSAW : Detect Climb Opportunity © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. ATSAW combined with Datalink Communications allows to obtain better Flight Levels 2]. Datalink Communication ASAS TN Paris April 2008 9

ADS-B Step 2 : CRISTAL ITP Project New! • Definition phase => Using RFG ATSA-ITP OSED © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. • Airbus / Shanwick connected simulations : Oct 2007 1. Objectives 1. Assess ITP Validation Objectives 2. Prepare Revenue A/C phase 2. Operationally realistic scenarios • Airbus / Reykjavik connected simulations : Dec 2007 • Objective was to prepare Flight Test • Reykjavik simulations and training : Jan 2008 • Controller training before the flight test • Operational evaluations ASAS TN Paris April 2008 10

ADS-B Step 2 : CRISTAL ITP Flight test phase Brand New! © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. Several • Safety guaranted by radar coverage Flight Test on March 26 th SUCCESSFUL ASAS TN Paris April 2008 • ACSS Traffic Computer • Airborne ADS-B Recordings • Ground Surveillance Recording • ALTICODE develops recording analysis Tools 11

ADS-B Step 2 : CRISTAL ITP Project • CRISTAL ITP is a key project for ASAS 4 First time a new separation standard is defined based on ADS-B In 4 Operational validation conducted in parallel with avionics development © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. • Positive feedbacks from controllers and pilots • Next steps 4 Results consolidation until mid 2008 4 Preparation of an airline ITP Pionneer project until End 2008 4 Pionneer airline ITP project in 2009 ASAS TN Paris April 2008 12

ADS-B Step 2 : ATSAW on Airport Surface MOVING MAP © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. (provided by On-board Airport Navigation System/OANS) + TRAFFIC Study : Is ADS-B quality sufficient for Airport Surface needs ? ASAS TN Paris April 2008 13

ADS-B Step 3 : ASAS Spacing • Promising benefits 4 Capacity / Regularity due to less radar vectoring 4 Combined with CDA => may reduce fuel consumption and emissions 4 Probably more beneficial at secondary airports © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. • Airbus target 4 Spacing application for pioneers in the 2013 timeframe 4 Applications in Approach and Oceanic environments 4 Automated solution with limited impact : Software only, using ATSAW baseline • Procedural and ground system impacts 4 To be addressed in parallel by ANSPs within SESAR ASAS TN Paris April 2008 14

ADS-B Step 4 : ASAS Separation • Principle 4 The controller delegates separation relative to designated aircraft through a new clearance controller is responsible for providing separation from other aircraft © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. 4 The • ASAS Separation is envisaged for the 2020 timeframe 4 E. g. Responsibility to “Remain behind” a target entirely transferred to the aircraft in all weather conditions • Concept and associated transitions to be refined within specific SESAR projects ASAS TN Paris April 2008 15

Airbus Status on ADS-B : Conclusion A 380 : Cert in 2007 Step 1. ADS-B Out A/C information broadcasted for ground use in a first step © AIRBUS TRANSPORT INTERNATIONAL S. N. C. All rights reserved. Confidential and proprietary document. Step 2. ATSAW Display of other aircraft ADSB Info in the cockpit Step 3. ASAS SPACING A/C instructed to maintain Spacing with target aircraft A 320/A 330/A 340 : Cert Q 1 2008 Development launched AAL 1255 +30 Test A/C flying since 2007 Cert Target date : 2009 AFR 6512 A 320 M 323 +11 Part of mid-term baseline of SESAR Airbus target : 2013 Airbus fully involved in ADS-B development To be refined Step 4. ASAS SEPARATION SESAR and NEXTGEN should. Airbus drivein. ASAS A/C instructed to maintain line with SESAR development target Separation with other aircraft ASAS TN Paris April 2008 16
