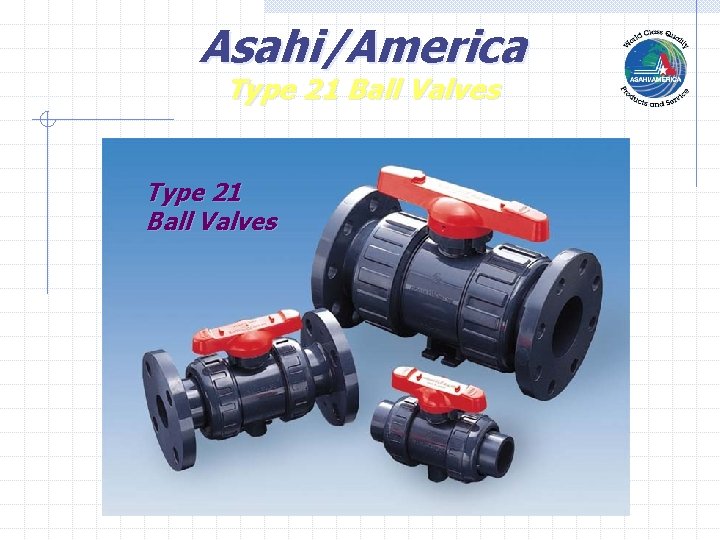

Asahi/America Type 21 Ball Valves

Asahi/America Type 21 Ball Valves

Asahi/America Duobloc Ball Valve ½” - 2” PVC, CPVC Backing Cushion Threaded Carrier

Asahi/America Duobloc Ball Valve ½” - 2” PVC, CPVC Backing Cushion Threaded Carrier

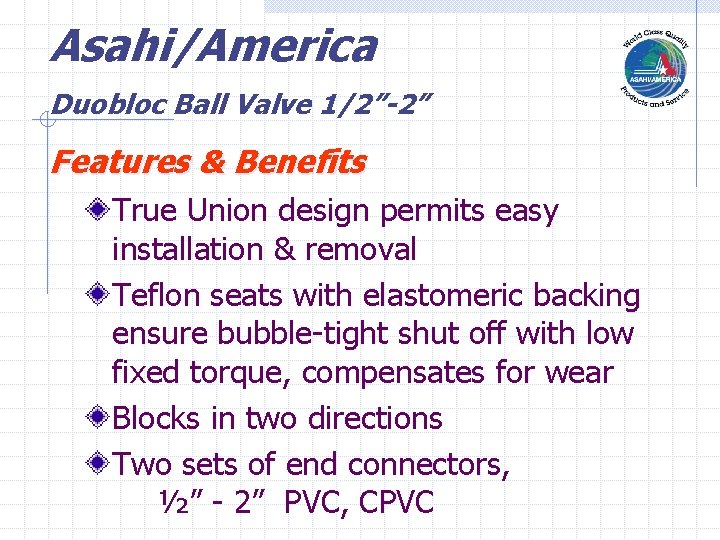

Asahi/America Duobloc Ball Valve 1/2”-2” Features & Benefits True Union design permits easy installation

Asahi/America Duobloc Ball Valve 1/2”-2” Features & Benefits True Union design permits easy installation & removal Teflon seats with elastomeric backing ensure bubble-tight shut off with low fixed torque, compensates for wear Blocks in two directions Two sets of end connectors, ½” - 2” PVC, CPVC

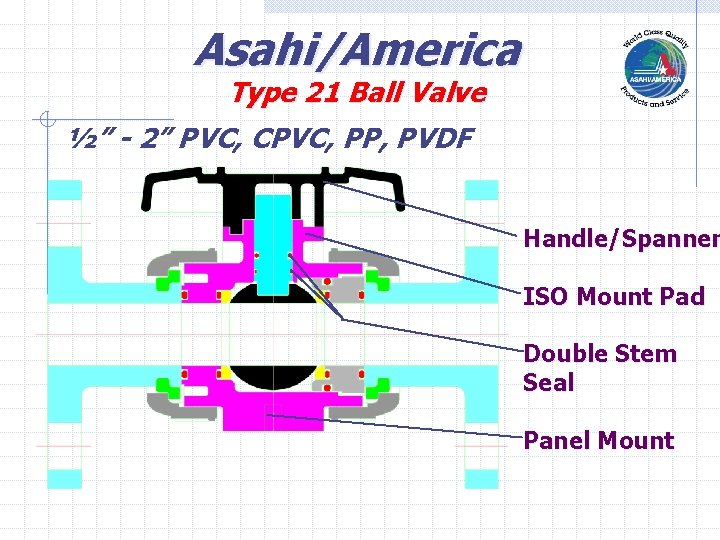

Asahi/America Type 21 Ball Valve ½” - 2” PVC, CPVC, PP, PVDF Handle/Spanner ISO

Asahi/America Type 21 Ball Valve ½” - 2” PVC, CPVC, PP, PVDF Handle/Spanner ISO Mount Pad Double Stem Seal Panel Mount

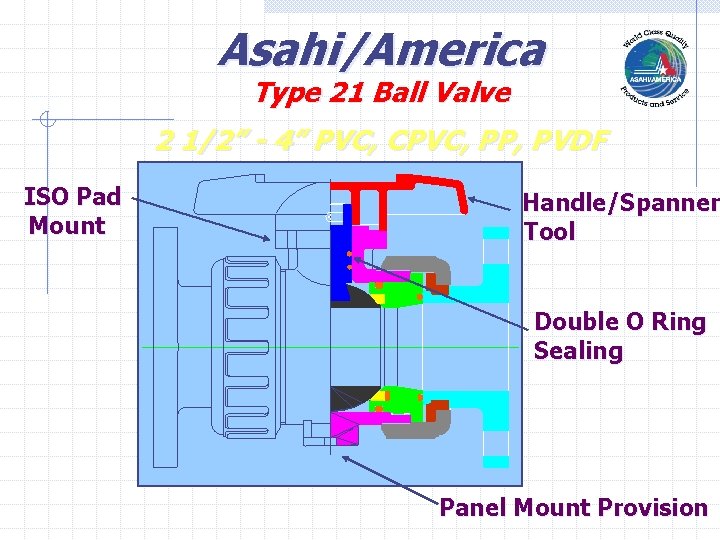

Asahi/America Type 21 Ball Valve 2 1/2” - 4” PVC, CPVC, PP, PVDF ISO

Asahi/America Type 21 Ball Valve 2 1/2” - 4” PVC, CPVC, PP, PVDF ISO Pad Mount Handle/Spanner Tool Double O Ring Sealing Panel Mount Provision

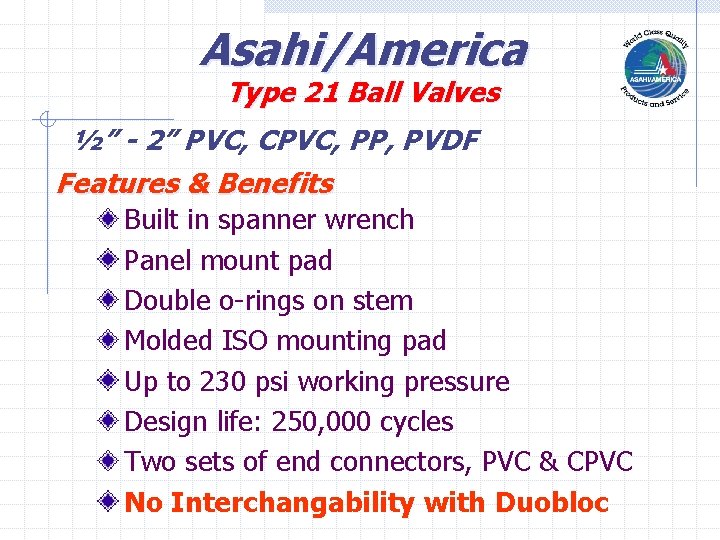

Asahi/America Type 21 Ball Valves ½” - 2” PVC, CPVC, PP, PVDF Features &

Asahi/America Type 21 Ball Valves ½” - 2” PVC, CPVC, PP, PVDF Features & Benefits Built in spanner wrench Panel mount pad Double o-rings on stem Molded ISO mounting pad Up to 230 psi working pressure Design life: 250, 000 cycles Two sets of end connectors, PVC & CPVC No Interchangability with Duobloc

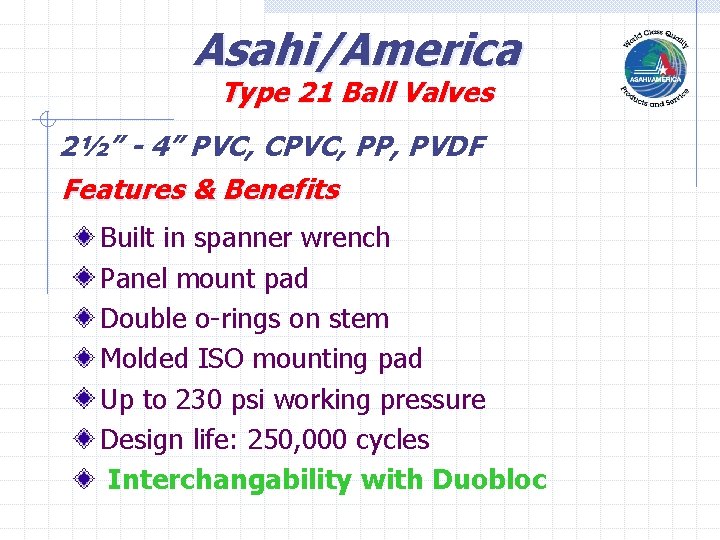

Asahi/America Type 21 Ball Valves 2½” - 4” PVC, CPVC, PP, PVDF Features &

Asahi/America Type 21 Ball Valves 2½” - 4” PVC, CPVC, PP, PVDF Features & Benefits Built in spanner wrench Panel mount pad Double o-rings on stem Molded ISO mounting pad Up to 230 psi working pressure Design life: 250, 000 cycles Interchangability with Duobloc

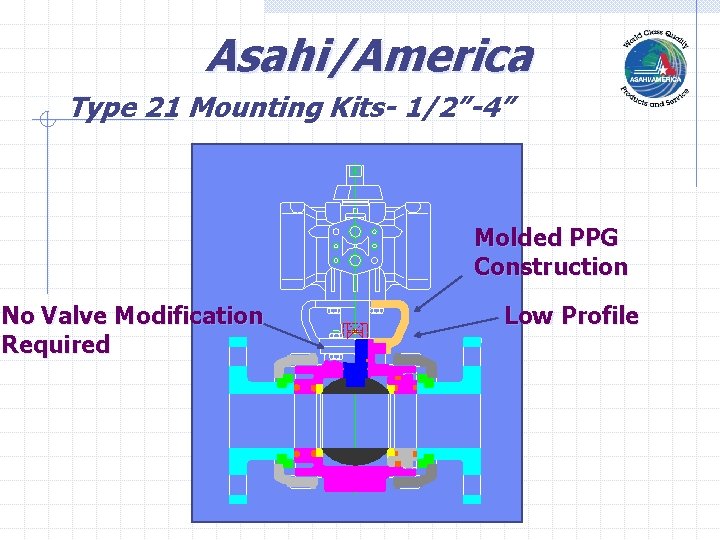

Asahi/America Type 21 Mounting Kits- 1/2”-4” Molded PPG Construction No Valve Modification Required Low

Asahi/America Type 21 Mounting Kits- 1/2”-4” Molded PPG Construction No Valve Modification Required Low Profile

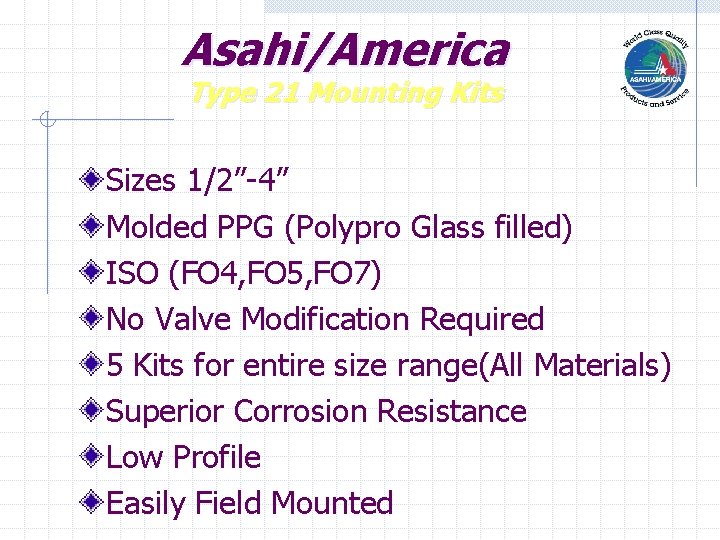

Asahi/America Type 21 Mounting Kits Sizes 1/2”-4” Molded PPG (Polypro Glass filled) ISO (FO

Asahi/America Type 21 Mounting Kits Sizes 1/2”-4” Molded PPG (Polypro Glass filled) ISO (FO 4, FO 5, FO 7) No Valve Modification Required 5 Kits for entire size range(All Materials) Superior Corrosion Resistance Low Profile Easily Field Mounted

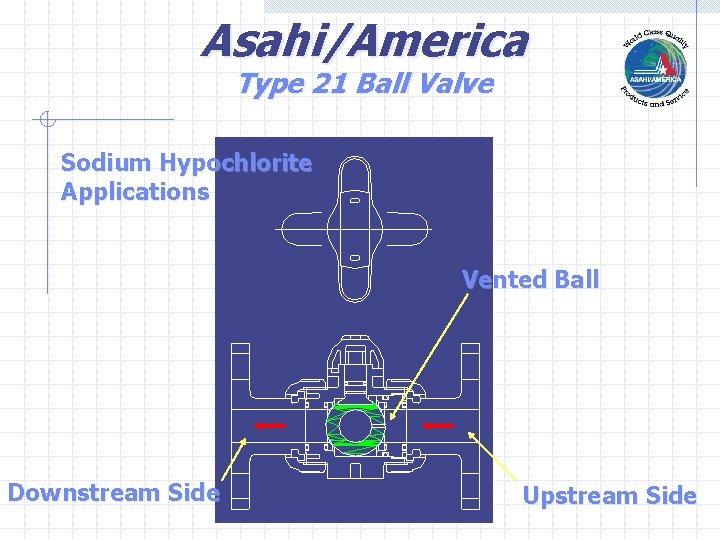

Asahi/America Type 21 Ball Valve Sodium Hypochlorite Applications Vented Ball Downstream Side Upstream Side

Asahi/America Type 21 Ball Valve Sodium Hypochlorite Applications Vented Ball Downstream Side Upstream Side

Asahi/America Stem Extensions Panel Mount Single Piece Two Piece

Asahi/America Stem Extensions Panel Mount Single Piece Two Piece

Asahi/America Switches, Square Nuts Manual Limit Switches 2” Square Operating Nut

Asahi/America Switches, Square Nuts Manual Limit Switches 2” Square Operating Nut

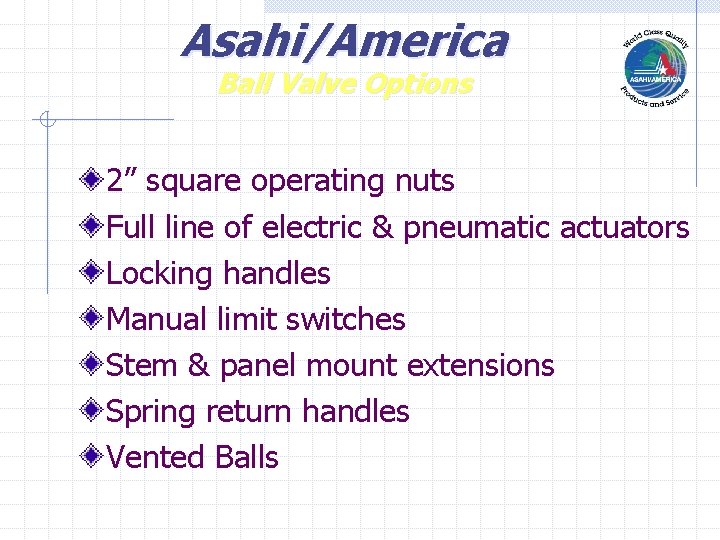

Asahi/America Ball Valve Options 2” square operating nuts Full line of electric & pneumatic

Asahi/America Ball Valve Options 2” square operating nuts Full line of electric & pneumatic actuators Locking handles Manual limit switches Stem & panel mount extensions Spring return handles Vented Balls

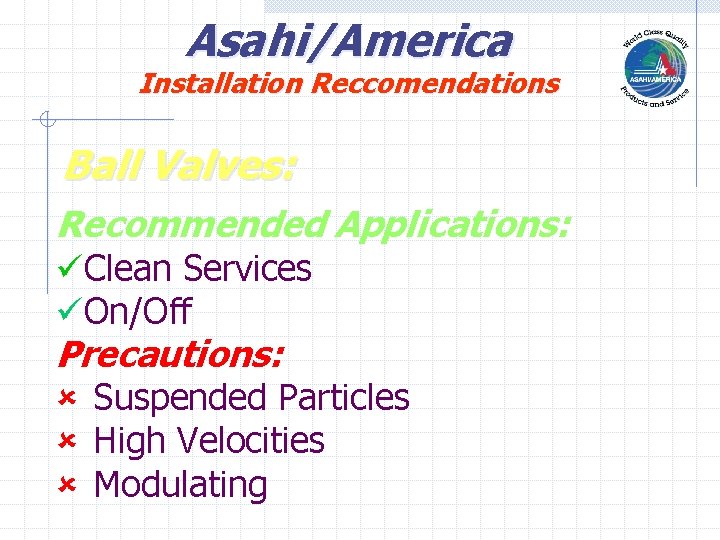

Asahi/America Installation Reccomendations Ball Valves: Recommended Applications: üClean Services üOn/Off Precautions: û Suspended Particles

Asahi/America Installation Reccomendations Ball Valves: Recommended Applications: üClean Services üOn/Off Precautions: û Suspended Particles û High Velocities û Modulating
