Asahi/America Thermoplastic Butterfly Valves PVC, POLYPRO, PVDF Type 56 Butterfly 1 1/2”-16”

Asahi/America Type 56 Butterfly 1 1/2”-16” Locking Provision All Plastic Handle & Position Plate No Stem Modification Required for Actuation Modular Gear Design ISO Pad Mount

Asahi/America Type 56 Butterfly Valves No Mating Gaskets Needed Full Seat Design Double o Ring Trunnion Design

Asahi/America Type 56 Butterfly Valves All Plastic Handle & Position Plate ISO Pad Non Wetted Stem Modular Gear Operator

Asahi/America Type 56 Butterfly Valve Mounting Kits Electric & Pneumatic (Sizes 1 ½”-6”) Low profile, molded PPG mounting bracket Support Provision (Vertical Lines) No stem modification required Molded ISO Pad

Asahi/America Type 56 Butterfly Valves Standard valve: PVC/PP/EPDM Several liner & disc materials satisfy a variety of applications Fully engaged stainless steel shaft is isolated from media by double o-ring seals on top & bottom trunnions of disc Only disc & liner are wetted parts Liner design eliminates flange gaskets

Asahi/America Type 56 Butterfly Valves ISO Pad Mount (No drilling required) New Stem Design (No modification required for Actuation) All Plastic Construction Handle Locking Provision (Standard) 316 SS Stem (Standard) 11/2”-12” New Gear Operators(Sizes 8”-16”) Interchangeability w/Type 75(Face to Face)

Asahi/America Thermoplastic Butterfly Valves Type 75 Butterfly 18”-24”

Asahi/America Type 75 Butterfly Valves Standard valve: PP/PP/EPDM Several liner & disc materials satisfy a variety of applications Fully engaged stainless steel shaft is isolated from media by double o-ring seals on top & bottom trunnions of disc Only disc & liner are wetted parts Liner design eliminates flange gaskets

Asahi/America Type 55 Butterfly Valves Type 55 Butterfly 2”-10”

Asahi/America Type 55 Butterfly Valve-2”-5”(Lever) ISO Pad Mount Locking Provision PTFE Disc & Seat All Plastic Handle & Position Plate

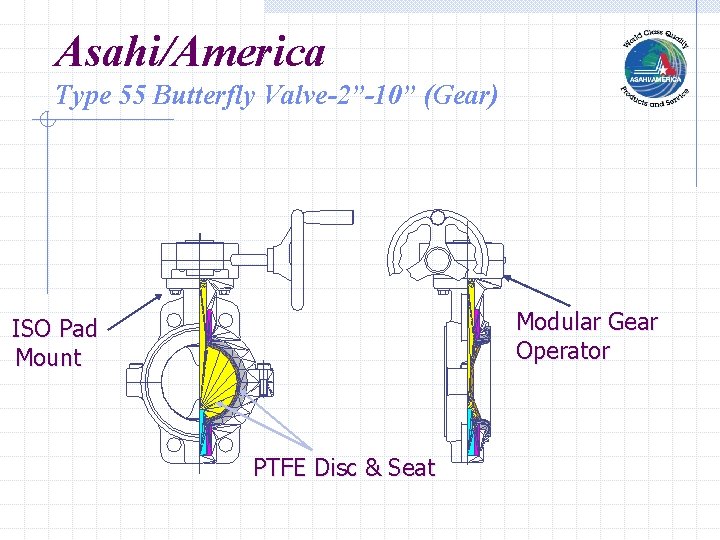

Asahi/America Type 55 Butterfly Valve-2”-10” (Gear) Modular Gear Operator ISO Pad Mount PTFE Disc & Seat

Asahi/America Type 55 Butterfly Valve-2”-10” TYPE 55 Sealing Arrangement O-RING BUSH #3 #2 SEALING #1 DISC

Asahi/America Type 55 Butterfly Sizes 2”-10” PTFE Disc & Liner ISO Pad Mount (No drilling required) New Stem Design (No modification required for Actuation) All Plastic Construction Handle Locking Provision (Standard Lever Type) New Gear Operators(Sizes 2”-10”)

Asahi/America FRP Butterfly Valves FRP Butterfly 28”-60”

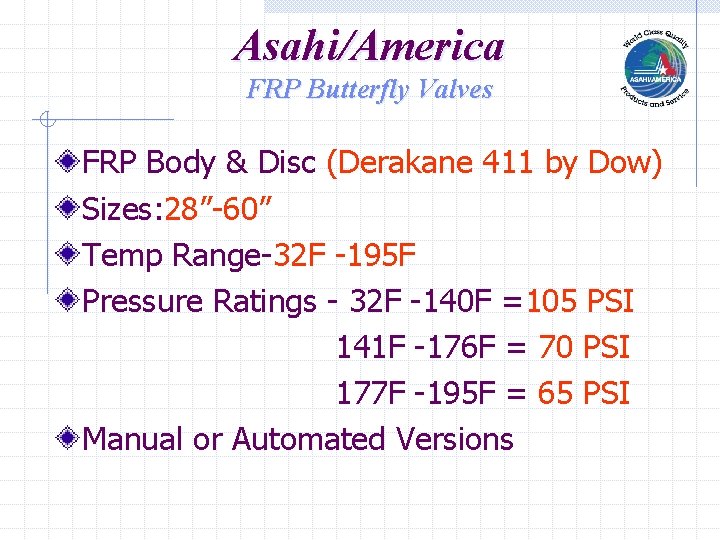

Asahi/America FRP Butterfly Valves FRP Body & Disc (Derakane 411 by Dow) Sizes: 28”-60” Temp Range-32 F -195 F Pressure Ratings - 32 F -140 F =105 PSI 141 F -176 F = 70 PSI 177 F -195 F = 65 PSI Manual or Automated Versions

Asahi/America FRP Butterfly Valves Several liner materials to satisfy a variety of applications Fully engaged stainless steel shaft is isolated from media by double o-ring seals on top & bottom trunnions of disc Only disc & liner are wetted parts Liner design eliminates flange gaskets

Asahi/America Lug Style Butterfly Valve Hex Head Bolts Stainless Steel Lugs End of Line Service Isolation of Upstream Pressure Allows Maintenance of Downstream

Asahi/America Butterfly Valve Options Switches Gear Type & Lever Type SO AV ASAHI BUTTERFLY VALVE Chain Operators 90

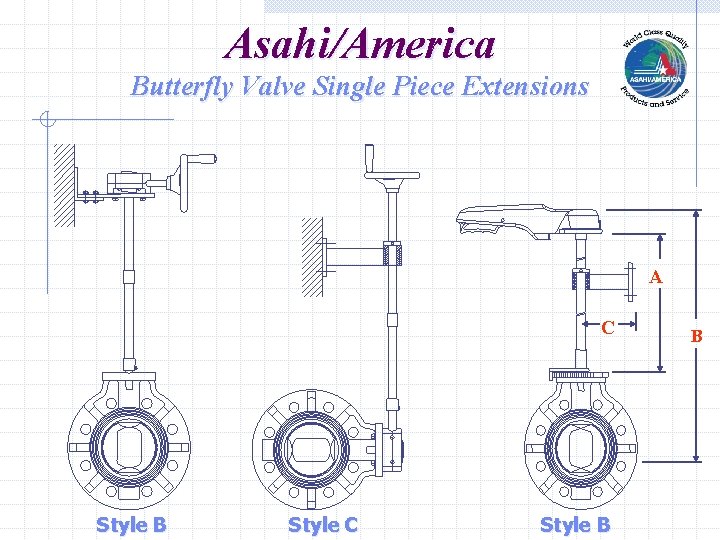

Asahi/America Butterfly Valve Single Piece Extensions A C Style B Style C Style B B

Asahi/America Butterfly Valve Two Piece Extensions B Style A Gear A A B Style A Lever

Asahi/America Butterfly Valve Options Stems & stem extensions available in virtually any standard commercial metal Lug style bodies 2” Square operating nuts Interchangeability of parts materials lowers cost on specific applications Full line of electric & pneumatic actuators

Asahi/America Butterfly Valve Options Chain operators Locking handles Manual limit switches Gear operators for 1½“ through 6” Tandem arrangements (patented), available with electric, pneumatic or manual operators

Asahi/America Butterfly Recommendations Recommended Applications: ü On/Off ü Modulating ü Suspended Particles (Except Type 55) ü High Velocities Precautions: û Overtightning Mating Flanges û Electrically Actuated, Require Mechanical Brake or Worm Gear Design
