Asahi/America Pool-Pro® Butterfly Valves Pool-Pro Butterfly - 1 -1/2”– 8” Blue Lever-Op - 1 -1/2” – 12” Blue Handwheel Plasgear™ - S 32101 SS stem - EPDM seat & seals Max Pressure - 150 psi 1 -1/2” – 10” - 100 psi 12” Size Range 1 -½” – 12”
Asahi/America Pool-Pro® Butterfly 1 -1/2”-12” Padlock provision All plastic handle & throttling plate No stem modification required for actuation Modular gear design ISO mounting pad

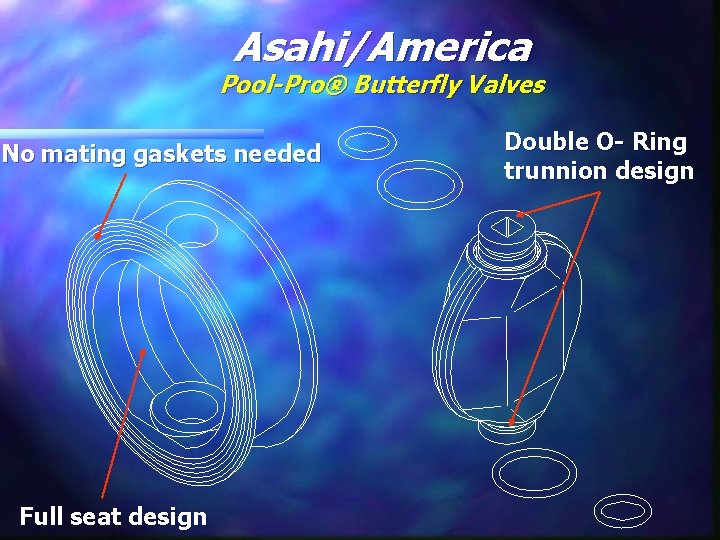

Asahi/America Pool-Pro® Butterfly Valves No mating gaskets needed Full seat design Double O- Ring trunnion design
Asahi/America Pool-Pro® Butterfly Valves All plastic handle & throttle plate ISO Pad Non Wetted SS Stem Modular gear operator
Asahi/America Pool-Pro® Butterfly Valves Unique Features & Benefits All Thermoplastic Construction Non-Wetted PVC body & S 32101 stem, with PVC disc, EPDM seat n Full Seat Designed for swimming pool use No mating flange gaskets required for installation n Plasgear™ Operator Engineered resin enclosure with PPG handwheel, SS trim - IP 67 submersible to 3 psi n
Asahi/America Pool-Pro® Butterfly Valves Unique Features & Benefits n Non Wetted-Stem Design The disc and seat design isolate the stem from the media. Valve stem has full engagement through the disc and is non-wetted n Integral Molded ISO Mounting Pad Allows field installation of automation
Asahi/America Pool-Pro® Butterfly Valves Electric or Pneumatic Actuation Low profile, molded PPG mounting bracket (Sizes 1 1/2”-6”) No stem modification required Corrosion resistant packages Support provision (vertical lines) Molded ISO pad
Asahi/America Installation Recommendations Recommended Applications: ü Chlorinated swimming pools ü Open/Close service (on/off) ü Modulating service (4 -20 m. A or 3 -15 PSI signals) ü High velocities Precautions: û Pipe interference with disc - Use chamfered stub ends or spacers
