Asahi/America Actuation Presented by: Leo Lester (VP of Engineering/Operations)

Asahi/America Actuation Manufactured by Asahi/America Series 92 Series 94

Asahi/America Actuation (Series 94 Electric Actuator) Series 94 Actuator Type 21/23 Ball/Multiport Valve (1/2”-3”) Type 57 Butterfly Valve (1 -1/2”-4”)

Asahi/America Actuation (Series 94 Electric Actuator) Unique Features: Ø Nema 4 x Enclosure with Stainless Steel Trim Ø Meets UL/CSA Flame Retardancy Ø UL Approved Ø CE Marking Ø ISO Bolt Circle Ø Heat Treated, Hardened Gearing (No Plastic) Ø 100% Duty Cycle Ø Position Indicator / Manual Override Ø Thermally Protected Motor

Asahi/America Actuation (Series 92 Electric Actuator) Series 92 Type 57 Butterfly Valve (11/2”-8”) Type 21/23 Ball/ Multiport Valve (1/2”-4”)

Asahi/America Actuation (Series 92 Electric Actuator) Unique Features: ØCombination Nema 4 X (IP 56) & Nema 7 (IP 67) Enclosure ØCorrosion Resistant Powder Coat w/Stainless Steel Trim ØCE Marking ØUL Approved ØHeat Treated, Hardened Spur Gear Design Ø 100% Duty Cycle ØColor Coded Position Indicator ØISO Bolt Circle

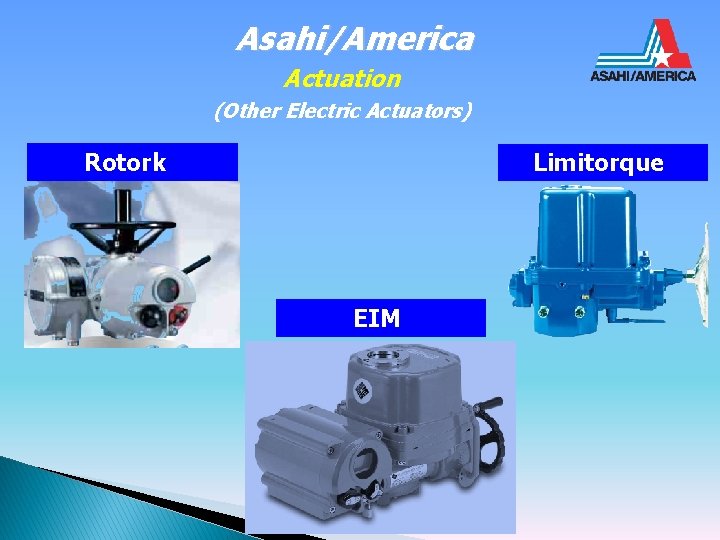

Asahi/America Actuation (Other Electric Actuators) Rotork Limitorque EIM

Asahi/America Actuation (Switches) SPDT Dry Contact Switches Cams Wiring Harness Installed Switches

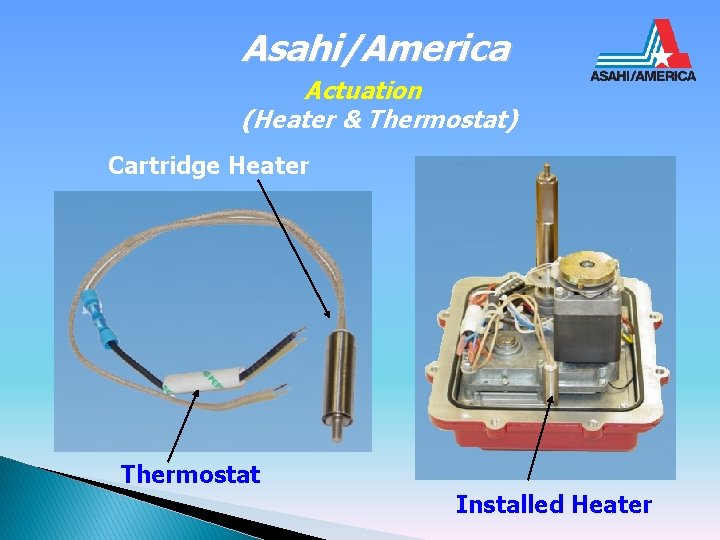

Asahi/America Actuation (Heater & Thermostat) Cartridge Heater Thermostat Installed Heater

Asahi/America Actuation (Potentiometer) 1000 OHM Potentiometer Shaft Drive Gear Installed Potentiometer

Asahi/America Actuation (Electronic Brake) Disc Brake Assembly Plug in Capacitor Leads Installed Brake

Asahi/America Actuation (Failsafe Electric) Circuit Board Ni-Cad Battery Installed Protek

Asahi/America Actuation (Local Remote Station) Auto= Computer Controlled Hand=Locally Controlled

Asahi/America Actuation Stainless Steel Plastic Aluminum

Asahi/America Actuation Type 21 Ball Valves ½”-6” Type 23 Multiport Valves ½”-6”

Asahi/America Actuation Type 57 Butterfly Valves 11/2 -14” Type 56 Butterfly Valves 16” Type 75 Butterfly Valves 18”-24”

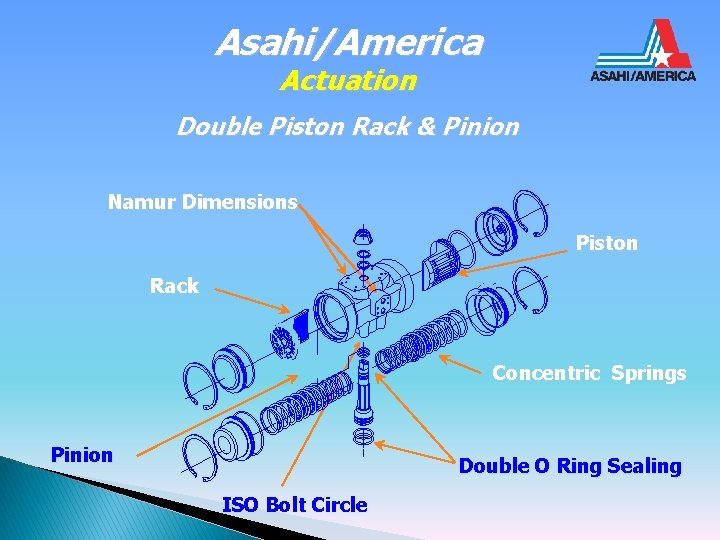

Asahi/America Actuation Double Piston Rack & Pinion Namur Dimensions Piston Rack Concentric Springs Pinion Double O Ring Sealing ISO Bolt Circle

Asahi/America Actuation Unique Features: ü Nylon-coated (10 mil) Aluminum, Polyamide glass filled or 316 SS body ü CE Approved ü Silicone Free ü Stainless steel shaft with double O-ring seals ü ISO & Namur Mounting Dimensions ü Star Drive Output Shaft

Asahi/America Actuation Solenoid Valve Limit Switch Travel Stop

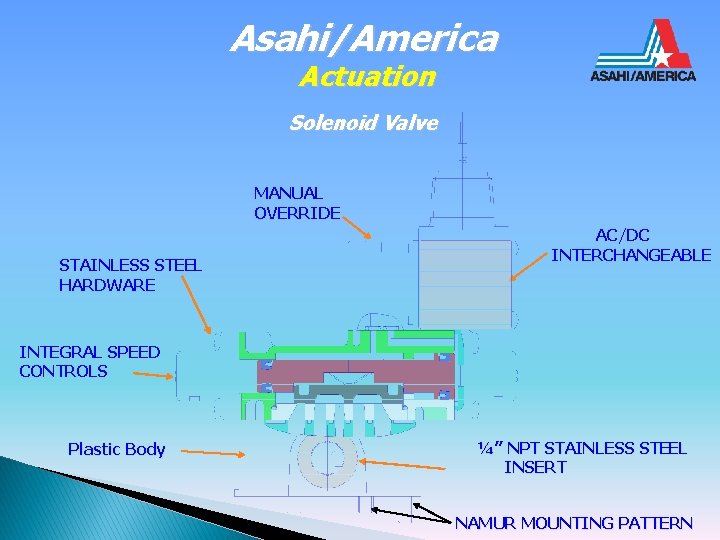

Asahi/America Actuation Solenoid Valve MANUAL OVERRIDE STAINLESS STEEL HARDWARE AC/DC INTERCHANGEABLE INTEGRAL SPEED CONTROLS Plastic Body ¼” NPT STAINLESS STEEL INSERT NAMUR MOUNTING PATTERN

Asahi/America Actuation (Declutchable Gear Operator) Lever Lock Engagement Lever Handwheel

Asahi/America Positioners

Asahi/America Positioners Type: Pneumatic Input- 3 -15 PSI 6 -30 PSI P-10 Positioner Output- 2 SPDT Mechanical Switches 2 SPST Proximity Switches 4 -20 ma Transmitter Applications: Ø Installations where 4 -20 ma is not present. Ø Installations where 4 -20 ma is present but an I-P Transducer is used.

Asahi/America Positioners Gauge Connections 3 -15 Instrument Air Output 2 Air to Air Supply Air Output 1 Spring Return P-10

Asahi/America Positioners Unique Features: Ø Low Cost Ø Simple Calibration Ø Low Air Consumption Ø Nema 4, 4 X Enclosure Ø Single or Double Acting Type (Same Enclosure) Ø Namur Mount P-10

Asahi/America Positioners K-10 Positioner Type: Electro-Pneumatic Input- 4 -20 ma Output- 2 SPDT Mechanical Switches 2 SPST Proximity Switches 4 -20 ma Transmitter Applications: Ø Direct Interface with 4 -20 ma Control Signal I-P Transducer is not Required

Asahi/America Positioners Output 2 Air to Air Supply Air Output 1 Spring Return Remote Control K-10

Asahi/America Positioners Unique Features: Ø Low Cost Ø Simple Pushbutton Calibration Ø Remote Calibration via Handheld Ø Low Air Consumption K-10 Ø Nema 4, 4 X Zytel Plastic Enclosure Ø Single or Double Acting Type (Same Enclosure) Ø Namur Mount

Asahi/America Positioners Electric Positioners Series 92 Series 94

Asahi/America Positioners Type: Electric Input- 4 -20 ma, 1 -5 VDC, 0 -10 VDC DHC-100 Positioner Output- 3 SPST Relay Contacts 4 -20 ma Transmitter Applications: Ø Direct Interface with 4 -20 ma and other control signals for modulating services

Asahi/America Positioners Supply Voltage Control Signal Push Button Calibration DHC-100

Asahi/America Positioners DHC-100 (4 -20 ma Output Card) SPST Relays Fault Ind. Open Ind. Closed Ind. 4 -20 ma Output

Asahi/America Positioners Unique Features: Ø Low Cost Ø Simple Pushbutton Calibration (No calibration meters required) Ø Selectable Input Signal (4 -20 ma, 0 -10 VDC, 0 -5 VDC or 1 -5 VDC) Ø Various Input Voltages (115 VAC, 220 VAC, 24 VAC) DHC-100 Ø High Resolution (450 Points of Control For Quarter Turn Valves)
