ASAHI CORSAIR MICROCATHETER The Device that Revolutionized CTO

ASAHI CORSAIR MICROCATHETER The Device that Revolutionized CTO Procedures Barry D. Rutherford, MD CRT 2012

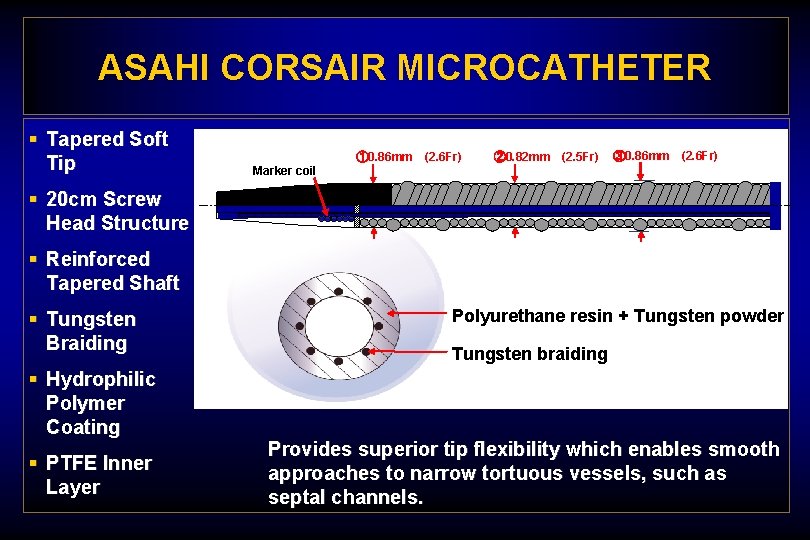

ASAHI CORSAIR MICROCATHETER § Tapered Soft Tip ① 0. 86 mm　(2. 6 Fr) ② 0. 82 mm　(2. 5 Fr) ③ 0. 86 mm　(2. 6 Fr) Marker coil § 20 cm Screw Head Structure § Reinforced Tapered Shaft § Tungsten Braiding § Hydrophilic Polymer Coating § PTFE Inner Layer Polyurethane resin + Tungsten powder Tungsten braiding Provides superior tip flexibility which enables smooth approaches to narrow tortuous vessels, such as septal channels.

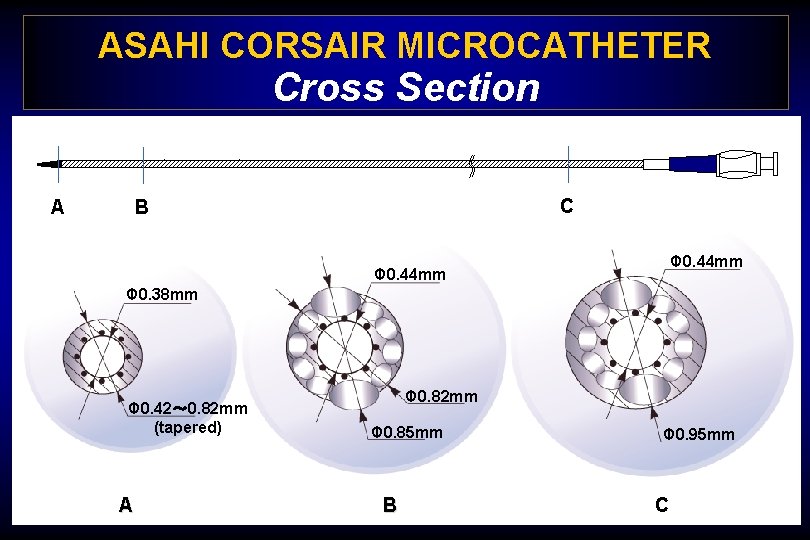

ASAHI CORSAIR MICROCATHETER Cross Section C B A Φ 0. 44 mm Φ 0. 38 mm Φ 0. 42～ 0. 82 mm (tapered) A Φ 0. 82 mm Φ 0. 85 mm B Φ 0. 95 mm C

ASAHI CORSAIR MICROCATHETER Utilization: • Antegrade delivery catheter • Traversing septal perforators • Traversing epicardial collaterals • Ostial purchase

ASAHI CORSAIR MICROCATHETER Manipulation of the Catheter: • Counterclockwise rotation (12 -15 X) to advance • Clockwise rotation (12 -15 X) to withdraw and avoid entrapment • Use with Rotaglide®/Viper. Slide® to enhance wire passage and avoid sumping air • Careful end-hole injections, 5 cc syringe full contrast • Good guide support

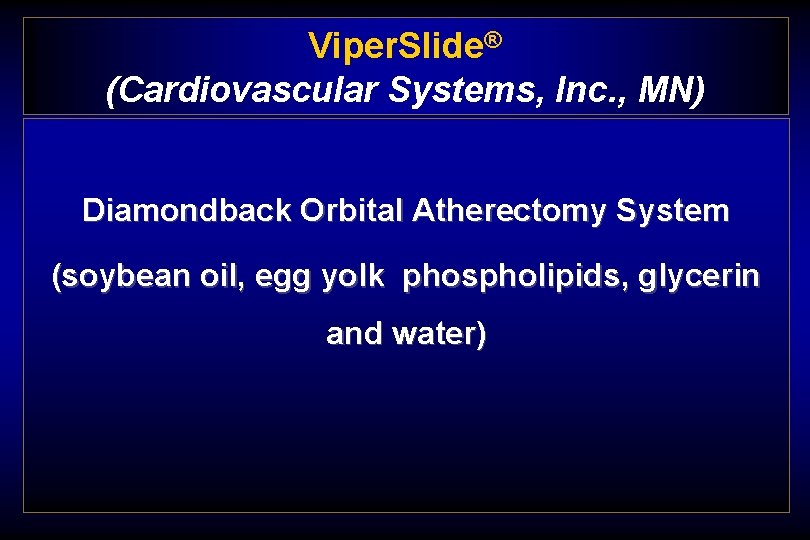

Viper. Slide® (Cardiovascular Systems, Inc. , MN) Diamondback Orbital Atherectomy System (soybean oil, egg yolk phospholipids, glycerin and water)

55 -yearold Male Acute Anterior STEMI & CTO of RCA 4 -6 -10

55 -yearold Male Acute Anterior STEMI & CTO of RCA 4 -6 -10

55 -yearold Male Acute Anterior STEMI & CTO of RCA 4 -6 -10

55 -yearold Male Acute Anterior STEMI & CTO of RCA 4 -6 -10

55 -yearold Male Acute Anterior STEMI & CTO of RCA 4 -6 -10

55 -yearold Male Acute Anterior STEMI & CTO of RCA 4 -6 -10

Extremely Tortuous Epicardial Collateral

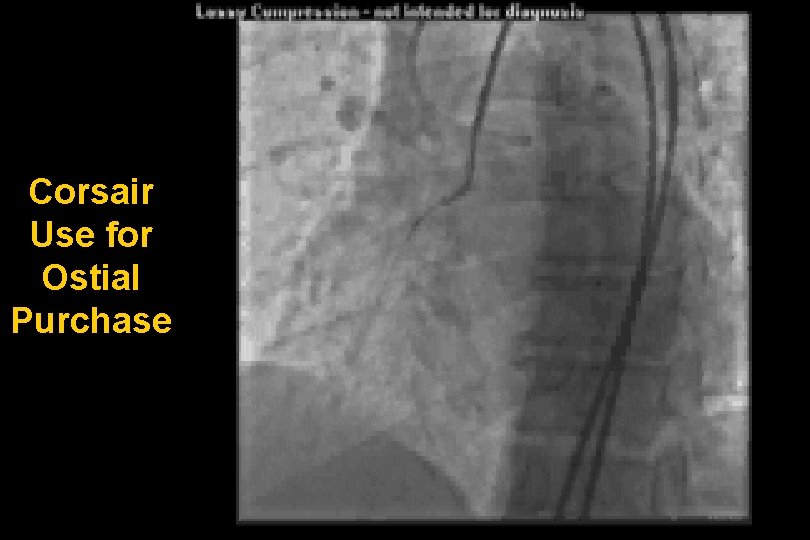

Corsair Use for Ostial Purchase

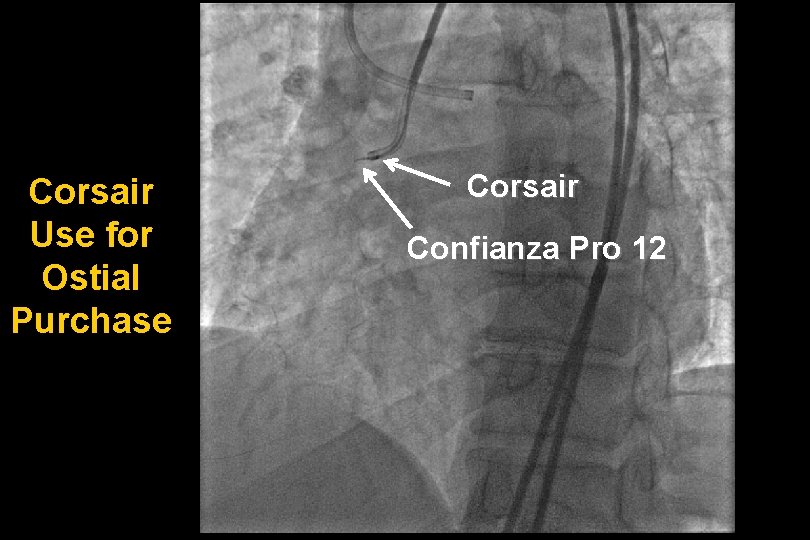

Corsair Use for Ostial Purchase Corsair Confianza Pro 12

Corsair Use for Ostial Purchase

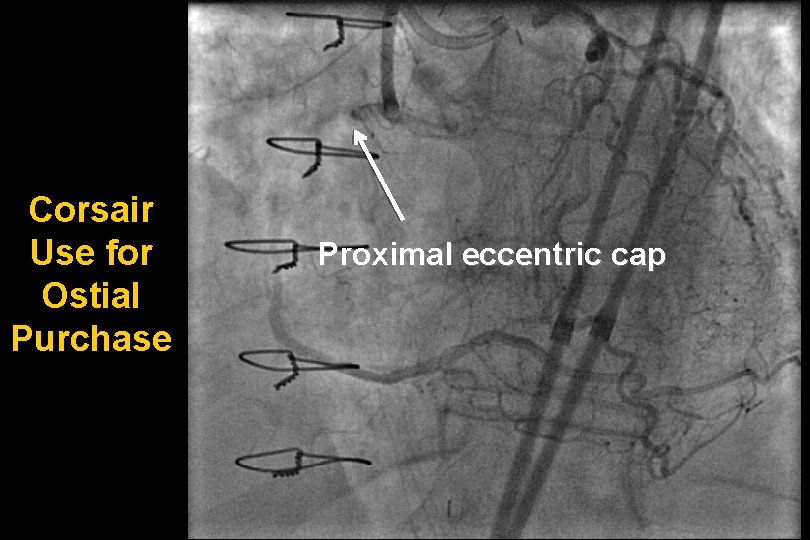

Corsair Use for Ostial Purchase Proximal eccentric cap

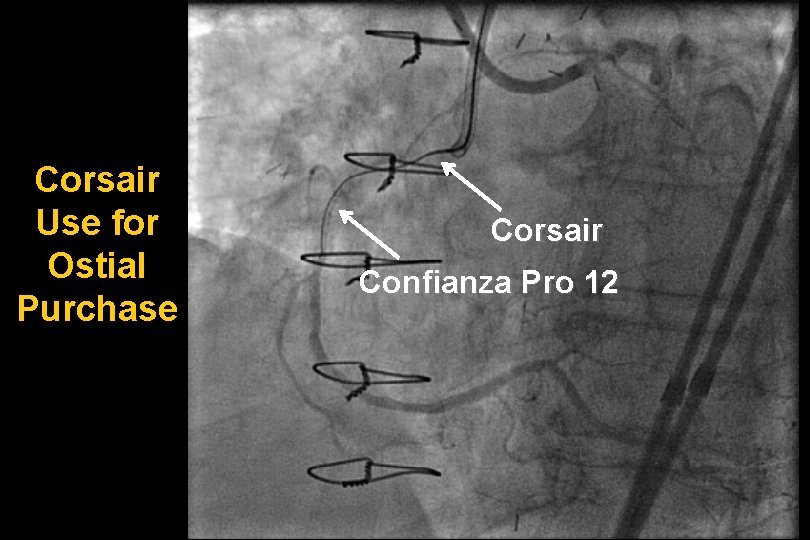

Corsair Use for Ostial Purchase Corsair Confianza Pro 12

Corsair Use for Ostial Purchase Rotoblator burr Rotofloppy wire

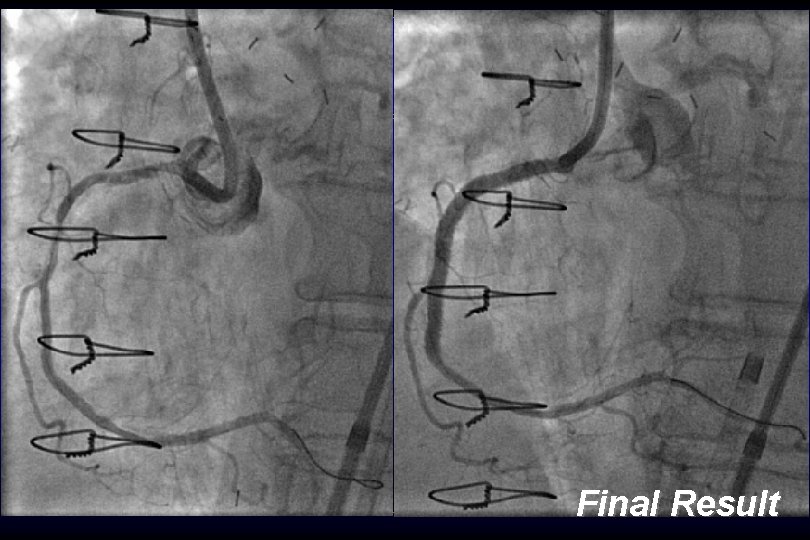

Final Result

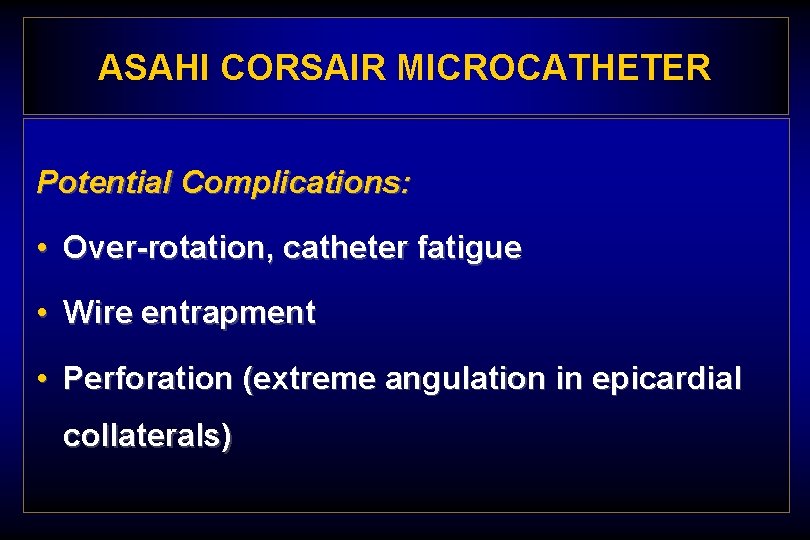

ASAHI CORSAIR MICROCATHETER Potential Complications: • Over-rotation, catheter fatigue • Wire entrapment • Perforation (extreme angulation in epicardial collaterals)
