As presented to July 2009 Battery Management Systems

As presented to July 2009

Battery Management Systems for Electric Vehicles

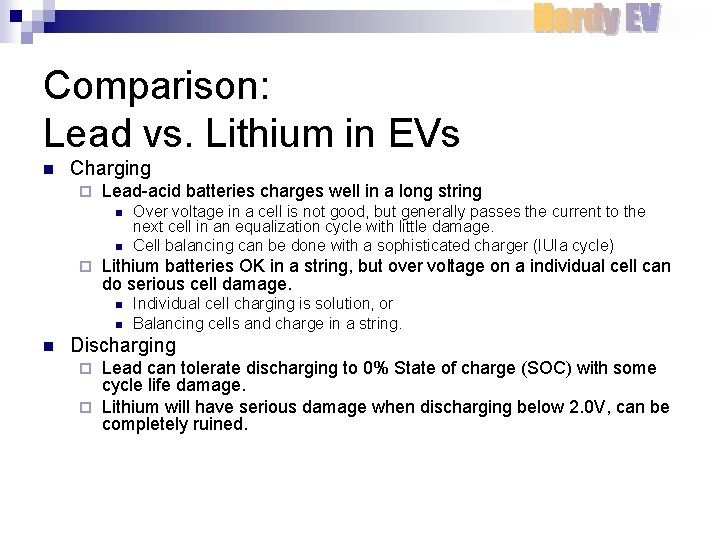

Comparison: Lead vs. Lithium in EVs n Charging ¨ Lead-acid batteries charges well in a long string n n ¨ Lithium batteries OK in a string, but over voltage on a individual cell can do serious cell damage. n n n Over voltage in a cell is not good, but generally passes the current to the next cell in an equalization cycle with little damage. Cell balancing can be done with a sophisticated charger (IUIa cycle) Individual cell charging is solution, or Balancing cells and charge in a string. Discharging Lead can tolerate discharging to 0% State of charge (SOC) with some cycle life damage. ¨ Lithium will have serious damage when discharging below 2. 0 V, can be completely ruined. ¨

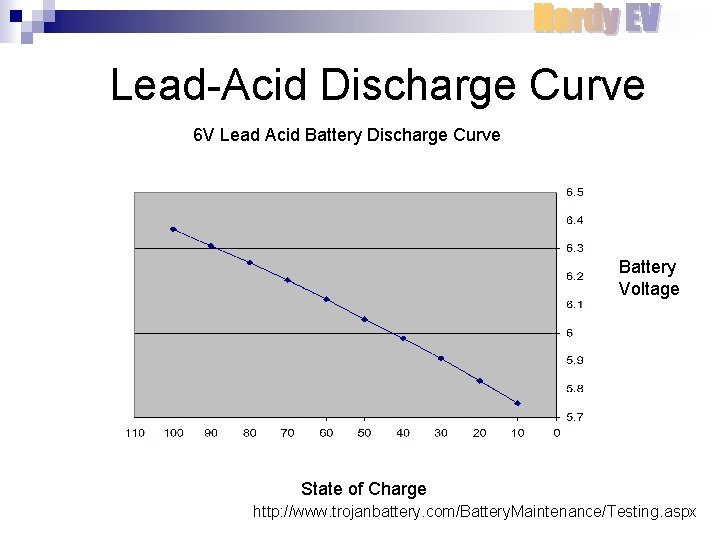

Lead-Acid Discharge Curve 6 V Lead Acid Battery Discharge Curve Battery Voltage State of Charge http: //www. trojanbattery. com/Battery. Maintenance/Testing. aspx

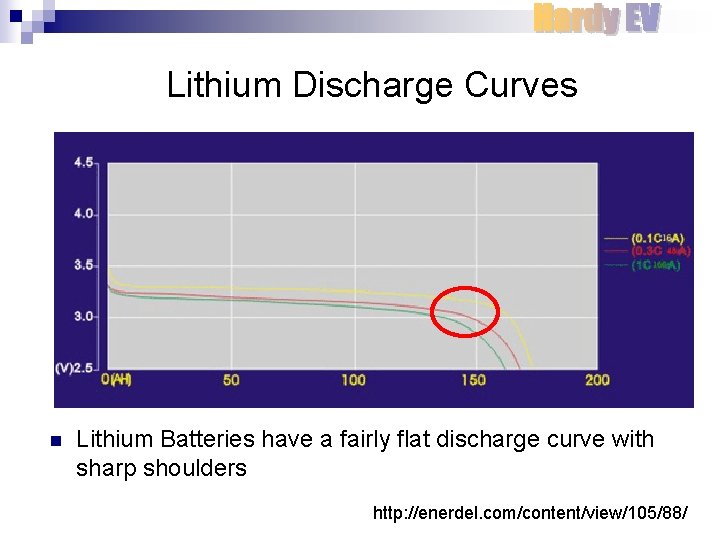

Lithium Discharge Curves n Lithium Batteries have a fairly flat discharge curve with sharp shoulders http: //enerdel. com/content/view/105/88/

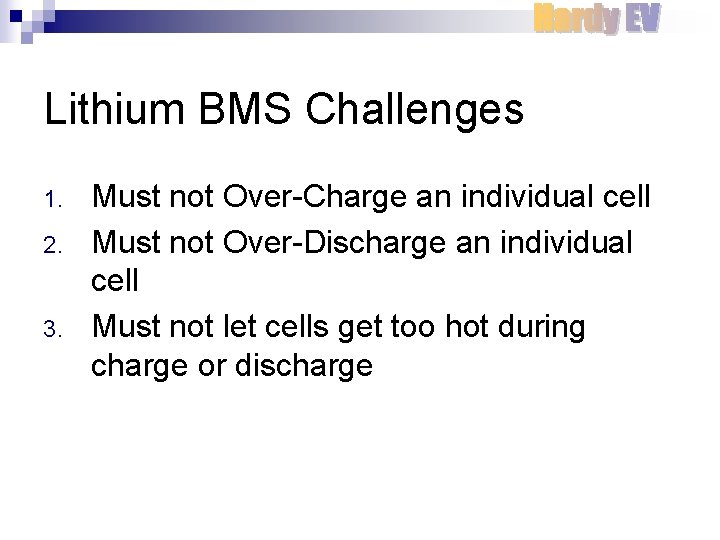

Lithium BMS Challenges 1. 2. 3. Must not Over-Charge an individual cell Must not Over-Discharge an individual cell Must not let cells get too hot during charge or discharge

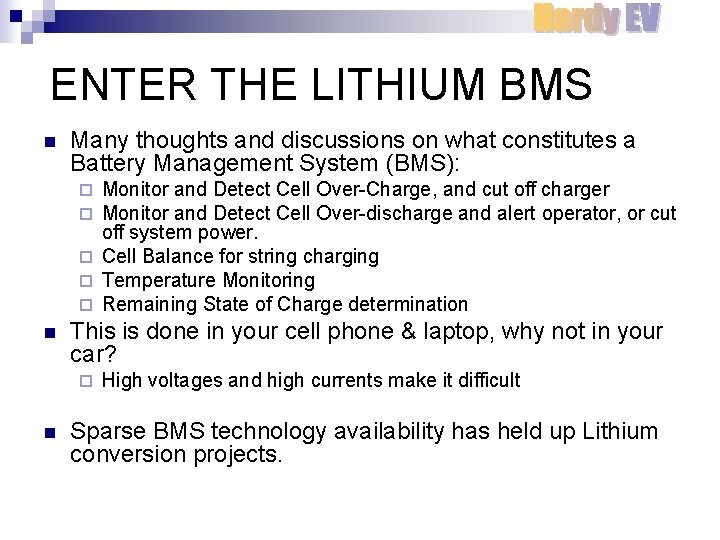

ENTER THE LITHIUM BMS n Many thoughts and discussions on what constitutes a Battery Management System (BMS): Monitor and Detect Cell Over-Charge, and cut off charger Monitor and Detect Cell Over-discharge and alert operator, or cut off system power. ¨ Cell Balance for string charging ¨ Temperature Monitoring ¨ Remaining State of Charge determination ¨ ¨ n This is done in your cell phone & laptop, why not in your car? ¨ n High voltages and high currents make it difficult Sparse BMS technology availability has held up Lithium conversion projects.

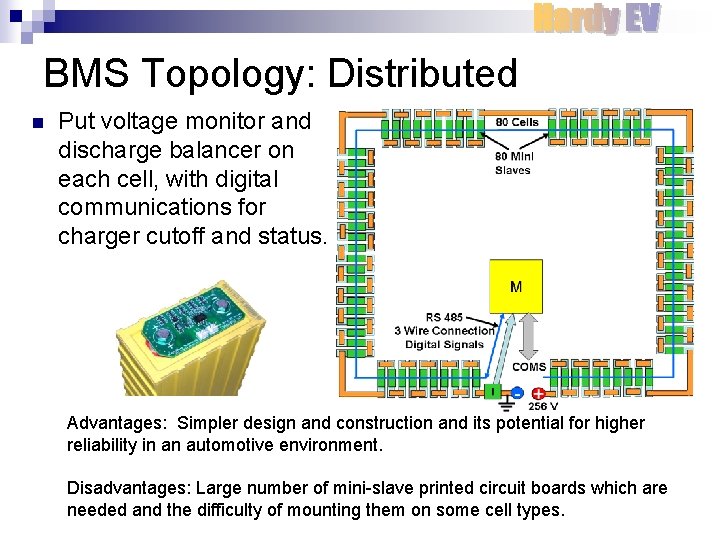

BMS Topology: Distributed n Put voltage monitor and discharge balancer on each cell, with digital communications for charger cutoff and status. Advantages: Simpler design and construction and its potential for higher reliability in an automotive environment. Disadvantages: Large number of mini-slave printed circuit boards which are needed and the difficulty of mounting them on some cell types.

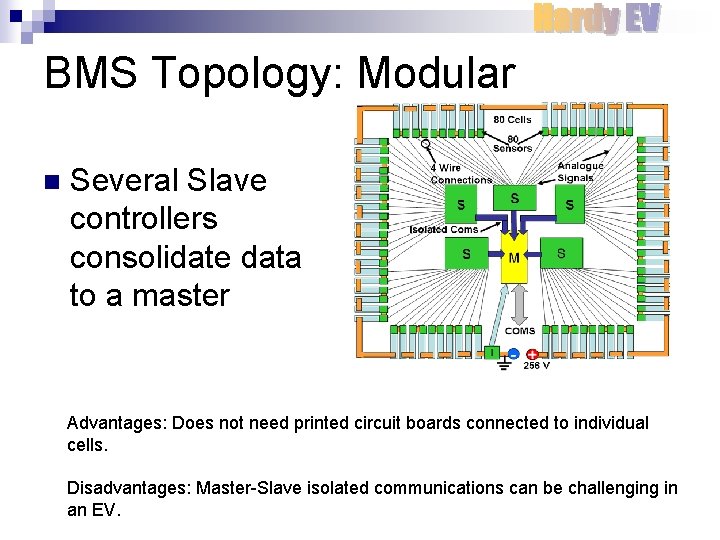

BMS Topology: Modular n Several Slave controllers consolidate data to a master Advantages: Does not need printed circuit boards connected to individual cells. Disadvantages: Master-Slave isolated communications can be challenging in an EV.

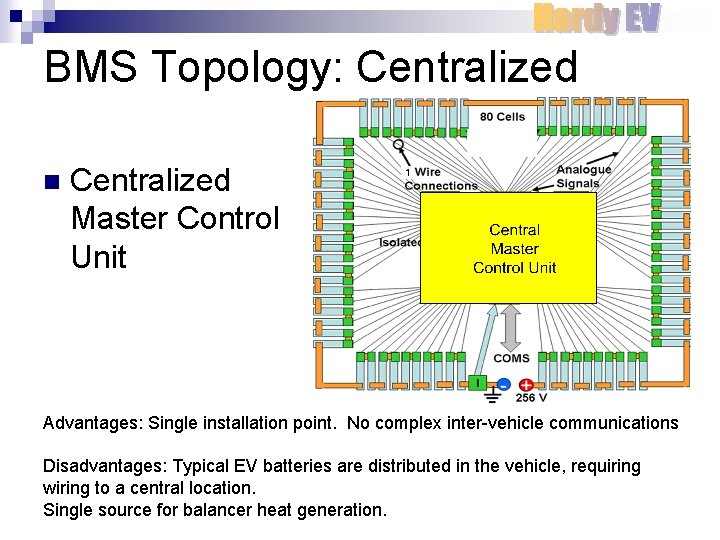

BMS Topology: Centralized n Centralized Master Control Unit Advantages: Single installation point. No complex inter-vehicle communications Disadvantages: Typical EV batteries are distributed in the vehicle, requiring wiring to a central location. Single source for balancer heat generation.

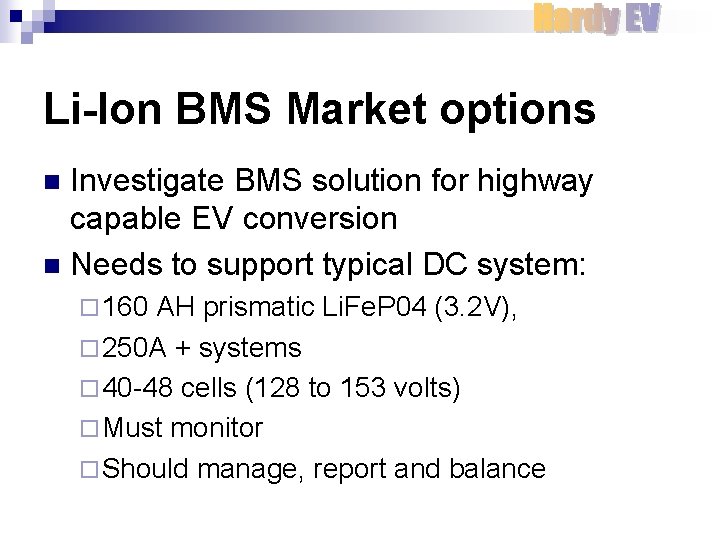

Li-Ion BMS Market options Investigate BMS solution for highway capable EV conversion n Needs to support typical DC system: n ¨ 160 AH prismatic Li. Fe. P 04 (3. 2 V), ¨ 250 A + systems ¨ 40 -48 cells (128 to 153 volts) ¨ Must monitor ¨ Should manage, report and balance

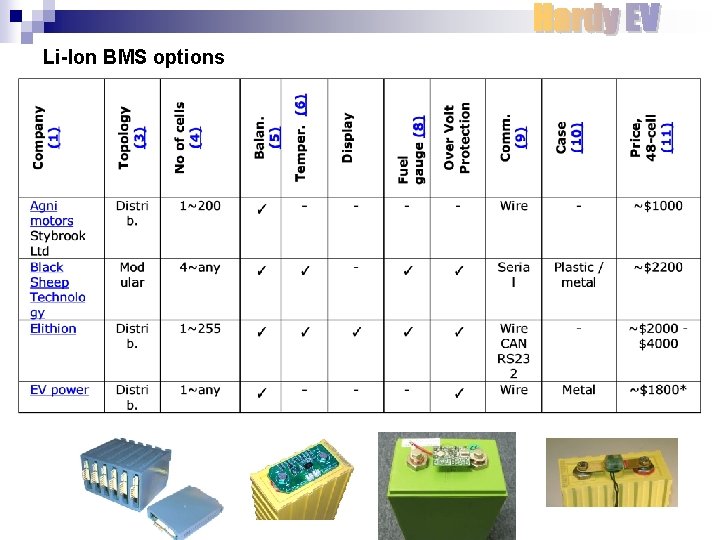

Li-Ion BMS options

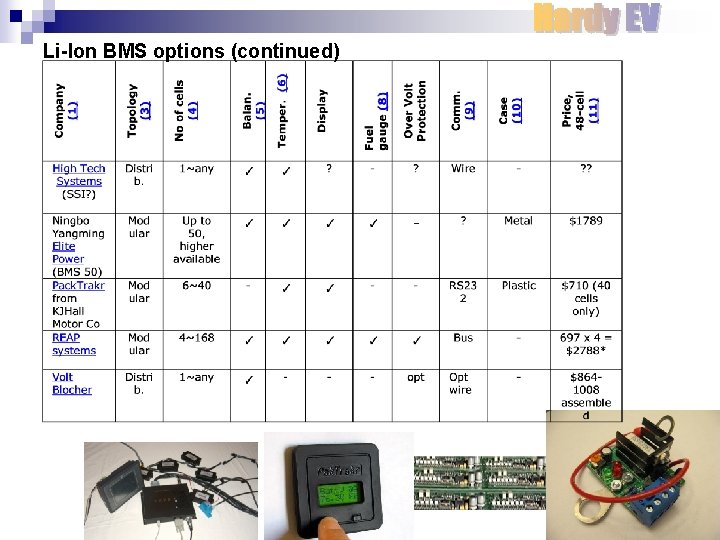

Li-Ion BMS options (continued)

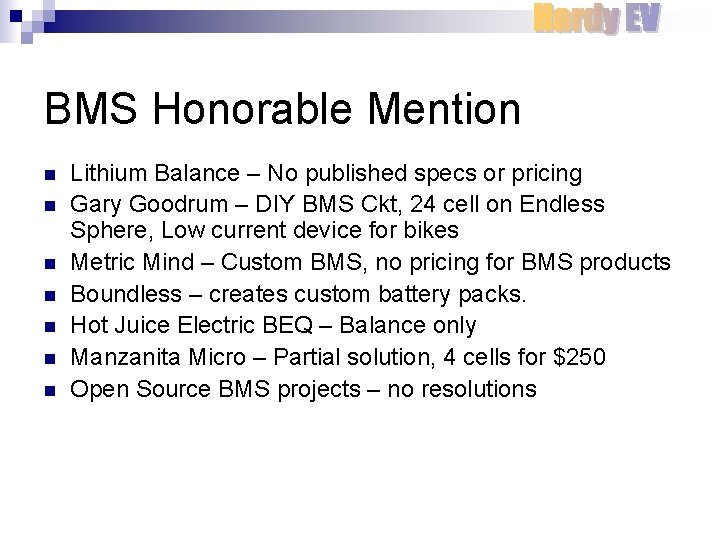

BMS Honorable Mention n n n Lithium Balance – No published specs or pricing Gary Goodrum – DIY BMS Ckt, 24 cell on Endless Sphere, Low current device for bikes Metric Mind – Custom BMS, no pricing for BMS products Boundless – creates custom battery packs. Hot Juice Electric BEQ – Balance only Manzanita Micro – Partial solution, 4 cells for $250 Open Source BMS projects – no resolutions

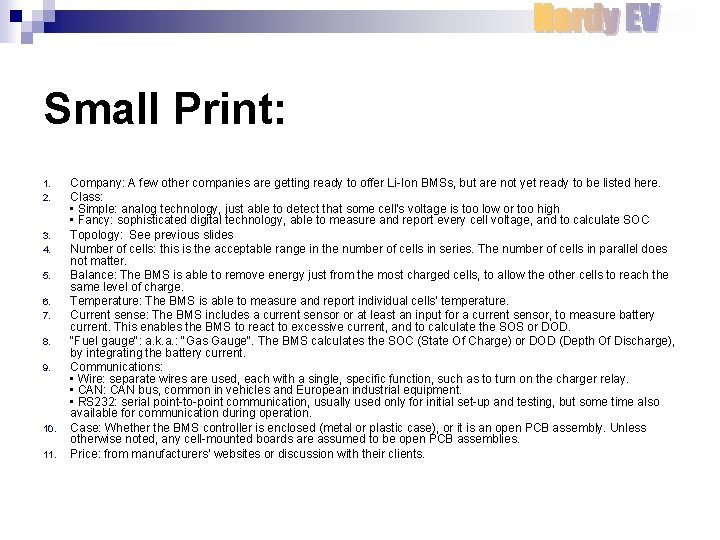

Small Print: 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. Company: A few other companies are getting ready to offer Li-Ion BMSs, but are not yet ready to be listed here. Class: • Simple: analog technology, just able to detect that some cell's voltage is too low or too high • Fancy: sophisticated digital technology, able to measure and report every cell voltage, and to calculate SOC Topology: See previous slides Number of cells: this is the acceptable range in the number of cells in series. The number of cells in parallel does not matter. Balance: The BMS is able to remove energy just from the most charged cells, to allow the other cells to reach the same level of charge. Temperature: The BMS is able to measure and report individual cells' temperature. Current sense: The BMS includes a current sensor or at least an input for a current sensor, to measure battery current. This enables the BMS to react to excessive current, and to calculate the SOS or DOD. "Fuel gauge": a. k. a. : "Gas Gauge". The BMS calculates the SOC (State Of Charge) or DOD (Depth Of Discharge), by integrating the battery current. Communications: • Wire: separate wires are used, each with a single, specific function, such as to turn on the charger relay. • CAN: CAN bus, common in vehicles and European industrial equipment. • RS 232: serial point-to-point communication, usually used only for initial set-up and testing, but some time also available for communication during operation. Case: Whether the BMS controller is enclosed (metal or plastic case), or it is an open PCB assembly. Unless otherwise noted, any cell-mounted boards are assumed to be open PCB assemblies. Price: from manufacturers' websites or discussion with their clients.

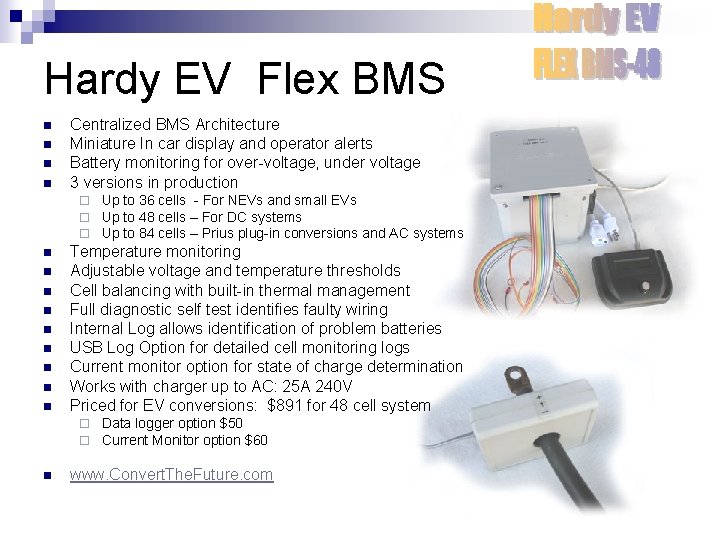

Hardy EV Flex BMS n n Centralized BMS Architecture Miniature In car display and operator alerts Battery monitoring for over-voltage, under voltage 3 versions in production ¨ ¨ ¨ n n n n n Temperature monitoring Adjustable voltage and temperature thresholds Cell balancing with built-in thermal management Full diagnostic self test identifies faulty wiring Internal Log allows identification of problem batteries USB Log Option for detailed cell monitoring logs Current monitor option for state of charge determination Works with charger up to AC: 25 A 240 V Priced for EV conversions: $891 for 48 cell system ¨ ¨ n Up to 36 cells - For NEVs and small EVs Up to 48 cells – For DC systems Up to 84 cells – Prius plug-in conversions and AC systems Data logger option $50 Current Monitor option $60 www. Convert. The. Future. com

Contact Information Mark Hardy EV, LLC Hardy. Mark@Convert. The. Future. com 858 -775 -6275
