Art/Science/Knowledge of Plant Biology Introductory Plant Biology Introduction to the major divisions of plant kingdom, Seed Plants/Flowering Plants: Angiosperms (4) Textbook: Chapter 22, pp. 409 -427 Notes for Botany (B), Chapter 14, pp. 201 -240 Lecture 9 Kris Pruski
Angiosperms Art/Science/Knowledge of Plant Biology Learning objectives: 1. Understand the differences between angiosperms and gymnosperms 2. Diagram the life cycle of a flowering plant, indicating shifts from haploid to diploid cells 3. Compare two types of female gametophytes and learn how a male gametophyte develops 4. Know characteristics of flowers associated with specific types of pollinators 5. Specialization trends in flowering plants. 6. Selected families of flowering plants
Angiosperms • The name angiosperms from Greek: Angion (vessel) and Sperma (seed) • A vessel is a carpel, an inrolled leaf with seeds along its margins , green peas for example • A seed develops from an ovule within a carpel and it is part of an ovary that becomes a fruit. Art/Science/Knowledge of Plant Biology

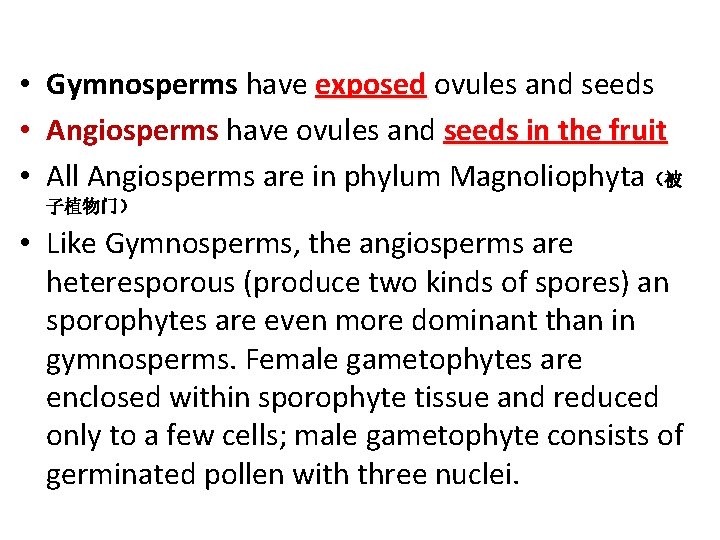

• Gymnosperms have exposed ovules and seeds • Angiosperms have ovules and seeds in the fruit • All Angiosperms are in phylum Magnoliophyta(被 子植物门) • Like Gymnosperms, the angiosperms are heteresporous (produce two kinds of spores) an sporophytes are even more dominant than in gymnosperms. Female gametophytes are enclosed within sporophyte tissue and reduced only to a few cells; male gametophyte consists of germinated pollen with three nuclei.

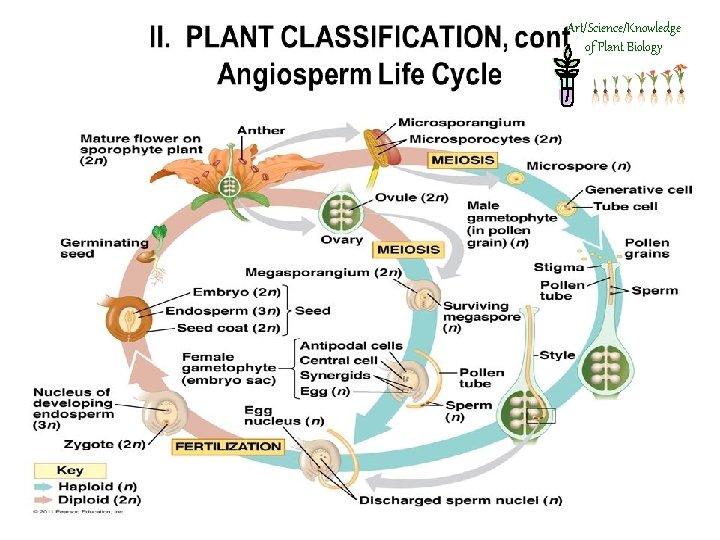

Angiosperms Life cycle of a typical ANGIOSPERM: • • • Initiation of seed: 1) POLLINATION, 2) FERTILIZATION – double fertilization (transmitting cells, tube nucleus, generative nuclei) Zygote 2 n (embryo) = egg + one sperm nucleus Endosperm 3 n = two polar nuclei + second sperm nucleus Seed (seed maturation, drying) Ripening Dissemination Germination juvenile mature Flower

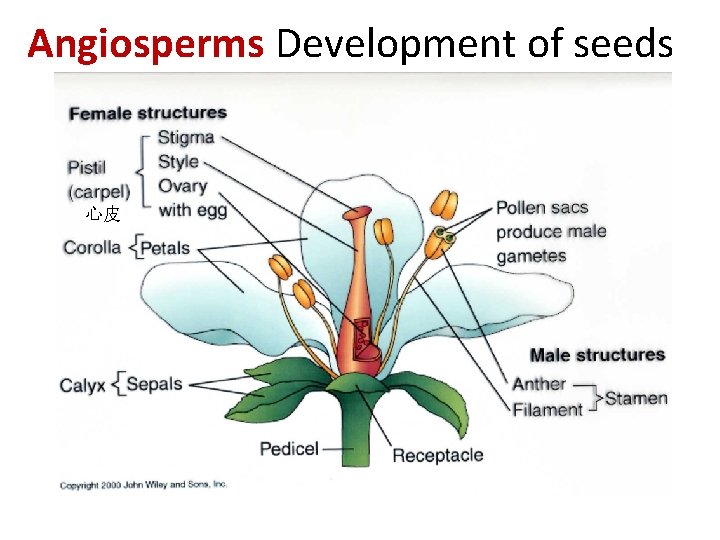

Angiosperms Development of seeds 心皮
Art/Science/Knowledge of Plant Biology
Art/Science/Knowledge of Plant Biology

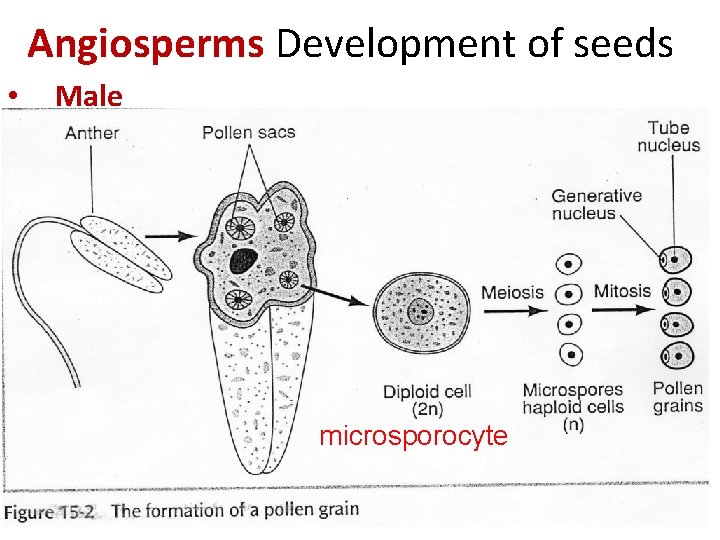

Angiosperms Development of seeds • Male microsporocyte

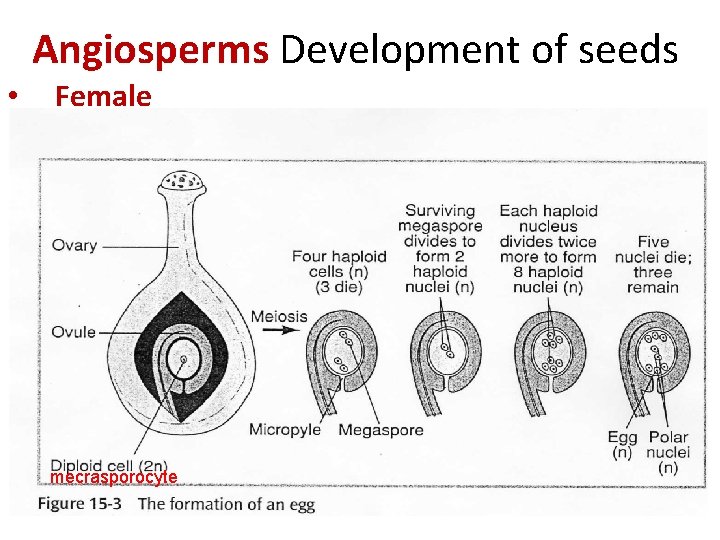

Angiosperms Development of seeds • Female mecrasporocyte

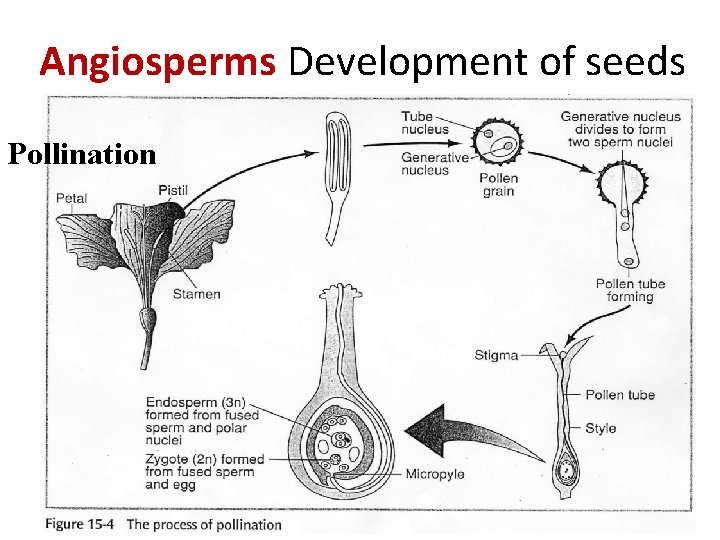

Angiosperms Development of seeds Pollination
Angiosperms Development of seeds Double Fertilization
Angiosperms Development of seeds Double Fertilization

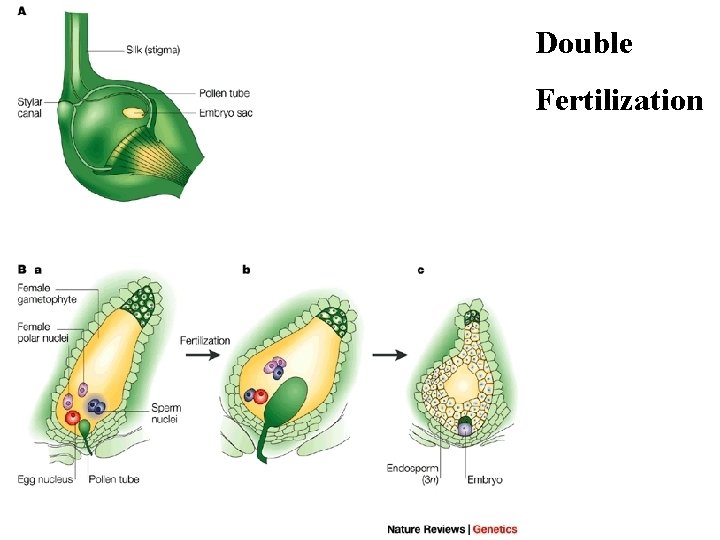

Double AN PN E SP PT Fertilization B N PG PN E PT C OVY OVL A 2 1 PT
• Germinating pollen tube
AN PN E SP PT Double Fertilization B PG PN E PT C OVY OVL A RAF
Double AN PN E SP PT Fertilization B N PG PN E PT 2 1 PT C A OVY PEN OVL ZY D RAF

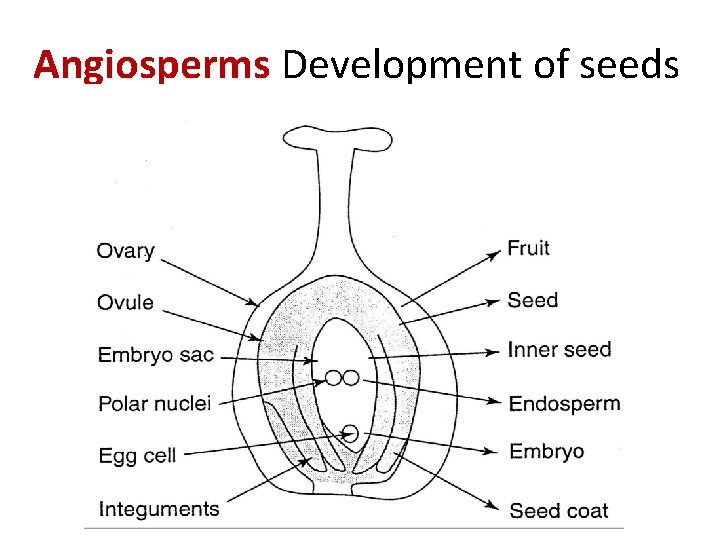

Angiosperms Development of seeds • • Flower parts vs seed parts Fusion of f/m gametes occurs in the flower Ovary Fruit tissue Ovule Mature seed Embryo sac Inner part of the seed 2 Polar nuclei (f) + 1 sperm nucleus (m) Endosperm 3 n Egg cell(f) + sperm nucleus(m) Embryo 2 n Integuments Testa (seed coat)
Angiosperms Development of seeds
Angiosperms- classification
angiosperms

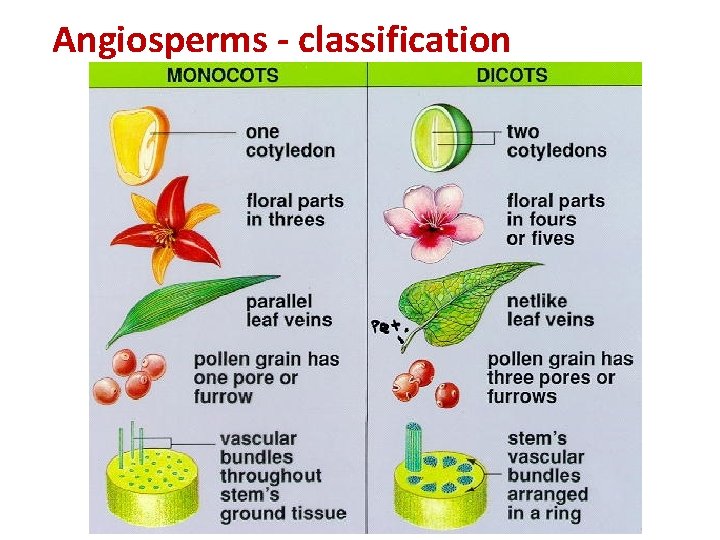

Angiosperms - classification
Angiosperms - classification

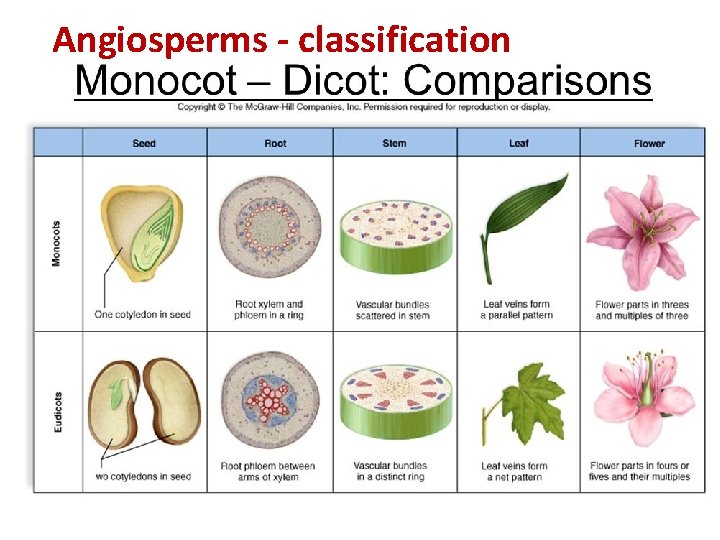

Angiosperms - classification

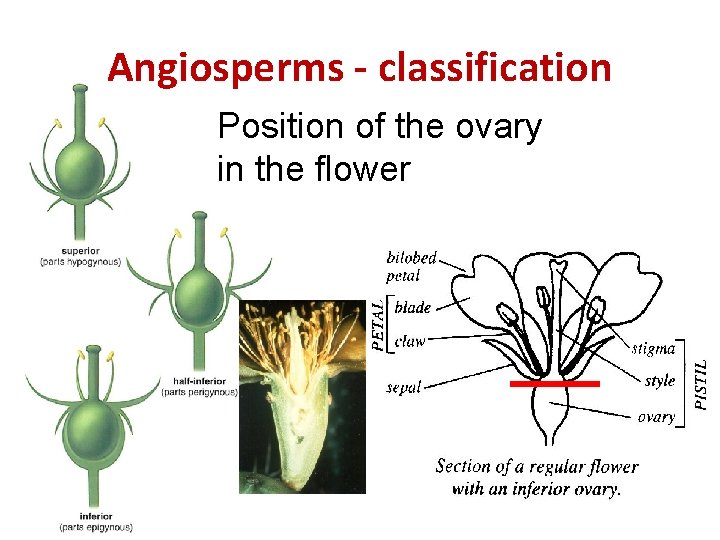

Angiosperms - classification Position of the ovary in the flower

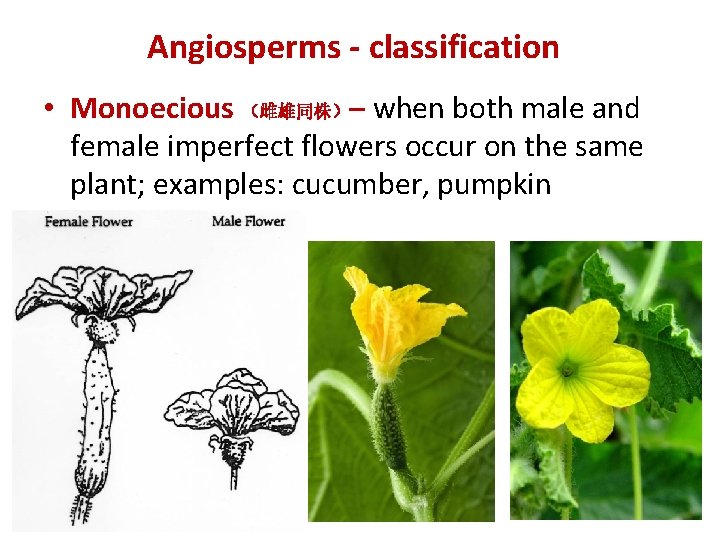

Angiosperms - classification • Monoecious (雌雄同株)– when both male and female imperfect flowers occur on the same plant; examples: cucumber, pumpkin
Angiosperms - classification Monoecious (雌雄同株) (corn, squash, watermelon) – Andromonoecious(雄花两性花同株): complete and incomplete staminate flowers on one plant (muskmelon) – Gynomonoecious(雌花两性花同株): complete and incomplete pistillate flowers on one plant (cucumber)
Angiosperms - classification • Dioecious ( 雌雄异株)- when a plant bears only male flowers and other plants of the same species bears only female flowers; example: Sea Buckthorn (Hippophaë rhamnoides L. ) 沙棘 male female
Angiosperms – selected families

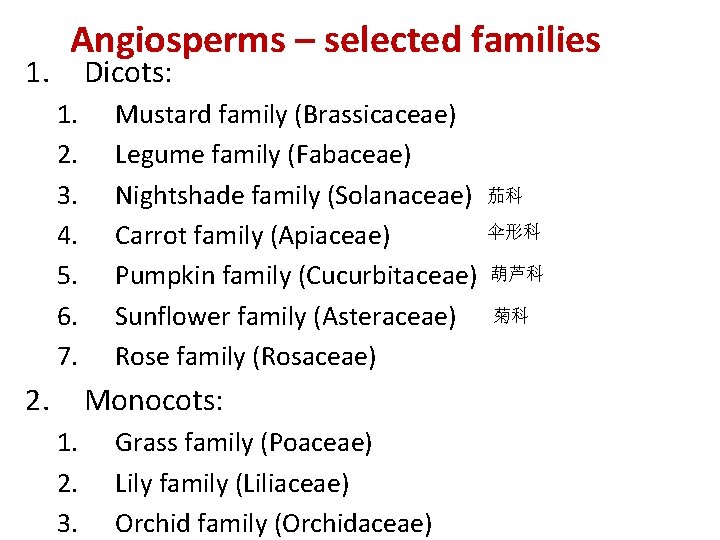

1. Angiosperms – selected families Dicots: 1. 2. 3. 4. 5. 6. 7. 2. Mustard family (Brassicaceae) Legume family (Fabaceae) Nightshade family (Solanaceae) Carrot family (Apiaceae) Pumpkin family (Cucurbitaceae) Sunflower family (Asteraceae) Rose family (Rosaceae) Monocots: 1. 2. 3. Grass family (Poaceae) Lily family (Liliaceae) Orchid family (Orchidaceae) 茄科 伞形科 葫芦科 菊科
Family Brassicaceae – Mustard Family COLE CROPS 甘蓝类蔬菜 十字花科
COLE CROPS - Brassicaceae 十字花科

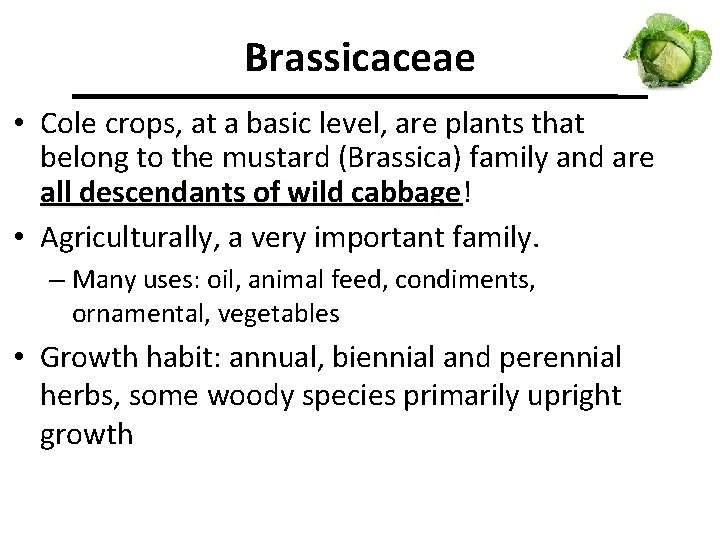

Brassicaceae • Cole crops, at a basic level, are plants that belong to the mustard (Brassica) family and are all descendants of wild cabbage! cabbage • Agriculturally, a very important family. – Many uses: oil, animal feed, condiments, ornamental, vegetables • Growth habit: annual, biennial and perennial herbs, some woody species primarily upright growth
Brassicaceae Common Name Edible Part Description Broccoli Head Inflorescence Cabbage Head Enlarged terminal bud Brussels Sprout Enlarged axillary bud Kohlrabi Bulb Swollen stem Cauliflower Curd Undifferentiated stem apices (end) Kale Leaf Rutabaga Root Taproot Radish Root Taproot 球芽甘蓝 大头菜 羽衣甘蓝 芜菁甘蓝
Brassicaceae • Brassica oleracea 甘蓝 – B. oleracea var. botrytis Cauliflower – B. oleracea var. gemmifera Brussels Sprouts 球芽甘蓝 – B. oleracea var. italica Broccoli – B. oleracea var. gongylodes Kohlrabi 大头菜 (or var. caulorapa) 羽衣甘蓝 – B. oleracea var. acephala Kale – B. oleracea var. capitata Cabbage
Brassicaceae • Brassica oleracea – B. oleracea var. capitata Cabbage • B. oleracea var. capitata f. alba White • B. oleracea var. capitata f. rubra Red • B. oleracea var. capitata f. sabauda Savoy
Brassicaceae • Other Brassica: – Brassica napobrassica Rutabaga 芜菁甘蓝 • (B. napus - napobrassica group) – B. rapa (rapifera group) Turnip – B. juncea Mustard Greens – B. campestris Chinese Cabbage, Chinese Mustard, Pak Choi

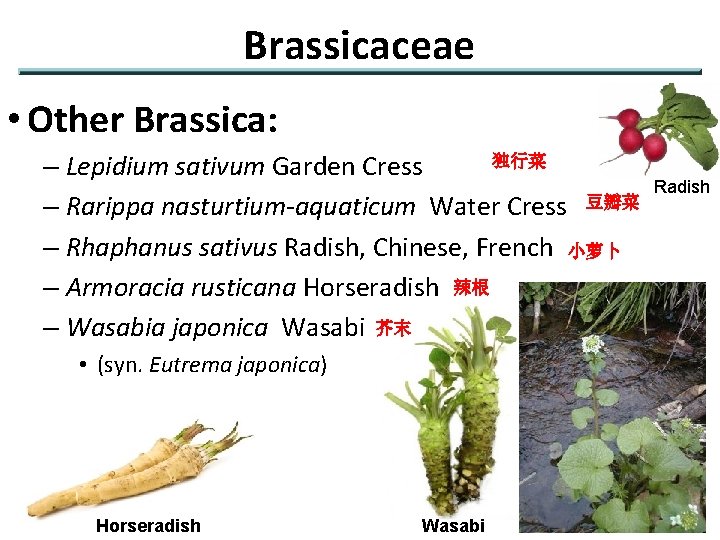

Brassicaceae • Other Brassica: 独行菜 – Lepidium sativum Garden Cress – Rarippa nasturtium-aquaticum Water Cress 豆瓣菜 – Rhaphanus sativus Radish, Chinese, French 小萝卜 – Armoracia rusticana Horseradish 辣根 – Wasabia japonica Wasabi 芥末 • (syn. Eutrema japonica) Horseradish Wasabi Radish
Brassicaceae • Other Brassica: Armoracia rusticana Horseradish

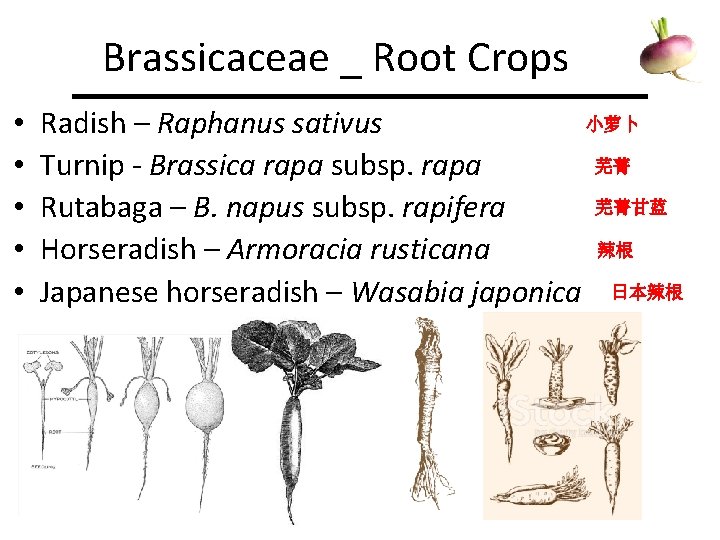

Brassicaceae _ Root Crops • • • 小萝卜 Radish – Raphanus sativus 芜菁 Turnip - Brassica rapa subsp. rapa 芜菁甘蓝 Rutabaga – B. napus subsp. rapifera 辣根 Horseradish – Armoracia rusticana Japanese horseradish – Wasabia japonica 日本辣根
Brassicaceae _ Root Crops • Radish – Raphanus sativus
Family Fabaceae (Leguminosae) BEANS and PEAS

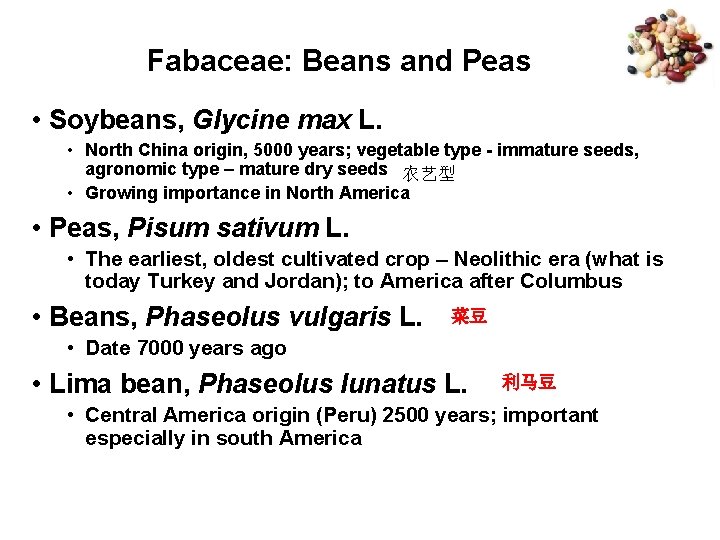

Fabaceae: Beans and Peas • Soybeans, Glycine max L. • North China origin, 5000 years; vegetable type - immature seeds, agronomic type – mature dry seeds 农艺型 • Growing importance in North America • Peas, Pisum sativum L. • The earliest, oldest cultivated crop – Neolithic era (what is today Turkey and Jordan); to America after Columbus • Beans, Phaseolus vulgaris L. 菜豆 • Date 7000 years ago • Lima bean, Phaseolus lunatus L. 利马豆 • Central America origin (Peru) 2500 years; important especially in south America
Fabaceae: Beans and Peas Pea: • Pods 豆荚

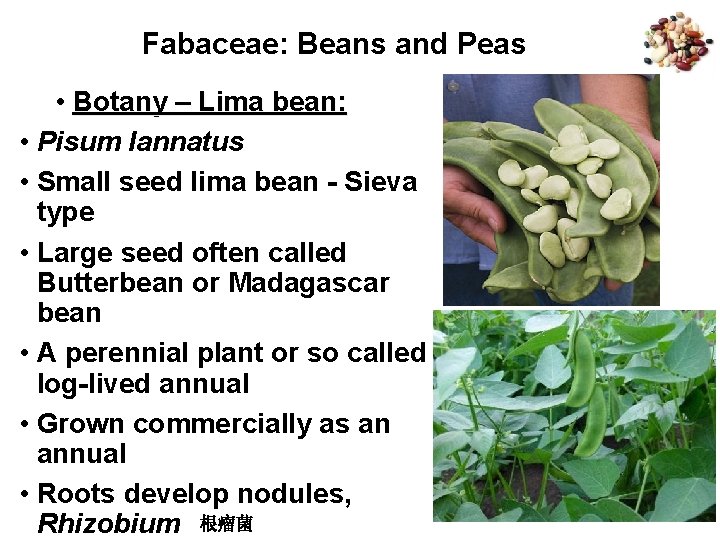

Fabaceae: Beans and Peas • Botany – Lima bean: • Pisum lannatus • Small seed lima bean - Sieva type • Large seed often called Butterbean or Madagascar bean • A perennial plant or so called log-lived annual • Grown commercially as an annual • Roots develop nodules, Rhizobium 根瘤菌
Beans and Peas culture
Solanaceae • • • 颠茄 Atropa belladonna Capsicum annuum 甜椒 辣椒 Capsicum frutescens Lycopersicon esculentum 番茄 (Lycopersicon lycopersicum) 烟草 Nicotiana tabacum Petunia spp. 粘果酸浆 Physalis ixocarpa Solanum dulcamara 欧白英 Solanum melongena 茄子 Solanum tuberosum 马铃薯 • • Deadly nightshade Sweet pepper Hot pepper Tomato • • • Tobacco Petunia Tomatillo Nightshade Eggplant(Aubergine) Potato
Tomato Eggplant Hot pepper Tomato

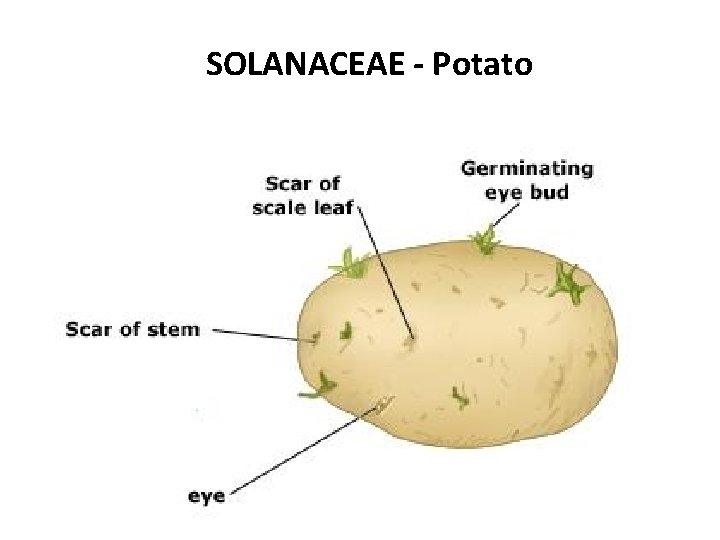

SOLANACEAE - Potato

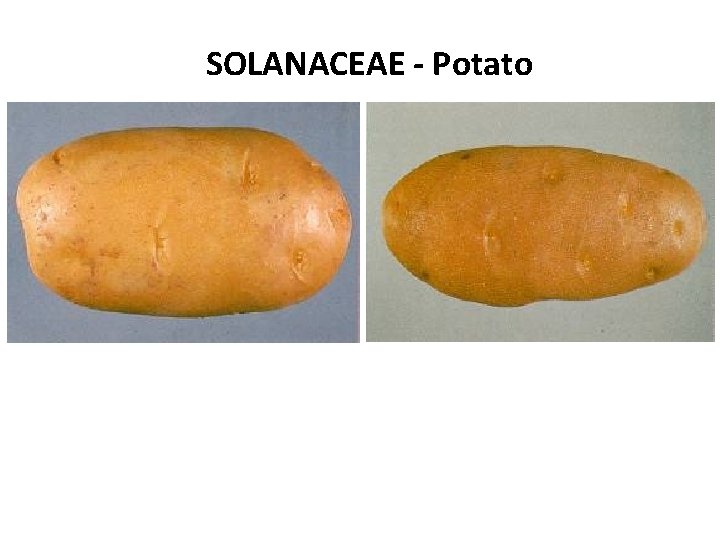

SOLANACEAE - Potato

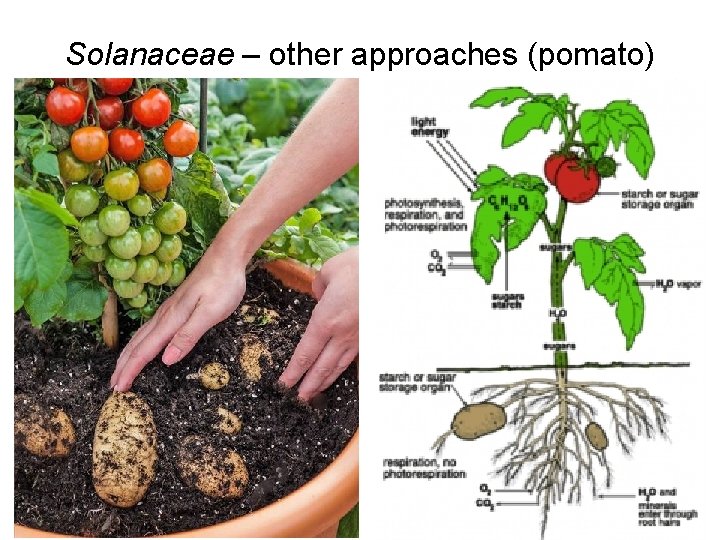

Solanaceae – other approaches (pomato)
Apiaceae Carrot (& Parsnip) ▪ Family Apiaceae (Umbelliferae) ▪ Daucus carota ▪ Pastinaca sativa carrot (root) parsnip (root) 防风草(欧洲萝卜)

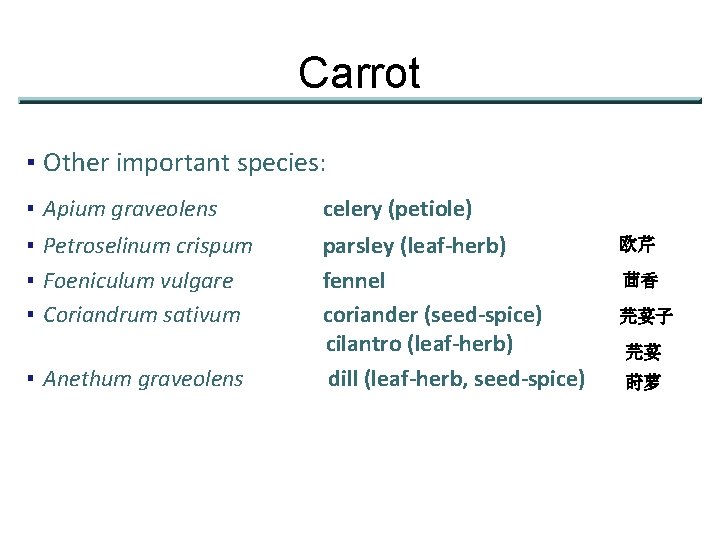

Carrot ▪ Other important species: ▪ Apium graveolens celery (petiole) ▪ Petroselinum crispum ▪ Foeniculum vulgare ▪ Coriandrum sativum parsley (leaf-herb) fennel coriander (seed-spice) cilantro (leaf-herb) dill (leaf-herb, seed-spice) ▪ Anethum graveolens 欧芹 茴香 芫荽子 芫荽 莳萝

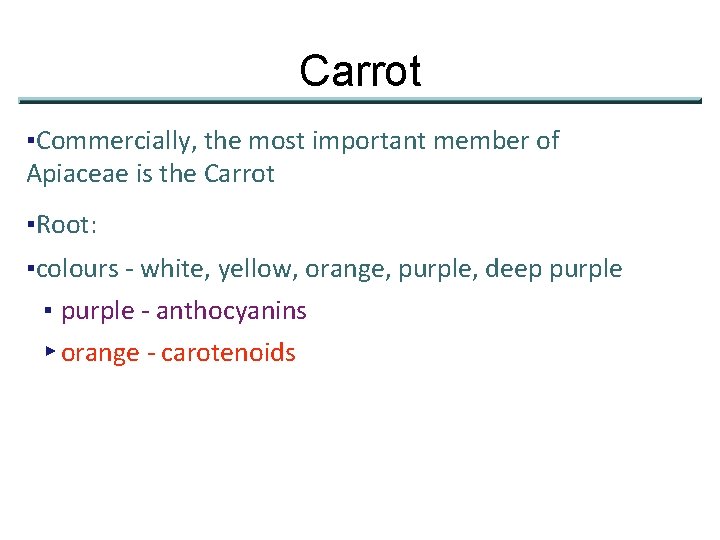

Carrot ▪Commercially, the most important member of Apiaceae is the Carrot ▪Root: ▪colours - white, yellow, orange, purple, deep purple ▪ purple - anthocyanins ▸ orange - carotenoids
Carrot

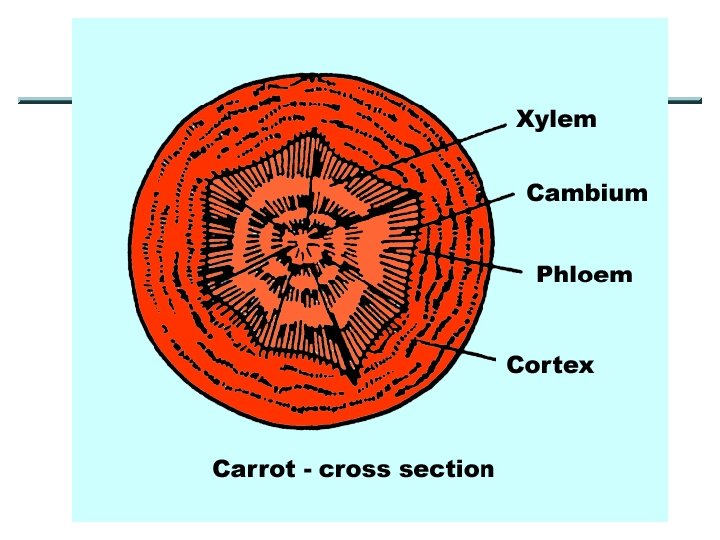

Carrot
Apiaceae - Carrots
Cucurbits 瓜类蔬菜 • Mainly annual, (few perennial) • Mainly food (few ornamental, utensils, feed, cosmetic)

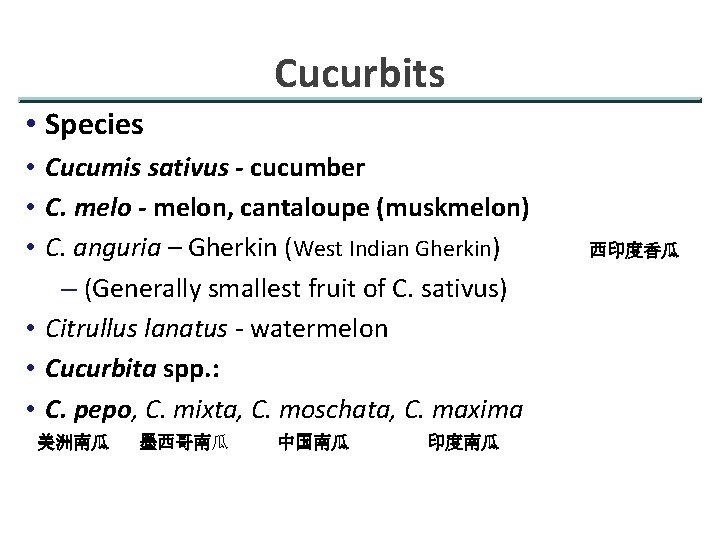

Cucurbits • Species • Cucumis sativus - cucumber • C. melo - melon, cantaloupe (muskmelon) • C. anguria – Gherkin (West Indian Gherkin) – (Generally smallest fruit of C. sativus) • Citrullus lanatus - watermelon • Cucurbita spp. : • C. pepo, C. mixta, C. moschata, C. maxima 美洲南瓜 墨西哥南瓜 中国南瓜 印度南瓜 西印度香瓜
Cucurbits ▪ Cucurbitacins - bitter taste, more a problem with temperature extremes 葫芦素 ▪ Nonfood: ▪ Cucurbita pepo - ornamental gourds ▪ Luffa cylindrica - sponge gourd, loofah 美洲南瓜 丝瓜
SALAD CROPS Family Asteraceae 菊科

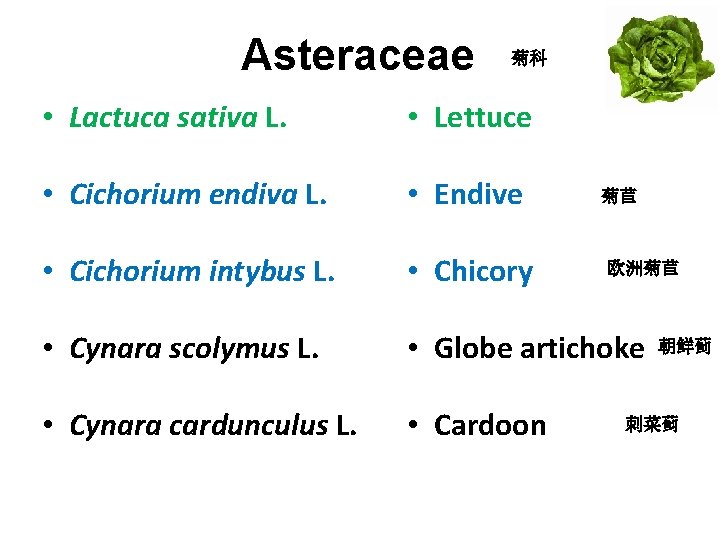

Asteraceae 菊科 • Lactuca sativa L. • Lettuce • Cichorium endiva L. • Endive • Cichorium intybus L. • Chicory • Cynara scolymus L. • Globe artichoke • Cynara cardunculus L. • Cardoon 菊苣 欧洲菊苣 朝鲜蓟 刺菜蓟

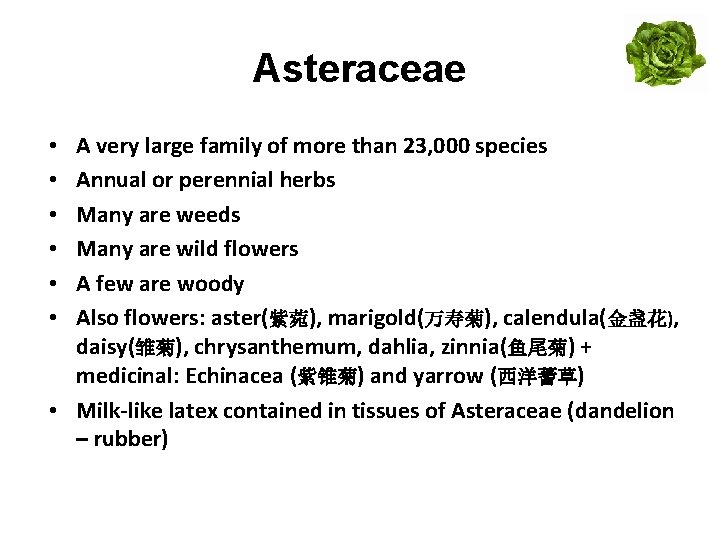

Asteraceae A very large family of more than 23, 000 species Annual or perennial herbs Many are weeds Many are wild flowers A few are woody Also flowers: aster(紫菀), marigold(万寿菊), calendula(金盏花), daisy(雏菊), chrysanthemum, dahlia, zinnia(鱼尾菊) + medicinal: Echinacea (紫锥菊) and yarrow (西洋蓍草) • Milk-like latex contained in tissues of Asteraceae (dandelion – rubber) • • •

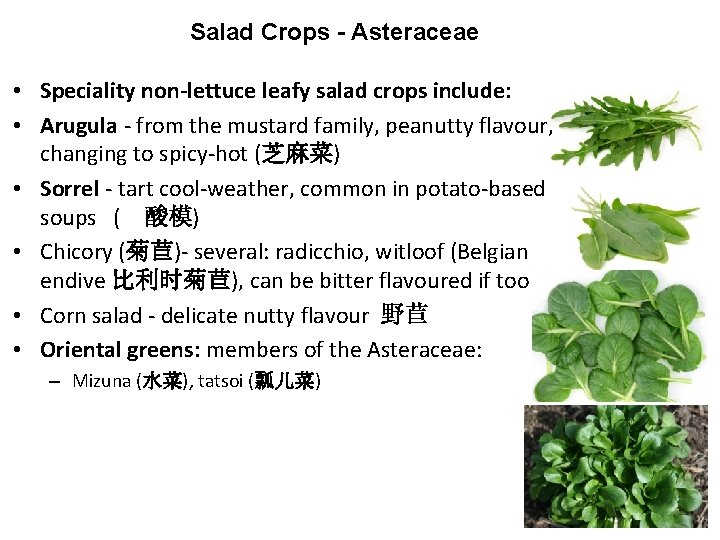

Salad Crops - Asteraceae • Speciality non-lettuce leafy salad crops include: • Arugula - from the mustard family, peanutty flavour, changing to spicy-hot (芝麻菜) • Sorrel - tart cool-weather, common in potato-based soups ( 酸模) • Chicory (菊苣)- several: radicchio, witloof (Belgian endive 比利时菊苣), can be bitter flavoured if too old • Corn salad - delicate nutty flavour 野苣 • Oriental greens: members of the Asteraceae: – Mizuna (水菜), tatsoi (瓢儿菜)

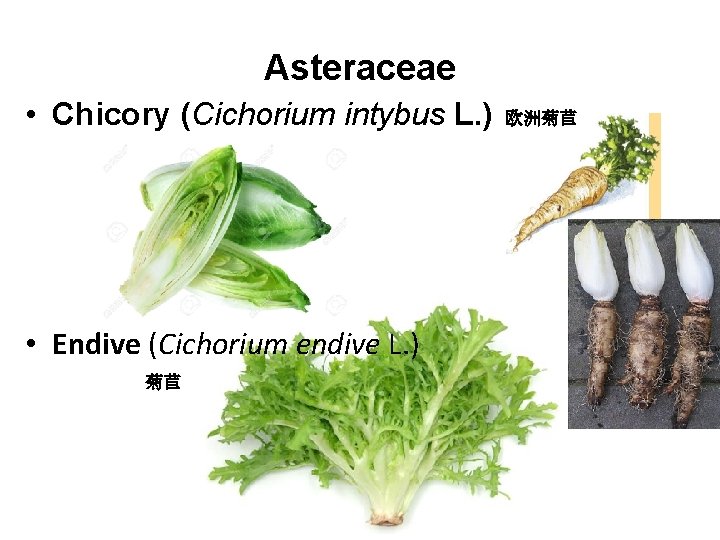

Asteraceae • Chicory (Cichorium intybus L. ) • Endive (Cichorium endive L. ) 菊苣 欧洲菊苣

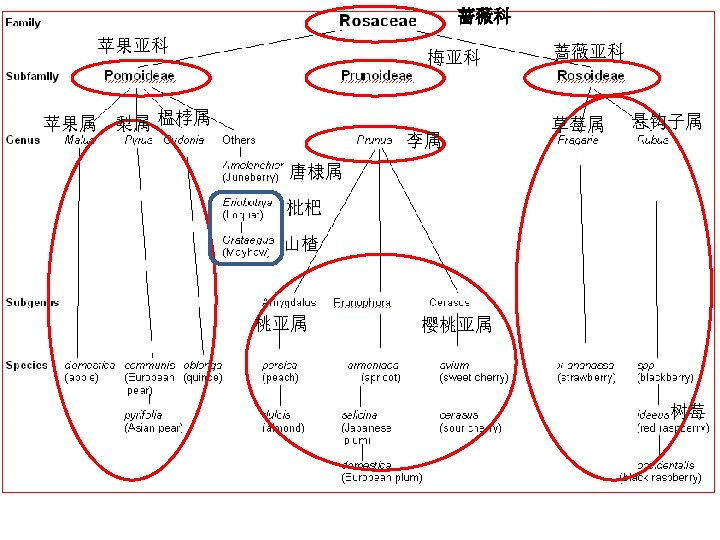

Rosaceae – Rose family • Fruits • Ornamentals
MONOCOTS 1. Grass family (Poaceae) - corn 2. Lily family (Liliaceae) - lilies 3. Orchid family (Orchidaceae) orchids
Family Poaceae sweet corn, popcorn, ornamental corn
Poaceae: Zea mays - corn
Family Amaryllidaceae Liliaceae (old name)

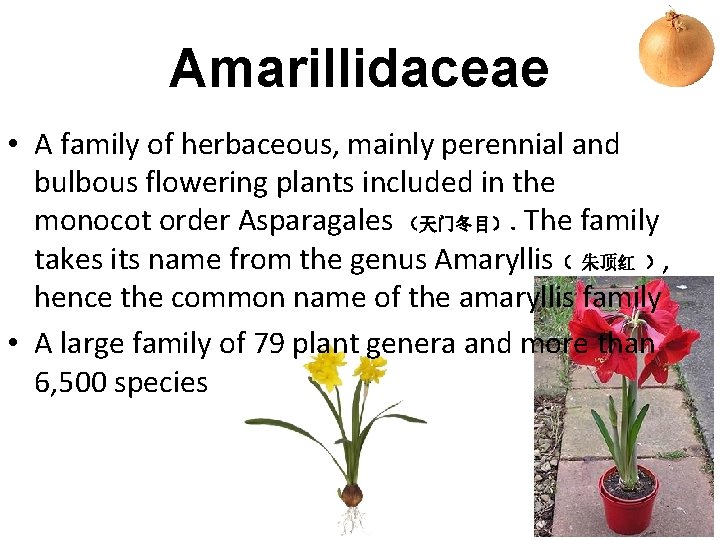

Amarillidaceae • A family of herbaceous, mainly perennial and bulbous flowering plants included in the monocot order Asparagales (天门冬目). The family takes its name from the genus Amaryllis( 朱顶红 ), hence the common name of the amaryllis family • A large family of 79 plant genera and more than 6, 500 species
Amarillidaceae • Vegetables: • • • Onion Shallots 葱 Chives 韭黄 Garlic and garlic chives Leek 韭葱 Florence fennel 甘茴香 韭菜
Orchidaceae – orchid family • Orchids
ORCHIDS
ORCHIDS
Angiosperms Art/Science/Knowledge of Plant Biology Questions ?
