Artillery Battery Position and Forward Observer Position The

Artillery Battery Position and Forward Observer Position- The Church is the a distant aiming point. See Red Border Captions for Action Loud Speaker Wire Base Gun Distant Aiming Point with a surveyed direction Forward Observer and a Loud Speaker. The wire between the two points gives a known distance Gun Line with an aiming circle and Loud Speaker emplace

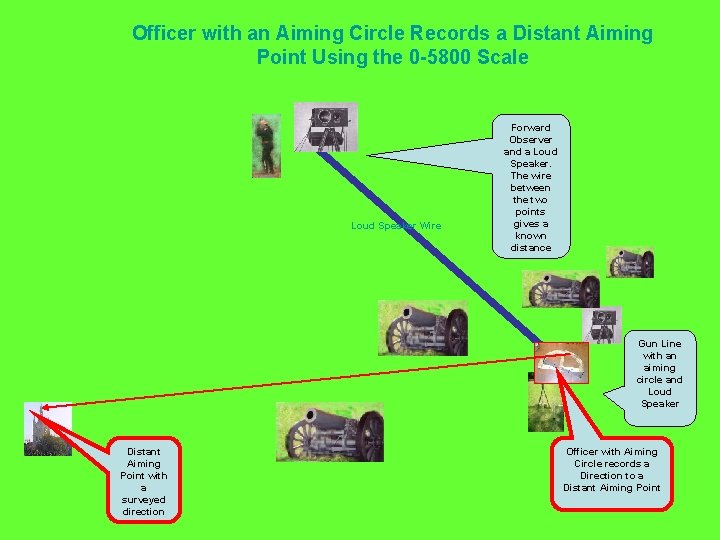

Officer with an Aiming Circle Records a Distant Aiming Point Using the 0 -5800 Scale Loud Speaker Wire Forward Observer and a Loud Speaker. The wire between the two points gives a known distance Gun Line with an aiming circle and Loud Speaker Distant Aiming Point with a surveyed direction Officer with Aiming Circle records a Direction to a Distant Aiming Point

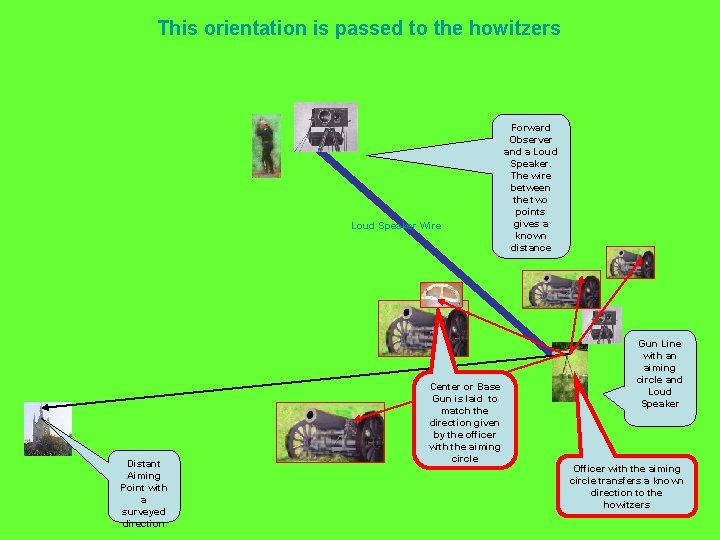

This orientation is passed to the howitzers Loud Speaker Wire Distant Aiming Point with a surveyed direction Center or Base Gun is laid to match the direction given by the officer with the aiming circle Forward Observer and a Loud Speaker. The wire between the two points gives a known distance Gun Line with an aiming circle and Loud Speaker Officer with the aiming circle transfers a known direction to the howitzers

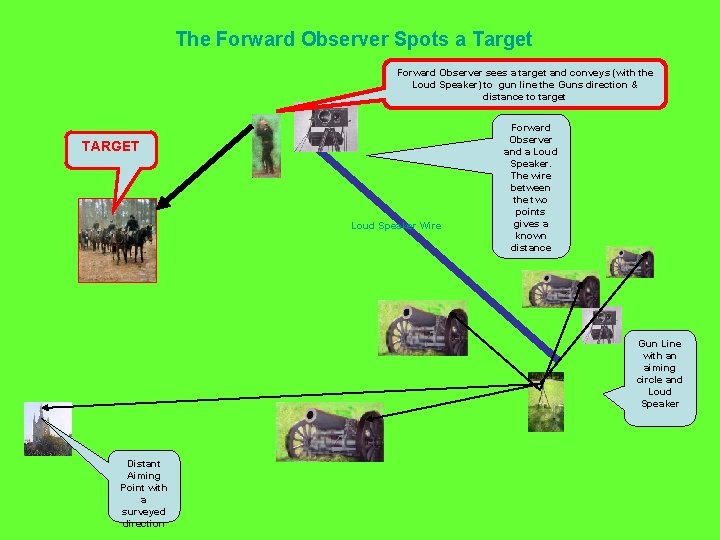

The Forward Observer Spots a Target Forward Observer sees a target and conveys (with the Loud Speaker) to gun line the Guns direction & distance to target TARGET Loud Speaker Wire Forward Observer and a Loud Speaker. The wire between the two points gives a known distance Gun Line with an aiming circle and Loud Speaker Distant Aiming Point with a surveyed direction

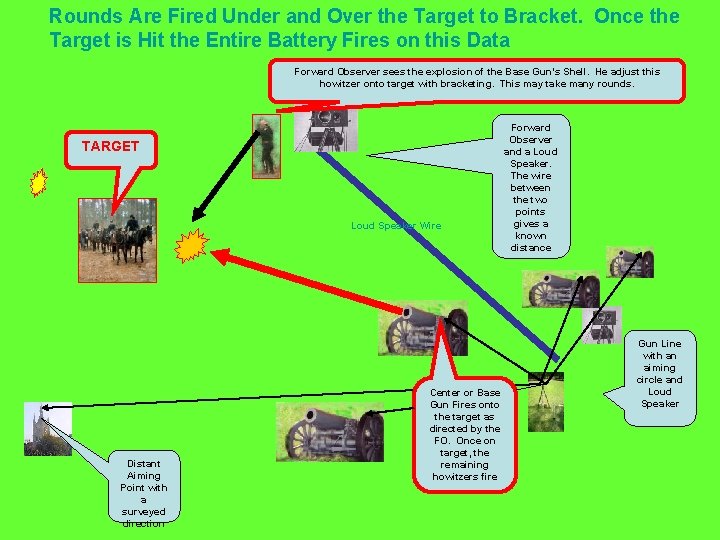

Rounds Are Fired Under and Over the Target to Bracket. Once the Target is Hit the Entire Battery Fires on this Data Forward Observer sees the explosion of the Base Gun’s Shell. He adjust this howitzer onto target with bracketing. This may take many rounds. TARGET Loud Speaker Wire Distant Aiming Point with a surveyed direction Center or Base Gun Fires onto the target as directed by the FO. Once on target, the remaining howitzers fire Forward Observer and a Loud Speaker. The wire between the two points gives a known distance Gun Line with an aiming circle and Loud Speaker

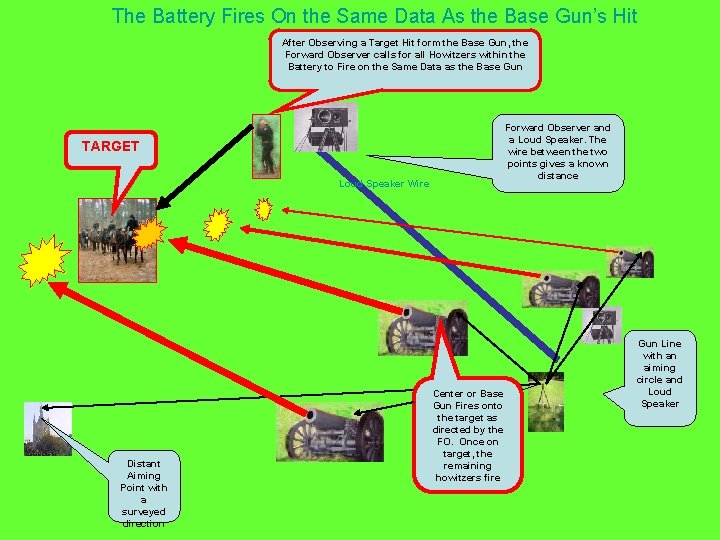

The Battery Fires On the Same Data As the Base Gun’s Hit After Observing a Target Hit form the Base Gun, the Forward Observer calls for all Howitzers within the Battery to Fire on the Same Data as the Base Gun Forward Observer and a Loud Speaker. The wire between the two points gives a known distance TARGET Loud Speaker Wire Distant Aiming Point with a surveyed direction Center or Base Gun Fires onto the target as directed by the FO. Once on target, the remaining howitzers fire Gun Line with an aiming circle and Loud Speaker
