Artificial Neural Networks An Introduction

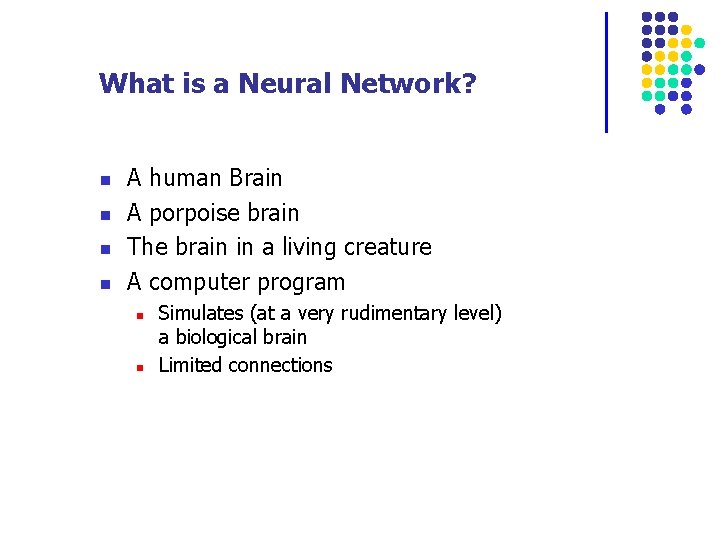

What is a Neural Network? n n A human Brain A porpoise brain The brain in a living creature A computer program n n Simulates (at a very rudimentary level) a biological brain Limited connections

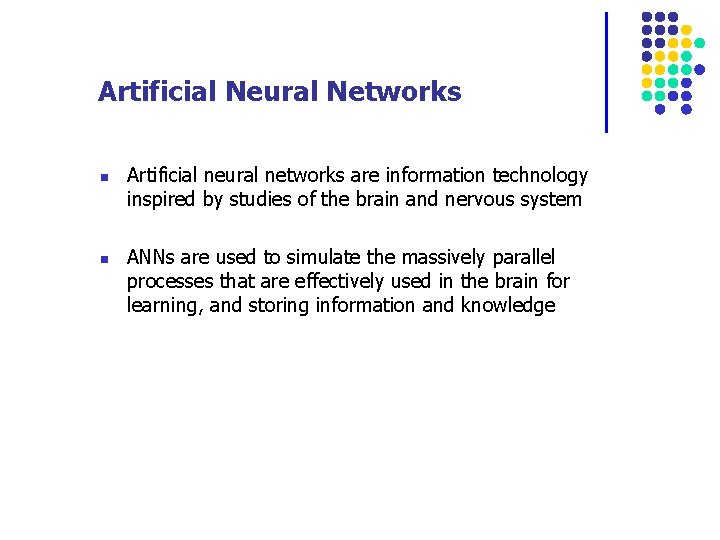

Artificial Neural Networks n n Artificial neural networks are information technology inspired by studies of the brain and nervous system ANNs are used to simulate the massively parallel processes that are effectively used in the brain for learning, and storing information and knowledge

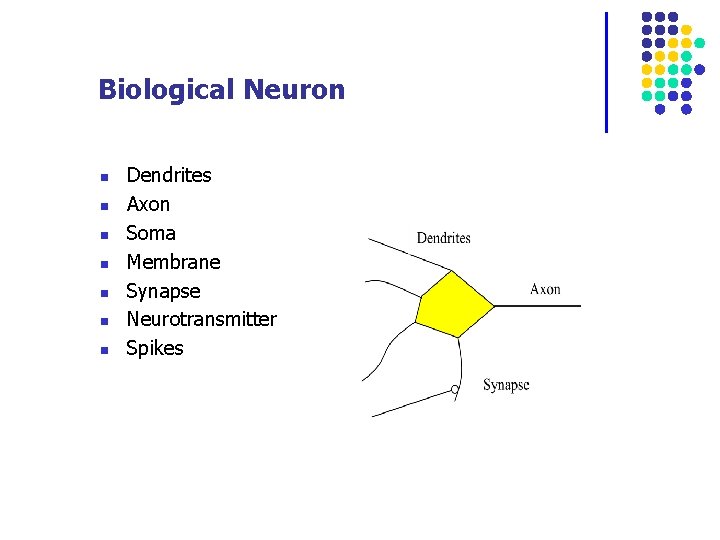

Biological Neuron n n n Dendrites Axon Soma Membrane Synapse Neurotransmitter Spikes

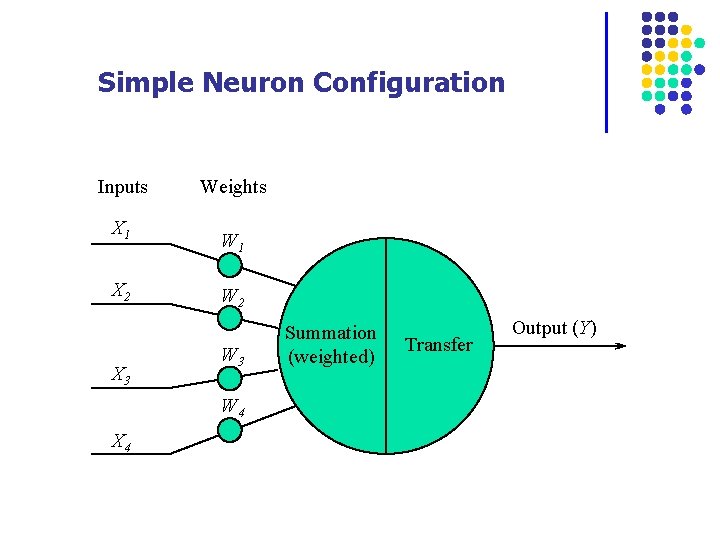

Simple Neuron Configuration Inputs X 1 X 2 X 3 Weights W 1 W 2 W 3 W 4 X 4 Summation (weighted) Transfer Output (Y)

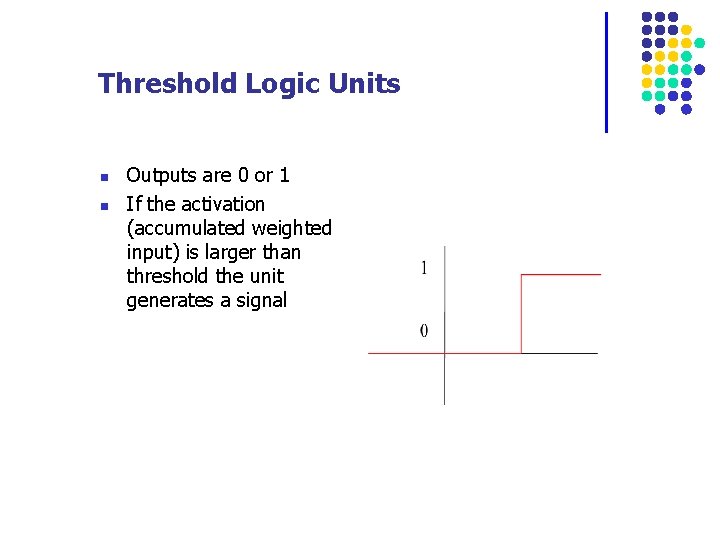

Threshold Logic Units n n Outputs are 0 or 1 If the activation (accumulated weighted input) is larger than threshold the unit generates a signal

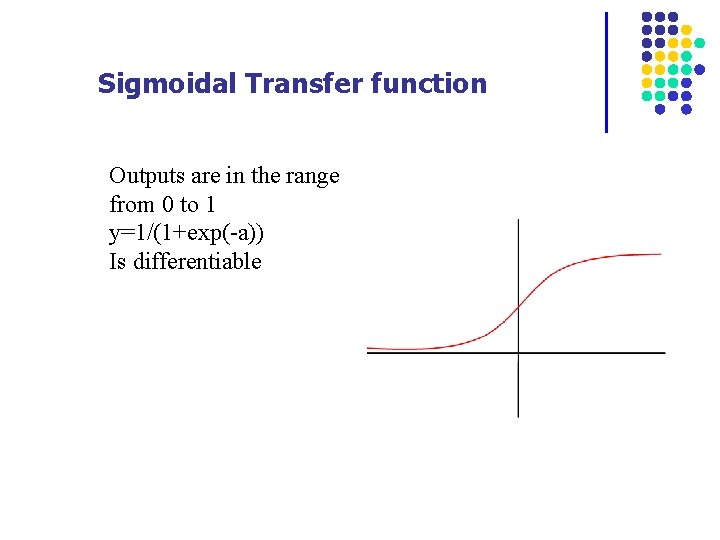

Sigmoidal Transfer function Outputs are in the range from 0 to 1 y=1/(1+exp(-a)) Is differentiable

Neural Network Architecture n n n In feedforward NN, neurons are grouped into layers The neurons on each layer are the same type There are different types of layers n n n Input layer: receive input from external sources Output layer: communicate to user Hidden layer(s): neurons communicate only with other layers

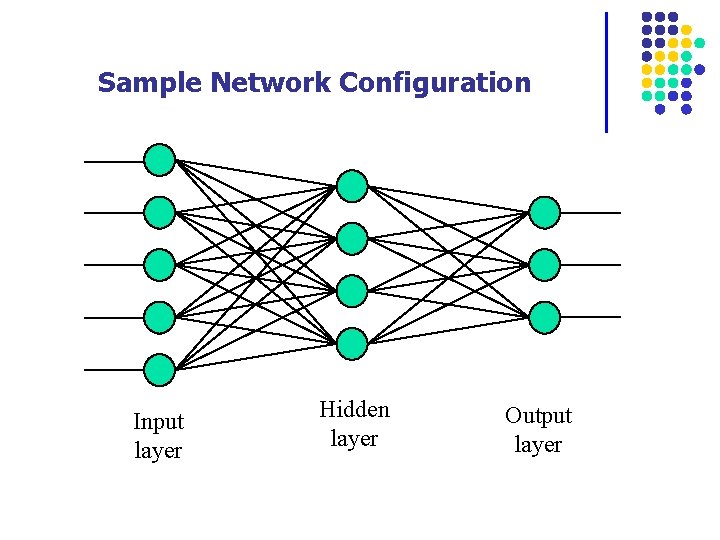

Sample Network Configuration Input layer Hidden layer Output layer

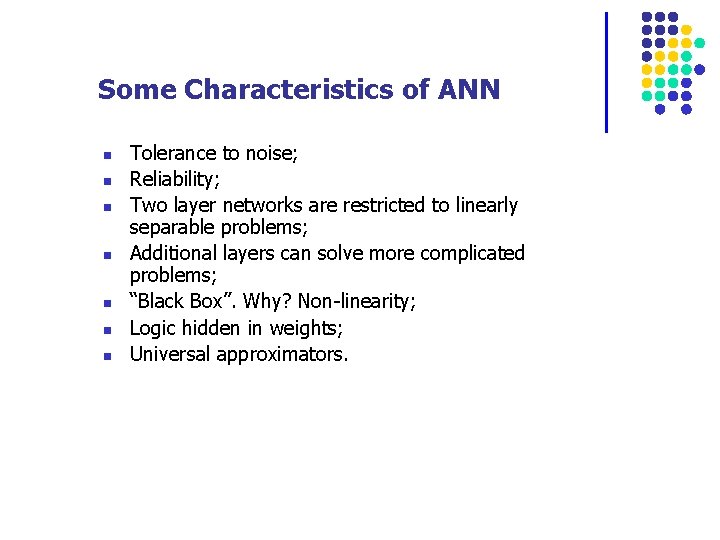

Some Characteristics of ANN n n n n Tolerance to noise; Reliability; Two layer networks are restricted to linearly separable problems; Additional layers can solve more complicated problems; “Black Box”. Why? Non-linearity; Logic hidden in weights; Universal approximators.

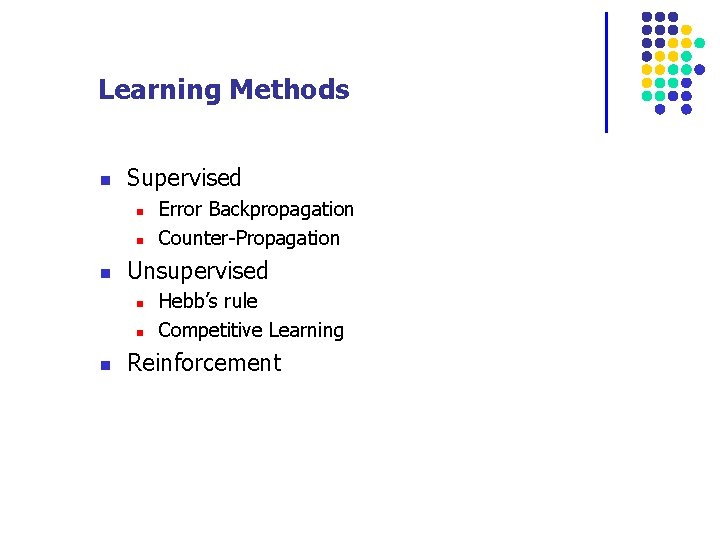

Learning Methods n Supervised n n n Unsupervised n n n Error Backpropagation Counter-Propagation Hebb’s rule Competitive Learning Reinforcement

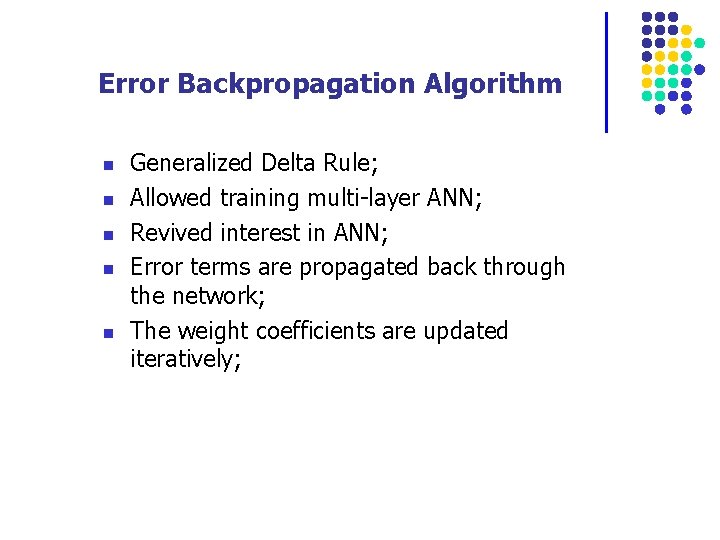

Error Backpropagation Algorithm n n n Generalized Delta Rule; Allowed training multi-layer ANN; Revived interest in ANN; Error terms are propagated back through the network; The weight coefficients are updated iteratively;

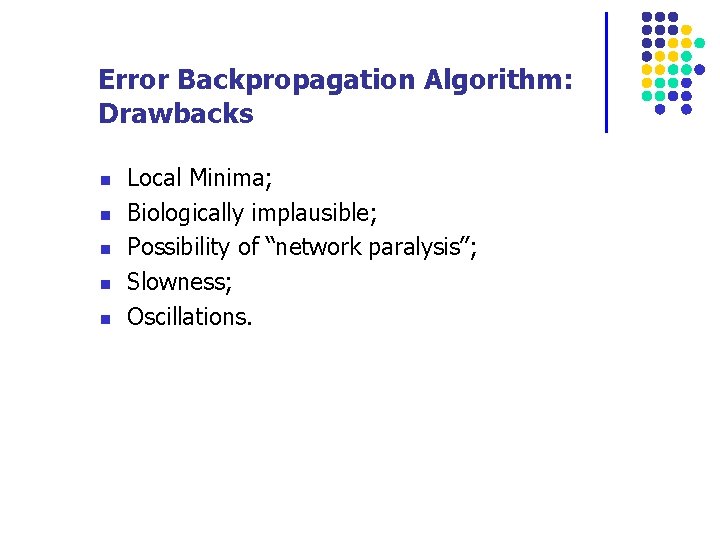

Error Backpropagation Algorithm: Drawbacks n n n Local Minima; Biologically implausible; Possibility of “network paralysis”; Slowness; Oscillations.

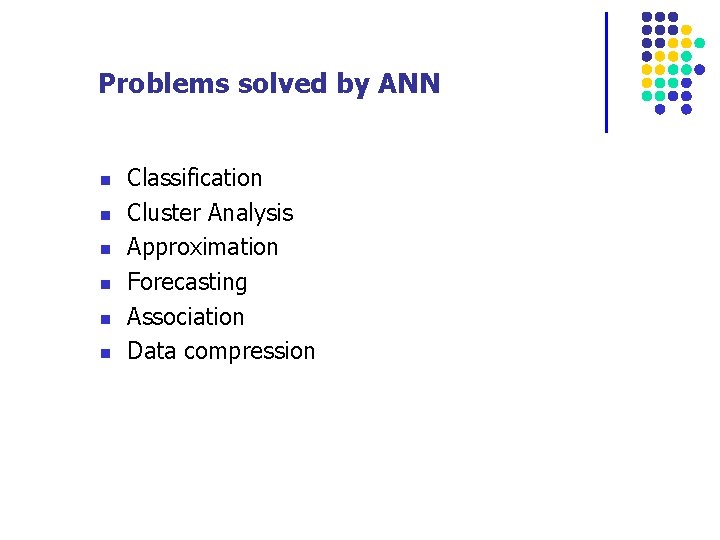

Problems solved by ANN n n n Classification Cluster Analysis Approximation Forecasting Association Data compression

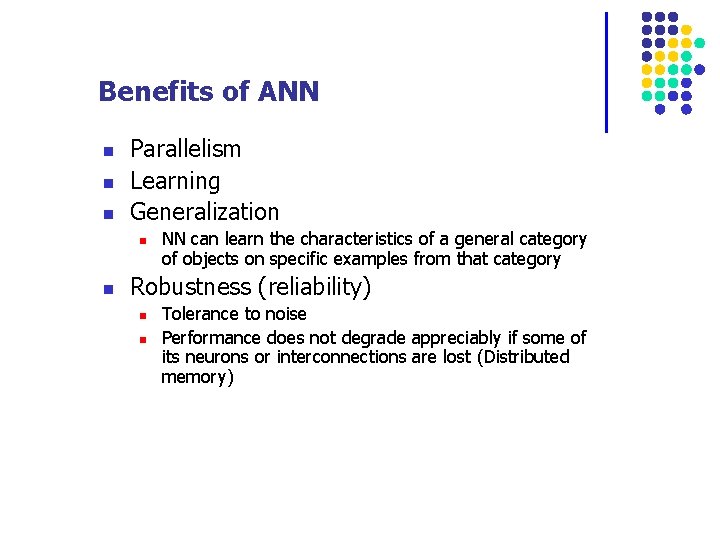

Benefits of ANN n n n Parallelism Learning Generalization n n NN can learn the characteristics of a general category of objects on specific examples from that category Robustness (reliability) n n Tolerance to noise Performance does not degrade appreciably if some of its neurons or interconnections are lost (Distributed memory)

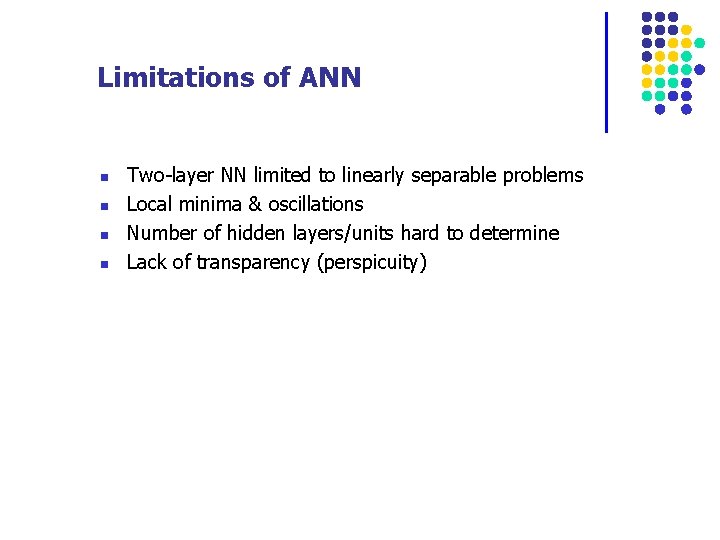

Limitations of ANN n n Two-layer NN limited to linearly separable problems Local minima & oscillations Number of hidden layers/units hard to determine Lack of transparency (perspicuity)

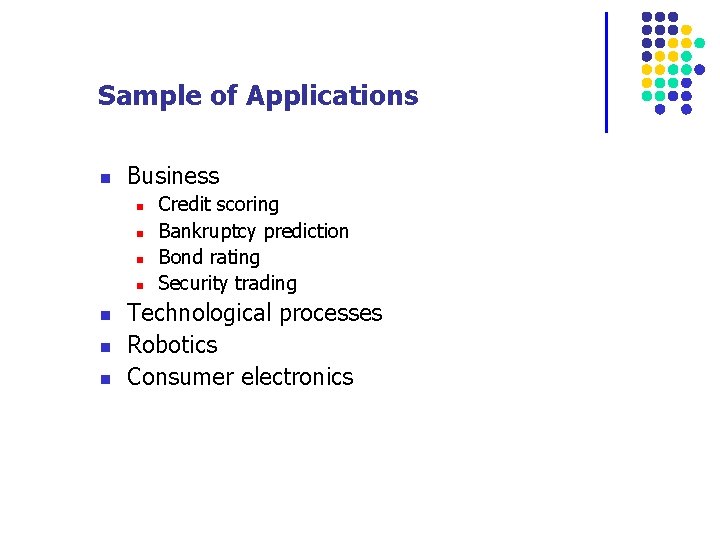

Sample of Applications n Business n n n n Credit scoring Bankruptcy prediction Bond rating Security trading Technological processes Robotics Consumer electronics
