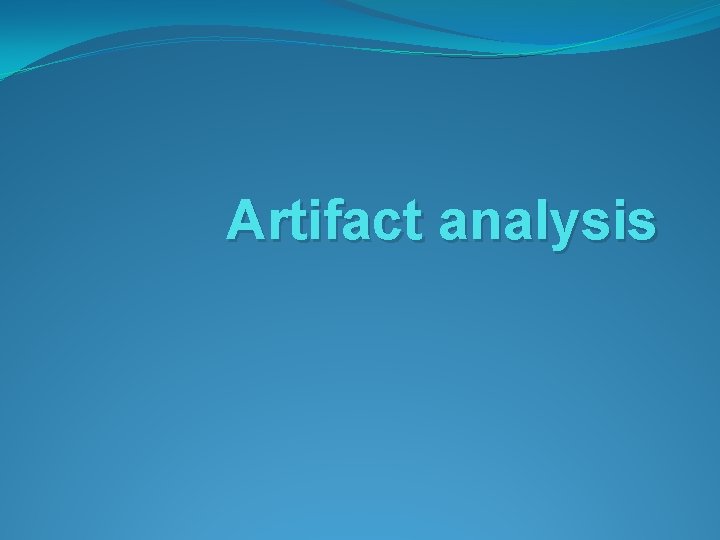

Artifact analysis
Artifact analysis �One of the causes of rejected images listed in the repeat analysis worksheet is the presence of image artifacts. �An artifact can contribute significantly to the total repeat rate; therefore a thorough knowledge of artifacts and their possible causes is necessary so that corrective action can be taken.
What Is An Artifact? �Any optical density that is not anatomy �An unwanted density on the radiograph �Interferes with diagnosis
There Are Three Time Periods In Which Artifacts Can Occur �During exposure �During processing �During film handling, prior to processing, loading cassette, or storing
Exposure Artifacts �They are caused by the patient, the technologist, or the equipment during a diagnostic procedure �Poor screen-film contact �Improper use/positioning of a grid �Double exposure �Patient motion �Poor patient preparation � Clothing, jewelery, glasses, belts, etc.

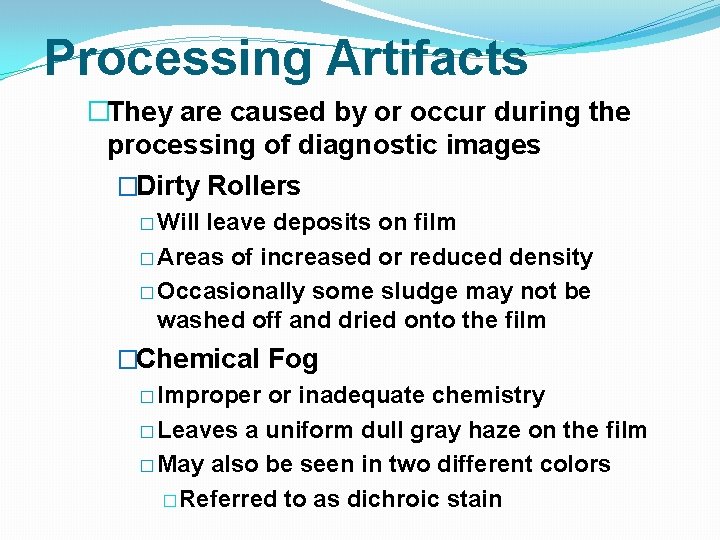

Processing Artifacts �They are caused by or occur during the processing of diagnostic images �Dirty Rollers � Will leave deposits on film � Areas of increased or reduced density � Occasionally some sludge may not be washed off and dried onto the film �Chemical Fog � Improper or inadequate chemistry � Leaves a uniform dull gray haze on the film � May also be seen in two different colors �Referred to as dichroic stain
Guide Shoe and Roller Marks �Guide shoes are sprung or improperly positioned �The ridges in the guide shoe press against the film leaving an artifact �Pi-lines �Dirt or stain on a roller � 3. 14 inches apart �Pressure marks �Irregular or dirty rollers � Small, circular patterns are produced
Hypo Retention �Yellowish stain that appears on finished radiograph �Due to inadequate washing �Remaining thiosulfate from fixer solution
Handling And Storage Artifacts �They occur during darkroom handling or during storage before use. �Light or Radiation Fog �White light streaks �Safelight too close or wrong wattage �Film left in x-ray room during exposure

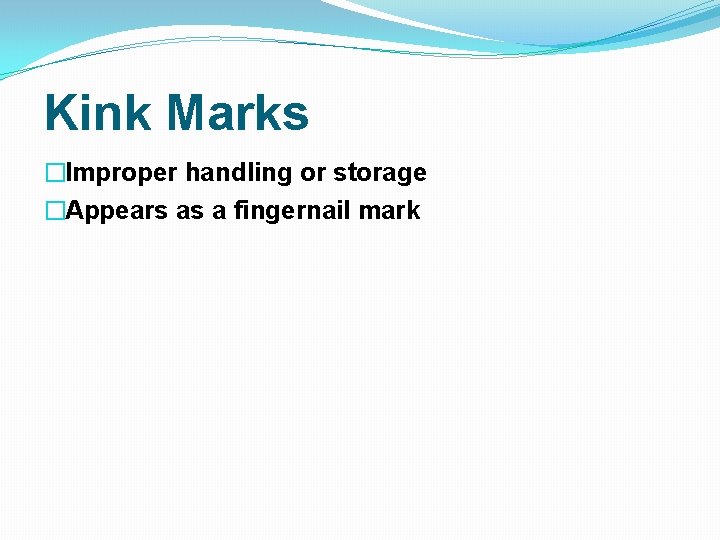

Kink Marks �Improper handling or storage �Appears as a fingernail mark
Static �Caused by buildup of electrons in the emulsion �Three types of static artifacts �Crown �Tree �Smudge
Processing Artifacts

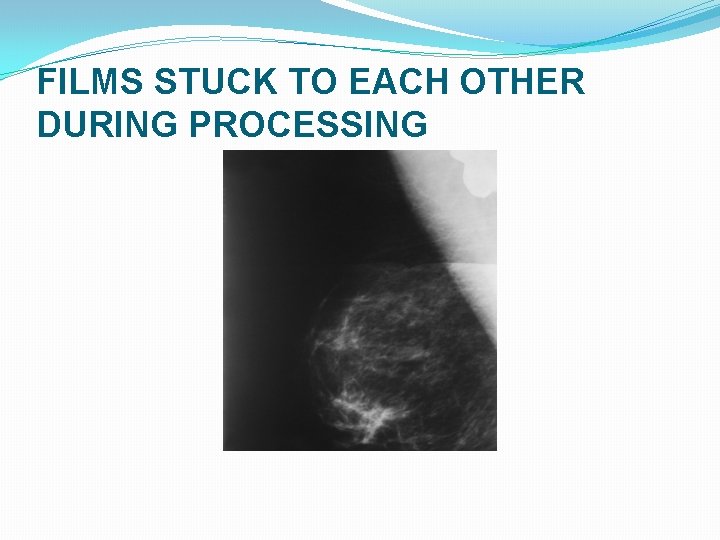

FILMS STUCK TO EACH OTHER DURING PROCESSING
HYPORETENTION
ROLLER MARKS
PI-LINE
GUIDE SHOE MARK
WATER STAIN
Handling Artifacts
STATIC (Tree Static)

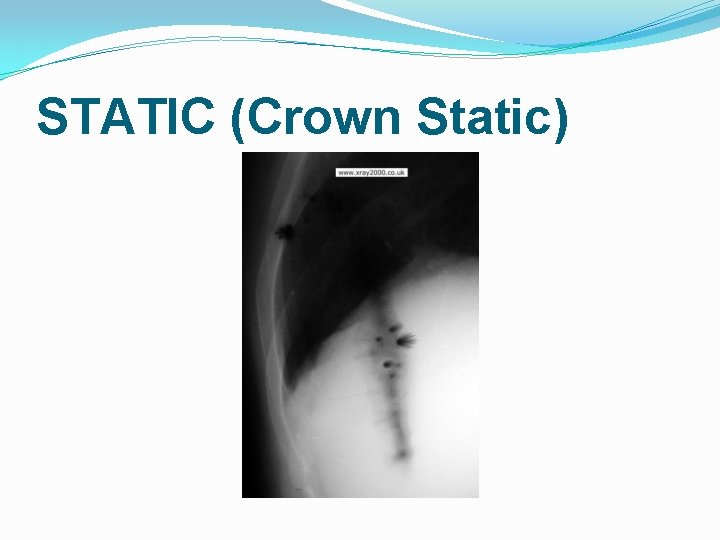

STATIC (Crown Static)
STATIC (Smudge Static
FINGER MARKS

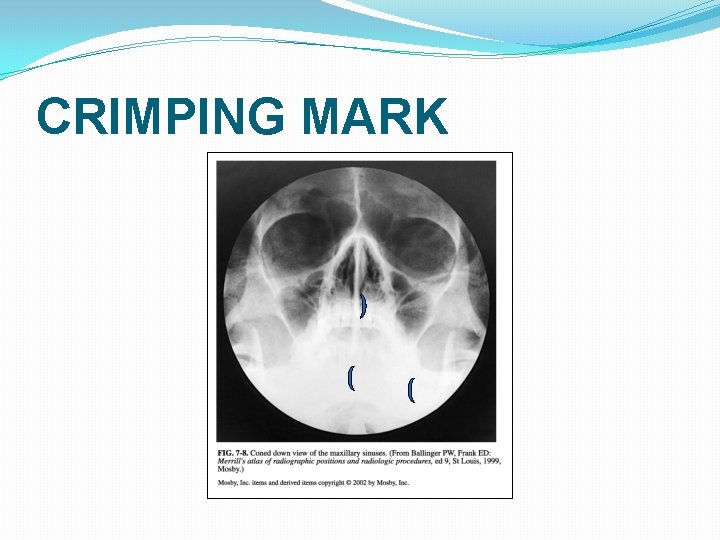

CRIMPING MARK
CRIMPING MARK

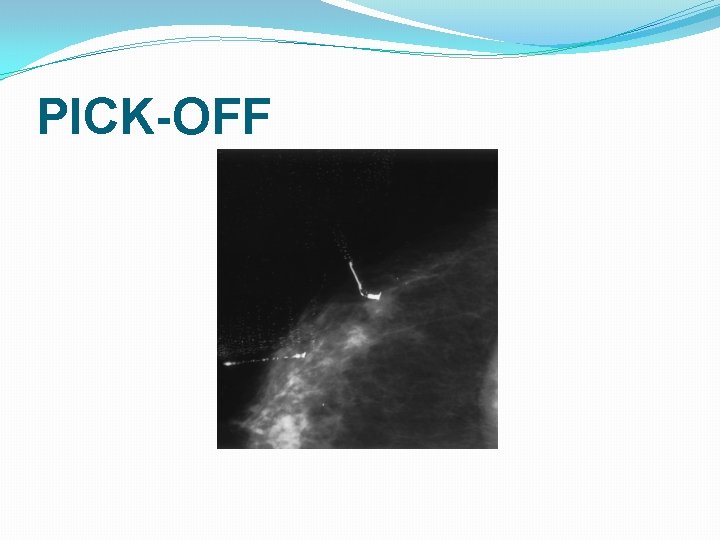

PICK-OFF

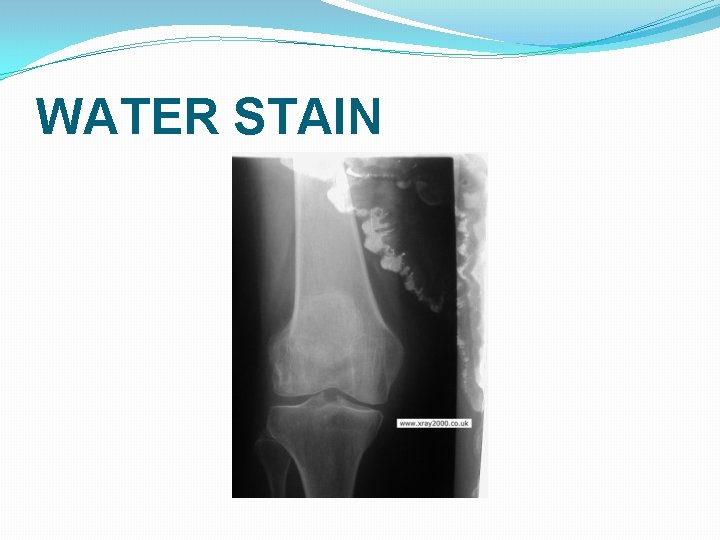

WATER STAIN
WATER STAIN
Exposure Artifacts
MOTION
POOR FILM SCREN CONTACT
ARTIFACT? ?

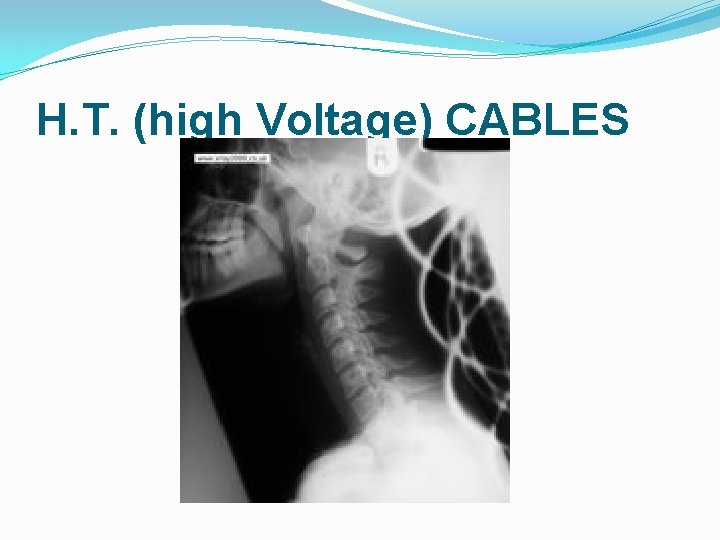

H. T. (high Voltage) CABLES

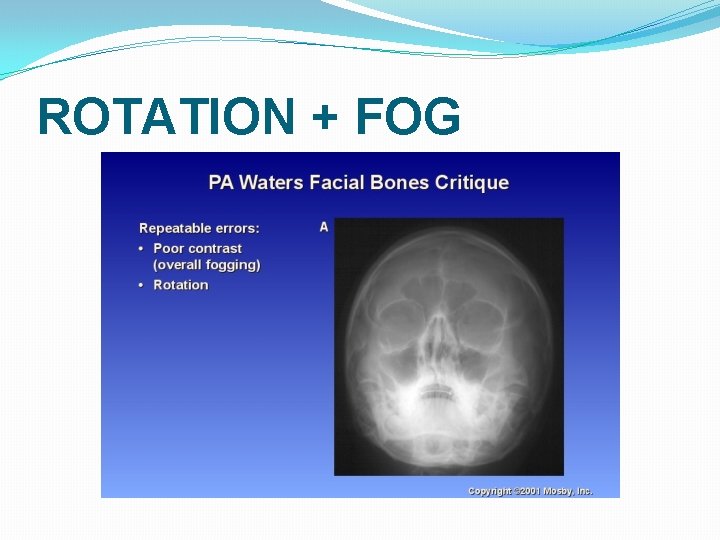

ROTATION + FOG
DOUBLE EXPOSURE

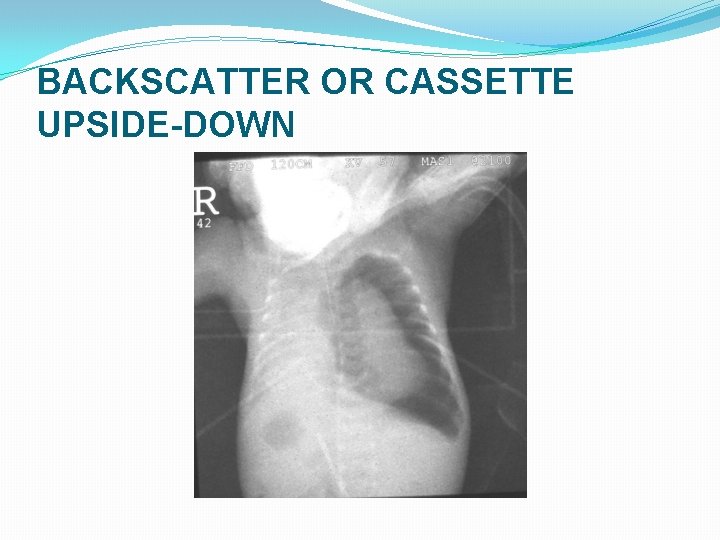

BACKSCATTER OR CASSETTE UPSIDE-DOWN
BACKSCATTER

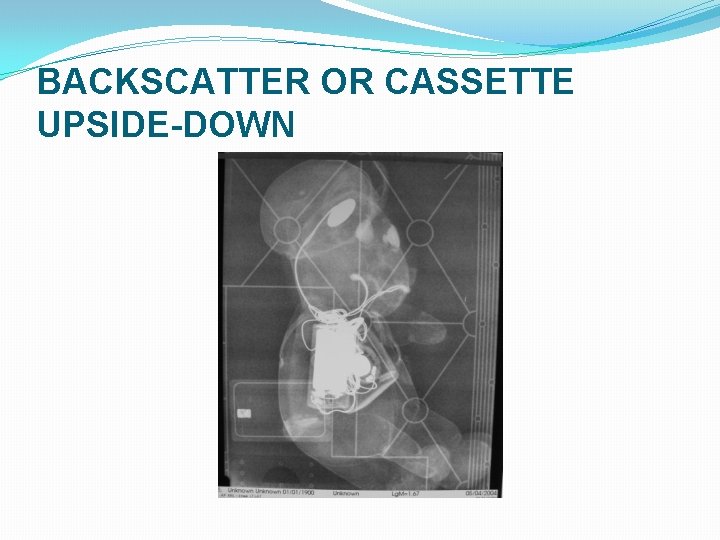

BACKSCATTER OR CASSETTE UPSIDE-DOWN
MOIRE EFFECT Are artifacts also called zebra pattern Artifact It is a double set of grid lines caused by the placement of a grid cassette in a Bucky tray.
WARPED CASSETTE-LIGHT LEAK
HAIR BUN

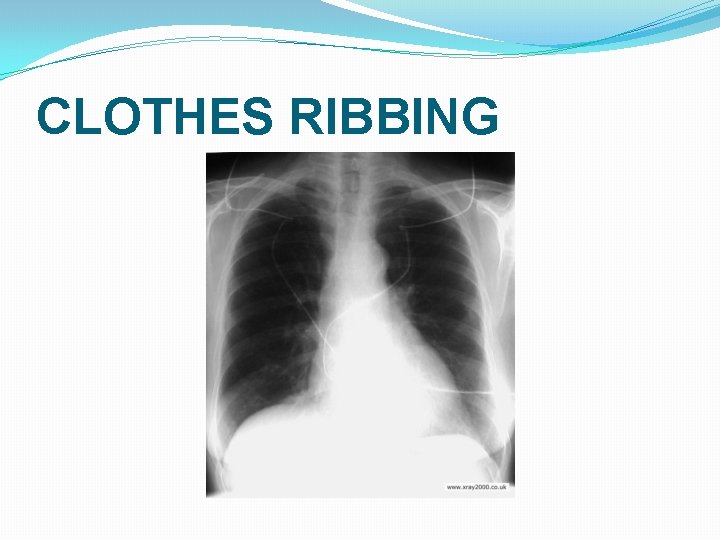

CLOTHES RIBBING
TUBE
HAIR STREAKING
GRID CUT-OFF
JEWELLERY

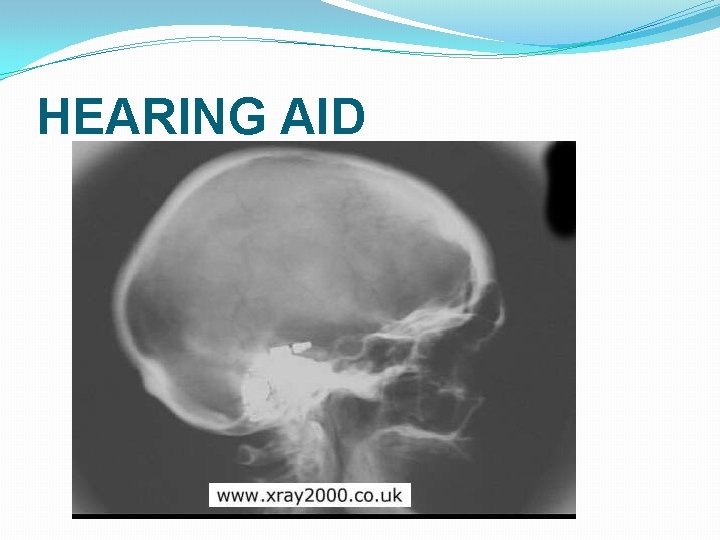

HEARING AID
LIGHTER IN THE POCKET
SCATTER FOG
SANDBAG
UMBILICAL RING
AIR IN THE VENTRICLES AIRHEAD? ? ?
PLASTER
DIRT ON THE SCREEN
PATHOLOGY
FOGGING
KYPHOSIS-CHIN

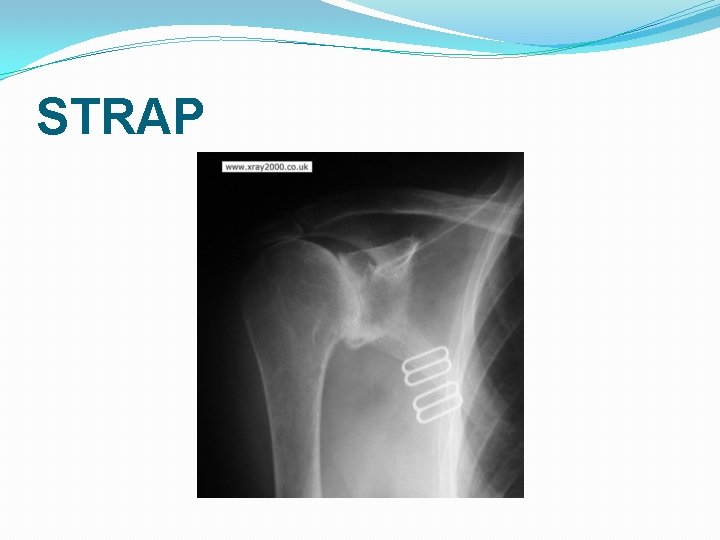

STRAP
SCRATCHES
STATIC
In CT Scan Artifacts
Intra Uterine Device

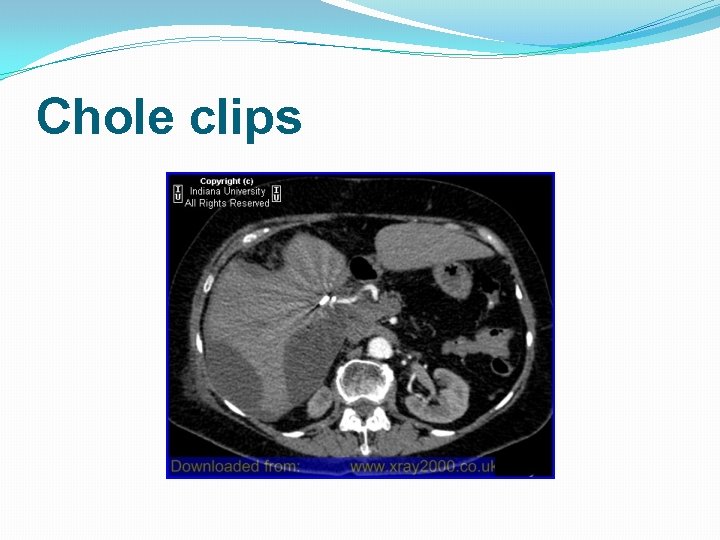

Chole clips
Earring Artifact
MRI artifacts
Patient Movements
