Articulations “joints”

Articulations “joints”

Classification of Joints • Structural- named according to type of connective tissue that binds

Classification of Joints • Structural- named according to type of connective tissue that binds them • Functional- divided into three groups based on mobility

Structural Classification • Synarthroses (Fibrous joints) – Allow for limited movement or immovable •

Structural Classification • Synarthroses (Fibrous joints) – Allow for limited movement or immovable • Ex- teeth in jaw, skull sutures • Amphiarthroses (Cartilaginous joints) – Bones are joined by cartilage, limited movement • Ex- ribs and sternum, symphysis pubis • Diarthroses (Synovial joints) – Most mobile and numerous • Ex- shoulder, knee

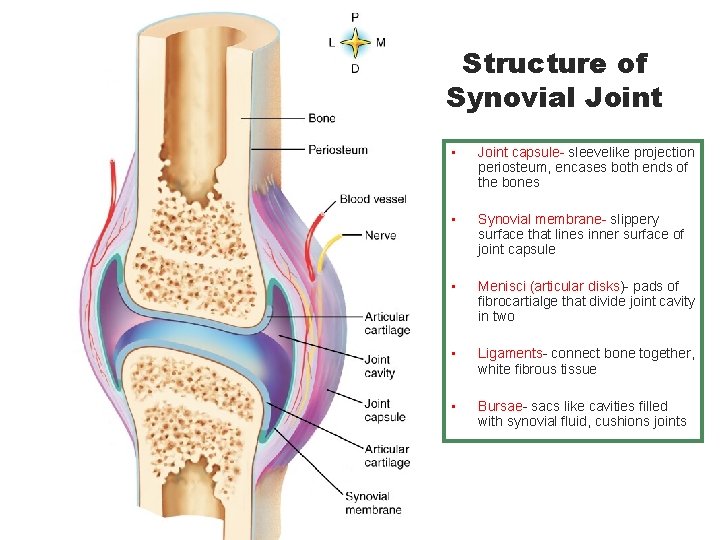

Structure of Synovial Joint • Joint capsule- sleevelike projection periosteum, encases both ends of

Structure of Synovial Joint • Joint capsule- sleevelike projection periosteum, encases both ends of the bones • Synovial membrane- slippery surface that lines inner surface of joint capsule • Menisci (articular disks)- pads of fibrocartialge that divide joint cavity in two • Ligaments- connect bone together, white fibrous tissue • Bursae- sacs like cavities filled with synovial fluid, cushions joints

Click on link below to show video https: //www. youtube. com/watch? v=DLx. YDo. N

Click on link below to show video https: //www. youtube. com/watch? v=DLx. YDo. N 634 c

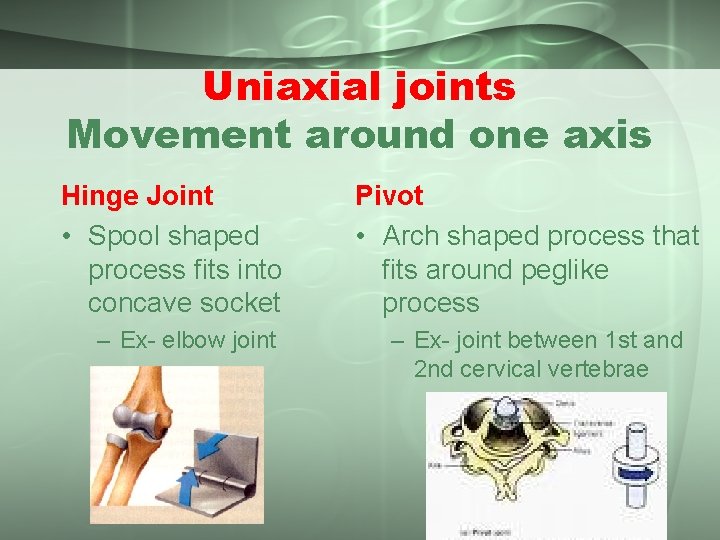

Uniaxial joints Movement around one axis Hinge Joint • Spool shaped process fits into

Uniaxial joints Movement around one axis Hinge Joint • Spool shaped process fits into concave socket – Ex- elbow joint Pivot • Arch shaped process that fits around peglike process – Ex- joint between 1 st and 2 nd cervical vertebrae

Biaxial Around two axes Saddle • Saddle shaped bone that fits into socket –

Biaxial Around two axes Saddle • Saddle shaped bone that fits into socket – Ex- thumb, only saddle joint in body Ellipsoidal (condyloid) • Oval condyle fits into elliptical socket – Ex- wrist

Multiaxial Around three+ axes Ball and Socket Gliding • Ball shaped process • Relatively

Multiaxial Around three+ axes Ball and Socket Gliding • Ball shaped process • Relatively flat fits into concave socket articulating surface – Ex- shoulder and hip joint – Ex- vertebrae, sternoclavicular, and acromioclavicular

Angular Movements- These change the size of the angle between two articulating bones. •

Angular Movements- These change the size of the angle between two articulating bones. • Flexion- decrease size of the angle between articulating bones. • Extension-straightening movement that return bones to anatomical position • Hyperextension- extending bones past anatomical position

Angular Movements • Abduction- movement away from medial plane • Adduction- movement toward medial

Angular Movements • Abduction- movement away from medial plane • Adduction- movement toward medial plane

Circular movementsarc like rotation • Pronation- turns palm side down • Supination- turns palm

Circular movementsarc like rotation • Pronation- turns palm side down • Supination- turns palm side up (anatomical position)

Circular Movements • Rotation- pivoting a bone on its axis • Circumductionmoves distal end

Circular Movements • Rotation- pivoting a bone on its axis • Circumductionmoves distal end of bone in circle

Gliding Movementsmovement across articular surfaces with out a change in angle Seen in between

Gliding Movementsmovement across articular surfaces with out a change in angle Seen in between carpals, tarsals and vertebrae

Special Movements- unique or unusual

Special Movements- unique or unusual

Special Movements- unique or unusual

Special Movements- unique or unusual

Inflammatory disease of the connective tissue of the joints • Causes destruction of bone

Inflammatory disease of the connective tissue of the joints • Causes destruction of bone and cartilage, crippling and deformity of the bones • Thought to be of autoimmune nature

Make a 3 column foldable (burrito? ) 1. In one column list the name

Make a 3 column foldable (burrito? ) 1. In one column list the name of the range of motion 2. Draw with arrows how it moves 3. List 1 or 2 example
