Articulated Body Dynamics The Basics Comp 768 October

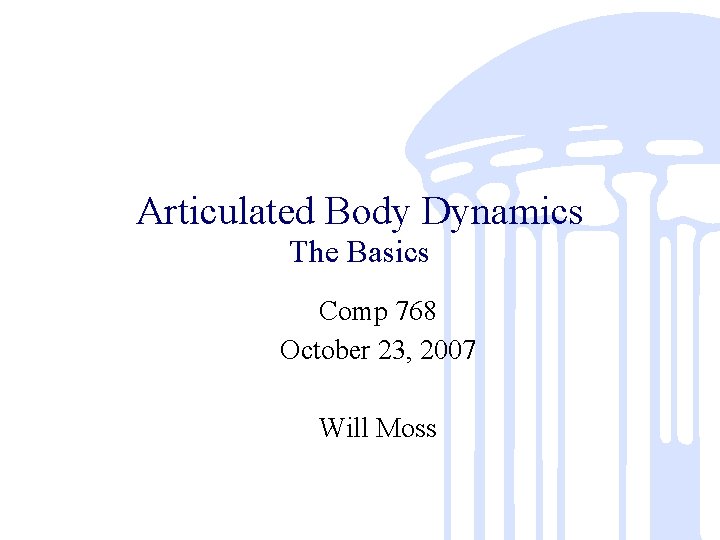

Articulated Body Dynamics The Basics Comp 768 October 23, 2007 Will Moss

Overview • Motivation • Background / Notation • Articulate Dynamics Algorithms – – Newton-Euler Algorithm Composite-Rigid Body Algorithm Articulated-Body Algorithm (Featherstone) Lagrange Multiplier approach (Baraff) October, 23 2007 2

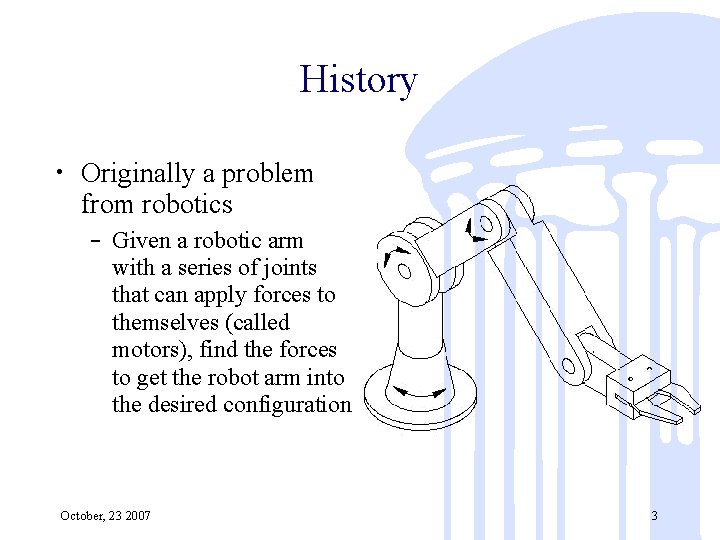

History • Originally a problem from robotics – Given a robotic arm with a series of joints that can apply forces to themselves (called motors), find the forces to get the robot arm into the desired configuration October, 23 2007 3

Applications • Computer Graphics – Humans, animals, birds, robots, etc. – Wires, chains, ropes, etc. – Trees, grass, etc. – Many more • October, 23 2007 http: //vrlab. epfl. ch/~alegarcia/VHOntology/long. html 4

Basics • An articulated body is a group of rigid bodies (called links) connected by joints • Multiple types of joints – Revolute (1 degree of freedom) – Ball joint (3 degrees of freedom) – Prismatic, screw, etc. October, 23 2007 5

Notation • In rigid body dynamics we had two equations – Fs is the vector of spatial forces – Is is the spatial inertia matrix (6 x 6) – as is the spatial acceleration • This is called spatial algebra – Combines the linear and angular components of the physical quantities into one 6 dimensional vector October, 23 2007 6

Notation • Transitioning this to articulated bodies – Qi is the force on link i – H is the joint-space inertia matrix (n x n) – are the coordinates, velocities and accelerations of the joints – C term produces the vector of forces that produce zero acceleration October, 23 2007 7

Forward vs. Inverse Dynamics • Inverse Dynamics – The calculation of forces given a set of accelerations • Forward Dynamics – The calculation of accelerations given a set of forces October, 23 2007 8

Algorithms • Inverse Dynamics – Newton-Euler Algorithm • Forward Dynamics – Composite-Rigid-Body Algorithm – Articulated-Body Algorithm – Lagrange Multiplier Algorithm October, 23 2007 9

Newton-Euler Algorithm • Goal – Given the accelerations and velocities at the joints, find the forces required at the joints to generate those accelerations • Recursive approach – Finds the accelerations and velocities of link i in terms of link i - 1 October, 23 2007 10

Newton-Euler Algorithm • Method 1. Calculate the velocities and accelerations at each link 2. Calculate the required net force acting on each link to generate those accelerations 3. Calculate the joint forces required to generate the net forces on each link October, 23 2007 11

Newton-Euler Algorithm 1. Find the velocities and accelerations of the links October, 23 2007 12

Newton-Euler Algorithm 2. Find the forces on each link October, 23 2007 13

Newton-Euler Algorithm 3. Find the forces on the joints • This can be reformulated in link coordinates to speed up the calculation • Runs in O(n) October, 23 2007 14

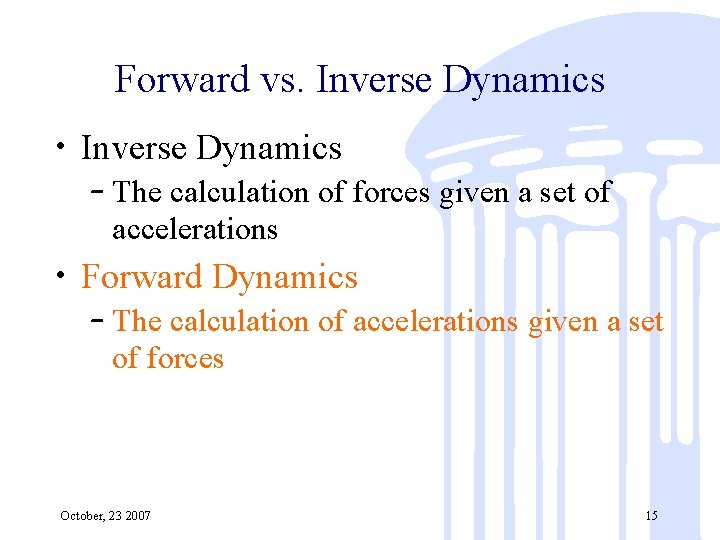

Forward vs. Inverse Dynamics • Inverse Dynamics – The calculation of forces given a set of accelerations • Forward Dynamics – The calculation of accelerations given a set of forces October, 23 2007 15

Composite-Rigid-Body Algorithm – Q is the vector of the forces on the links – H is the joint-space inertia matrix (n x n) – C vector of forces that produce zero acceleration – • Algorithm – Calculate the elements of C – Calculate the elements of H – Solve the set of simultaneous equations October, 23 2007 16

Composite-Rigid-Body Algorithm • Solve for C – Setting the acceleration to zero, we get – We can, therefore, interpret C as the forces which produce no acceleration – We can use a forward-dynamics solver (like Newton. Euler) to solve for the forces given the position, velocity and an acceleration of zero October, 23 2007 17

Composite-Rigid-Body Algorithm • Solve for H – If we set C to 0, we observe that is the vector of joint forces that will impart an acceleration of onto a stationary robot • Therefore, the ith column of H is the vector of forces required to produce a unit of acceleration about joint i and no other acceleration. – Treat the links i…n as a rigid-body with inertia defined by – Treat the links from 1…i-1 are therefore unmoving October, 23 2007 18

Composite-Rigid-Body Algorithm • Solve for H (cont. ) – Given that – Since none of the links from 1 … i-1 are moving, every joint transmits onto the subsequent link, so we can solve for H by solving – Which is a complete solution for H since it is symmetric – Runs in O(n 2) October, 23 2007 19

Composite-Rigid-Body Algorithm • Once you have H and C, solve the system of equations using any solver – O(n 3), but the constant is small enough that for n less than ~12 the O(n 2) term dominates • Like Newton-Euler, this can be reformulated in link coordinates – Faster for n ≤ 16 October, 23 2007 20

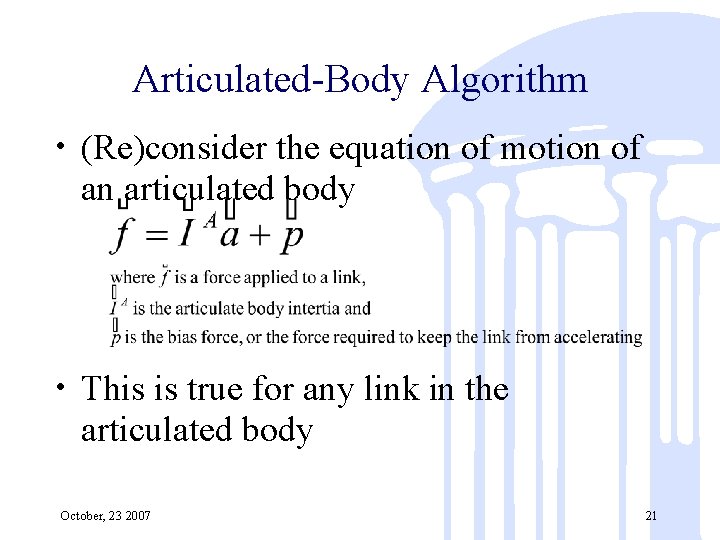

Articulated-Body Algorithm • (Re)consider the equation of motion of an articulated body • This is true for any link in the articulated body October, 23 2007 21

Articulated-Body Algorithm • Consider an articulate robot as a single joint attached to an articulated body – The problem simplifies to the forward dynamics of a one -joint robot (much simpler than the general case) – The first joint is simply a one-joint robot – The second joint is a one-joint robot with a moving base (slightly more complicated, but still much simpler that the general case) – Solving this requires two tasks • Solving the one-joint robot forward dynamics problem • Finding the articulated-body inertias (I) and bias forces (p) October, 23 2007 22

Articulated-Body Algorithm • Solving the one-joint robot problem October, 23 2007 23

Articulated-Body Algorithm • Finding the articulated-body inertia (IA) and bias force (p) Where is called the velocity-product force and is defined to be October, 23 2007 24

Articulated-Body Algorithm • These formulas can be reformulated recursively, so allow us to find and in terms of only and • Our algorithm is then – Calculate the series of articulated body inertias and bias forces – Using these inertias and bias forces, calculate the joint accelerations • Since these are both defined recursively, they each take O(n), making the entire algorithm O(n) October, 23 2007 25

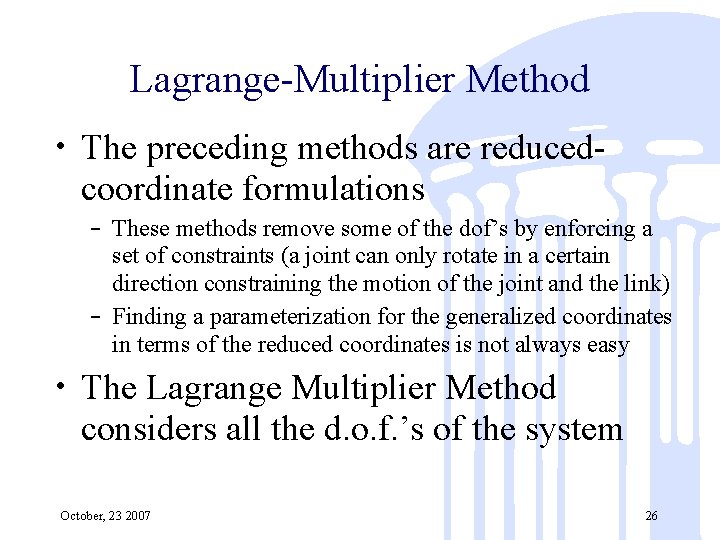

Lagrange-Multiplier Method • The preceding methods are reducedcoordinate formulations – These methods remove some of the dof’s by enforcing a set of constraints (a joint can only rotate in a certain direction constraining the motion of the joint and the link) – Finding a parameterization for the generalized coordinates in terms of the reduced coordinates is not always easy • The Lagrange Multiplier Method considers all the d. o. f. ’s of the system October, 23 2007 26

Lagrange-Multiplier Method • Consider the equation of motion of i bodies – M describes the mass properties of the system is an d x d matrix where d is the number of dof’s of body i when not constrained • Also consider a constraint i that removes m dof’s from the system, we can write it as – Where each jik is a m x d matrix that represents the constraint on link k where • d is again the number of dof’s of body k and • m is the number of dof’s removed by the constraint October, 23 2007 27

Lagrange-Multiplier Method • To simplify the notation, we replace the q individual constraint equations • With – Where J is a q x n matrix of the individual jik matrices • Where q is the total number of constraints on the system and • n is the number of bodies – c is a q dimensional vector October, 23 2007 28

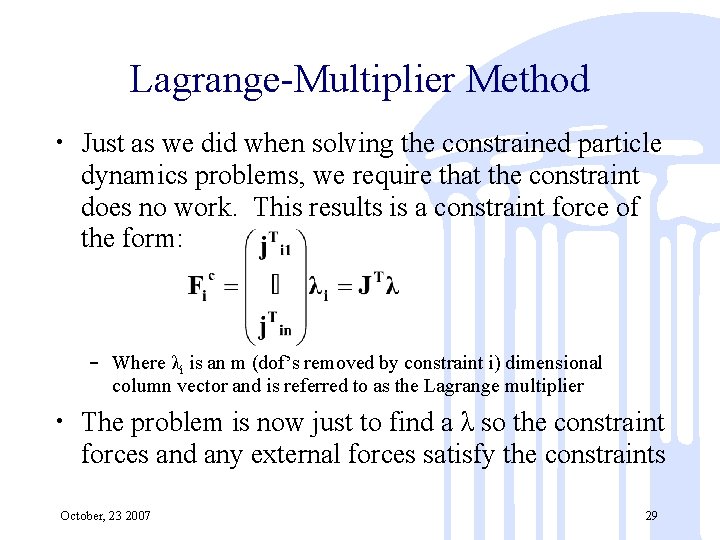

Lagrange-Multiplier Method • Just as we did when solving the constrained particle dynamics problems, we require that the constraint does no work. This results is a constraint force of the form: – Where λi is an m (dof’s removed by constraint i) dimensional column vector and is referred to as the Lagrange multiplier • The problem is now just to find a λ so the constraint forces and any external forces satisfy the constraints October, 23 2007 29

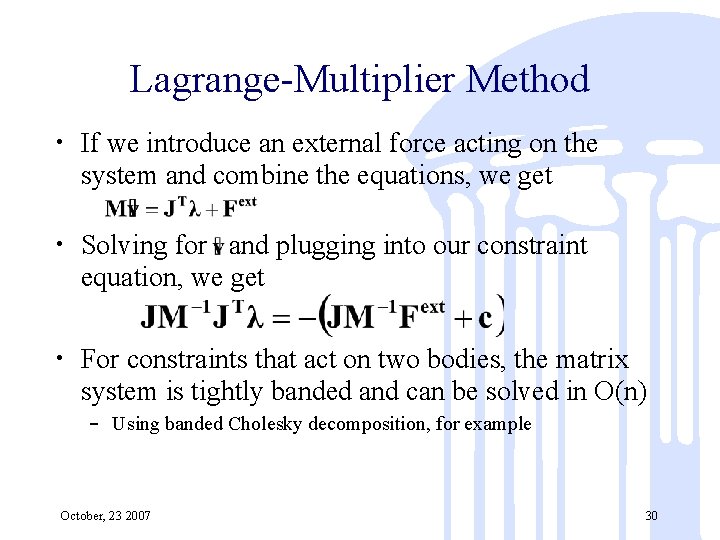

Lagrange-Multiplier Method • If we introduce an external force acting on the system and combine the equations, we get • Solving for and plugging into our constraint equation, we get • For constraints that act on two bodies, the matrix system is tightly banded and can be solved in O(n) – Using banded Cholesky decomposition, for example October, 23 2007 30

Lagrange-Multiplier Method • For more complicated constraints, is no longer sparse and we reformulate the equation as • If we required acyclic constraints, then sparsematrix theory tells us that has perfect elimination order – This means that if we factor and can be computed in O(n) – We can then solve into three matrices LDLT, L will be as sparse as H for λ, by solving each piece of LDLT separately, each also in O(n) time and combining the solutions October, 23 2007 31

Summary • Inverse Dynamics – Newton-Euler is the standard implementation in O(n) • Forward dynamics – Composite-rigid-body algorithm is simpler and faster for n < 9, runs in O(n 3) – Articulated-body algorithm is faster for n > 9, runs in O(n) – Lagrange multiplier method is somewhat simpler than ABA and speed is comparable, runs in O(n) October, 23 2007 32

References / Thanks • R. Featherstone, Robot Dynamics Algorithms, Boston/Dordrecht/Lancaster: Kluwer Academic Publishers, 1987. • D. Baraff, "Linear-Time Dynamics using Lagrange Multipliers, " Proc. SIGGRAPH '96, pp. 137 -146, New Orleans, August 1996. • Thanks to Nico for his slides from last year October, 23 2007 33
