Arthrography Spring 2011 Final Arthrography Used to obtain

Arthrography Spring 2011 Final

Arthrography Used to obtain diagnostic information regarding the: n n Joint space Surrounding soft tissue Cartilage Lesions of the menisci Delineates the joint space and its surrounding structures Largely replaced by MRI

Joint Overview Broken down into 3 classifications n n n ______________________ For arthrography we are mainly interested in _____________ joints

Synovial Joint Get their name from synovial fluid within joint space It is enclosed in a fibrous layer called the joint capsule n n n These fibers are arranged irregularly Connects articulating bones just beyond joint space uniting the bones of the joint Further contains synovial membrane, hyaline cartilage, intra-articular joint structures and ligaments

n n n Synovial fluid is _____________ Fluid works with structures such as ______, ______ and _____ to reduce friction Resembles the ______in consistency Nourishes hyaline cartilage (lines articular surfaces) Is produced in the _____________ Synovial Fluid

Anatomy of a Synovial Joint Synovial membrane Hyaline articular cartilage Intra-articular JT structures n Menisci, fat pads, and intraarticular disks Ligaments

Most Common Areas of Examination Arthrography can be done on any encapsuled JT _____ is most common type of arthrogram performed n Other joint spaces include: ______________________

Pneumoathrograms n Air or gaseous medium is used n ________ml n Produces __________ distention of joint n Possible __________________ n Accuracy is considerably less than that when 2 contrast methods are used

Positive or Opaque Arthrography n Water soluble iodinated contrast Ionic or non-ionic 30 -100 ml can be used n n n Contrast is readily absorbed, tolerated and excreted Produces greater diagnostic accuracy Concentration should be no more than 30%

Double contrast Arthrography n n Both _________ and _______________employed By using both contrasts less of each can be used. ___________________________

Contrast Precautions Verify it is the correct contrast n Ionic or Non-ionic iodinated contrast Omnipaque or Isovue (non-ionic) n Correct concentration Check expiration date Keep contrast vial in room until procedure is complete

Indications and Contraindications for Arthrography Indications: n n n n Suspected injury of meniscus (tears) Suspected capsular damage Rupture of articular ligaments Cartilaginous defects Arthritic deformities (specifically TMJ) Congenital luxation ( dislocation) of hip Extent of damage from trauma Contraindications: n Hypersensitivity to iodine

Clinical Symptoms Pain Swelling Limited range of motion Recurrent instability (such as ankle)

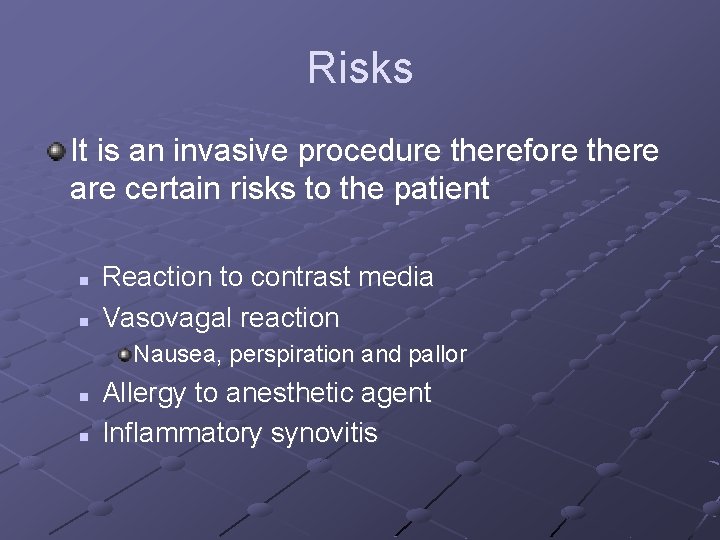

Risks It is an invasive procedure therefore there are certain risks to the patient n n Reaction to contrast media Vasovagal reaction Nausea, perspiration and pallor n n Allergy to anesthetic agent Inflammatory synovitis

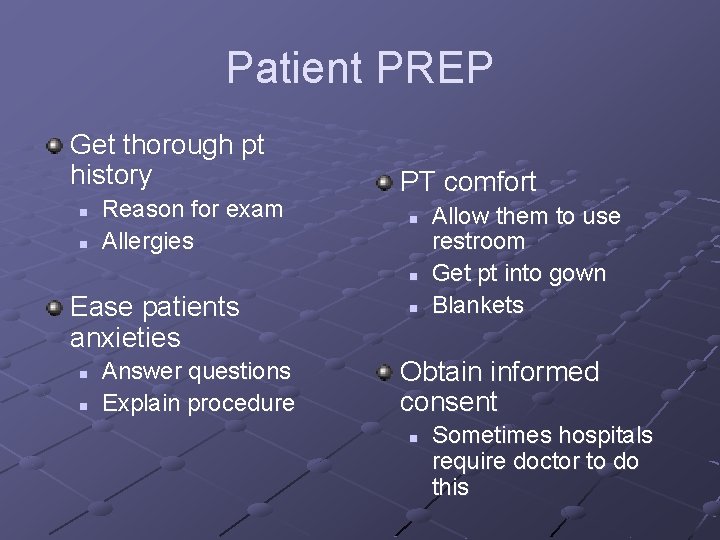

Patient PREP Get thorough pt history n n Reason for exam Allergies PT comfort n n Ease patients anxieties n n Answer questions Explain procedure n Allow them to use restroom Get pt into gown Blankets Obtain informed consent n Sometimes hospitals require doctor to do this

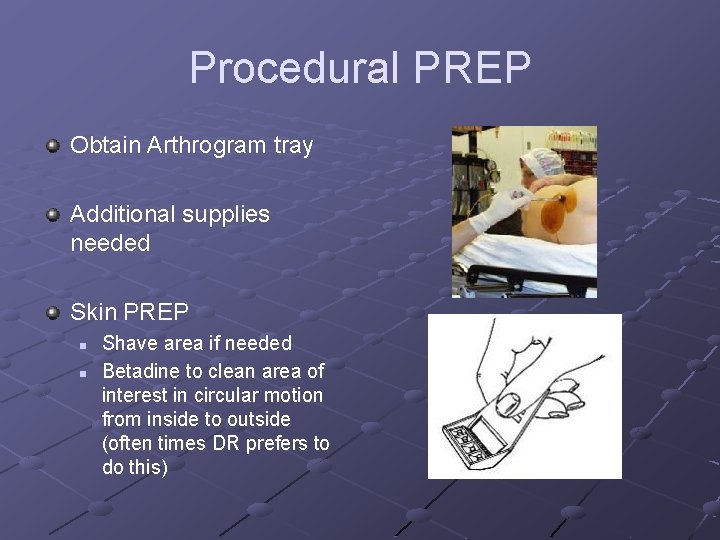

Procedural PREP Obtain Arthrogram tray Additional supplies needed Skin PREP n n Shave area if needed Betadine to clean area of interest in circular motion from inside to outside (often times DR prefers to do this)

Syringes n 5 cc, 20 cc and 30 cc luer lock Needles n 25 g, 20 g, 18 g Connector tube Sterile towels Sterile drape Gauze pads (4 x 4) Prep sponges Adhesive tape Anesthetic n Sometimes DR draws this up and some do not have this on tray Arthrogram Tray

Aseptic Technique Do not contaminate arthrogram tray n Tray is sterile Do not contaminate area of interest after scrubbed

Additional Equipment & Supplies Shields Towels and blankets Contrast Sterile gloves Antiseptic solution Gauze Ace bandages (if needed) Fluoroscopy & radiographic capabilities Gown Extra syringes and needles Bandaids Forceps (if part of protocol) Gloves Specimen tubes (if needed)

Needles Smaller gauge has a larger number Larger gauge has a smaller number Length and gauge of needle is usually part of protocol n n DR’s preference Part being examined

Radiation Safety Have shields for PT’s, DR and yourself Question LMP and the possibility of being pregnant Use cardinal rules n n n Time Distance Shielding ALARA n n Use pulse if possible Save the last image on screen when possible

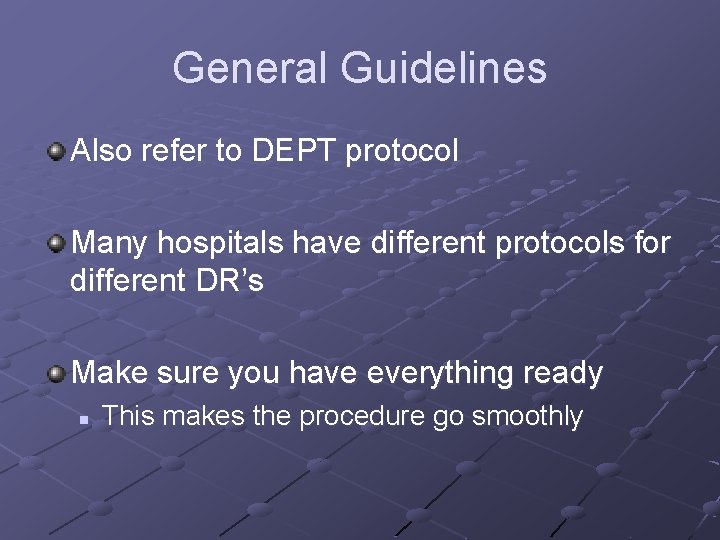

General Guidelines Also refer to DEPT protocol Many hospitals have different protocols for different DR’s Make sure you have everything ready n This makes the procedure go smoothly

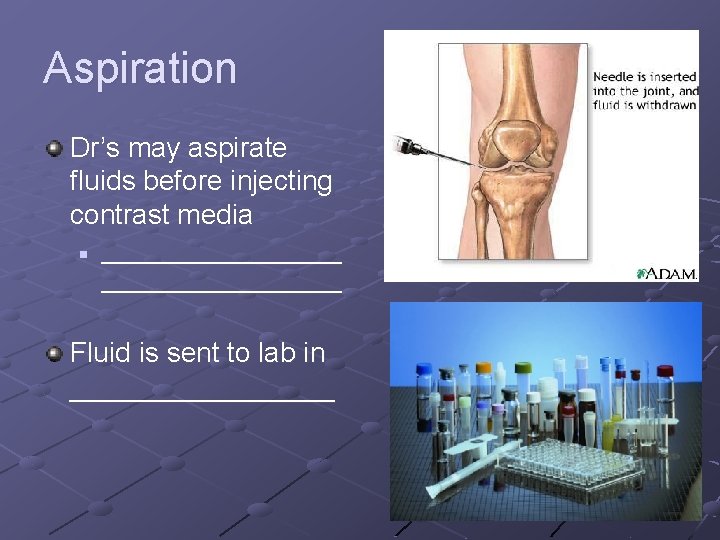

Aspiration Dr’s may aspirate fluids before injecting contrast media n __________________ Fluid is sent to lab in _________

Clinical Indications for Knee Arthrograms Pain, swelling and limited ROM Trauma or athletic injuries Suspected damage to menisci and capsule Rupture of articular ligaments Cartilaginous defects Arthritis

Knee Arthrogram: Vertical method Apply all principles from slides 15 -21 n n Scout films: often AP, Lateral and oblique Check with DEPT protocol Anesthetic injected Contrast is injected (single contrast study)

Knee Arthrogram: Vertical Method Place PT prone n n ______________________ Sometimes support is placed under distal femur and small sandbag on ankle to widen JT space Part is _______ to disperse contrast Multiple _____ are taken under fluoroscopy

Knee Arthrogram: Vertical Method Overheads are done n n ___________________________________________________ Single contrast study for a ____________ may fail to demonstrate the tear Usually single contrast studies are used to demonstrate _______________________ Post procedure n n n PT may feel tightness This should go away in 1 -2 days Can be treated with analgesics

Vertical Knee Radiographs __________

Meniscus Tears Symptoms may include: ________ sound at the time of the injury Pain Tightness Swelling within the knee, often called "water on the knee" Locking up, catching, or giving way of the knee Tenderness in the joint

Knee Arthrogram: Horizontal Method Usually a double contrast study n n n With this type smaller amounts of contrast can be used Decreases discomfort to PT Provides are more accurate study Demonstrates menisci the best Positive contrast coats menisci Air rises

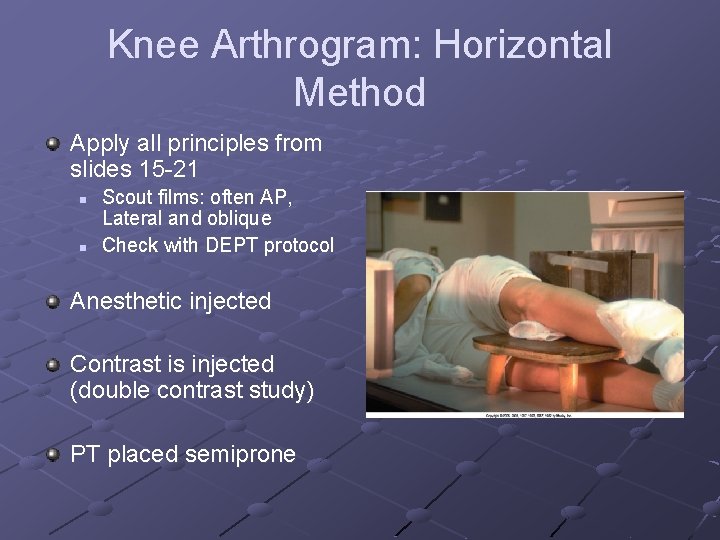

Knee Arthrogram: Horizontal Method Apply all principles from slides 15 -21 n n Scout films: often AP, Lateral and oblique Check with DEPT protocol Anesthetic injected Contrast is injected (double contrast study) PT placed semiprone

Knee Arthrogram: Horizontal Method Knee is manually stressed while spot films are taken (medial & lateral meniscus) Draw a line on medial or lateral side of knee and then direct CR to the meniscus Rotate knee toward the supine position n Turn 30 degrees for each of the projections

Horizontal Knee Radiographs Spot Films Medial Meniscus AP LAT

For Cruciate Ligaments Double Contrast study PT’ s sits with knee flexed 90 degrees over the side of the table Firm pillow placed under knee so that forward pressure can be applied PT holds IR with grid Closely collimate Tightly overexposed lateral projection is made

CT Knee Arthrography PT gets a regular arthrogram in radiology Then is taken to CT for imaging Can be single or double contrast (water soluble iodine) n Usually double

Gadolinium contrast is used n It is a clear substance that when injected into a vein accumulates in abnormal tissue Side effects can be: n Mild headache, nausea, local pain, low blood pressure, allergic reaction, urticaria and SOB. Contraindications include metal in body, claustrophobia, & PT size MRI Knee Arthrography

Shoulder Arthrogram Indications: n n Partial or complete tears of rotator cuff Tears of glenoid labrum Persistent pain or weakness Frozen shoulder Single or double contrast can be used n n Single 10 -12 ml Double 3 -4 positive contrast and 10 -12 of air

Shoulder Arthrogram The usual objection site is approx ½ inch inferior & lateral to the coracoid process Usually spinal needle is used because the joint capsule is usually deep Scout films: AP (internal & external), 30 degree oblique, axillary, tangential n See Chapter 5 for PT and part positioning AP scout

Normal Shoulder Arthrograms Single Contrast Double Contrast

Shoulder Single and Double contrast Single contrast

Rotator Cuff Tear

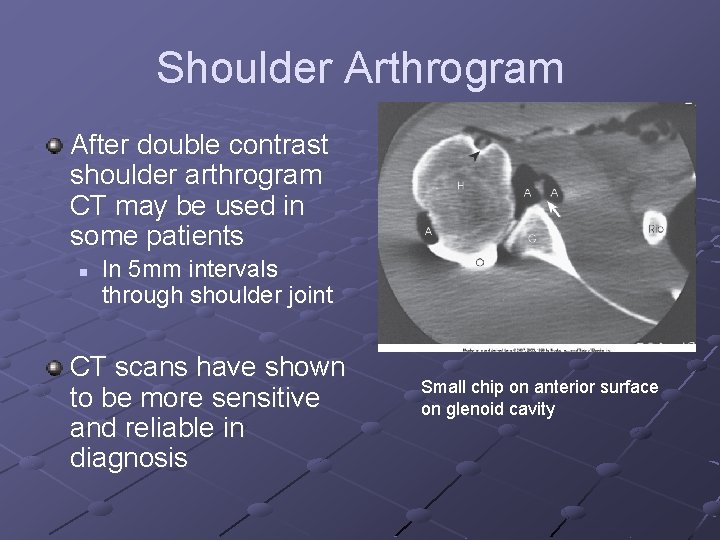

Shoulder Arthrogram After double contrast shoulder arthrogram CT may be used in some patients n In 5 mm intervals through shoulder joint CT scans have shown to be more sensitive and reliable in diagnosis Small chip on anterior surface on glenoid cavity

MRI Arthrogram of Shoulder

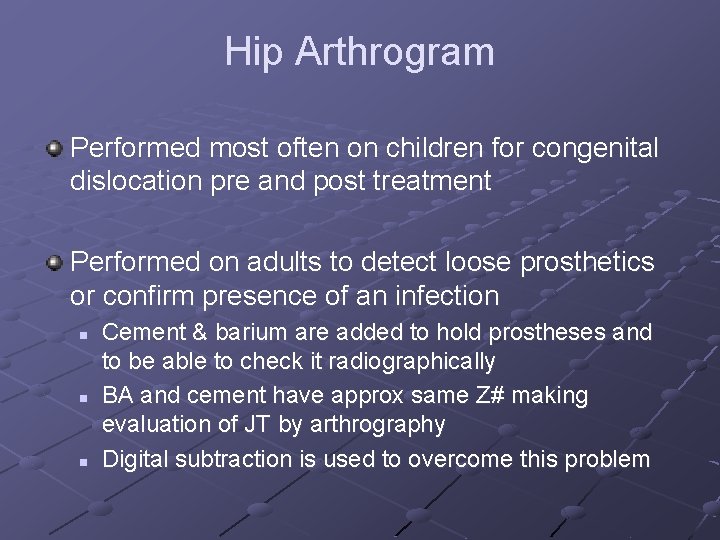

Hip Arthrogram Performed most often on children for congenital dislocation pre and post treatment Performed on adults to detect loose prosthetics or confirm presence of an infection n Cement & barium are added to hold prostheses and to be able to check it radiographically BA and cement have approx same Z# making evaluation of JT by arthrography Digital subtraction is used to overcome this problem

Hip Arthrogram & Digital Subtraction

Hip Arthrogram Common puncture site n n ¾ “ distal to the inguinal crease ¾” lateral to the palpated femoral pulse Spinal needle is used due to how deep the hip joint is into the body.

Children Hip Arthrography

Wrist Arthrogram Indications: trauma, persistent pain, limited ROM. Contrast is injected through the dorsal wrist at the articulation of the radius, scaphoid and lunate n 1. 5 -4 ml water soluble iodinated contrast After injection the wrist is carefully moved to spread contrast Under fluoro or tape recording the wrist is rotated for exact area of leakage AP, LAT and both obliques often taken (check DEPT protocols

Wrist Arthrogram

Wrist Arthrogram Rheumatoid Arthritis

TMJ Arthrogram CT and MRI have largely replaced TMJ arthrography because they are noninvasive Useful in diagnosing n Abnormalities of the articular disk Indications: pain, clicking sound, lock jaw when chewing sticky candy n n Starburst Taffy

TMJ Arthrograms Tomography MRI
