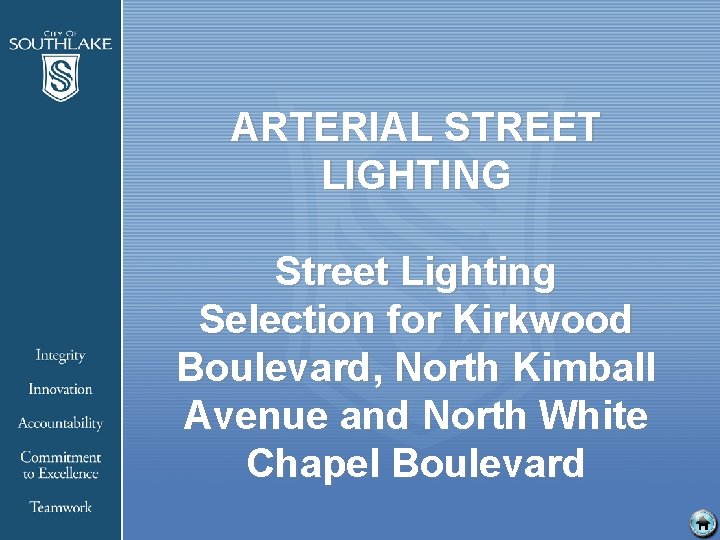

ARTERIAL STREET LIGHTING Street Lighting Selection for Kirkwood Boulevard, North Kimball Avenue and North White Chapel Boulevard

City of Southlake Strategy Map Fulfill Our Mission Deliver on Our Focus Areas Serve Our Customers The City of Southlake provides municipal services that support the highest quality of life for our residents and businesses. We do this by delivering outstanding value and unrivaled quality in everything that we do. Safety and Security Mobility C 1 Achieve the highest standards of safety and security Manage the Business B 1 Implement and share best practices across all departments Provide Financial Stewardship F 1 Achieve competitive financial benchmarks Promote Learning and Growth L 1 Ensure our people understand the strategy and how they contribute to it Infrastructure Performance Management Quality and Service Delivery Development C 3 Provide attractive and unique spaces for enjoyment of personal interests C 2 Provide travel convenience within city and region B 2 Collaborate with select partners to implement service solutions F 2 Maintain or improve AA bond rating L 2 Enhance leadership capabilities to deliver results B 3 Pursue innovative service delivery options L 3 Attract, develop and retain a skilled workforce C 4 Attract and keep top-tier businesses to drive a dynamic and sustainable economic environment B 4 Provide high quality customer service F 3 Invest to provide and maintain high quality public assets L 4 Recognize and reward high performers Partnerships and Volunteerism B 5 Optimize use of technology F 4 Maximize return on investments L 5 Actively promote opportunities for partnerships and volunteer involvement (individual and group) Live Our Core Values Integrity ● Innovation ● Accountability ● Commitment to Excellence ● Teamwork

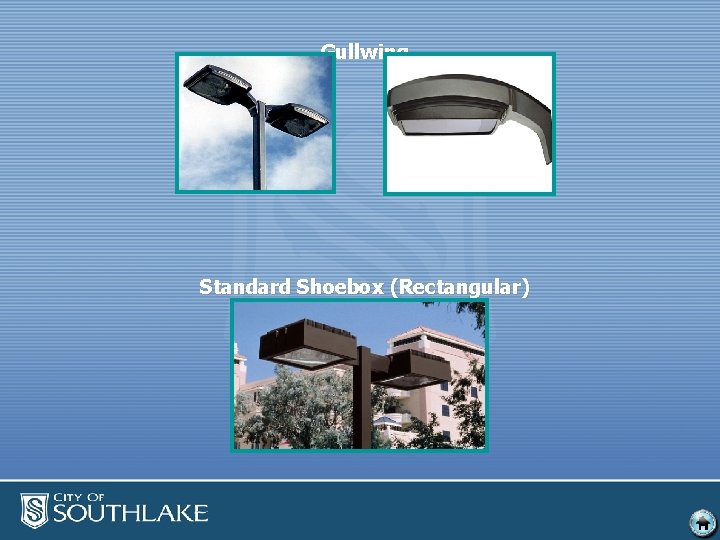

Gullwing Standard Shoebox (Rectangular)

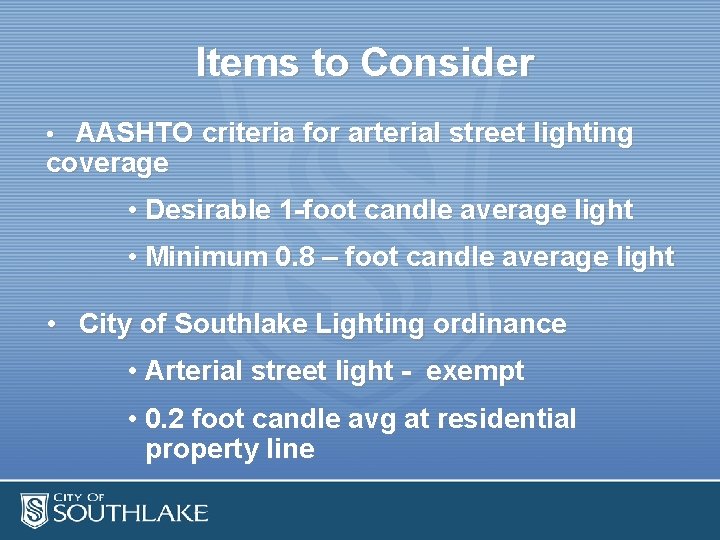

Items to Consider • AASHTO criteria for arterial street lighting coverage • Desirable 1 -foot candle average light • Minimum 0. 8 – foot candle average light • City of Southlake Lighting ordinance • Arterial street light - exempt • 0. 2 foot candle avg at residential property line

Items to Consider • Residential Adjacency • Residential adjacency along North White Chapel and North Kimball • Commercial adjacency / wide buffers along Kirkwood • Electric Utility Standard Menus • Two electric providers • Readily available (Shoebox, Cobrahead) • Alternatives (Gullwing, Other Fixtures) • Utility evaluation & possible modified lighting agreements

Shoebox

RECOMMENDATION • Kirkwood Boulevard – Median mounted 30’ painted steel poles with “Gullwing“ fixtures; and, – 250 watt high pressure sodium lights • Grace Lane and Blessed Way – Median and/or parkway mounted 30’ painted steel poles with “Gullwing“ fixtures; and, – 250 watt high pressure sodium lights

RECOMMENDATION (Cont’d) • North Kimball Avenue – Median mounted 30’ painted steel poles with “shoebox“ fixtures; and, – 250 watt high pressure sodium lights • North White Chapel Boulevard – Median mounted 30’ painted steel poles with “shoebox“ fixtures; and – 250 watt high pressure sodium lights

Questions?
