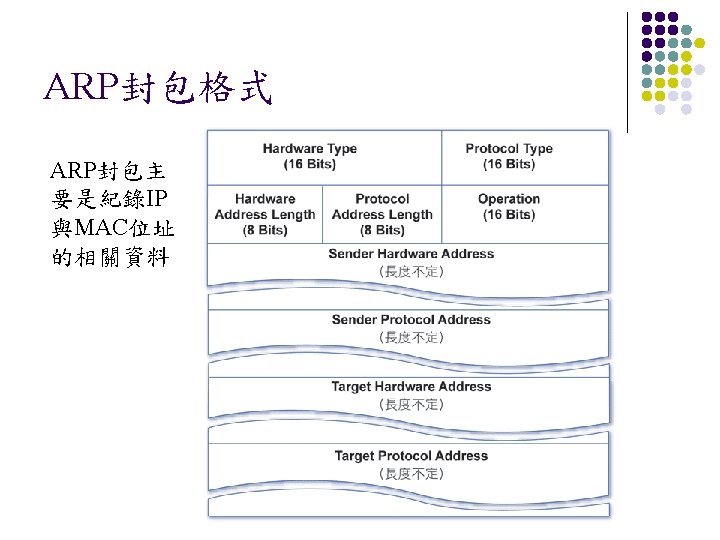

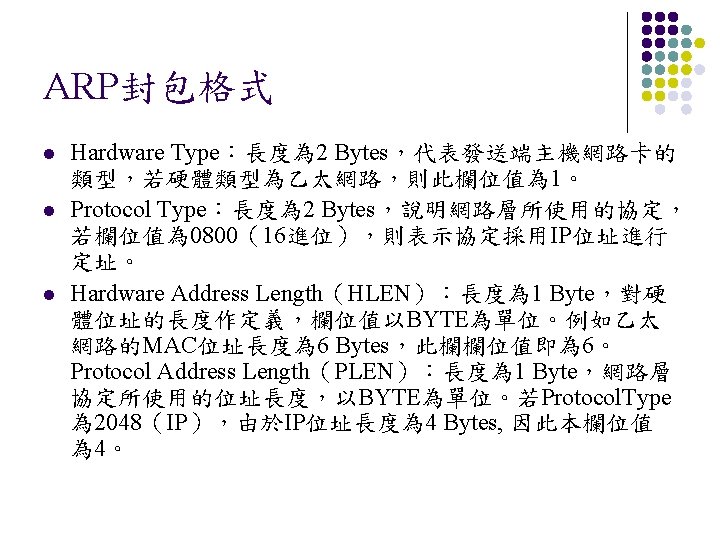

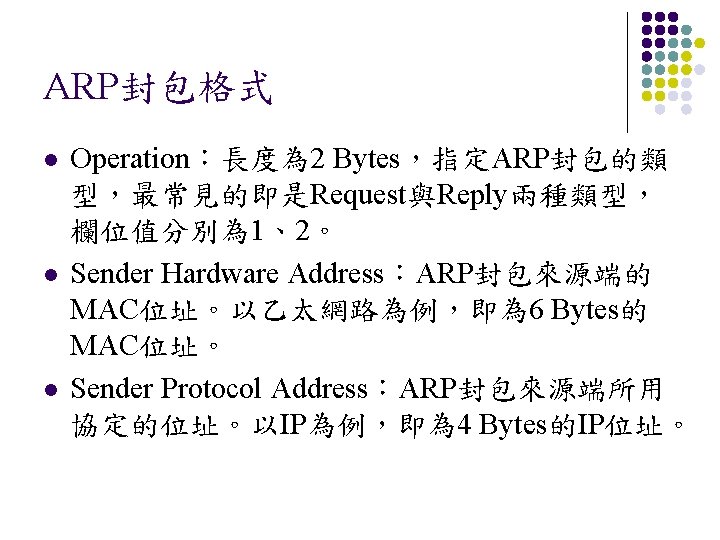

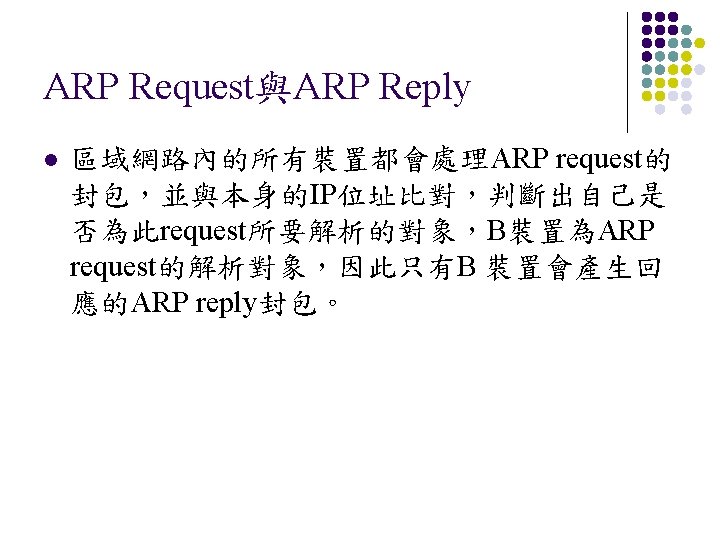

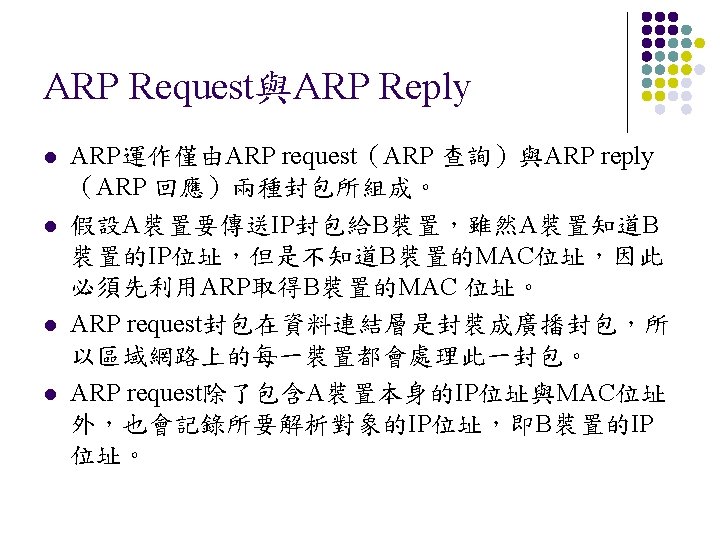

ARP RequestARP Reply ARP RequestARP Reply ARP Request Slides: 23 Download presentation ARP Request與ARP Reply ARP Request與ARP Reply ARP Request ARP Request l 如圖中可觀察ARP Request封包(Filter設定eth. type == 0 x 0806) l l l l l Hardware Type = 1(Ethernet),其十六進位為 00 01。 Protocol Type = 0 x 0800 (IP)。 Hardware Addr Length = 6 bytes,其十六進位為 06。 Protocol Addr Length = 4 bytes,其十六進位為 04。 Operation = 1 (Request),其十六進位為 00 01。 Sender Ethernet Addr = 00 11 09 27 bd 56。 Sender IP Address = 192. 73. 46。 Target Ethernet Addr = 000000。 Target IP Address = 192. 73. 1。 ARP Reply ARP Reply l 如圖中可觀察ARP Reply封包: l l l l l Hardware Type = 1(Ethernet),其十六進位為 00 01。 Protocol Type = 0 x 0800 (IP)。 Hardware Addr Length = 6 bytes,其十六進位為 06。 Protocol Addr Length = 4 bytes,其十六進位為 04。 Operation = 1 (Reply),其十六進位為 00 02。 Sender Ethernet Addr = 00 11 2 f 58 73 85。 Sender IP Address = 192. 73. 1。 Target Ethernet Addr = 00 11 09 27 bd 56。 Target IP Address = 192. 73. 46。 Free IP scanner l 使用Free IP scanner來檢視區域網路上所有的 IP/MAC對。 Arp protcol1 a formal reply is written inCharacteristics of inter process communicationRitratto di tristan tzara analisiSura arpClasificacion arpVarus arpWhat is the reverse request protocol?Arp rarpTabela arpArp table更新Arp form of governmentArp windowsArp protocol in tcp/ipLe protocole arpEncapsulation of arp packetWhen and where rarp is used intentionallyWikipedia mac addressTabela arpArp trainerPile tcp ipArpReverse arp lookupA
