Aromatic Hydrocarbons Nomenclature of the Derivatives of Benzene

Aromatic Hydrocarbons Nomenclature of the Derivatives of Benzene Physical Properties of Aromatic Hydrocarbons Preparation of Benzene Reactions of Benzene Alkylbenzenes

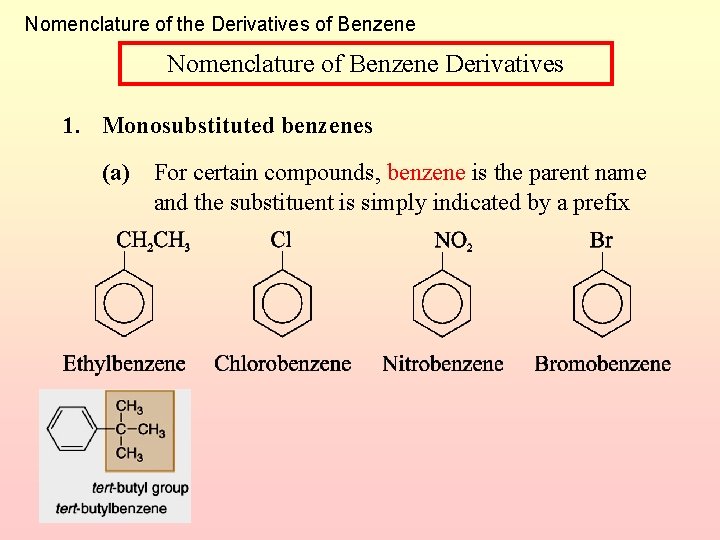

Nomenclature of the Derivatives of Benzene Nomenclature of Benzene Derivatives 1. Monosubstituted benzenes (a) For certain compounds, benzene is the parent name and the substituent is simply indicated by a prefix

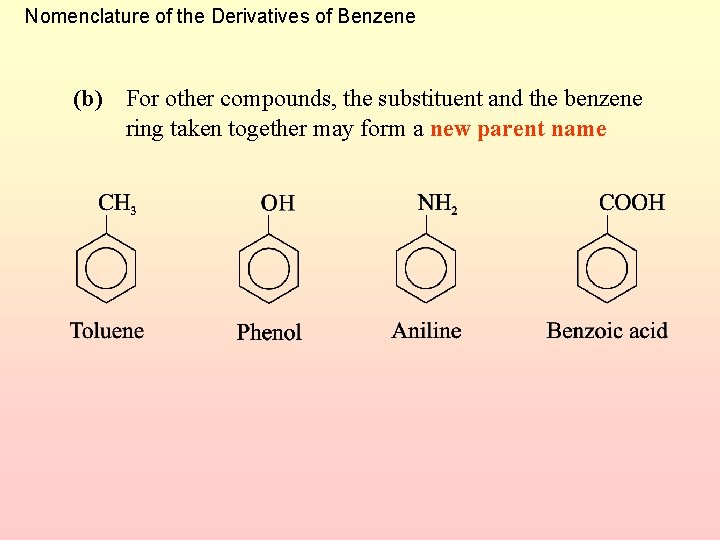

Nomenclature of the Derivatives of Benzene (b) For other compounds, the substituent and the benzene ring taken together may form a new parent name

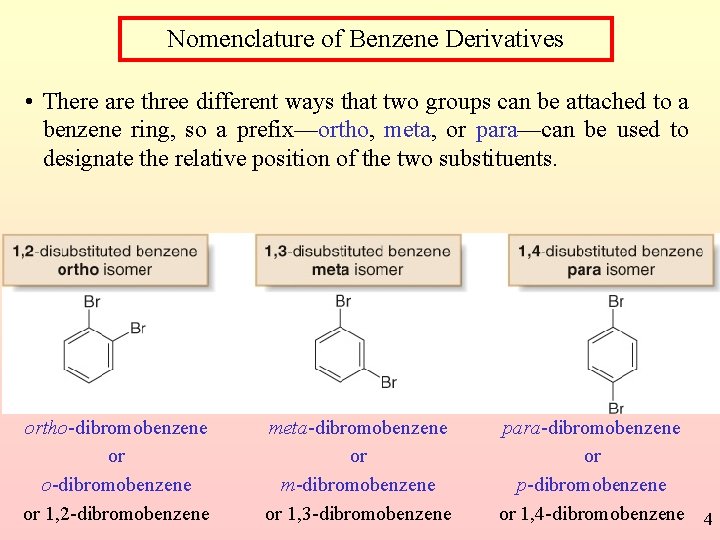

Nomenclature of Benzene Derivatives • There are three different ways that two groups can be attached to a benzene ring, so a prefix—ortho, meta, or para—can be used to designate the relative position of the two substituents. ortho-dibromobenzene or 1, 2 -dibromobenzene meta-dibromobenzene or m-dibromobenzene or 1, 3 -dibromobenzene para-dibromobenzene or p-dibromobenzene or 1, 4 -dibromobenzene 4

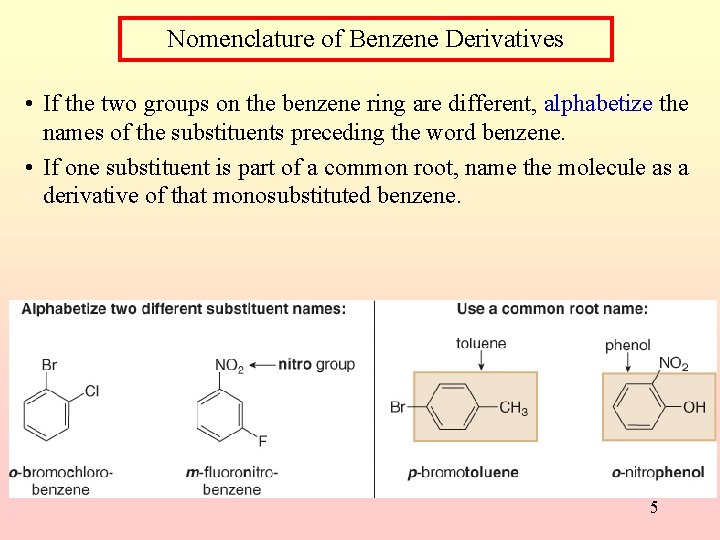

Nomenclature of Benzene Derivatives • If the two groups on the benzene ring are different, alphabetize the names of the substituents preceding the word benzene. • If one substituent is part of a common root, name the molecule as a derivative of that monosubstituted benzene. 5

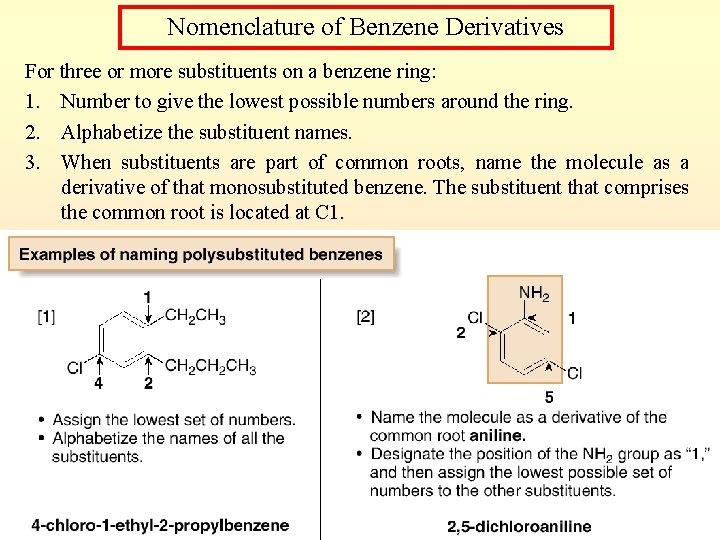

Nomenclature of Benzene Derivatives For three or more substituents on a benzene ring: 1. Number to give the lowest possible numbers around the ring. 2. Alphabetize the substituent names. 3. When substituents are part of common roots, name the molecule as a derivative of that monosubstituted benzene. The substituent that comprises the common root is located at C 1. 6

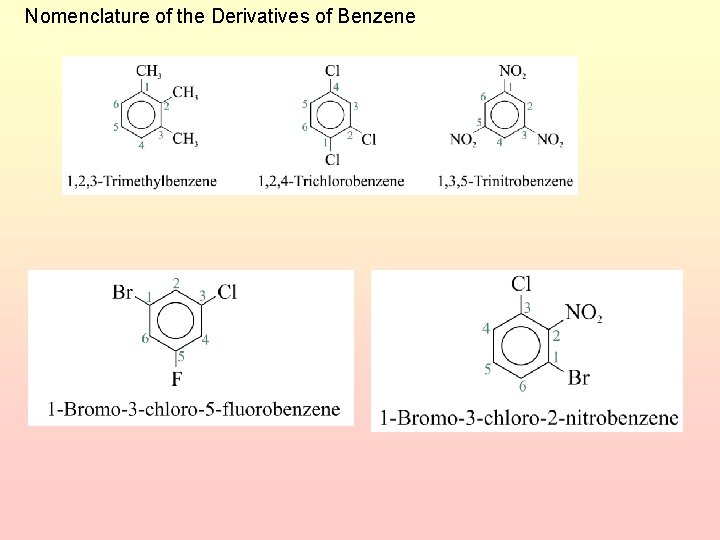

Nomenclature of the Derivatives of Benzene

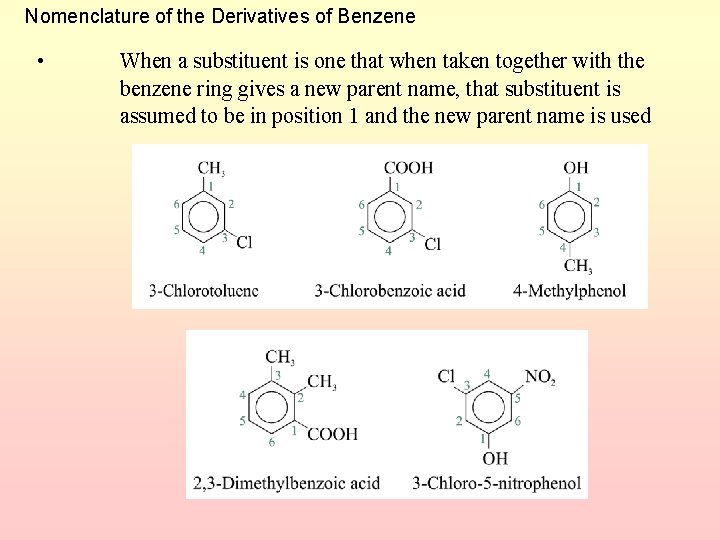

Nomenclature of the Derivatives of Benzene • When a substituent is one that when taken together with the benzene ring gives a new parent name, that substituent is assumed to be in position 1 and the new parent name is used

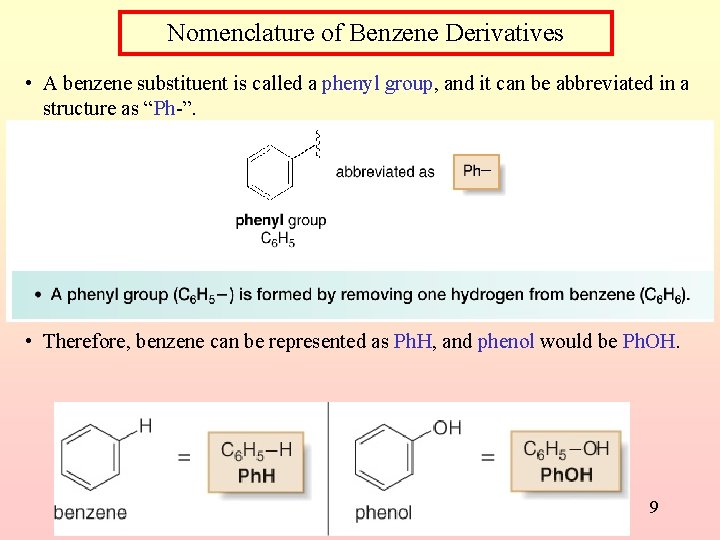

Nomenclature of Benzene Derivatives • A benzene substituent is called a phenyl group, and it can be abbreviated in a structure as “Ph-”. • Therefore, benzene can be represented as Ph. H, and phenol would be Ph. OH. 9

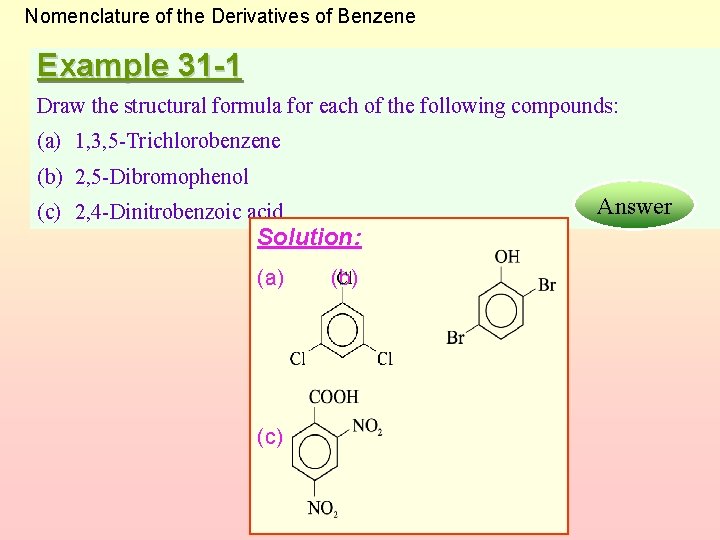

Nomenclature of the Derivatives of Benzene Example 31 -1 Draw the structural formula for each of the following compounds: (a) 1, 3, 5 -Trichlorobenzene (b) 2, 5 -Dibromophenol Answer (c) 2, 4 -Dinitrobenzoic acid Solution: (a) (c) (b)

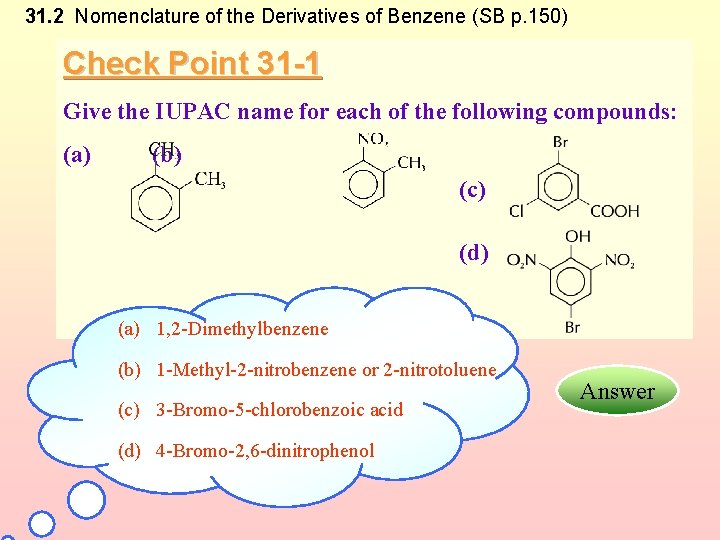

31. 2 Nomenclature of the Derivatives of Benzene (SB p. 150) Check Point 31 -1 Give the IUPAC name for each of the following compounds: (a) (b) (c) (d) (a) 1, 2 -Dimethylbenzene (b) 1 -Methyl-2 -nitrobenzene or 2 -nitrotoluene (c) 3 -Bromo-5 -chlorobenzoic acid (d) 4 -Bromo-2, 6 -dinitrophenol Answer

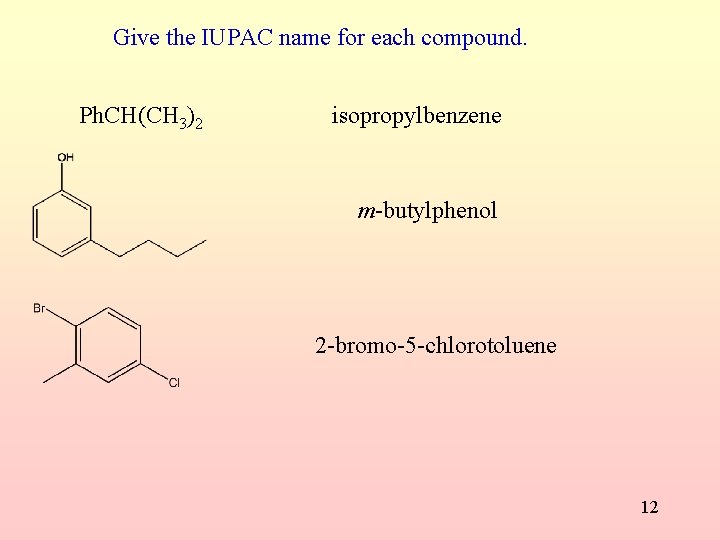

Give the IUPAC name for each compound. Ph. CH(CH 3)2 isopropylbenzene m-butylphenol 2 -bromo-5 -chlorotoluene 12

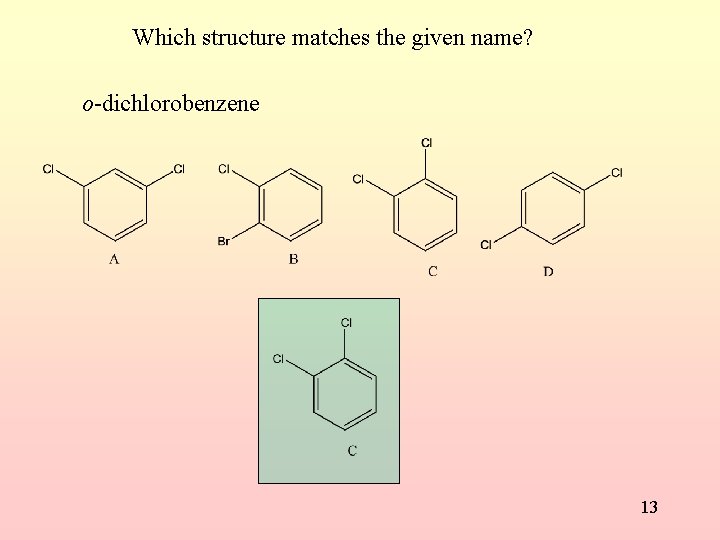

Which structure matches the given name? o-dichlorobenzene 13

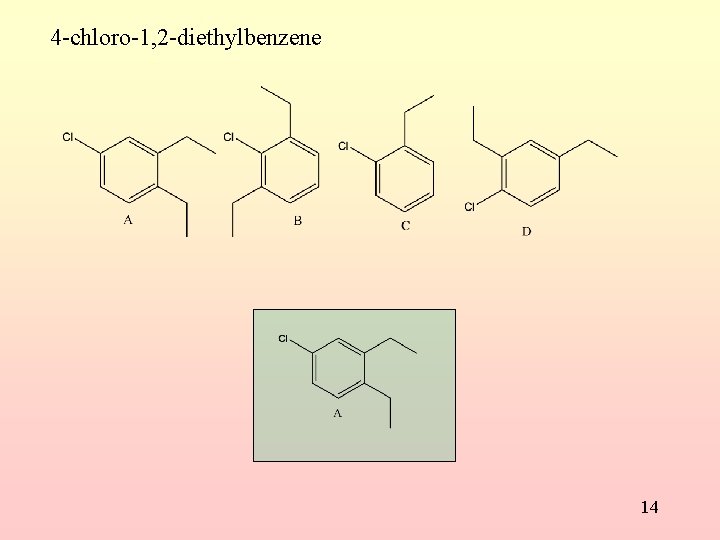

4 -chloro-1, 2 -diethylbenzene 14

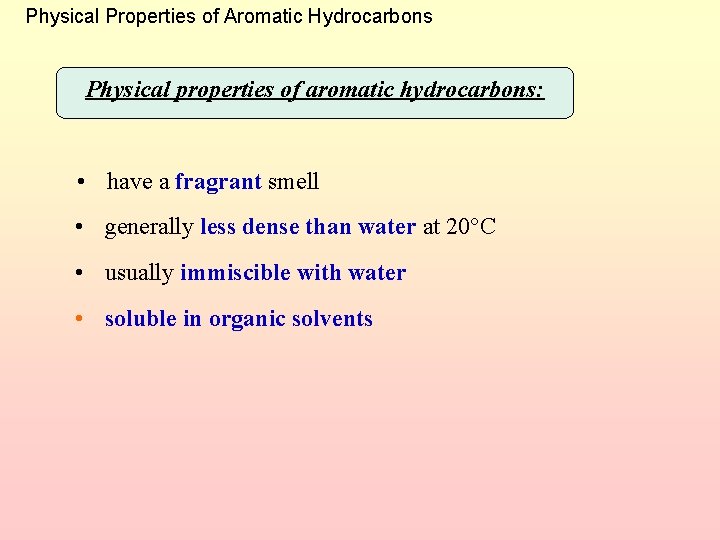

Physical Properties of Aromatic Hydrocarbons Physical properties of aromatic hydrocarbons: • have a fragrant smell • generally less dense than water at 20°C • usually immiscible with water • soluble in organic solvents

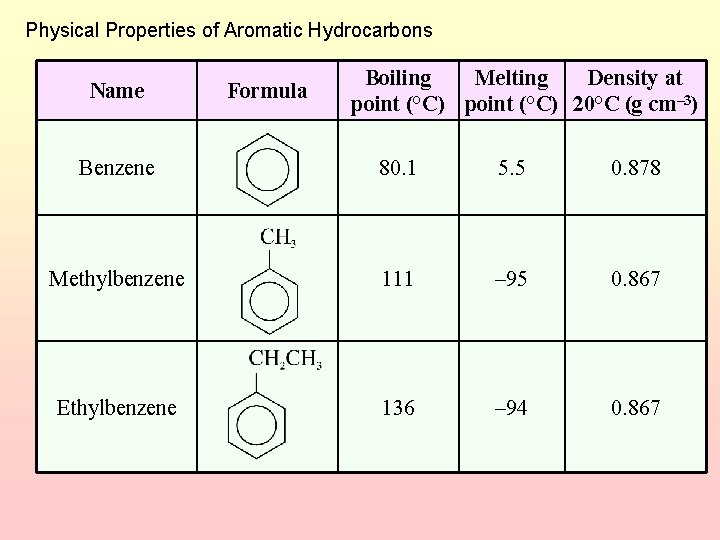

Physical Properties of Aromatic Hydrocarbons Name Formula Boiling Melting Density at point (°C) 20°C (g cm– 3) Benzene 80. 1 5. 5 0. 878 Methylbenzene 111 – 95 0. 867 Ethylbenzene 136 – 94 0. 867

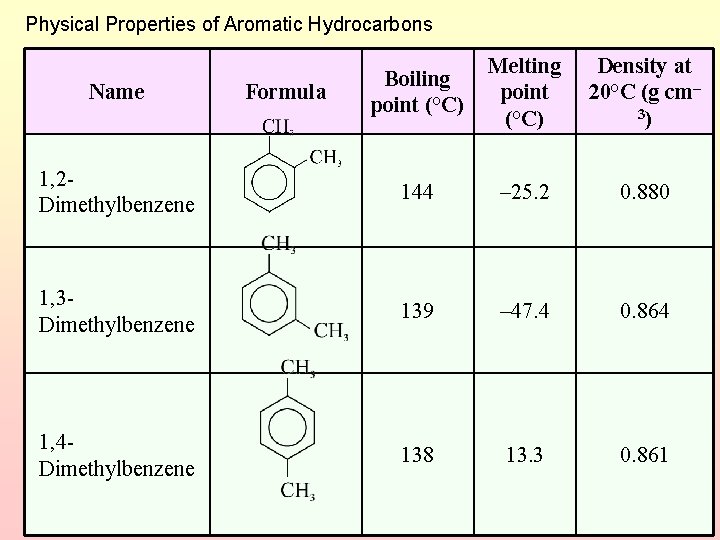

Physical Properties of Aromatic Hydrocarbons Boiling point (°C) Melting point (°C) Density at 20°C (g cm– 3) 1, 2 Dimethylbenzene 144 – 25. 2 0. 880 1, 3 Dimethylbenzene 139 – 47. 4 0. 864 1, 4 Dimethylbenzene 138 13. 3 0. 861 Name Formula

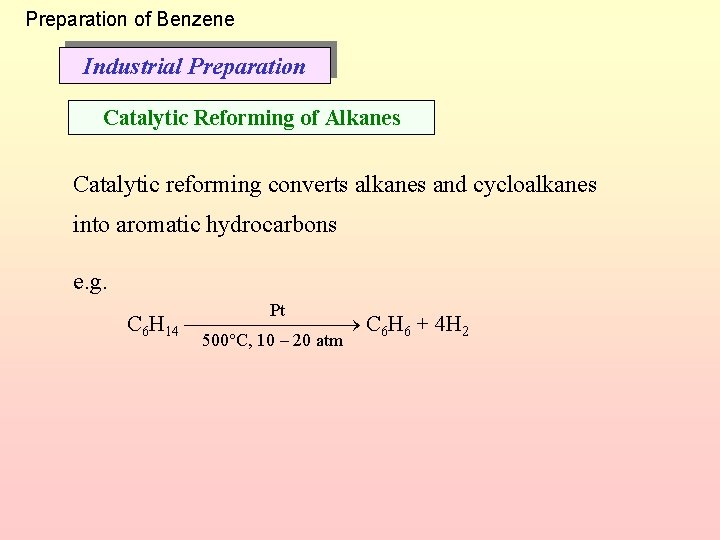

Preparation of Benzene Industrial Preparation Catalytic Reforming of Alkanes Catalytic reforming converts alkanes and cycloalkanes into aromatic hydrocarbons e. g. Pt C 6 H 14 C 6 H 6 + 4 H 2 500°C, 10 – 20 atm

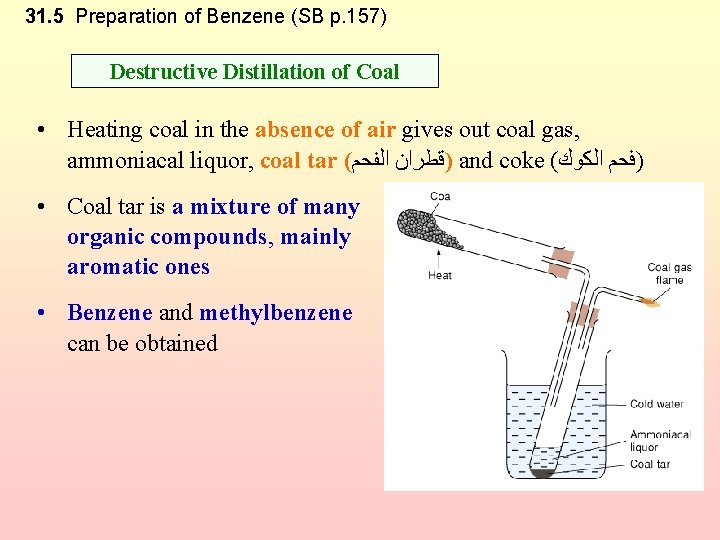

31. 5 Preparation of Benzene (SB p. 157) Destructive Distillation of Coal • Heating coal in the absence of air gives out coal gas, ammoniacal liquor, coal tar ( )ﻗﻄﺮﺍﻥ ﺍﻟﻔﺤﻢ and coke ( )ﻓﺤﻢ ﺍﻟﻜﻮﻙ • Coal tar is a mixture of many organic compounds, mainly aromatic ones • Benzene and methylbenzene can be obtained

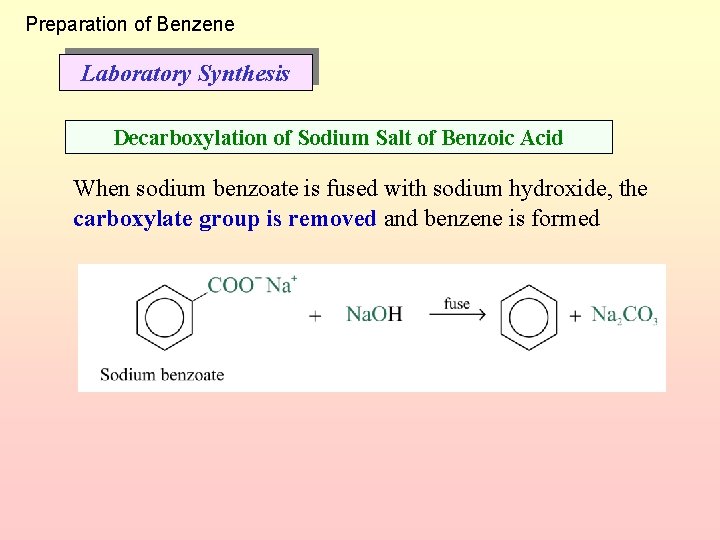

Preparation of Benzene Laboratory Synthesis Decarboxylation of Sodium Salt of Benzoic Acid When sodium benzoate is fused with sodium hydroxide, the carboxylate group is removed and benzene is formed

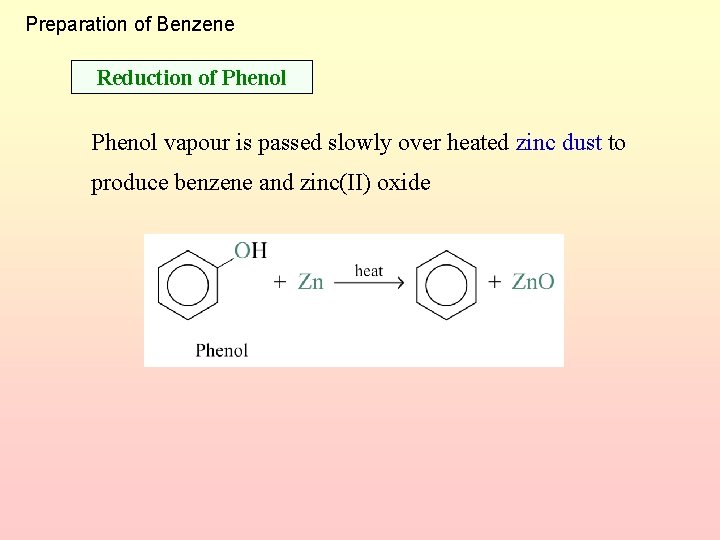

Preparation of Benzene Reduction of Phenol vapour is passed slowly over heated zinc dust to produce benzene and zinc(II) oxide

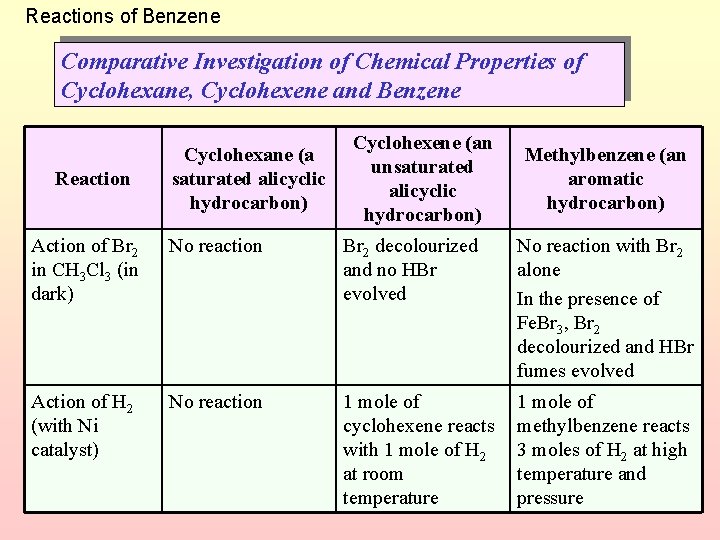

Reactions of Benzene Comparative Investigation of Chemical Properties of Cyclohexane, Cyclohexene and Benzene Reaction Cyclohexane (a saturated alicyclic hydrocarbon) Cyclohexene (an unsaturated alicyclic hydrocarbon) Methylbenzene (an aromatic hydrocarbon) Action of Br 2 in CH 3 Cl 3 (in dark) No reaction Br 2 decolourized and no HBr evolved No reaction with Br 2 alone In the presence of Fe. Br 3, Br 2 decolourized and HBr fumes evolved Action of H 2 (with Ni catalyst) No reaction 1 mole of cyclohexene reacts with 1 mole of H 2 at room temperature 1 mole of methylbenzene reacts 3 moles of H 2 at high temperature and pressure

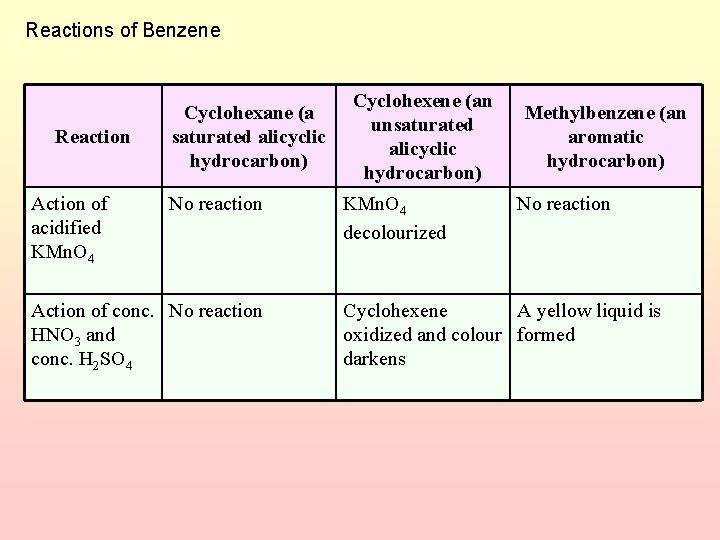

Reactions of Benzene Reaction Action of acidified KMn. O 4 Cyclohexane (a saturated alicyclic hydrocarbon) No reaction Action of conc. No reaction HNO 3 and conc. H 2 SO 4 Cyclohexene (an unsaturated alicyclic hydrocarbon) KMn. O 4 decolourized Methylbenzene (an aromatic hydrocarbon) No reaction Cyclohexene A yellow liquid is oxidized and colour formed darkens

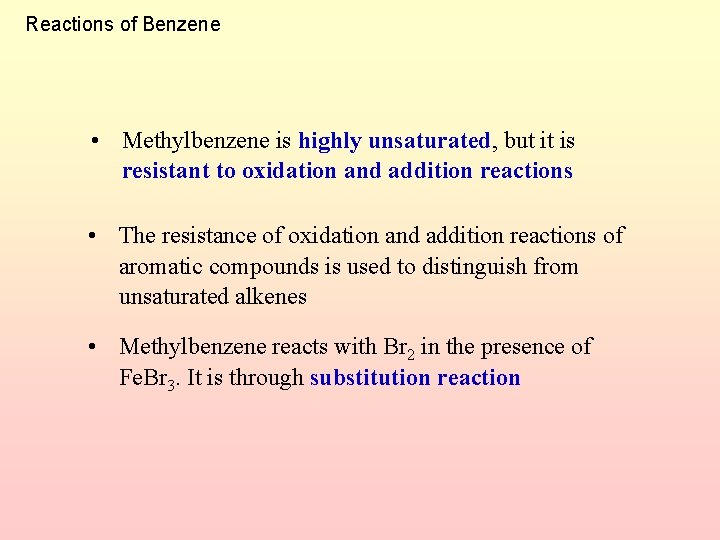

Reactions of Benzene • Methylbenzene is highly unsaturated, but it is resistant to oxidation and addition reactions • The resistance of oxidation and addition reactions of aromatic compounds is used to distinguish from unsaturated alkenes • Methylbenzene reacts with Br 2 in the presence of Fe. Br 3. It is through substitution reaction

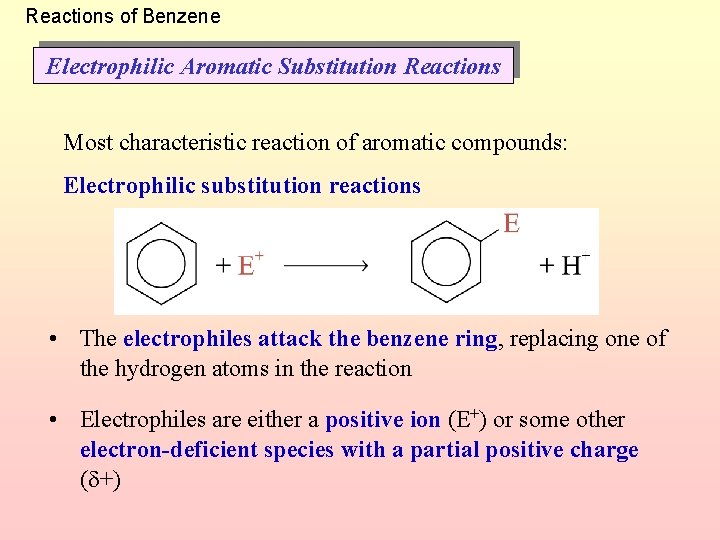

Reactions of Benzene Electrophilic Aromatic Substitution Reactions Most characteristic reaction of aromatic compounds: Electrophilic substitution reactions • The electrophiles attack the benzene ring, replacing one of the hydrogen atoms in the reaction • Electrophiles are either a positive ion (E+) or some other electron-deficient species with a partial positive charge ( +)

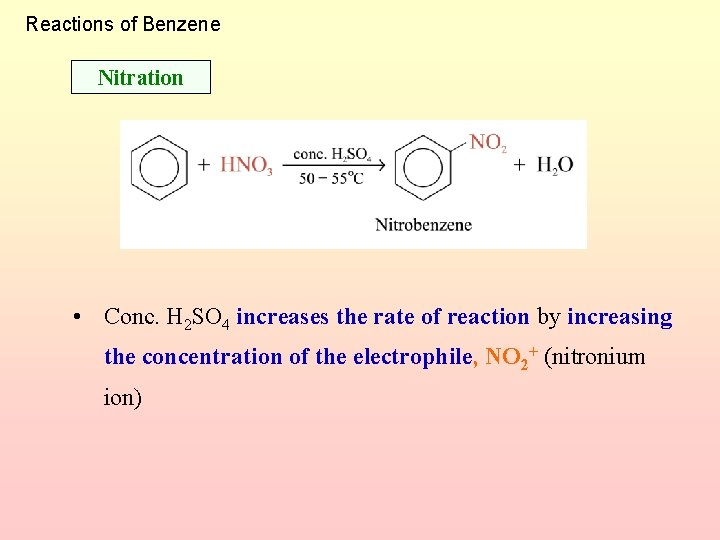

Reactions of Benzene Nitration • Conc. H 2 SO 4 increases the rate of reaction by increasing the concentration of the electrophile, NO 2+ (nitronium ion)

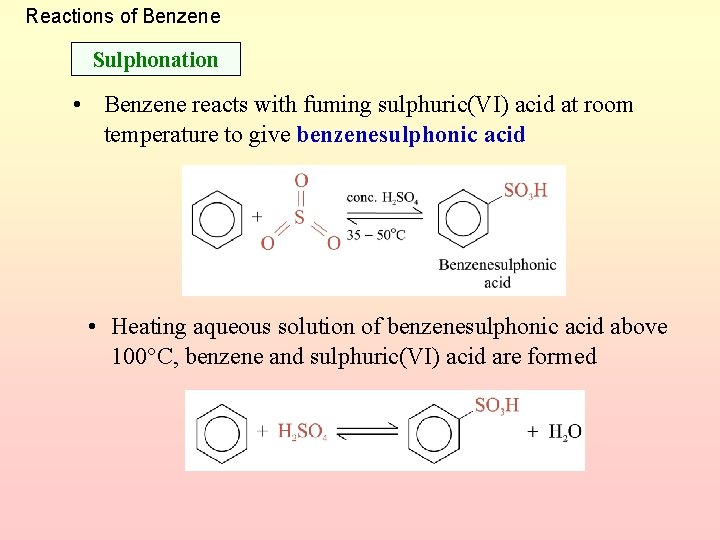

Reactions of Benzene Sulphonation • Benzene reacts with fuming sulphuric(VI) acid at room temperature to give benzenesulphonic acid • Heating aqueous solution of benzenesulphonic acid above 100°C, benzene and sulphuric(VI) acid are formed

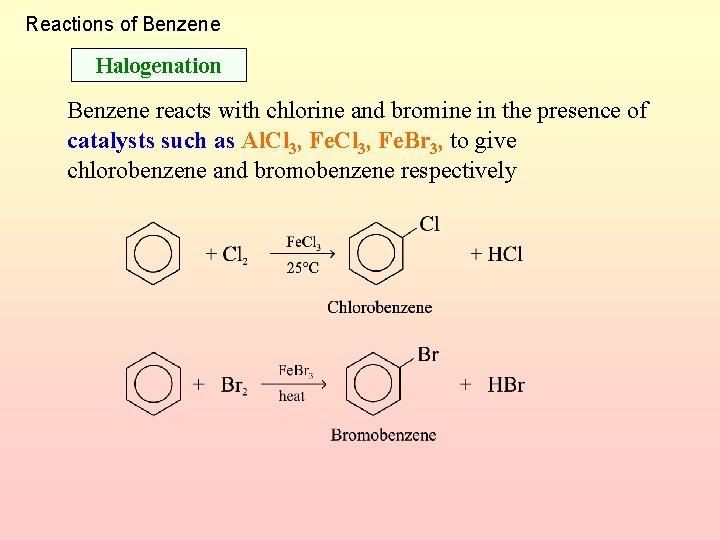

Reactions of Benzene Halogenation Benzene reacts with chlorine and bromine in the presence of catalysts such as Al. Cl 3, Fe. Br 3, to give chlorobenzene and bromobenzene respectively

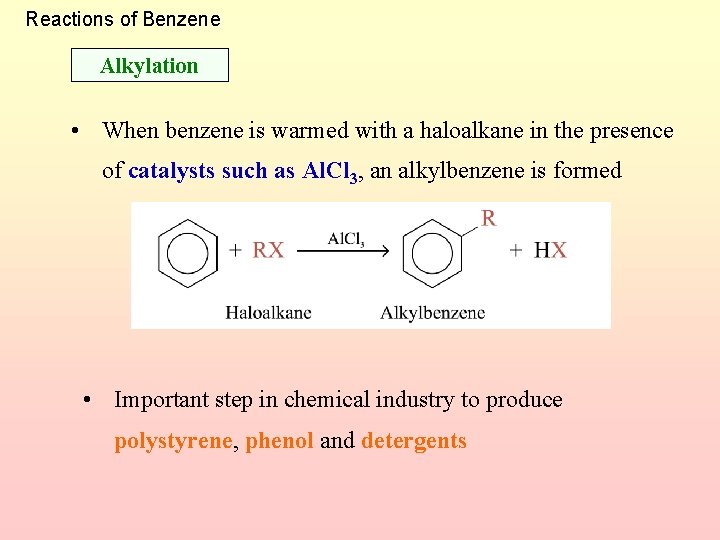

Reactions of Benzene Alkylation • When benzene is warmed with a haloalkane in the presence of catalysts such as Al. Cl 3, an alkylbenzene is formed • Important step in chemical industry to produce polystyrene, phenol and detergents

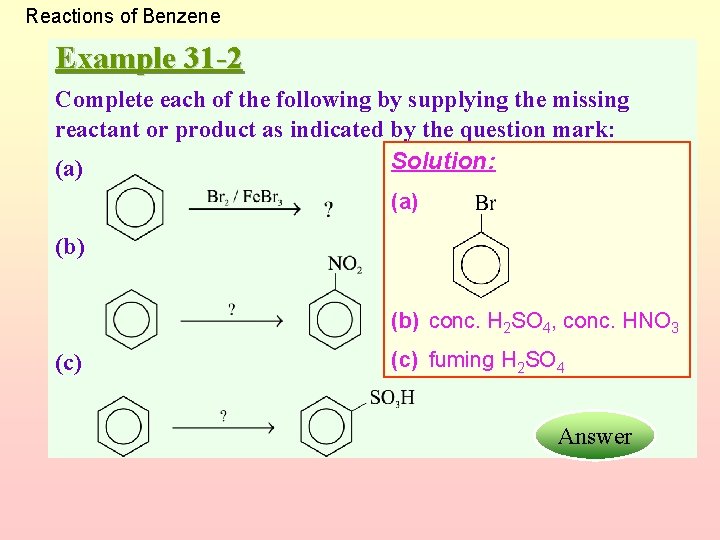

Reactions of Benzene Example 31 -2 Complete each of the following by supplying the missing reactant or product as indicated by the question mark: Solution: (a) (b) conc. H 2 SO 4, conc. HNO 3 (c) fuming H 2 SO 4 Answer

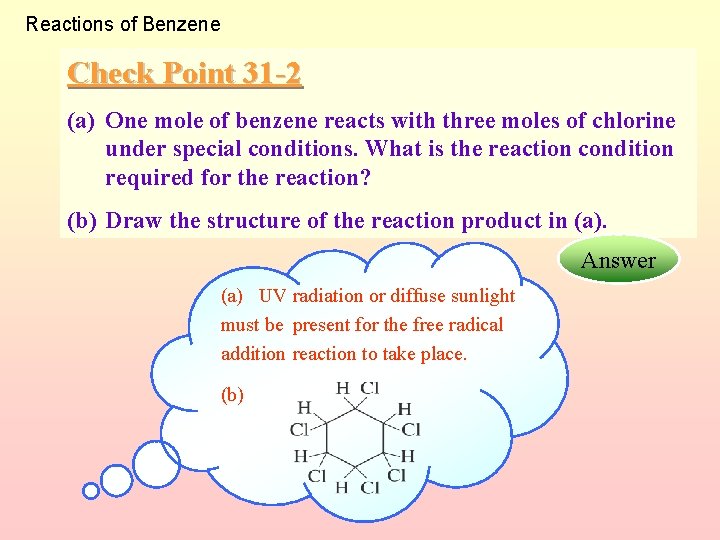

Reactions of Benzene Check Point 31 -2 (a) One mole of benzene reacts with three moles of chlorine under special conditions. What is the reaction condition required for the reaction? (b) Draw the structure of the reaction product in (a). Answer (a) UV radiation or diffuse sunlight must be present for the free radical addition reaction to take place. (b)

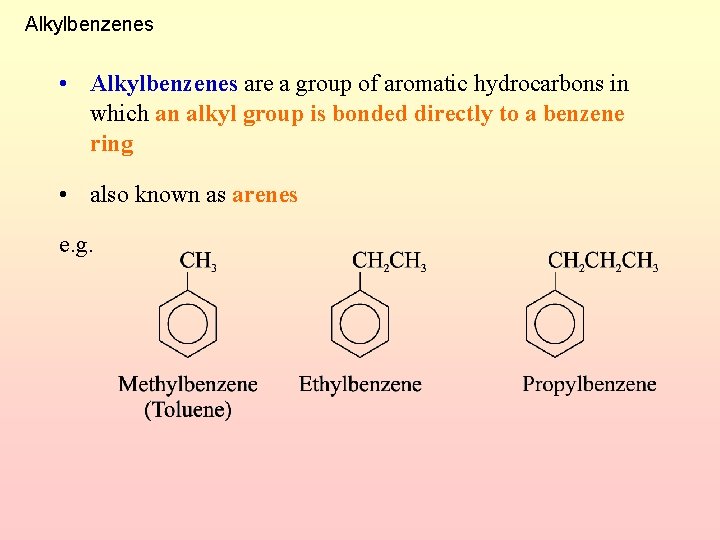

Alkylbenzenes • Alkylbenzenes are a group of aromatic hydrocarbons in which an alkyl group is bonded directly to a benzene ring • also known as arenes e. g.

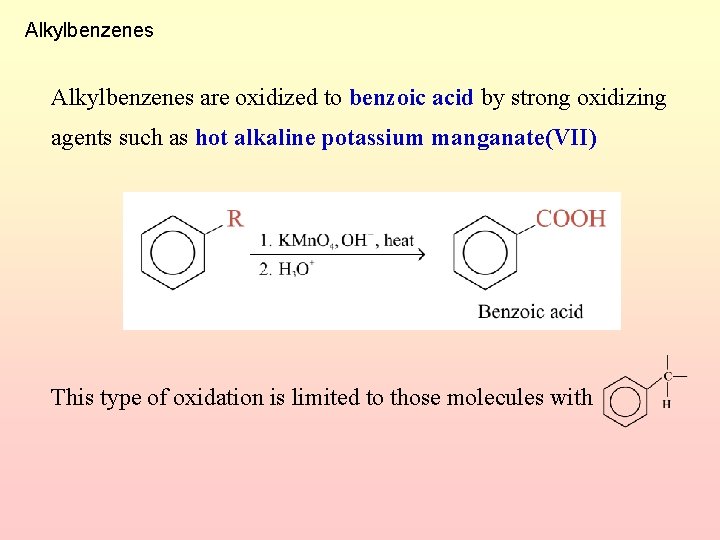

Alkylbenzenes are oxidized to benzoic acid by strong oxidizing agents such as hot alkaline potassium manganate(VII) This type of oxidation is limited to those molecules with

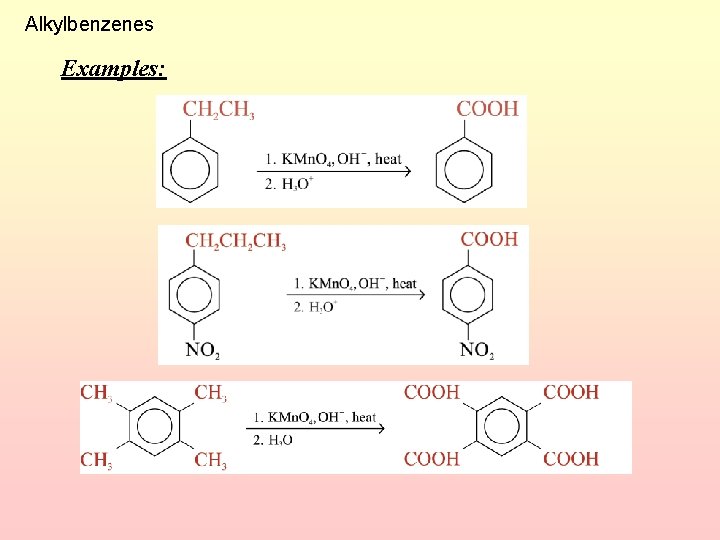

Alkylbenzenes Examples:

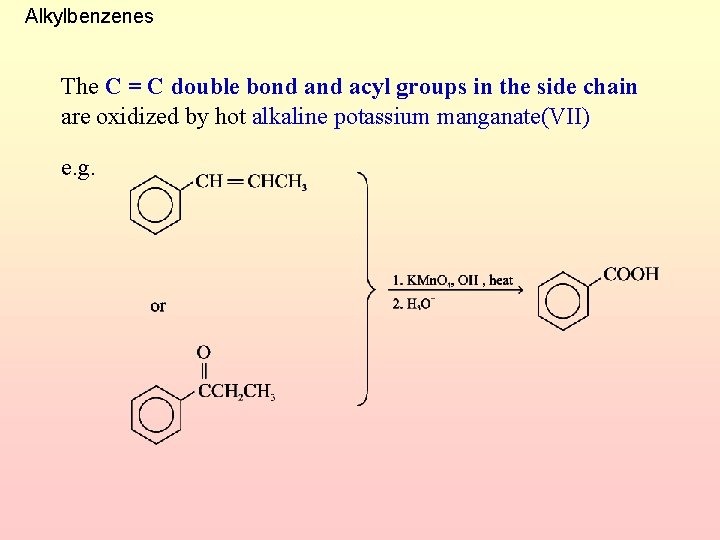

Alkylbenzenes The C = C double bond acyl groups in the side chain are oxidized by hot alkaline potassium manganate(VII) e. g.

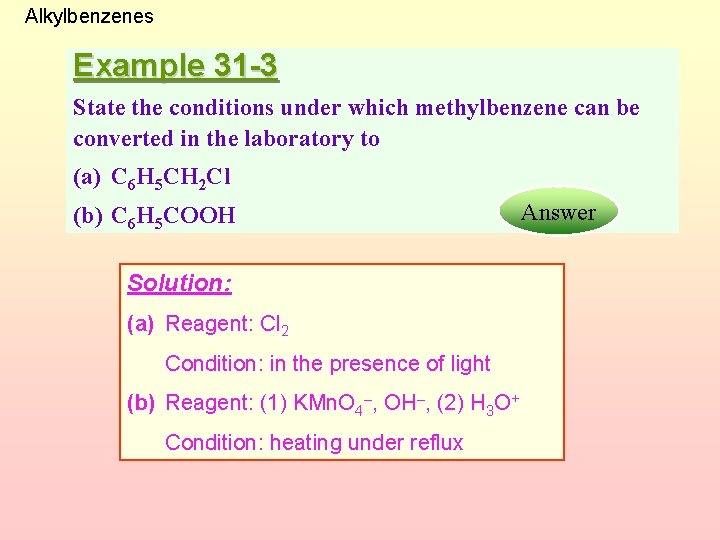

Alkylbenzenes Example 31 -3 State the conditions under which methylbenzene can be converted in the laboratory to (a) C 6 H 5 CH 2 Cl (b) C 6 H 5 COOH Solution: (a) Reagent: Cl 2 Condition: in the presence of light (b) Reagent: (1) KMn. O 4–, OH–, (2) H 3 O+ Condition: heating under reflux Answer

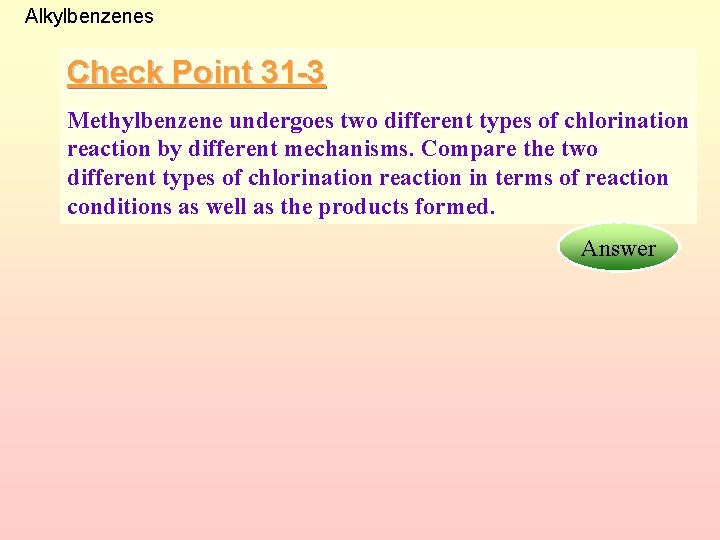

Alkylbenzenes Check Point 31 -3 Methylbenzene undergoes two different types of chlorination reaction by different mechanisms. Compare the two different types of chlorination reaction in terms of reaction conditions as well as the products formed. Answer

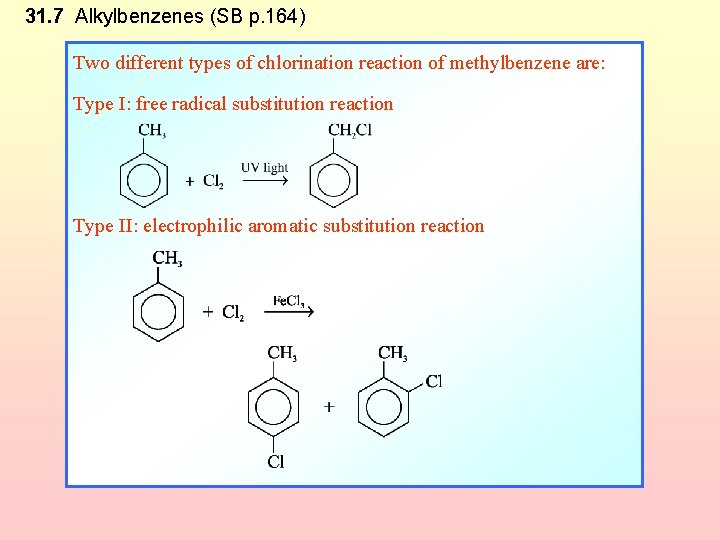

31. 7 Alkylbenzenes (SB p. 164) Two different types of chlorination reaction of methylbenzene are: Type I: free radical substitution reaction Type II: electrophilic aromatic substitution reaction

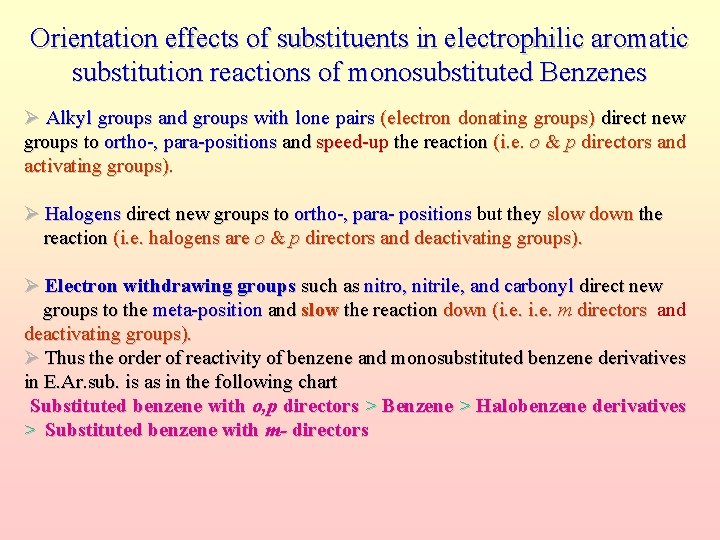

Orientation effects of substituents in electrophilic aromatic substitution reactions of monosubstituted Benzenes Ø Alkyl groups and groups with lone pairs (electron donating groups) direct new groups to ortho-, para-positions and speed-up the reaction (i. e. o & p directors and activating groups). Ø Halogens direct new groups to ortho-, para- positions but they slow down the reaction (i. e. halogens are o & p directors and deactivating groups). Ø Electron withdrawing groups such as nitro, nitrile, and carbonyl direct new groups to the meta-position and slow the reaction down (i. e. m directors and deactivating groups). Ø Thus the order of reactivity of benzene and monosubstituted benzene derivatives in E. Ar. sub. is as in the following chart Substituted benzene with o, p directors > Benzene > Halobenzene derivatives > Substituted benzene with m- directors

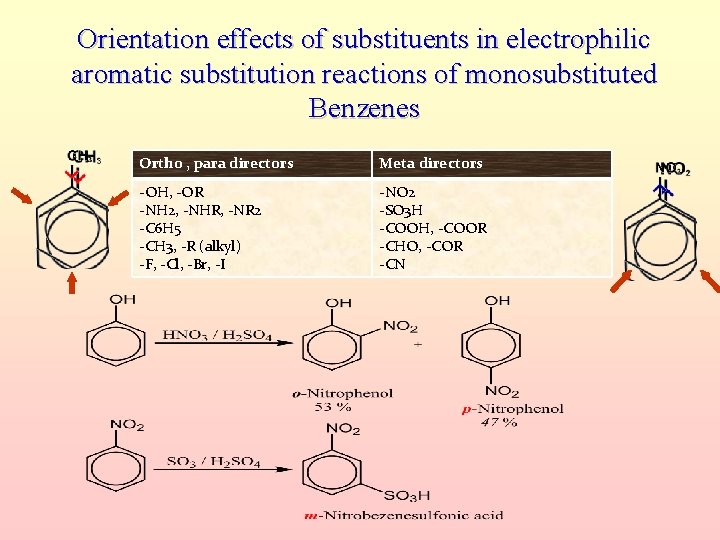

Orientation effects of substituents in electrophilic aromatic substitution reactions of monosubstituted Benzenes Ortho , para directors Meta directors -OH, -OR -NH 2, -NHR, -NR 2 -C 6 H 5 -CH 3, -R (alkyl) -F, -Cl, -Br, -I -NO 2 -SO 3 H -COOH, -COOR -CHO, -COR -CN

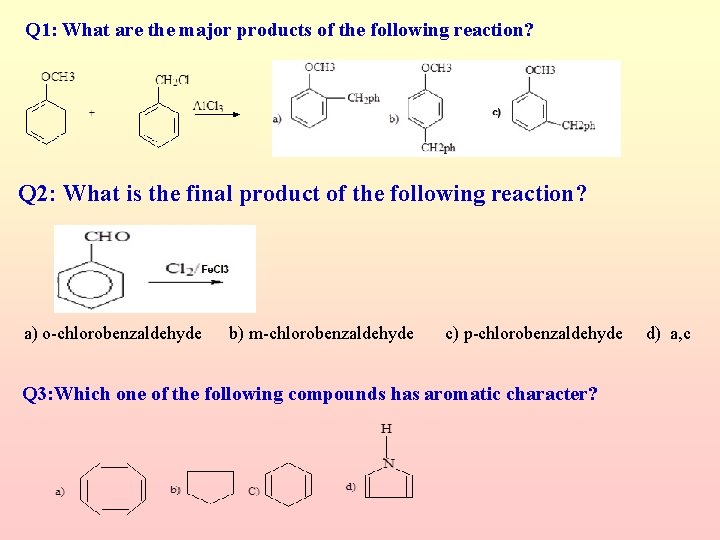

Q 1: What are the major products of the following reaction? Q 2: What is the final product of the following reaction? a) o-chlorobenzaldehyde b) m-chlorobenzaldehyde c) p-chlorobenzaldehyde Q 3: Which one of the following compounds has aromatic character? d) a, c
