Arm Muscle and Structures Blank Pics Figure 11
Arm Muscle and Structures Blank Pics

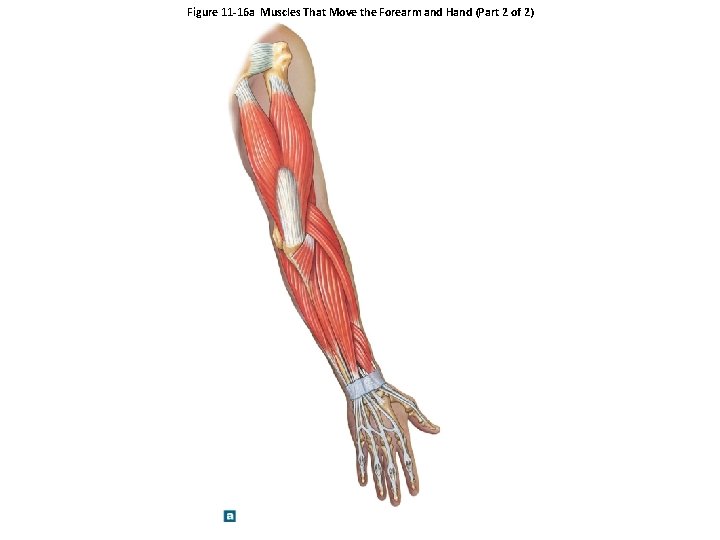

Figure 11 -16 a Muscles That Move the Forearm and Hand (Part 2 of 2) Triceps brachii, long head Triceps brachii, lateral head Brachioradialis Olecranon of ulna Anconeus Extensor carpi radialis longus Flexor carpi ulnaris Extensor digitorum Ulna Extensor carpi radialis brevis Abductor pollicis longus Extensor pollicis brevis Extensor retinaculum Posterior view, superficial layer
Figure 11 -16 a Muscles That Move the Forearm and Hand (Part 2 of 2)

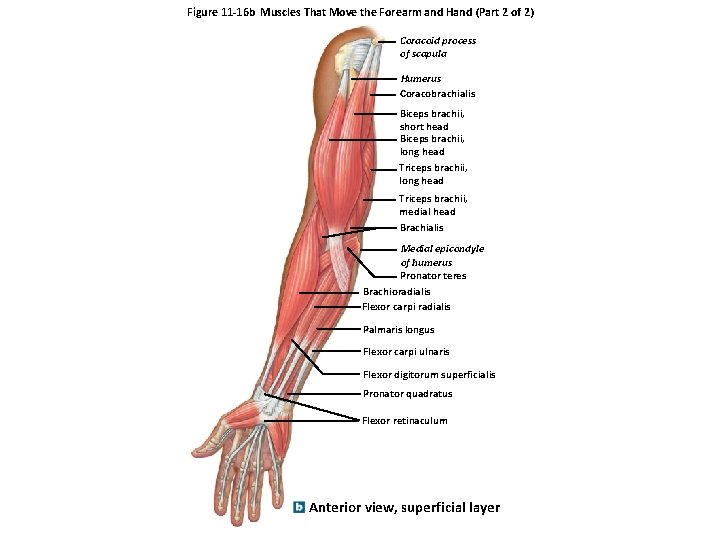

Figure 11 -16 b Muscles That Move the Forearm and Hand (Part 2 of 2) Coracoid process of scapula Humerus Coracobrachialis Biceps brachii, short head Biceps brachii, long head Triceps brachii, medial head Brachialis Medial epicondyle of humerus Pronator teres Brachioradialis Flexor carpi radialis Palmaris longus Flexor carpi ulnaris Flexor digitorum superficialis Pronator quadratus Flexor retinaculum Anterior view, superficial layer
Figure 11 -16 b Muscles That Move the Forearm and Hand (Part 2 of 2)

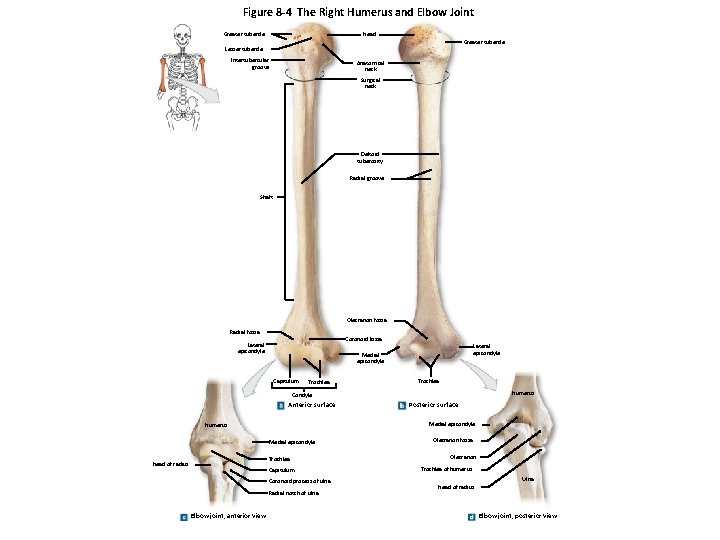

Figure 8 -4 The Right Humerus and Elbow Joint Greater tubercle Head Greater tubercle Lesser tubercle Intertubercular groove Anatomical neck Surgical neck Deltoid tuberosity Radial groove Shaft Olecranon fossa Radial fossa Coronoid fossa Lateral epicondyle Medial epicondyle Capitulum Trochlea Humerus Condyle Anterior surface Medial epicondyle Humerus Medial epicondyle Trochlea Head of radius Capitulum Coronoid process of ulna Radial notch of ulna Elbow joint, anterior view Posterior surface Olecranon fossa Olecranon Trochlea of humerus Ulna Head of radius Elbow joint, posterior view
Figure 8 -4 The Right Humerus and Elbow Joint
Figure 8 -5 The Right Radius and Ulna Olecranon Trochlear notch Radial head Proximal radioulnar joint Neck of radius Coronoid process Radial notch Ulnar tuberosity Radial tuberosity ULNA RADIUS ULNA Lateral view of ulna, showing trochlear notch Interosseous membrane Ulnar notch of radius Ulnar head Styloid process of ulna Styloid process of radius Posterior view Distal radio-ulnar joint Ulnar head Anterior view
Figure 8 -5 The Right Radius and Ulna

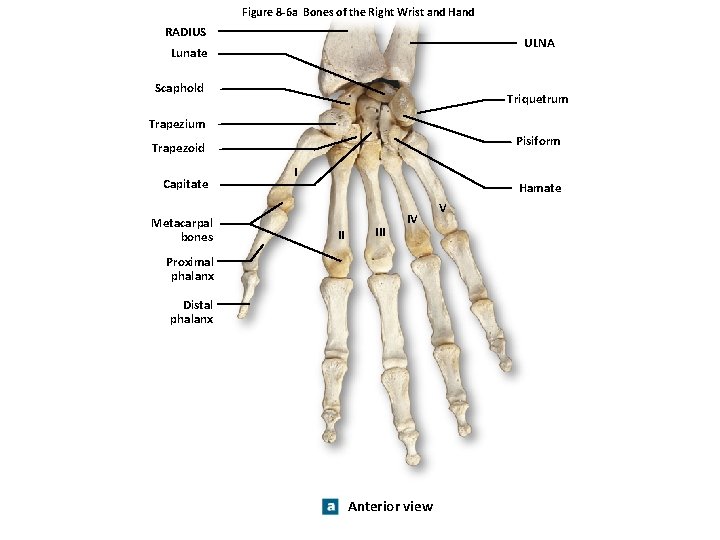

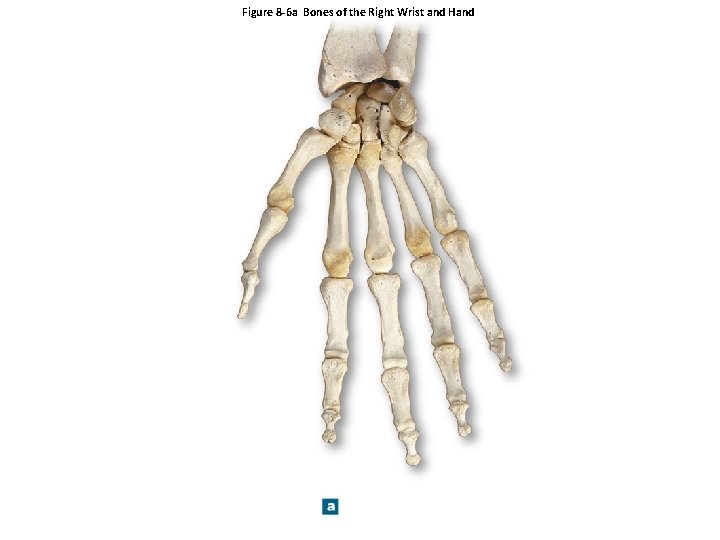

Figure 8 -6 a Bones of the Right Wrist and Hand RADIUS ULNA Lunate Scaphold Triquetrum Trapezium Pisiform Trapezoid Capitate Metacarpal bones I Hamate II IV Proximal phalanx Distal phalanx Anterior view V
Figure 8 -6 a Bones of the Right Wrist and Hand

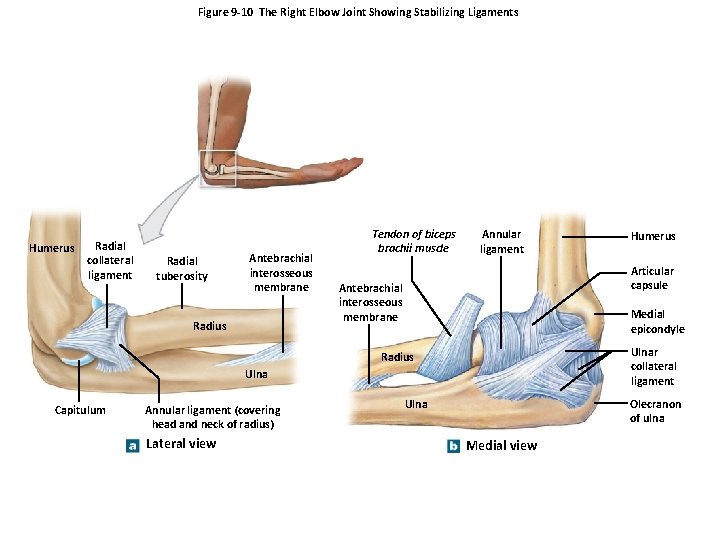

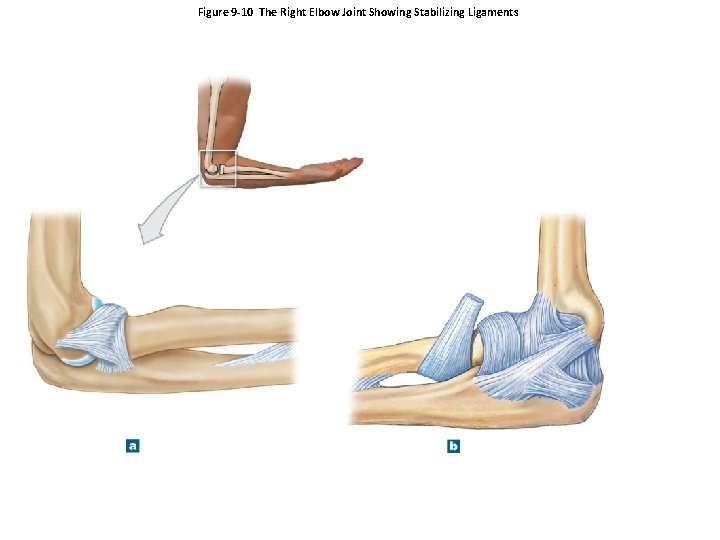

Figure 9 -10 The Right Elbow Joint Showing Stabilizing Ligaments Humerus Radial collateral ligament Radial tuberosity Antebrachial interosseous membrane Radius Tendon of biceps brachii muscle Annular ligament Articular capsule Antebrachial interosseous membrane Medial epicondyle Ulnar collateral ligament Radius Ulna Capitulum Annular ligament (covering head and neck of radius) Lateral view Humerus Ulna Olecranon of ulna Medial view
Figure 9 -10 The Right Elbow Joint Showing Stabilizing Ligaments
