Aries: Refactoring Support Environment Based on Code Clone Analysis Yoshiki Higo, Toshihiro Kamiya, Shinji Kusumoto, Katsuro Inoue Graduate School of Information Science and Technology, Osaka University Presto, Japan Science and Technology Agency {y-higo, kamiya, kusumoto, inoue}@ist. osaka-u. ac. jp Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 1

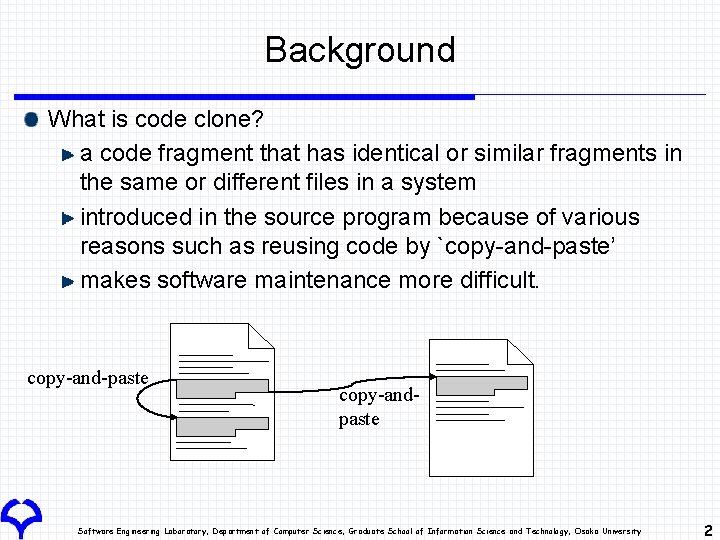

Background What is code clone? a code fragment that has identical or similar fragments in the same or different files in a system introduced in the source program because of various reasons such as reusing code by `copy-and-paste’ makes software maintenance more difficult. copy-and-paste copy-andpaste Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 2

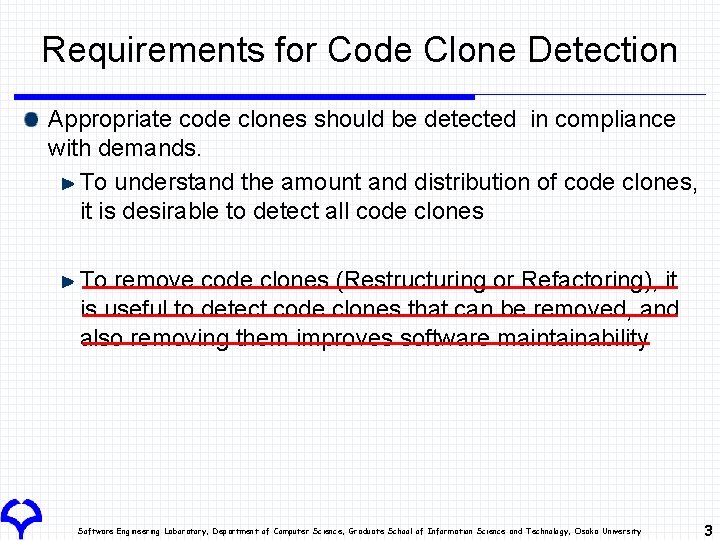

Requirements for Code Clone Detection Appropriate code clones should be detected in compliance with demands. To understand the amount and distribution of code clones, it is desirable to detect all code clones To remove code clones (Restructuring or Refactoring), it is useful to detect code clones that can be removed, and also removing them improves software maintainability Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 3

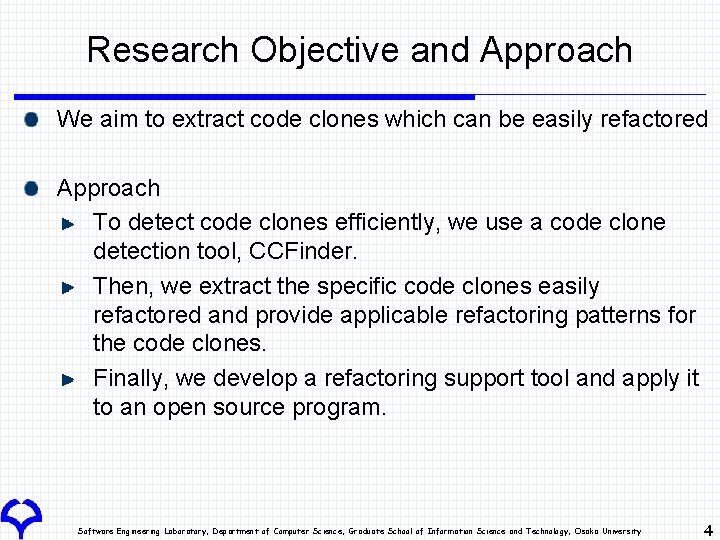

Research Objective and Approach We aim to extract code clones which can be easily refactored Approach To detect code clones efficiently, we use a code clone detection tool, CCFinder. Then, we extract the specific code clones easily refactored and provide applicable refactoring patterns for the code clones. Finally, we develop a refactoring support tool and apply it to an open source program. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 4

Refactoring Process Support Commonly used refactoring process Step 1: Determine where refactoring should be applied Step 2: Determine which refactoring patterns can/should be applied Step 3: Investigate the effectiveness of the refactoring patterns Step 4: Modify source code Step 5: Conduct regression tests Proposed method supports Steps 1 and 2 High scalability: it take less of high time complexity. Detect fine-grained clone: it detect more fine-graded code clone than method unit. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 5

Outline of CCFinder directly compares source code on token unit, and detects code clones Normalization of name space Replacement of names defined by user Removal of table initialization Consideration of module delimiter CCFinder can analyze the system of millions line scale in practical use time Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 6

CCFinder: Clone Detection Process Source files 1. static void foo() throws RESyntax. Exception { 2. String a[] = new String [] { "123, 400", "abc", "orange 100" }; 3. org. apache. regexp. RE pat = new org. apache. regexp. RE("[0 -9, ]+"); 4. int sum = 0; 5. for (int i = 0; i < a. length; ++i) 6. if (pat. match(a[i])) 7. sum += Sample. parse. Number(pat. get. Paren(0)); 8. System. out. println("sum = " + sum); 9. } 10. static void goo(String [] a) throws RESyntax. Exception { 11. RE exp = new RE("[0 -9, ]+"); 12. int sum = 0; 13. for (int i = 0; i < a. length; ++i) 14. if (exp. match(a[i])) 15. sum += parse. Number(exp. get. Paren(0)); 16. System. out. println("sum = " + sum); 17. } Lexical analysis Token sequence Transformation Transformed token sequence Match detection Clones on on transformed sequence Formatting Clone pairs Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 7

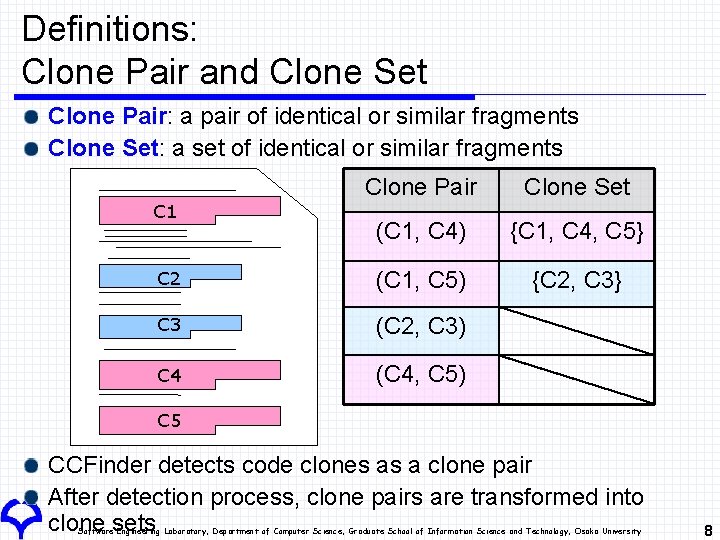

Definitions: Clone Pair and Clone Set Clone Pair: a pair of identical or similar fragments Clone Set: a set of identical or similar fragments Clone Pair Clone Set (C 1, C 4) {C 1, C 4, C 5} C 2 (C 1, C 5) {C 2, C 3} C 3 (C 2, C 3) C 4 (C 4, C 5) C 1 C 5 CCFinder detects code clones as a clone pair After detection process, clone pairs are transformed into clone sets Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 8

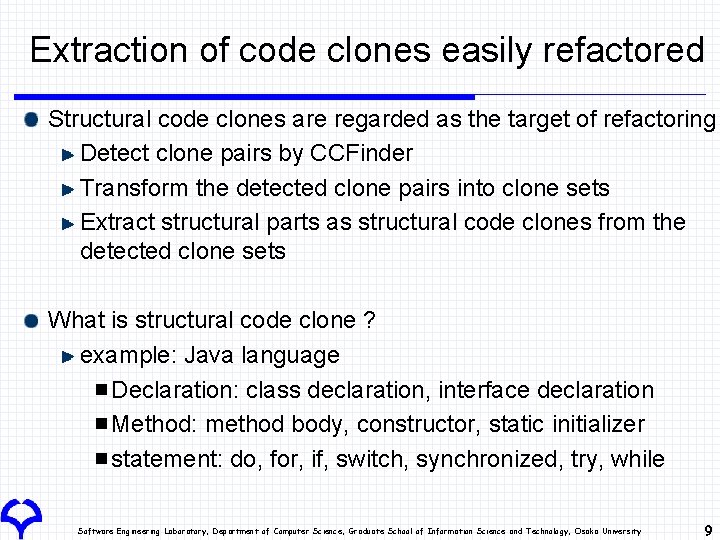

Extraction of code clones easily refactored Structural code clones are regarded as the target of refactoring Detect clone pairs by CCFinder Transform the detected clone pairs into clone sets Extract structural parts as structural code clones from the detected clone sets What is structural code clone ? example: Java language Declaration: class declaration, interface declaration Method: method body, constructor, static initializer statement: do, for, if, switch, synchronized, try, while Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 9

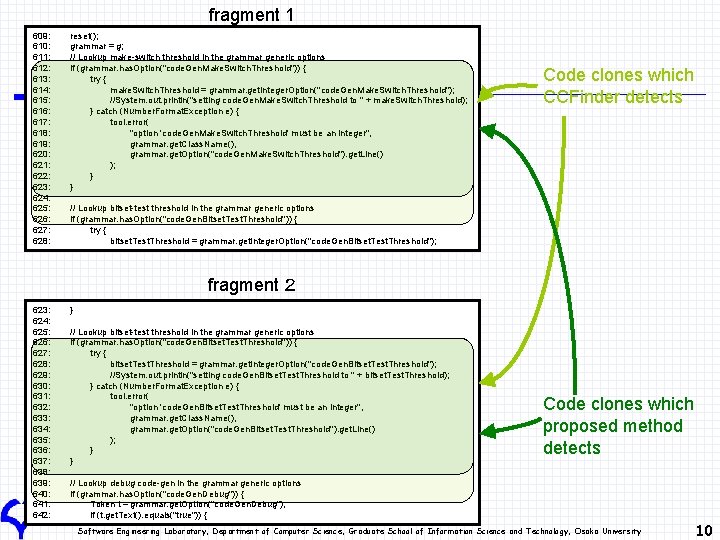

fragment 1 609: 610: 611: 612: 613: 614: 615: 616: 617: 618: 619: 620: 621: 622: 623: 624: 625: 626: 627: 628: reset(); grammar = g; // Lookup make-switch threshold in the grammar generic options if (grammar. has. Option("code. Gen. Make. Switch. Threshold")) { try { make. Switch. Threshold = grammar. get. Integer. Option("code. Gen. Make. Switch. Threshold"); //System. out. println("setting code. Gen. Make. Switch. Threshold to " + make. Switch. Threshold); } catch (Number. Format. Exception e) { tool. error( "option 'code. Gen. Make. Switch. Threshold' must be an integer", grammar. get. Class. Name(), grammar. get. Option("code. Gen. Make. Switch. Threshold"). get. Line() ); } } Code clones which CCFinder detects // Lookup bitset-test threshold in the grammar generic options if (grammar. has. Option("code. Gen. Bitset. Test. Threshold")) { try { bitset. Test. Threshold = grammar. get. Integer. Option("code. Gen. Bitset. Test. Threshold"); fragment ２ 623: 624: 625: 626: 627: 628: 629: 630: 631: 632: 633: 634: 635: 636: 637: 638: 639: 640: 641: 642: } // Lookup bitset-test threshold in the grammar generic options if (grammar. has. Option("code. Gen. Bitset. Test. Threshold")) { try { bitset. Test. Threshold = grammar. get. Integer. Option("code. Gen. Bitset. Test. Threshold"); //System. out. println("setting code. Gen. Bitset. Test. Threshold to " + bitset. Test. Threshold); } catch (Number. Format. Exception e) { tool. error( "option 'code. Gen. Bitset. Test. Threshold' must be an integer", grammar. get. Class. Name(), grammar. get. Option("code. Gen. Bitset. Test. Threshold"). get. Line() ); } } Code clones which proposed method detects // Lookup debug code-gen in the grammar generic options if (grammar. has. Option("code. Gen. Debug")) { Token t = grammar. get. Option("code. Gen. Debug"); if (t. get. Text(). equals("true")) { Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 10

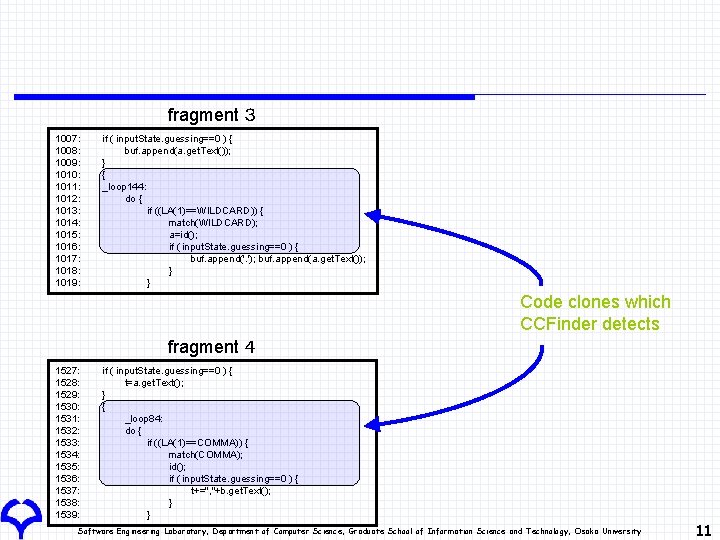

fragment ３ 1007: 1008: 1009: 1010: 1011: 1012: 1013: 1014: 1015: 1016: 1017: 1018: 1019: if ( input. State. guessing==0 ) { buf. append(a. get. Text()); } { _loop 144: do { if ((LA(1)==WILDCARD)) { match(WILDCARD); a=id(); if ( input. State. guessing==0 ) { buf. append('. '); buf. append(a. get. Text()); } } Code clones which CCFinder detects fragment ４ 1527: 1528: 1529: 1530: 1531: 1532: 1533: 1534: 1535: 1536: 1537: 1538: 1539: if ( input. State. guessing==0 ) { t=a. get. Text(); } { _loop 84: do { if ((LA(1)==COMMA)) { match(COMMA); id(); if ( input. State. guessing==0 ) { t+=", "+b. get. Text(); } } Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 11

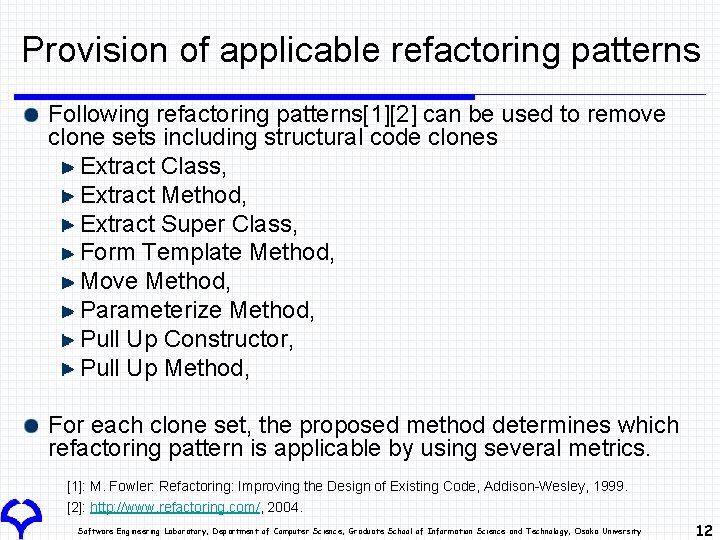

Provision of applicable refactoring patterns Following refactoring patterns[1][2] can be used to remove clone sets including structural code clones Extract Class, Extract Method, Extract Super Class, Form Template Method, Move Method, Parameterize Method, Pull Up Constructor, Pull Up Method, For each clone set, the proposed method determines which refactoring pattern is applicable by using several metrics. [1]: M. Fowler: Refactoring: Improving the Design of Existing Code, Addison-Wesley, 1999. [2]: http: //www. refactoring. com/, 2004. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 12

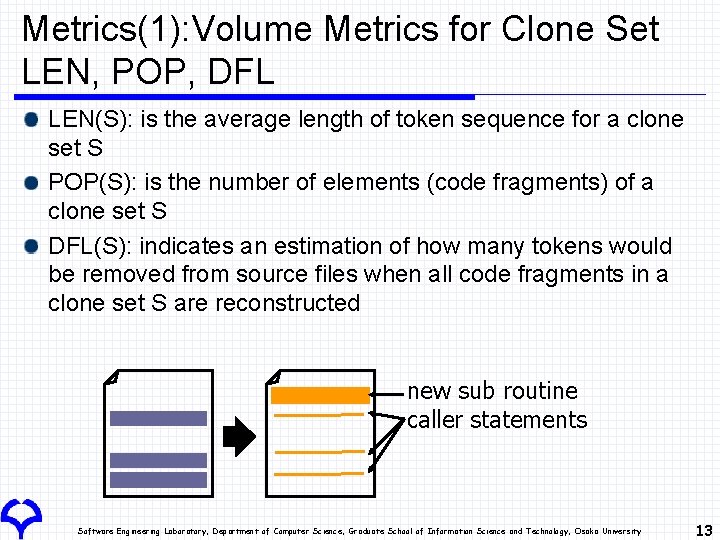

Metrics(1): Volume Metrics for Clone Set LEN, POP, DFL LEN(S): is the average length of token sequence for a clone set S POP(S): is the number of elements (code fragments) of a clone set S DFL(S): indicates an estimation of how many tokens would be removed from source files when all code fragments in a clone set S are reconstructed new sub routine caller statements Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 13

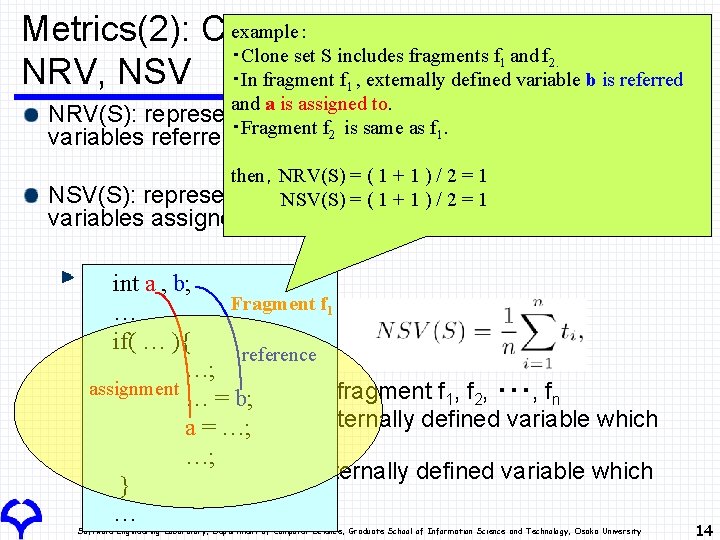

example： Metrics(2): Coupling Metrics for Clone Set ・Clone set S includes fragments f and f NRV, NSV ・In fragment f , externally defined variable b is referred 1 2. 1 and a is assigned to. NRV(S): represents the average number of externally defined ・Fragment f 2 is same as f 1. variables referred in the fragments of a clone set S then，NRV(S) = ( 1 + 1 ) / 2 = 1 represents the average NSV(S) = ( 1 +number 1 ) / 2 = 1 of NSV(S): externally defined variables assigned to in the fragments of a clone set S Definition int a , b; Fragment f 1 … if( … ){ reference …; assignment Clone set … =Sb; includes fragment f 1, f 2, ・・・, fn si is thea number = …; of externally defined variable which fragment fi refers …; ti is the number of externally defined variable which } fragment fi assigns … Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 14

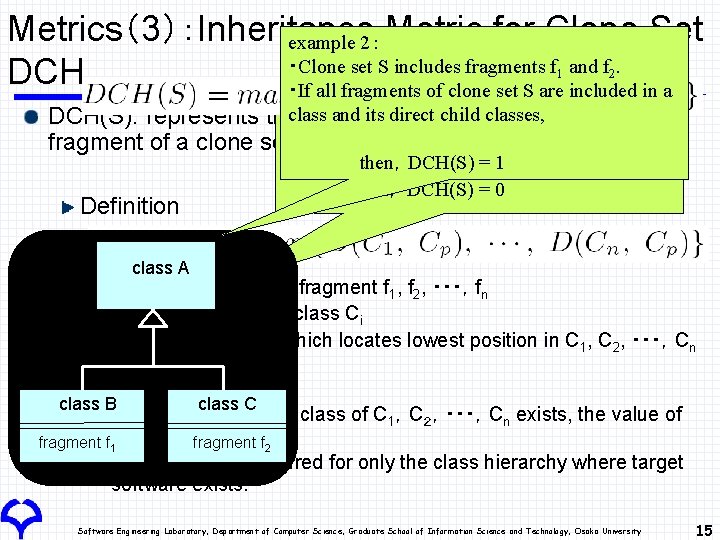

Metrics（3）：Inheritance example 2： Metric for Clone Set ・Clone set S includes fragments f and f. DCH ・If all fragments of clone set S are included in a example 1: 1 2 class and direct classes, between ・Clone setits S includes fragments f 1 and f 2. each DCH(S): represents the position and child distance fragment of a clone set・If. Sall fragments of clone set S are included in a then，DCH(S) = 1 same class, then， DCH(S) = 0 Definition class A Clone set S includes fragment f 1, f 2, ・・・，fn class A f exists in class C Fragment i i Class Cfp 1 is a class which locates lowest position in C 1, C 2, ・・・，Cn fragment on classf hierarchy fragment 2 class B class C If no common parent class of C 1，C２，・・・，Cn exists, the value of -1 fragment f 1 DCH(S) isfragment f 2 This metric is measured for only the class hierarchy where target software exists. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 15

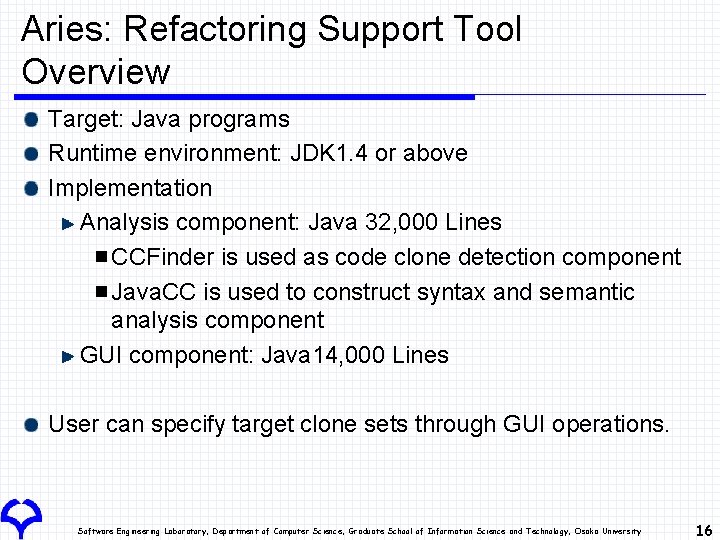

Aries: Refactoring Support Tool Overview Target: Java programs Runtime environment: JDK 1. 4 or above Implementation Analysis component: Java 32, 000 Lines CCFinder is used as code clone detection component Java. CC is used to construct syntax and semantic analysis component GUI component: Java 14, 000 Lines User can specify target clone sets through GUI operations. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 16

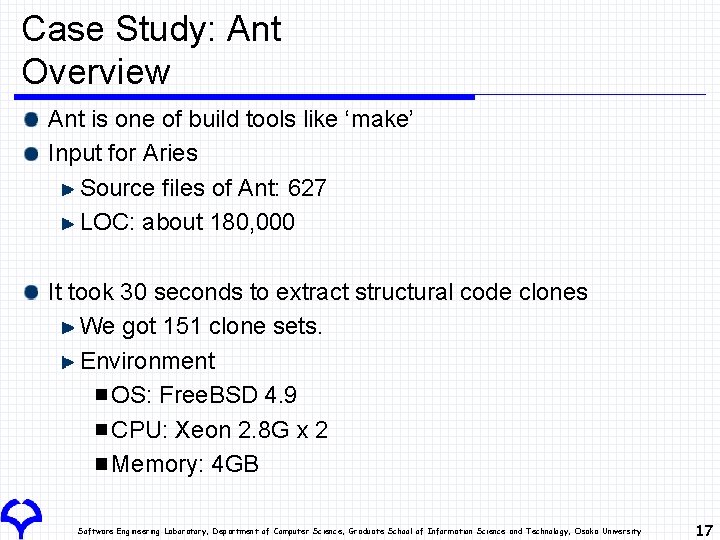

Case Study: Ant Overview Ant is one of build tools like ‘make’ Input for Aries Source files of Ant: 627 LOC: about 180, 000 It took 30 seconds to extract structural code clones We got 151 clone sets. Environment OS: Free. BSD 4. 9 CPU: Xeon 2. 8 G x 2 Memory: 4 GB Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 17

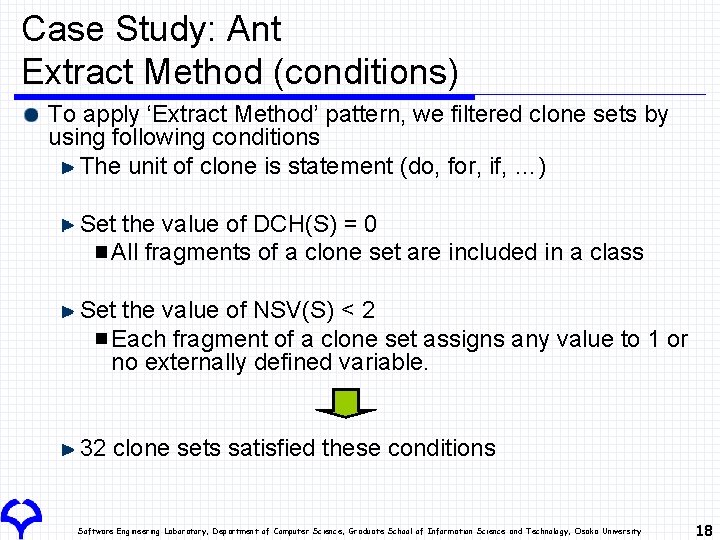

Case Study: Ant Extract Method (conditions) To apply ‘Extract Method’ pattern, we filtered clone sets by using following conditions The unit of clone is statement (do, for, if, …) Set the value of DCH(S) = 0 All fragments of a clone set are included in a class Set the value of NSV(S) < 2 Each fragment of a clone set assigns any value to 1 or no externally defined variable. 32 clone sets satisfied these conditions Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 18

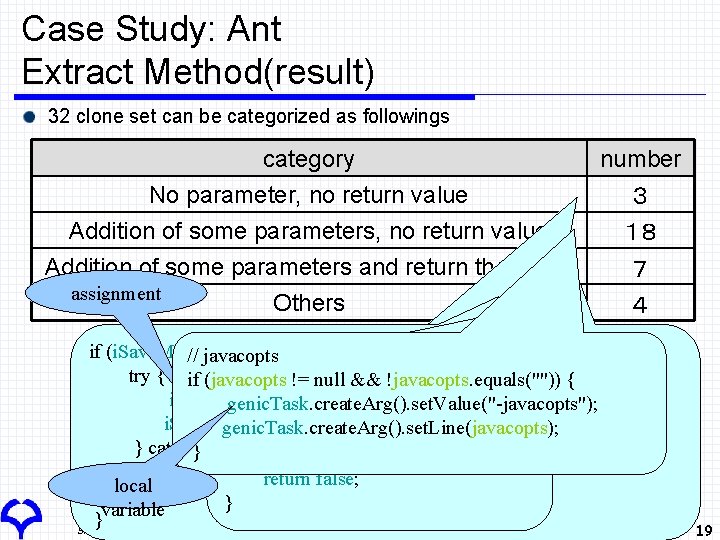

Case Study: Ant Extract Method(result) 32 clone set can be categorized as followings category number No parameter, no return value ３ Addition of some parameters, no return value １８ Addition of some parameters and return the value ７ assignment Others ４ if (!is. Checked()) { =={null) { if (i. Save. Menu. Item == null) // javacopts if (name sure we have anull) circular try { //ifmake (javacopts != don't null && !javacopts. equals("")) { if (other. name != { reference here Stackgenic. Task. create. Arg(). set. Value("-javacopts"); stk = new=return Stack(); i. Save. Menu. Item new Menu. Item(); false; stk. push(this); i. Save. Menu. Item. set. Label("Save Build. Info To Repository"); genic. Task. create. Arg(). set. Line(javacopts); } get. Project()); { } catchdie. On. Circular. Reference(stk, i. Exc) { }(Throwable } else if (!name. equals(other. name)) } handle. Exception(i. Exc); return false; local } } variable } Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 19

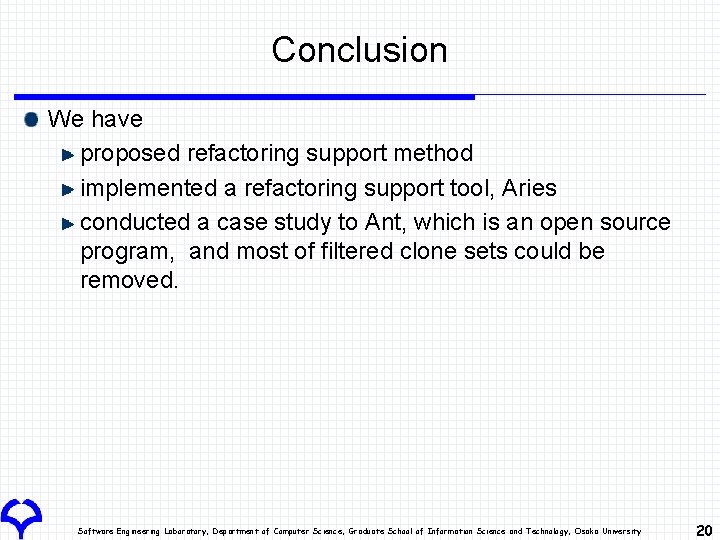

Conclusion We have proposed refactoring support method implemented a refactoring support tool, Aries conducted a case study to Ant, which is an open source program, and most of filtered clone sets could be removed. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 20

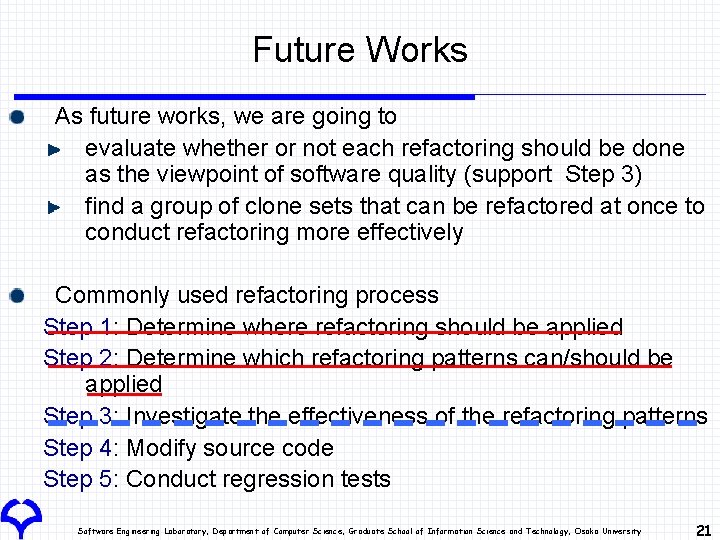

Future Works As future works, we are going to evaluate whether or not each refactoring should be done as the viewpoint of software quality (support Step 3) find a group of clone sets that can be refactored at once to conduct refactoring more effectively Commonly used refactoring process Step 1: Determine where refactoring should be applied Step 2: Determine which refactoring patterns can/should be applied Step 3: Investigate the effectiveness of the refactoring patterns Step 4: Modify source code Step 5: Conduct regression tests Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 21

Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 22

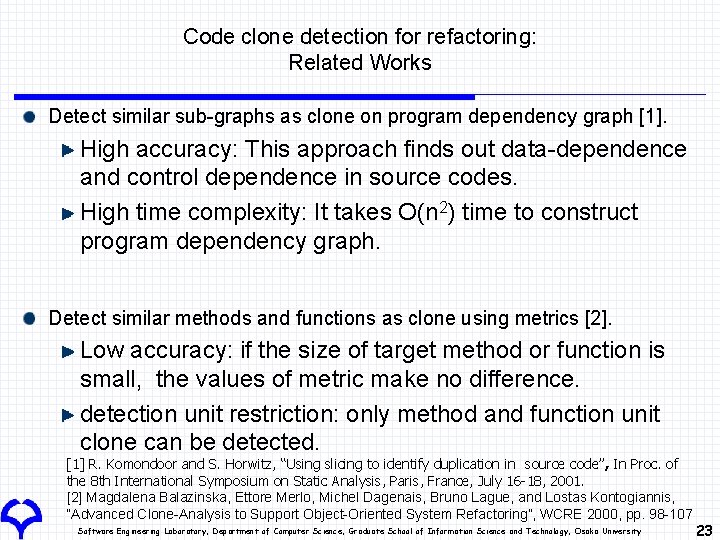

Code clone detection for refactoring: Related Works Detect similar sub-graphs as clone on program dependency graph [1]. High accuracy: This approach finds out data-dependence and control dependence in source codes. High time complexity: It takes O(n 2) time to construct program dependency graph. Detect similar methods and functions as clone using metrics [2]. Low accuracy: if the size of target method or function is small, the values of metric make no difference. detection unit restriction: only method and function unit clone can be detected. [1] R. Komondoor and S. Horwitz, “Using slicing to identify duplication in source code”, In Proc. of the 8 th International Symposium on Static Analysis, Paris, France, July 16 -18, 2001. [2] Magdalena Balazinska, Ettore Merlo, Michel Dagenais, Bruno Lague, and Lostas Kontogiannis, “Advanced Clone-Analysis to Support Object-Oriented System Refactoring”, WCRE 2000, pp. 98 -107 Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 23

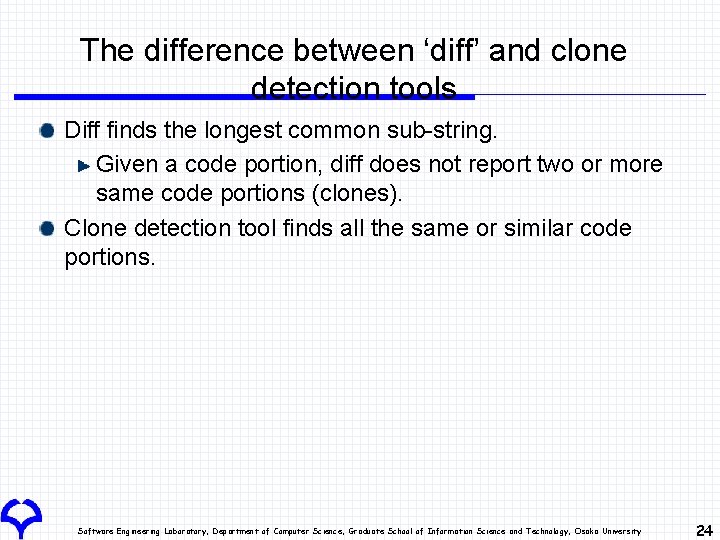

The difference between ‘diff’ and clone detection tools Diff finds the longest common sub-string. Given a code portion, diff does not report two or more same code portions (clones). Clone detection tool finds all the same or similar code portions. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 24

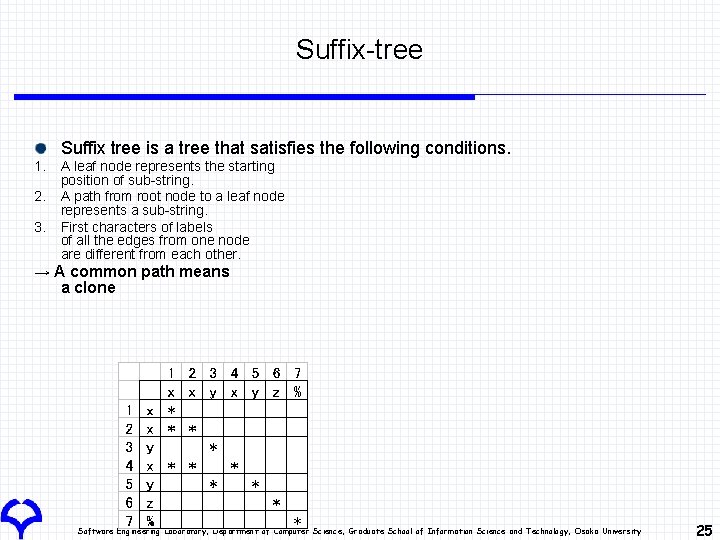

Suffix-tree Suffix tree is a tree that satisfies the following conditions. 1. 2. 3. A leaf node represents the starting position of sub-string. A path from root node to a leaf node represents a sub-string. First characters of labels of all the edges from one node are different from each other. → A common path means a clone Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 25

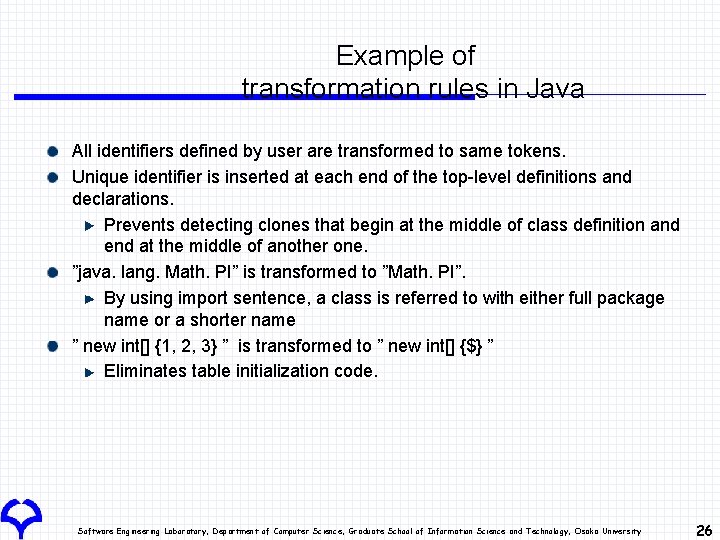

Example of transformation rules in Java All identifiers defined by user are transformed to same tokens. Unique identifier is inserted at each end of the top-level definitions and declarations. Prevents detecting clones that begin at the middle of class definition and end at the middle of another one. ”java. lang. Math. PI” is transformed to ”Math. PI”. By using import sentence, a class is referred to with either full package name or a shorter name ” new int[] {1, 2, 3} ” is transformed to ” new int[] {$} ” Eliminates table initialization code. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 26

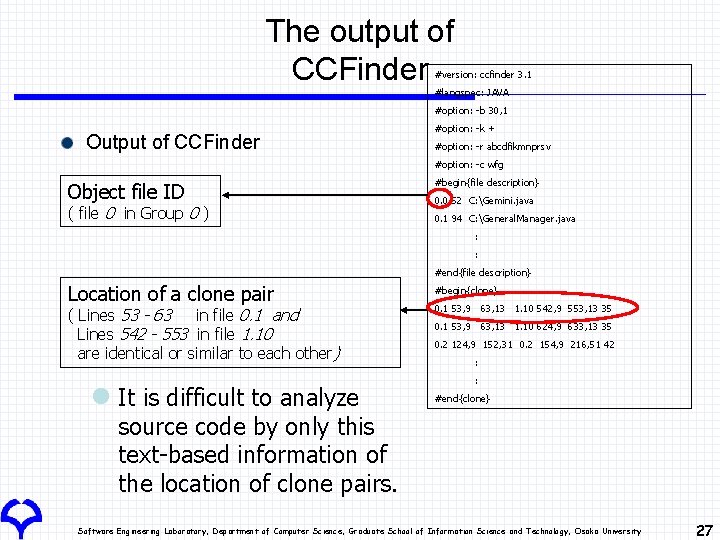

The output of CCFinder #version: ccfinder 3. 1 #langspec: JAVA #option: -b 30, 1 Output of CCFinder #option: -k + #option: -r abcdfikmnprsv #option: -c wfg Object file ID ( file 0 in Group 0 ) #begin{file description} 0. 0 52 C: Gemini. java 0. 1 94 C: General. Manager. java : : #end{file description} Location of a clone pair ( Lines 53 - 63 in file 0. 1 and Lines 542 - 553 in file 1. 10 are identical or similar to each other) l It is difficult to analyze #begin{clone} 0. 1 53, 9 63, 13 1. 10 542, 9 553, 13 35 0. 1 53, 9 63, 13 1. 10 624, 9 633, 13 35 0. 2 124, 9 152, 31 0. 2 154, 9 216, 51 42 : : #end{clone} source code by only this text-based information of the location of clone pairs. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 27

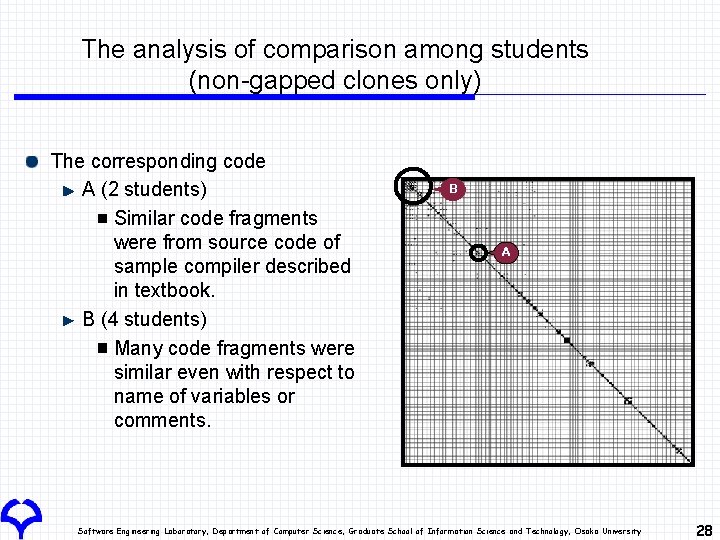

The analysis of comparison among students (non-gapped clones only) The corresponding code A (2 students) Similar code fragments were from source code of sample compiler described in textbook. B (4 students) Many code fragments were similar even with respect to name of variables or comments. B A Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 28

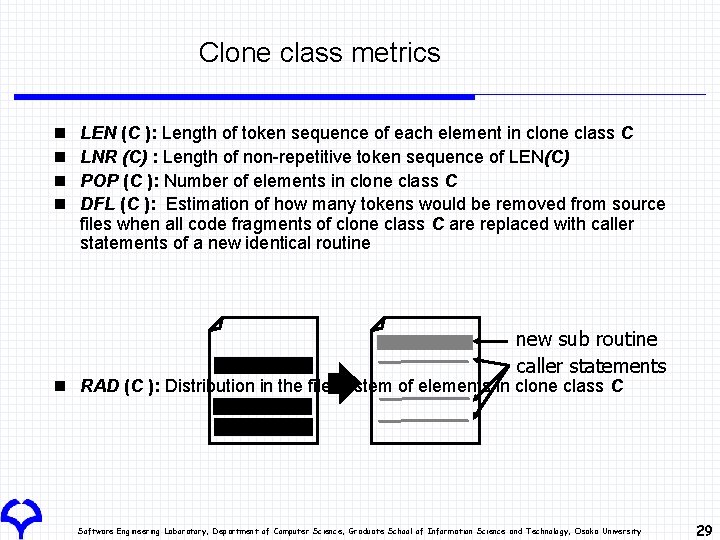

Clone class metrics n n LEN (C ): Length of token sequence of each element in clone class C LNR (C) : Length of non-repetitive token sequence of LEN(C) POP (C ): Number of elements in clone class C DFL (C ): Estimation of how many tokens would be removed from source files when all code fragments of clone class C are replaced with caller statements of a new identical routine new sub routine caller statements n RAD (C ): Distribution in the file system of elements in clone class C Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 29

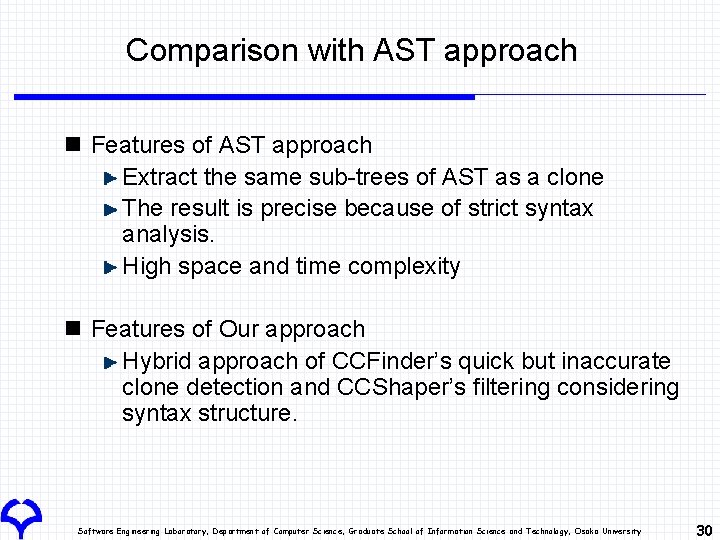

Comparison with AST approach n Features of AST approach Extract the same sub-trees of AST as a clone The result is precise because of strict syntax analysis. High space and time complexity n Features of Our approach Hybrid approach of CCFinder’s quick but inaccurate clone detection and CCShaper’s filtering considering syntax structure. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 30

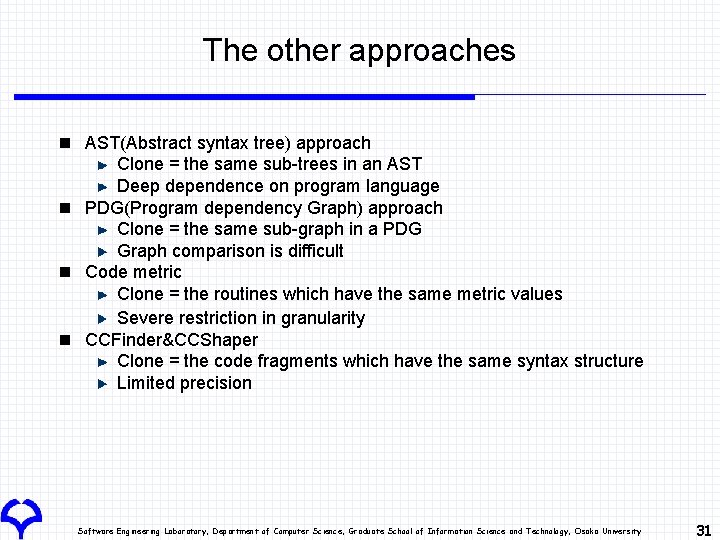

The other approaches n AST(Abstract syntax tree) approach Clone = the same sub-trees in an AST Deep dependence on program language n PDG(Program dependency Graph) approach Clone = the same sub-graph in a PDG Graph comparison is difficult n Code metric Clone = the routines which have the same metric values Severe restriction in granularity n CCFinder&CCShaper Clone = the code fragments which have the same syntax structure Limited precision Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 31

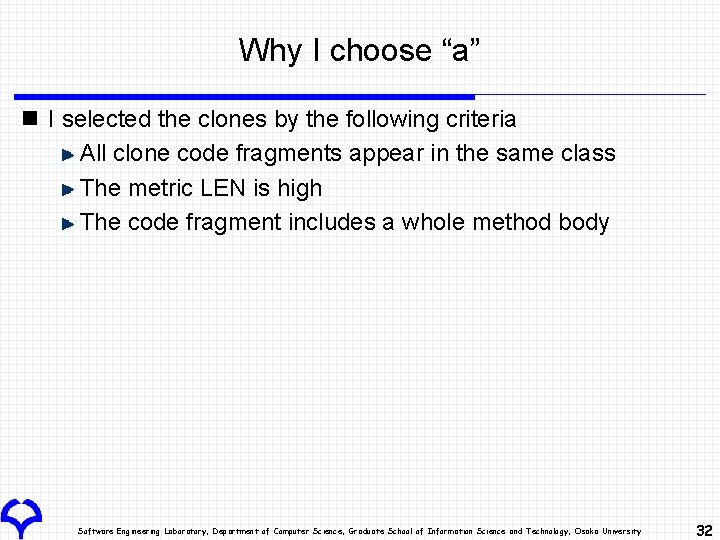

Why I choose “a” n I selected the clones by the following criteria All clone code fragments appear in the same class The metric LEN is high The code fragment includes a whole method body Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 32

Metrics（3）：Inheritance example 3： 2： Metric for Clone Set ・Clone set S S includes fragments ff and ff. . DCH ・If which include f don’t have ・If all classes fragments of clone set f. S and are included in a example 1: 11 1 22 2 common class, class and its direct child classes, between ・Clone setparent S includes fragments f 1 and f 2. each DCH(S): represents the position and distance fragment of a clone set・If. Sall fragments of clone set S are included in a then，DCH(S) = = -1 1 same class, then， DCH(S) = 0 Definition class A S includes fragment f 1, f 2, ・・・，fn B class AClone set class A f exists in class C Fragment i fragment f 1 Class C fragment f 2 fragment fp 1 is a class on classf hierarchy fragment 2 class B i which locates lowest position in C 1, C 2, ・・・，Cn class C If no common parent class of C 1，C２，・・・，Cn exists, the value of -1 fragment f 1 DCH(S) isfragment f 2 This metric is measured for only the class hierarchy where target software exists. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 33
