AREVA TD 1942 1994 1997 ALSTOM 2004 AREVA

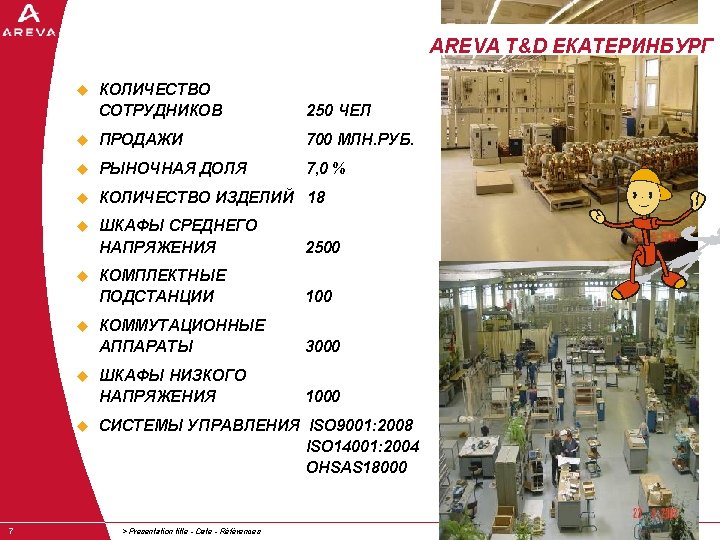

AREVA T&D ЕКАТЕРИНБУРГ - ИСТОРИЯ 1942 Свердловский ЭМЗ 1994 1997 ALSTOM 2004 AREVA T&D ЕКАТЕРИНБУРГ 6 > Presentation title - Date - Références

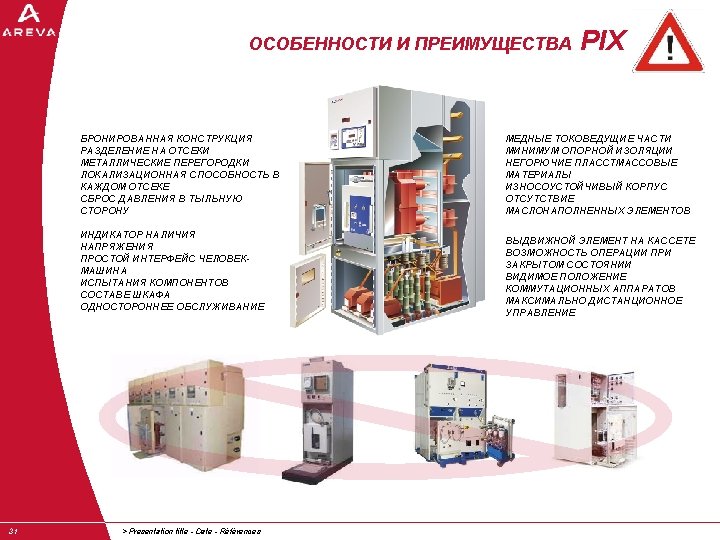

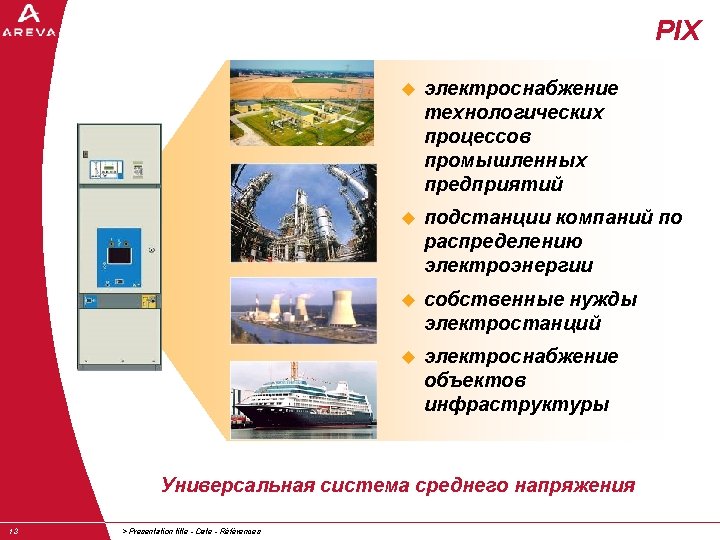

PIX 17 СЕРИЯ ЯЧЕЕК СРЕДНЕГО НАПРЯЖЕНИЯ 12 > Presentation title - Date - Références

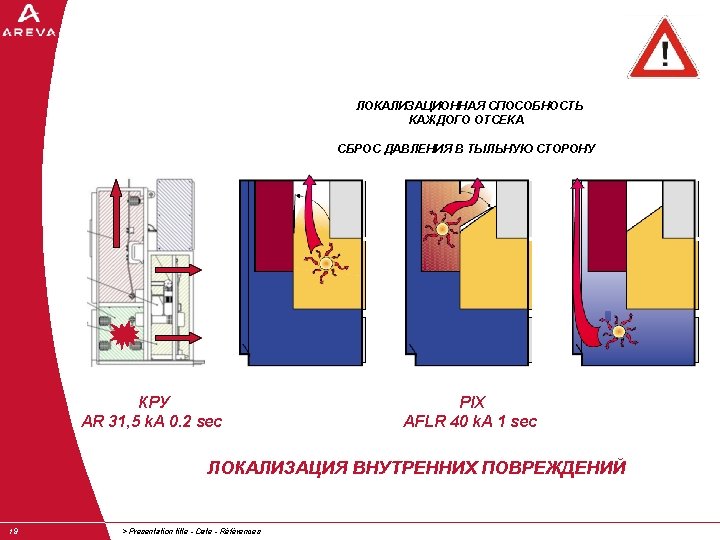

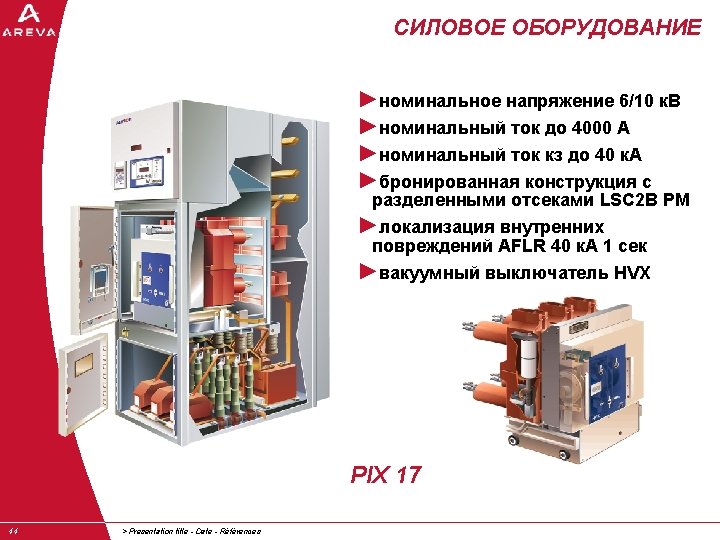

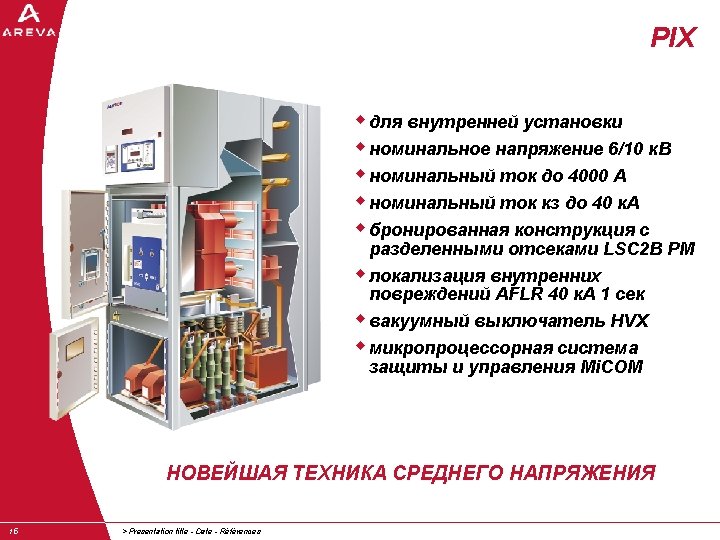

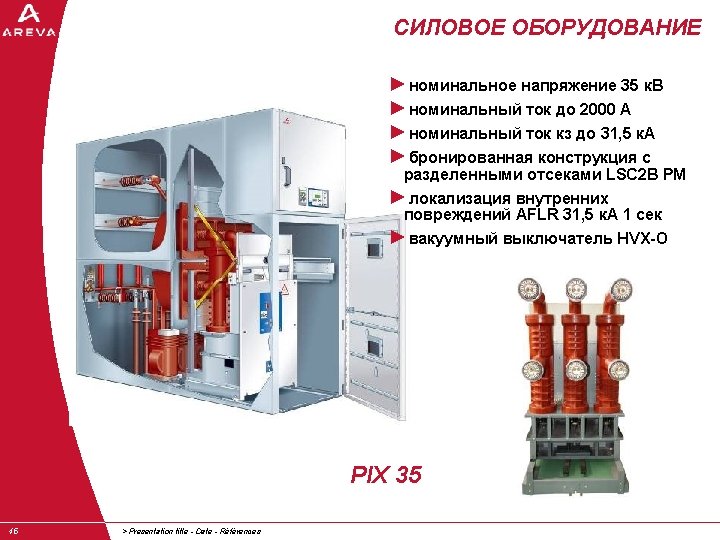

PIX u PIX-H AIS LSC 2 B PM AFLR 50 KA 1 SEC 6 -10 KV, 4000 А, 50 KА u PI AIS LSC 2 A PI AFLR 25 KA 1 SEC 6 -10 -20 KV, 1250 А, 25 KА u PIX 35 AIS LSC 2 B PM AFLR 31. 5 KA 1 SEC 35 KV, 2500 А, 31. 5 KА u PIX-MCC AIS LSC 2 B PM AFLR 40 KA 1 SEC 6 k. V, 400 А, 40 KА 14 > Presentation title - Date - Références u PIX AIS LSC 2 B PM AFLR 40 KA 1 SEC 6 -10 -20 KV, 4000 А, 40 KА

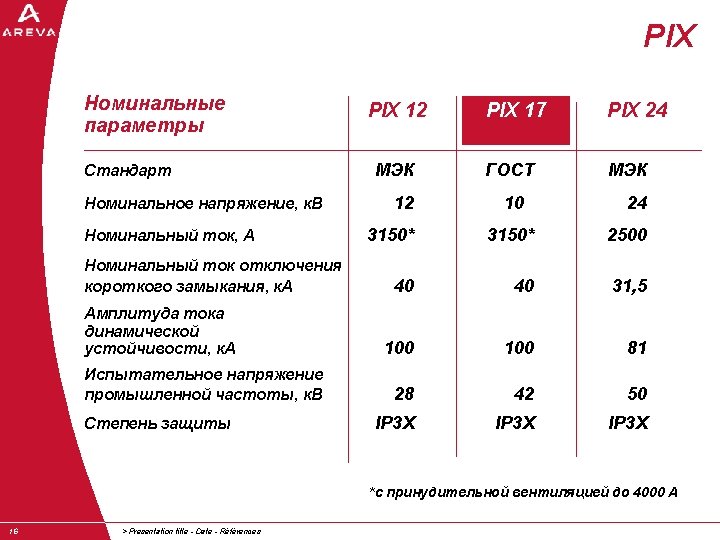

PIX Габаритные размеры PIX 12 PIX 17 Высота, мм 2130 2200 Глубина, мм 1400 1500 PIX 24 2330 1600 Ширина, мм 17 630 А 650 750 800 1250 А 650 750 800 1600 А 800 750 800 2000 А 800 750 1000 2500 А 1000 3150 А 1000 > Presentation title - Date - Références

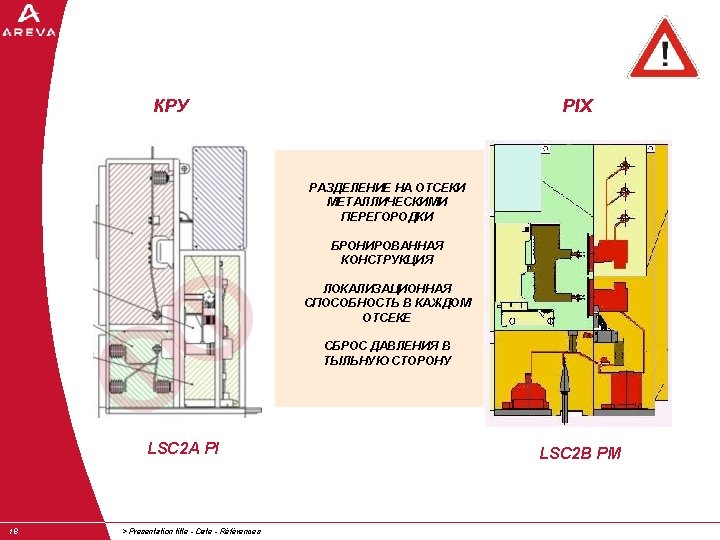

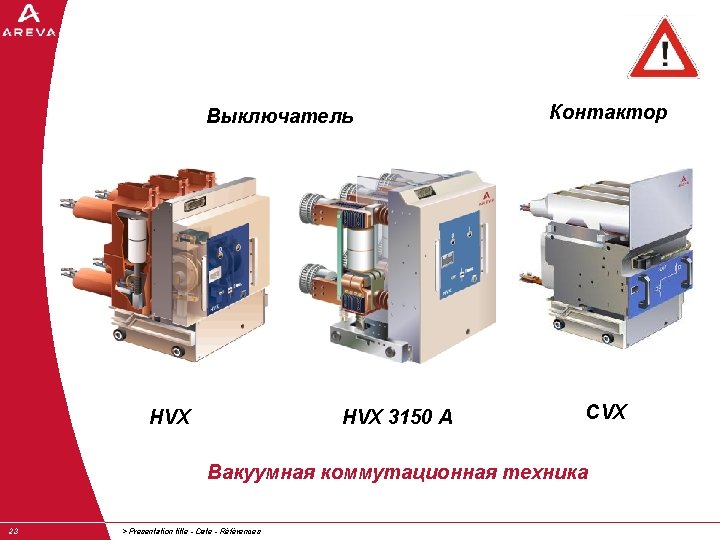

PIX u 22 > Presentation title - Date - Références ОТСЕК СИЛОВОГО ВЫКЛЮЧАТЕЛЯ

PIX u 24 > Presentation title - Date - Références ОТСЕК КАБЕЛЬНОГО ПРИСОЕДИНЕНИЯ

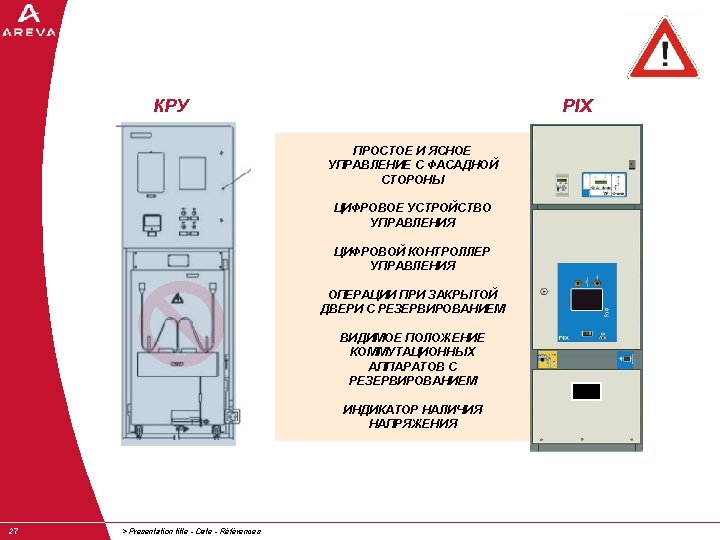

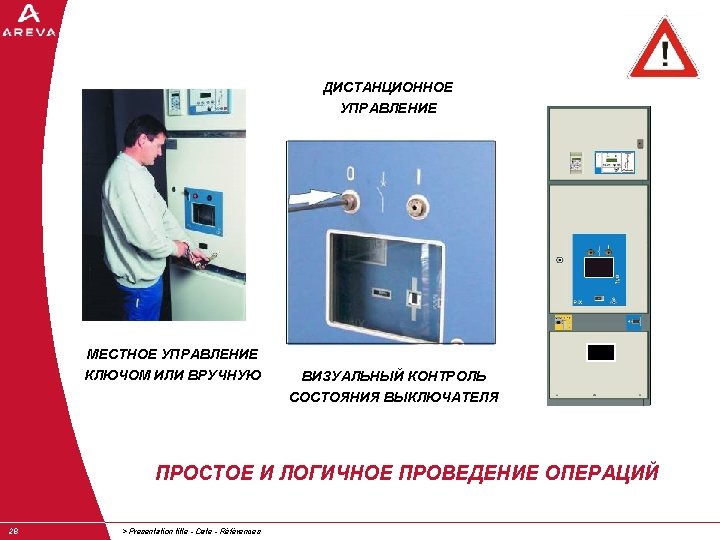

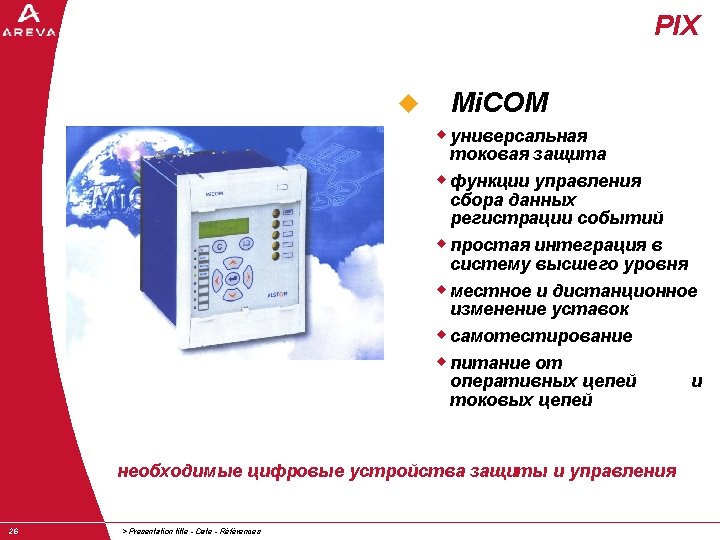

PIX u 25 > Presentation title - Date - Références ОТСЕК НИЗКОВОЛЬТНОЙ АППАРАТУРЫ

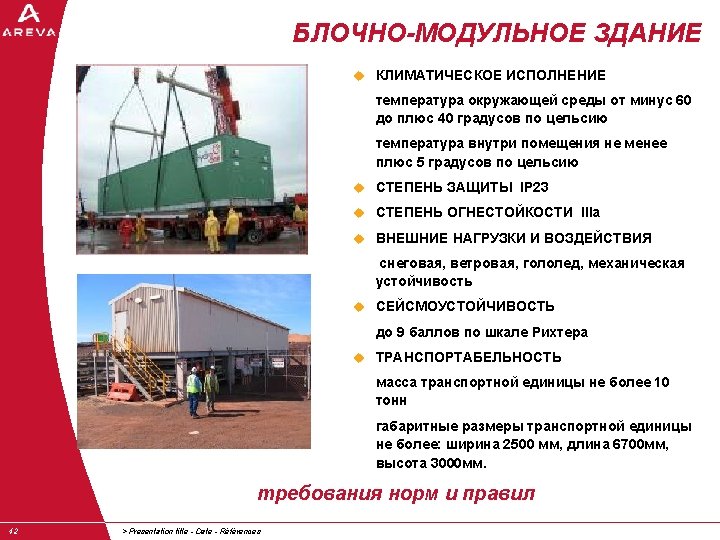

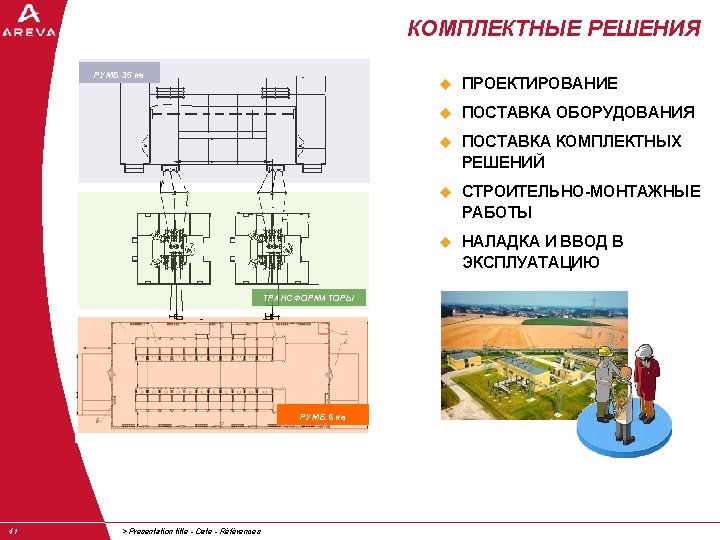

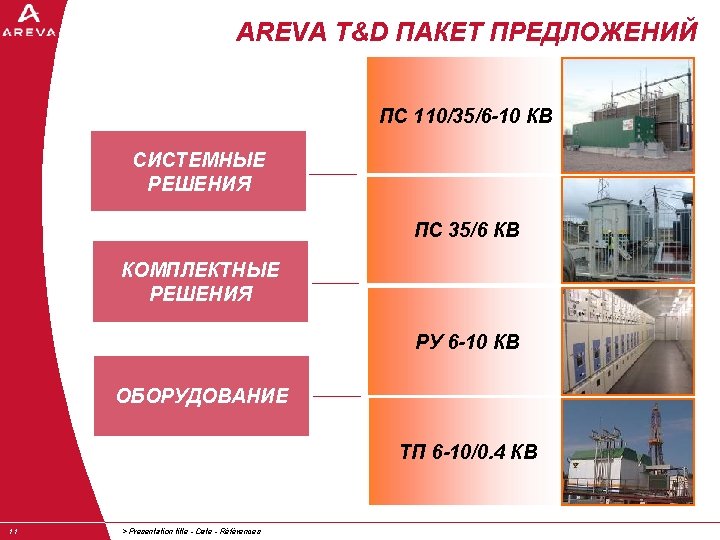

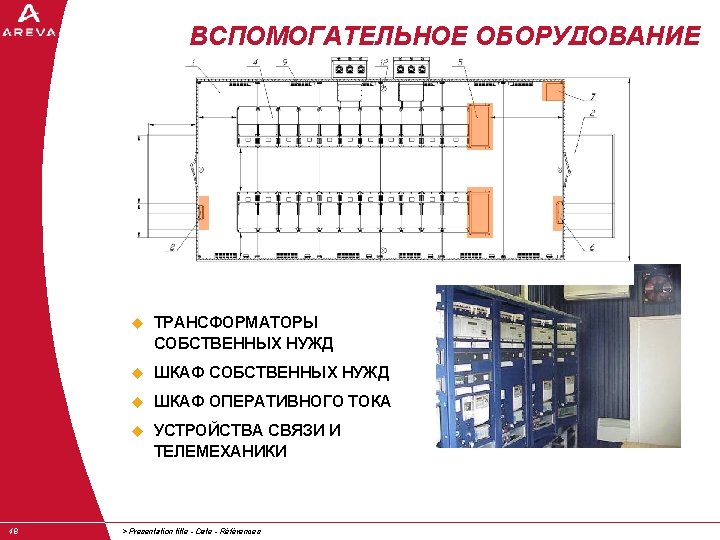

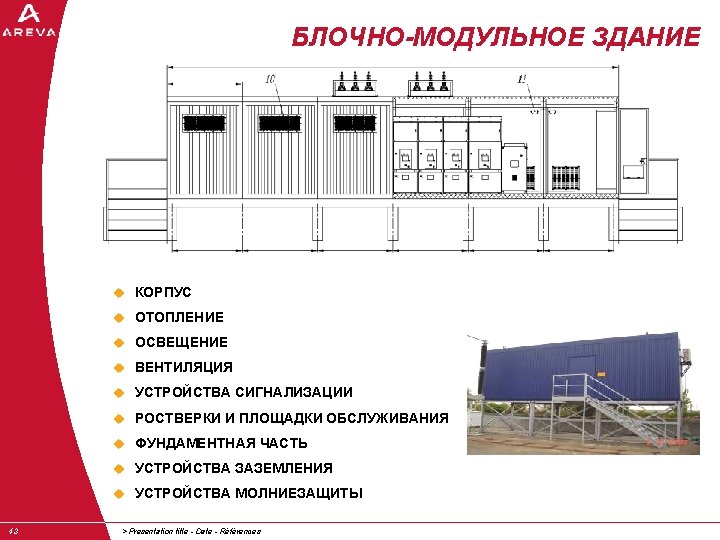

КОМПЛЕКТНЫЕ РЕШЕНИЯ 40 > Presentation title - Date - Références

РЕФЕРЕНЦИИ ПОСТАВОК ЯЧЕЕК PIX 17 50 > Presentation title - Date - Références

EUROASIAN POWER ENERGY COMPANY (EEC) HPP Aksu Kazakhstan block #1 74 PIX 17 6. 3 kv 2500 a 31. 5 ka auxiliary switchgear 8 PIX 17 6. 3 kv 2500 a 31. 5 ka block #2 79 PIX 17 6. 3 kv 2500 a 31. 5 ka 51 > Presentation title - Date - Références

LUKOIL-Nizhegorodnefteorgsintez Kstovo 17 PIX 17 6 kv 1250 a 25 ka LUKOIL-Nizhnevolzhskneft Volgograd 27 PIX 17 6 kv 1250 a 25 ka LUKOIL-Permnefteorgsintez Perm 20 PIX 17 6 kv 1250 a 25 ka 25 PIX 17 6 kv 1250 a 25 ka LUKOIL-Overseas Uzbekistan 18 PIX 17 10 kv 1250 a 25 ka 52 > Presentation title - Date - Références

KOLSKAYA METAL MINING COMPANY Pechenga Nickel Kola peninsula Mine lift substation 13 PIX 17 6 kv 630 a 25 ka 154/35/6 kv SS-105 30 PIX 17 6 kv 3150 a 31. 5 ka Heat Power Plant 15 PIX 17 6 kv 1250 a 25 ka Separating plant SS-8 28 PIX 17 10 kv 1250 a 25 ka North-Deep Mine 35/6 kv main substations 40 PIX 17 6 kv 2500 a 25 ka 44 PIX 17 6 kv 2500 a 25 ka 53 > Presentation title - Date - Références

SALYM PETROLEUM DEVELOPMENT Salym oil fields West Sibiria oil treating 40 PIX 17 10 kv 1250 a 40 ka drilling sites 5 x 3 PIX 17 6 kv 630 a 25 ka well cluster #2 24 PIX 17 6 kv 1250 a 25 ka 54 > Presentation title - Date - Références

MRSK URAL PIX 35/1017 25 k. A kv Savino Perm 16 PIX 17 10 kv 1250 a 25 ka 110/10 kv Nerdva Perm 16 PIX 17 10 kv 1250 a 25 ka 110/35/6 kv Bereg Perm 32 PIX 17 6 kv 1600 a 31. 5 ka 35/6 kv Gypermarket Perm 20 PIX 17 6 kv 1250 a 25 ka 220/10 kv Anna Sverdlovsk reg 18 PIX 17 10 kv 3150 a 31. 5 ka 110/10 kv Otradnaya Ekaterinburg 60 PIX 17 10 kv 2500 a 31. 5 ka 55 > Presentation title - Date - Références

FSK EES 500 kv Lipetskaya MES Centre 3 PIX 17 10 kv 630 a 25 ka 500/220/20 kv Zapadnaya MES Centre 52 PIX 24 20 kv 1250 a 16 ka 12 PIX 24 20 kv 2500 a 16 ka 3 PIX 17 10 kv 630 a 25 ka 330 kv Rzhevskaya MES North-West 4 PIX 17 10 kv 1250 a 40 ka 500/220 kv Aluminievaya MES Sibiria 15 PIX 17 10 kv 630 a 25 ka 56 > Presentation title - Date - Références

ROSTERMINALUGOL Ust’Luga Seaport Baltic Sea additional 5 PIX 17 10 kv 630 a 25 ka distribution substation #1 31 PIX 17 10 kv 1250 a 25 ka distribution substation #2 20 PIX 17 10 kv 1250 a 25 ka substation #4 15 PIX 17 10 kv 1250 a 25 ka 57 > Presentation title - Date - Références

ANADYR POWER ENERGY NETWORKS Chukotka Far East 10/0. 4 kv Airport 17 PIX 17 10 kv 1250 a 25 ka 35/6 kv Airport 16 PIX 17 10 kv 1250 a 25 ka 6/10 kv DES 20 PIX 17 6 kv 1250 a 25 ka 9 PIX 17 10 kv 1250 a 25 ka 58 > Presentation title - Date - Références

ROSATOM TVEL Elemash Electrostal 36 PIX 17 6 kv 1600 a 25 ka 59 > Presentation title - Date - Références

VARVARINSKOYE METAL MINING COMPANY 110/10 kv Varvarinskaya Kazakhstan 24 PIX 17 10 kv 1250 a 25 ka 60 > Presentation title - Date - Références

DKM ENGINEERING Moscow Severniy Gas Turbine Power Station 21 PIX 17 6 kv 1250 a 25 ka 46 PIX 17 10 kv 3150 a 25 ka R 61 > Presentation title - Date - Références
