Are You Sure You Can Recover In Any Circumstance? Tim Boles Database Administrator Senior Staff 0000. PPT 12/5/2020 1

Who Am I ? • • • Tim Boles DBA with Lockheed Martin IS&GS Civil Division Oracle Database Administrator Since 1998 Experience from gigabytes – terabytes databases timothy. s. boles@lmco. com www. lockheedmartin. com/isgs 2

Topics • • • Availability Is Not Recovery Causes of Data Loss And Its Cost Basics of Backups Building A Backup Policy How To Be Sure You Can Recover 3

AVAILABILITY IS NOT RECOVERY 4

The New Thing • Cloud Computing • Virtual • RAC • Standby Database • 99. 999 Uptime 5

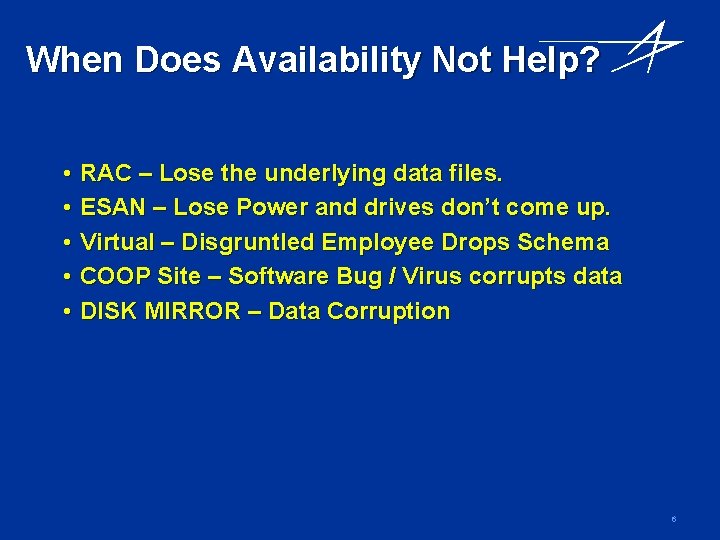

When Does Availability Not Help? • • • RAC – Lose the underlying data files. ESAN – Lose Power and drives don’t come up. Virtual – Disgruntled Employee Drops Schema COOP Site – Software Bug / Virus corrupts data DISK MIRROR – Data Corruption 6

CAUSES OF DATA LOSS AND ITS COST 7

The Experts Say Causes of Data Loss Dr. Smith Findings Ontrack Findings Hardware Failure 40% 56% Human Error 29% 26% Software Corruption 13% 9% ---- Theft 9% Computer Viruses 6% 4% Hardware Destruction 3% 2% http: //gbr. ppperdine. edu/033/dataloss. html http: //www. ontrackdatarecovery. com/understanding-data-loss 8

Hardware Failure Recovery • • Server Failure(s) Drive Failure(s) ESAN Disaster Recovery Site 9

What If? • • • Server Disk Failure with Oracle Software Binaries SAN with redo logs fail Mirrored Master Destruction with Administrative Files – listener. ora – tnsnames. ora – password – dataguard configuration – Enterprise Manager configuration files • RMAN repository failure 10

Human Error • • • OS Commands Bad DDL Bad DML Compounded by Additional Mistakes Features Only Help When Enabled What’s Your Plan? 11

Software Corruption • Customized COTS / In-House • COTS – Leopard OS – Oracle BUG http: //tomkarpik. com/articles/massive-data-loss-bug-in-leopard/ 12

How Would You Recover? • • • DROP SCHEMA CASCADE Oracle software deletion Wrong data deletion – detected immediately – detected several hours later Batch Job corruption Software Upgrade Block Corruption Detected in Backup 13

Counting the Cost Industry Sector Revenue/Hour (Millions) Energy $2. 8 Telecommunications $2. 0 Manufacturing $1. 6 Information Technology $1. 3 Pharmaceuticals $1. 1 Meta Group of Stanford, CT in October of 2000: IT Performance Engineering & Measurement Strategies: Quantifying Performance Loss. 14

BASICS OF A BACKUP 15

What The? R ma n R est ore RM Ba AN ck up 16

RMAN Does Not Back Up • • • Oracle Software Home (binaries) BFILES Password Files pfiles (spfiles are covered with newer versions) tnsnames. ora listener. ora sqlnet. ora /etc/oratab scripts (shell, sql) 17

The Basics • Backup and Recovery Plan • Physical Backups – Data Storage • data files, contol files, Archived Redo – Support Files • Binaries, Initialization Files, Scripts, . ora, password • Logical Backups (Exports) – Logical data structure such as tables, tablespaces, objects, users, data within tables http: //www. oracle. com/technology/deploy/availability/htdocs/BR_Overview. htm 18

BUILDING A BACKUP POLICY 19

Where to Start? • Stake Holders – Who Cares About The Data? • Users • Auditor, Lawyer, Regulator • Security System Administrators – Who Touches The Data? • System / Backup Administrators • Database Administrators 20

Basic Concerns • • Size of Database (growth potential) Backup Window Space Available for Backup Storage Media Used Tools Available Data Retention Times Acceptable Mean Time To Recovery (MTTR) 21

Beyond the Basics • Encryption – Storage of Encryption Keys – Access to Encryption Keys • Design of Database – Read-Only Tablespaces – Tablespace Partitions • Compression Algorithms 22

Is Your Backup Good? • • Backup Log Physical Check Logical Check Only good if you can recover 23

HOW TO BE SURE YOU CAN RECOVER 24

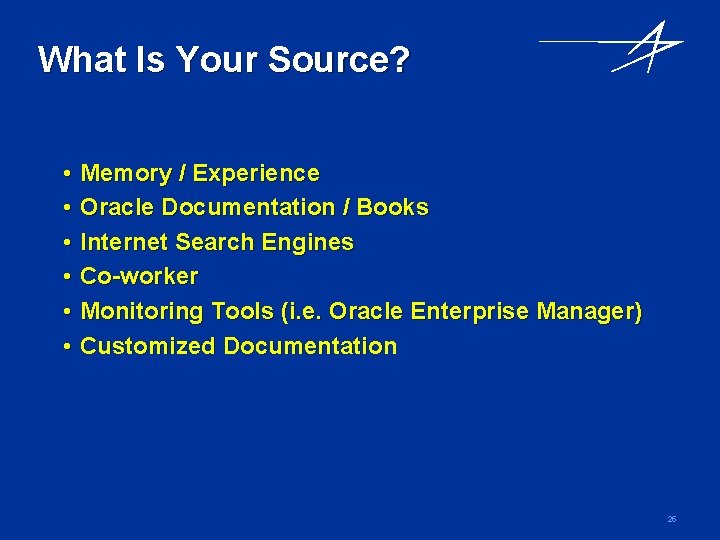

What Is Your Source? • • • Memory / Experience Oracle Documentation / Books Internet Search Engines Co-worker Monitoring Tools (i. e. Oracle Enterprise Manager) Customized Documentation 25

Are You A Single Point Of Failure? 26

BACKUP AND RECOVERY DOCUMENT 27

Documentation Is Your Friend • Good Business Sense • Every System Is Different – Boosts Ability to Concentrate • Gain Experience and Knowledge • Refine Backup / Restore Policies • Refine Procedures 28

B&R Document 20000 ft View • • • Overall Backup Strategy Architecture Summary Script Listing and Description Procedures Test Documentation 29

Overall Backup Strategy • Types of Backups And Reasons – Physical • Hot / Cold • Full / Incremental – Exports • Full • Schema, Table, (Transportable) Tablespace • Tools • Scheduling • Notification • Retention Policies (Time and Off-site Location) • System Specifics 30

Architecture Summary • • • Server Configuration Tool Integration Database Configuration 31

Tools and Technology Available • Media Failure – Restore Media from Backup – Recover using RMAN or SQL Commands • Full • Partial – Tablespace point-in-time (TSPITR) – Time-based (PITR) – Cancel-based – Change-based • Human or Software Error – Flashback http: //www. oracle. com/technology/deploy/availability/htdocs/BR_Overview. htm 32

Flashback 9 i and 10 g R 1 • Oracle 9 i – Flashback Query • Oracle Database 10 g R 1 – Flashback Database – Flashback Table – Flashback Drop – Flashback Version Query – Flashback Transaction Query 33

Flashback 10 g R 2 and 11 g • Oracle Database 10 g R 2 – Restore Points – Flashback Database Through Resetlogs • Oracle Database 11 g R 1 – Flashback Transaction – Flashback Data Archive • Oracle Database 11 g R 2 – Flashback Data Archive tracks most DDL http: //www. oracle. com/technology/deploy/availability/htdocs/Flashback_Overview. htm 34

Cheat Sheet • • • System Name System Description Server Name Server Description Lead Administrator Contact Information Database Information • Name • Oracle version/patch level • CSI • Important users / Password Expire Dates • Features Enabled 35

Cheat Sheet Continued. . Locations • • • ORACLE_HOME Oracle User Home Administration SQL scripts Administration Shell scripts RMAN/backup scripts Backup Logs Backup Storage contol files Archive Logs 36

Script Listing and Description • • Location Usage Execution Syntax Parameters with Descriptions 37

Test Documentation • • • Backup Procedures Recovery Scenarios To Test Document Restore Procedures 38

Media Loss • Loss of a Control File • Loss of a data file for a tablespace – System, rollback segment, UNDO, user data, Index, read-only, partition • Loss of Redo Log file – Inactive Online, Current Online, Archived • Loss of entire redo group • Inactive Online, Current Online, Archived • Data Block Corruption – Physical – Logical – In Backup 39

Recovery of Entire Database • Recovery with No RMAN catalog – With / Without controfile – With / Without redo logs • Recovery to New Machine • Recovery to New File System. • Point in Time Recovery of Entire Database • Recovery of RMAN catalog • Creation of Standby Database • Creation of Duplicate Database on Test System 40

More Than Just One File • • • If database crashes during backup. If binaries are destroyed. If entire database server has to be replaced. If SAN loses multiple drives. If database crashes during table movement. If database crashes during use of Flashback Technology • If Read-Only tablespace was created before last backup. • If Read-only tablespace was created after last backup 41

User / Software Error (Flashback) • • Recovery of Dropped Schema Recovery of Dropped Table Data Corruption in Row Transaction Flashback – Single – All resulting transactions Software Installation Failure Data Corruption in entire schema Data Corruption in schema 5 hours old but reset of database needs to remain. Trigger or procedure is recompiled with wrong code 42
