Are You Remote Presented by 1 Remote Access
Are You Remote? Presented by 1
Remote Access Advantages View & Control from Anywhere § Eliminate the need to travel on site § Troubleshoot your equipment Remotely § 3 rd Party Remote Support Cost Effective Reduce Downtime
Remote Operator • • Remotely access All Vision, Jazz & M 91 Use a PC to view & control several remote controller's HMI panels at the same time.
Remote Operator Mobile App • Remotely access Vision Color and Samba controllers via Internet or wireless LAN connection • Control and monitor automation and machines processes remotely • View operational conditions, Alarms, data, and Trends in real time • ‘Full Control’ or ‘View Only’ work mode selection • Share the application database for backup or duplication on another device Just Released
DEMO
VNC § § Remote control Uni. Stream - Use your favorite client Uni. Stream as VNC Client – Remote from One Uni. Stream to Another Multiple Clients Simultaneously PC, Smartphone, and Tablet

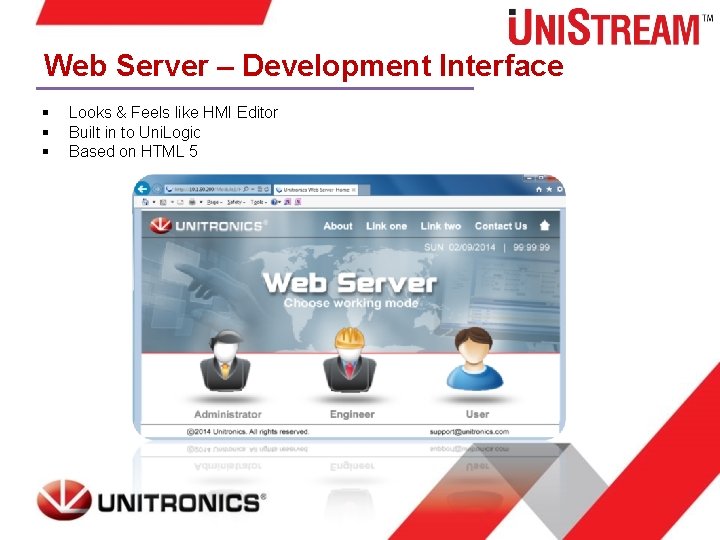

Web Server – Development Interface § § § Looks & Feels like HMI Editor Built in to Uni. Logic Based on HTML 5
Web Server – Do It Yourself No need for HTML & Java. Script Programmer - You can do it by yourself!! 5 minutes programming Web. Server in Uni. Stream can take hours to a Web programmer.
Web Server - User Interface Design Easily Design Amazing Web Pages Drag & Drop Elements & Widgets Large selection of predefined Elements & Widgets Displays Real Time Information
Web Server - Connectivity § Multiple Simultaneous Connections § Each user can view a different page § Different Security Profiles § Independent from HMI Operation
DEMO

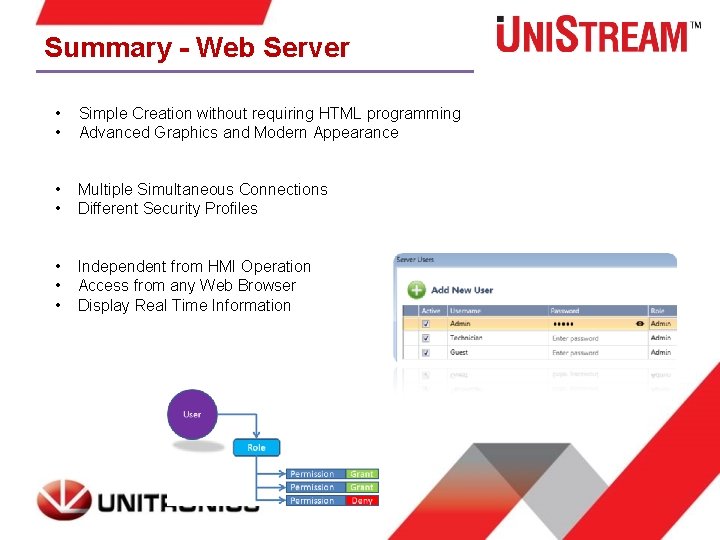

Summary - Web Server • Simple Creation without requiring HTML programming • Advanced Graphics and Modern Appearance • • Multiple Simultaneous Connections Different Security Profiles • • • Independent from HMI Operation Access from any Web Browser Display Real Time Information
Other Remote Options § SMS § GPRS § Remote Access § Uni. OPC § Data. Xport § FTP Server/Client

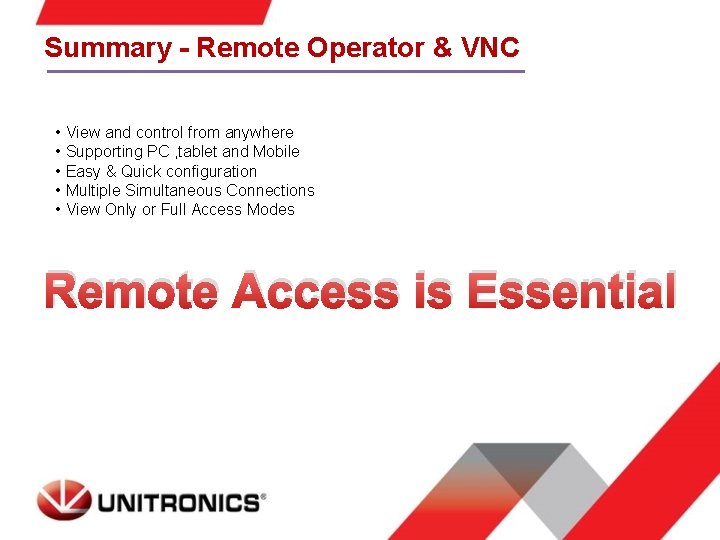

Summary - Remote Operator & VNC • View and control from anywhere • Supporting PC , tablet and Mobile • Easy & Quick configuration • Multiple Simultaneous Connections • View Only or Full Access Modes Remote Access is Essential
Thank you!
