Ardiuno Temperature Sensor Capstone Presentation by Jay Vang

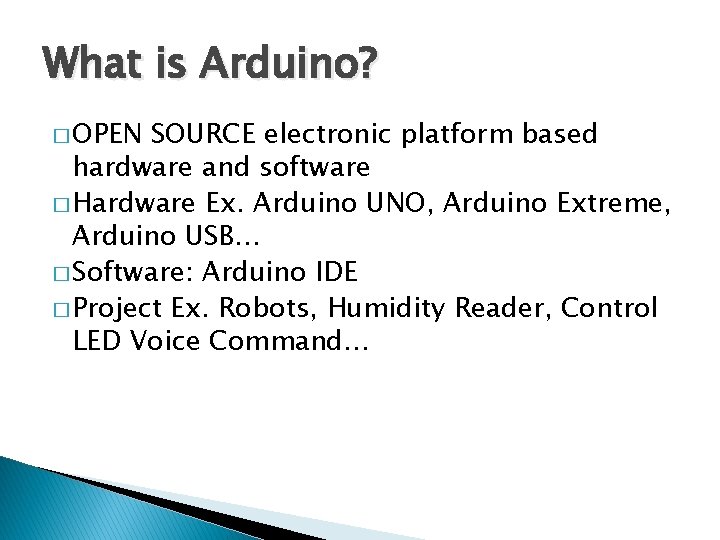

What is Arduino? � OPEN SOURCE electronic platform based hardware and software � Hardware Ex. Arduino UNO, Arduino Extreme, Arduino USB… � Software: Arduino IDE � Project Ex. Robots, Humidity Reader, Control LED Voice Command…

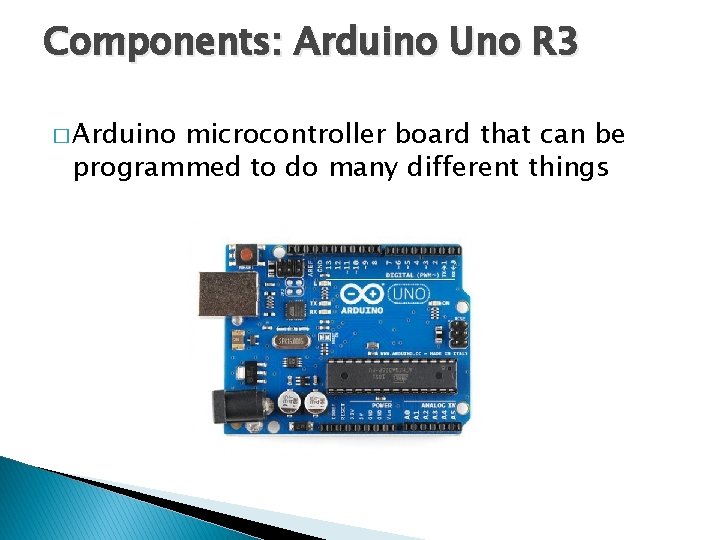

Components: Arduino Uno R 3 � Arduino microcontroller board that can be programmed to do many different things

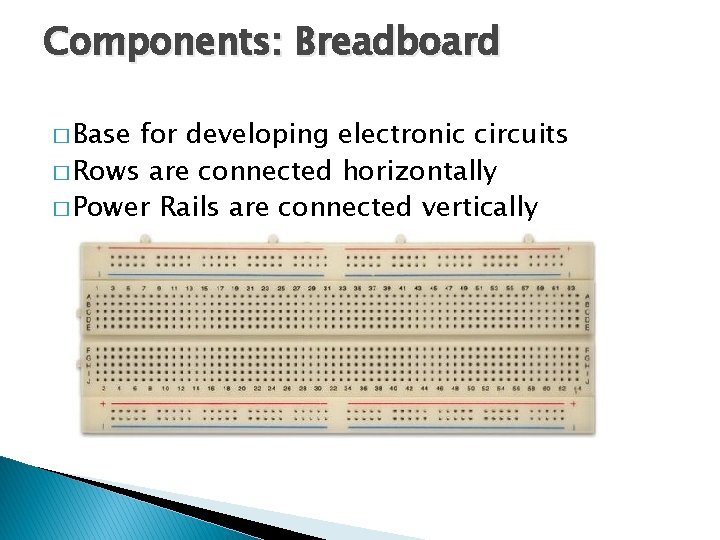

Components: Breadboard � Base for developing electronic circuits � Rows are connected horizontally � Power Rails are connected vertically

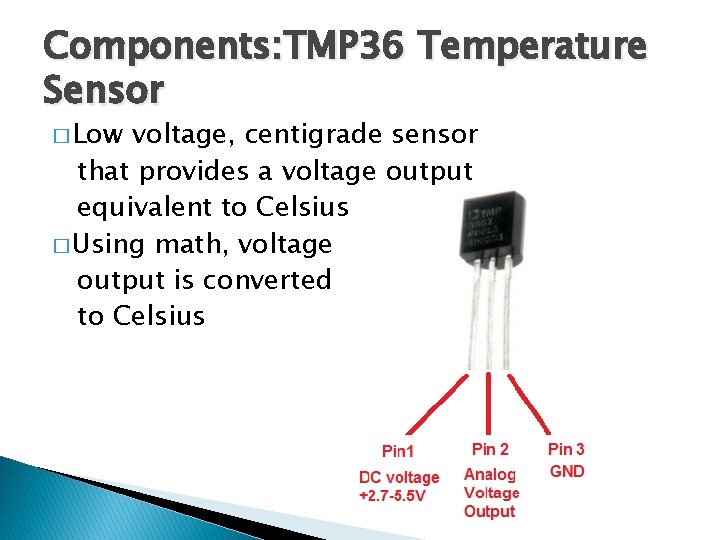

Components: TMP 36 Temperature Sensor � Low voltage, centigrade sensor that provides a voltage output equivalent to Celsius � Using math, voltage output is converted to Celsius

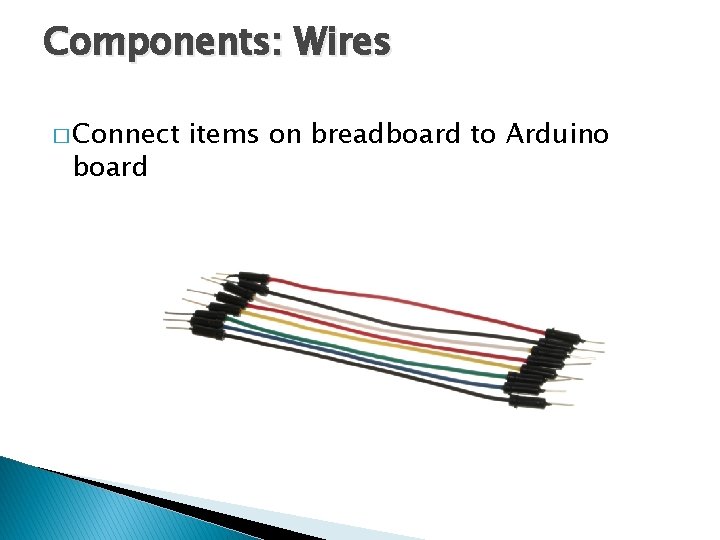

Components: Wires � Connect board items on breadboard to Arduino

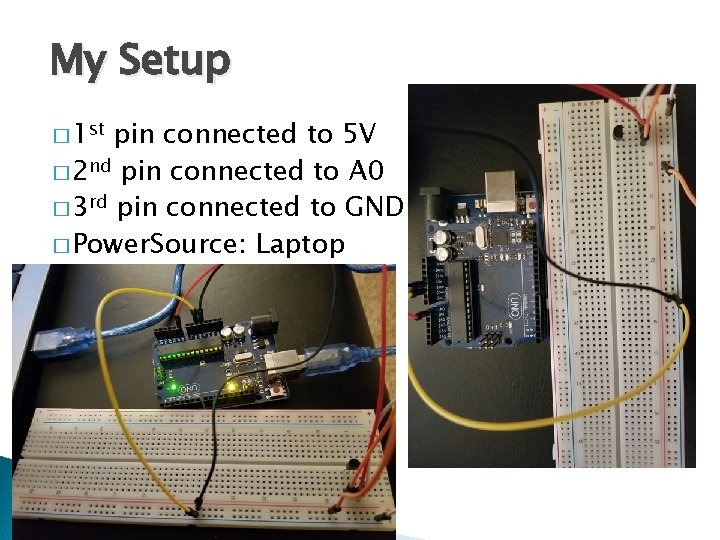

My Setup � 1 st pin connected to 5 V � 2 nd pin connected to A 0 � 3 rd pin connected to GND � Power. Source: Laptop

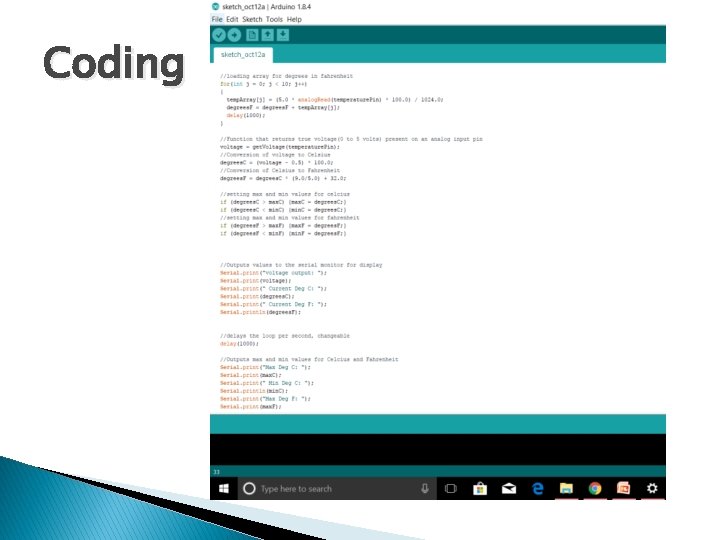

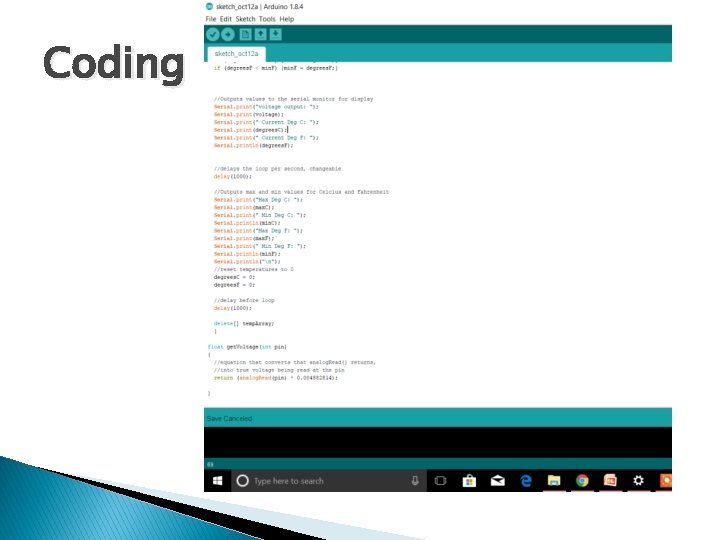

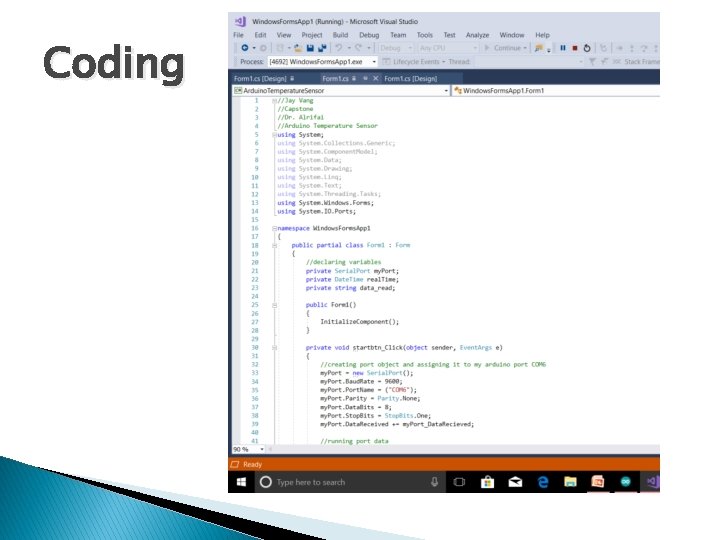

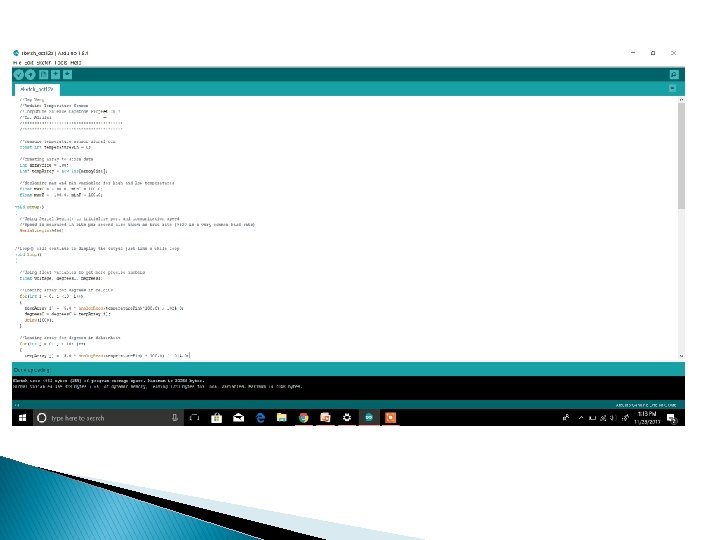

Coding

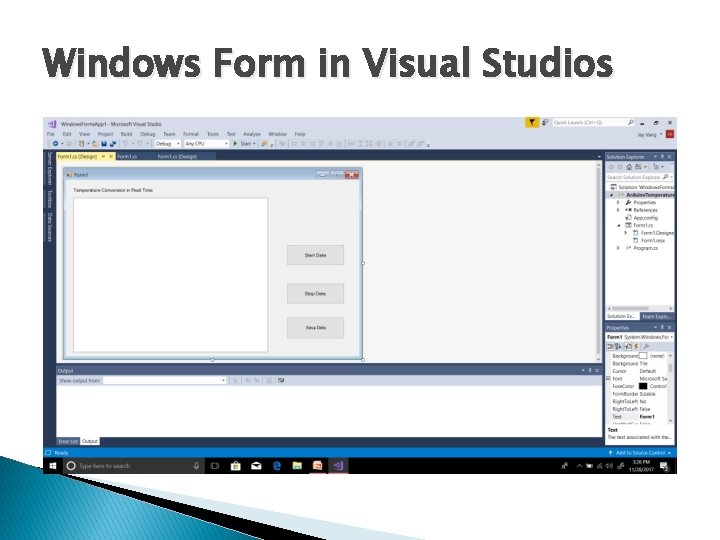

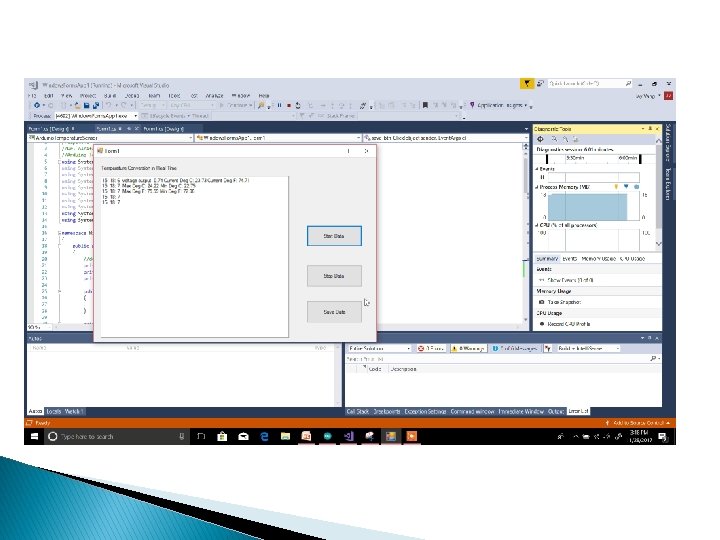

Windows Form in Visual Studios

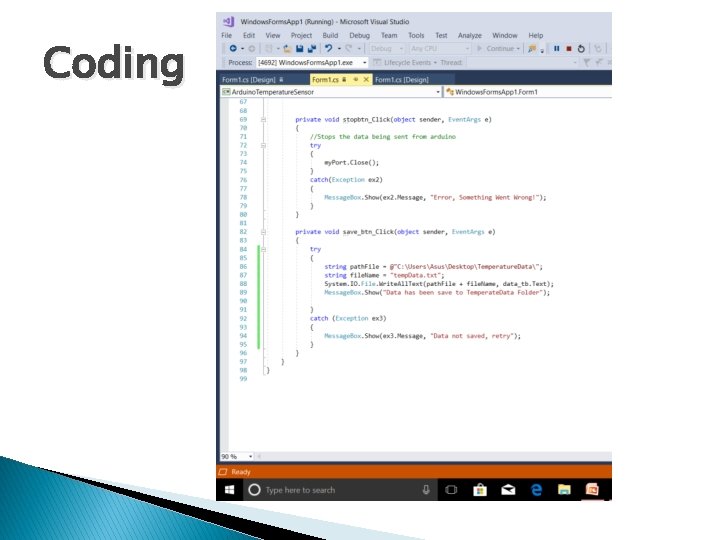

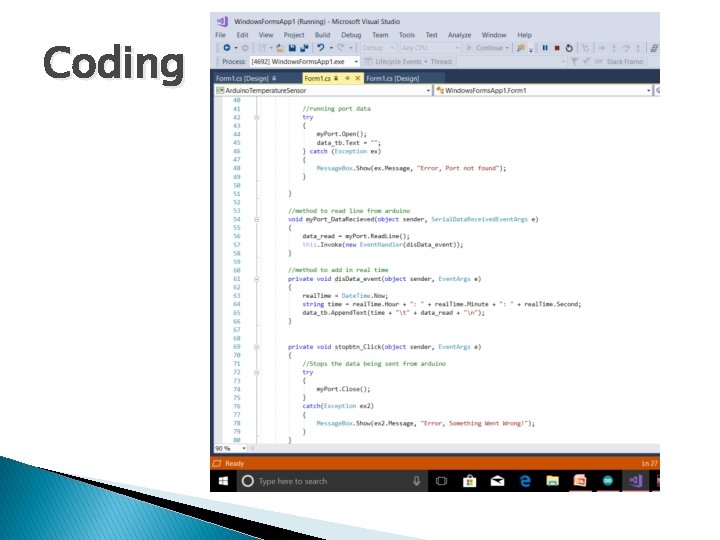

Coding

THANK YOU

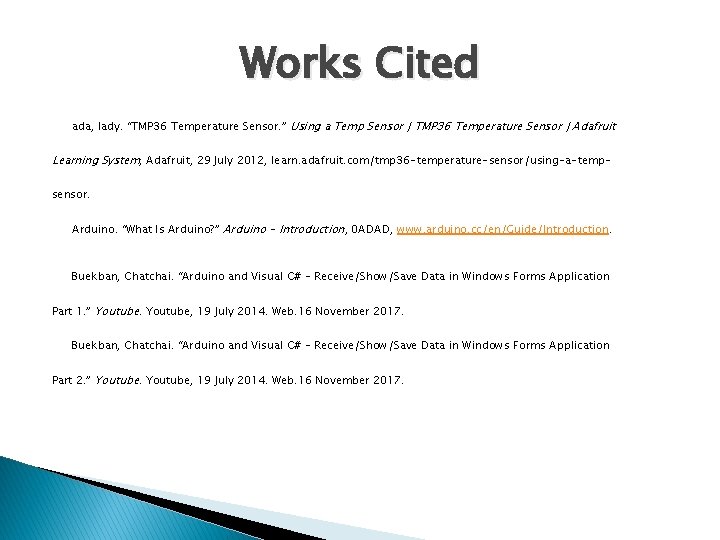

Works Cited ada, lady. “TMP 36 Temperature Sensor. ” Using a Temp Sensor | TMP 36 Temperature Sensor | Adafruit Learning System, Adafruit, 29 July 2012, learn. adafruit. com/tmp 36 -temperature-sensor/using-a-tempsensor. Arduino. “What Is Arduino? ” Arduino - Introduction, 0 ADAD, www. arduino. cc/en/Guide/Introduction. Buekban, Chatchai. “Arduino and Visual C# - Receive/Show/Save Data in Windows Forms Application Part 1. ” Youtube, 19 July 2014. Web. 16 November 2017. Buekban, Chatchai. “Arduino and Visual C# - Receive/Show/Save Data in Windows Forms Application Part 2. ” Youtube, 19 July 2014. Web. 16 November 2017.

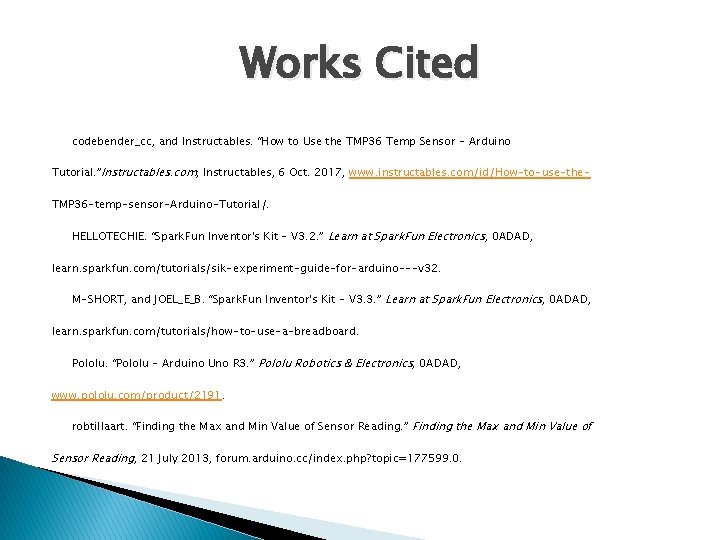

Works Cited codebender_cc, and Instructables. “How to Use the TMP 36 Temp Sensor - Arduino Tutorial. ”Instructables. com, Instructables, 6 Oct. 2017, www. instructables. com/id/How-to-use-the. TMP 36 -temp-sensor-Arduino-Tutorial/. HELLOTECHIE. “Spark. Fun Inventor's Kit - V 3. 2. ” Learn at Spark. Fun Electronics, 0 ADAD, learn. sparkfun. com/tutorials/sik-experiment-guide-for-arduino---v 32. M-SHORT, and JOEL_E_B. “Spark. Fun Inventor's Kit - V 3. 3. ” Learn at Spark. Fun Electronics, 0 ADAD, learn. sparkfun. com/tutorials/how-to-use-a-breadboard. Pololu. “Pololu - Arduino Uno R 3. ” Pololu Robotics & Electronics, 0 ADAD, www. pololu. com/product/2191. robtillaart. “Finding the Max and Min Value of Sensor Reading. ” Finding the Max and Min Value of Sensor Reading, 21 July 2013, forum. arduino. cc/index. php? topic=177599. 0.
