Arctic Control Introduction V 1 0 Arctic Control

  • Slides: 12
Download presentation
Arctic Control Introduction V 1. 0

Arctic Control Introduction V 1. 0

Arctic Control • The Arctic Control is a device with integrated wireless communications for

Arctic Control • The Arctic Control is a device with integrated wireless communications for controlling medium-voltage assets such as disconnectors and switchgears. GPRS/EDGE Internet IEC-104 TCP/IP Viola M 2 M Gateway Arctic Control Disconnectors SCADA

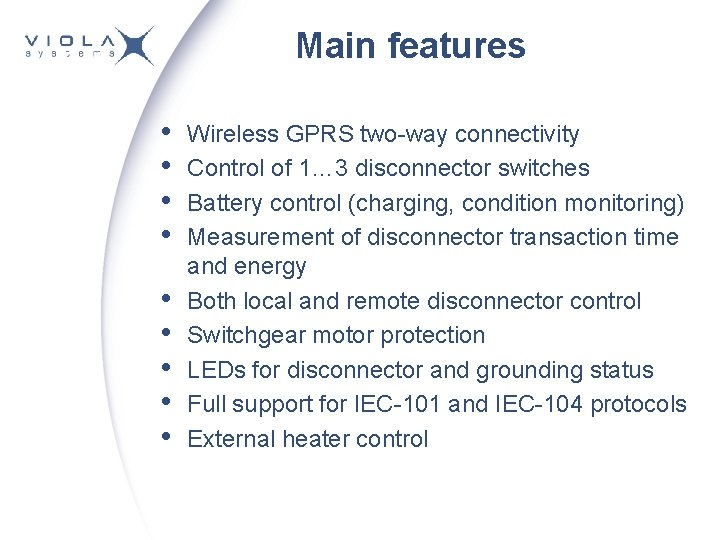

Main features • • • Wireless GPRS two-way connectivity Control of 1… 3 disconnector

Main features • • • Wireless GPRS two-way connectivity Control of 1… 3 disconnector switches Battery control (charging, condition monitoring) Measurement of disconnector transaction time and energy Both local and remote disconnector control Switchgear motor protection LEDs for disconnector and grounding status Full support for IEC-101 and IEC-104 protocols External heater control

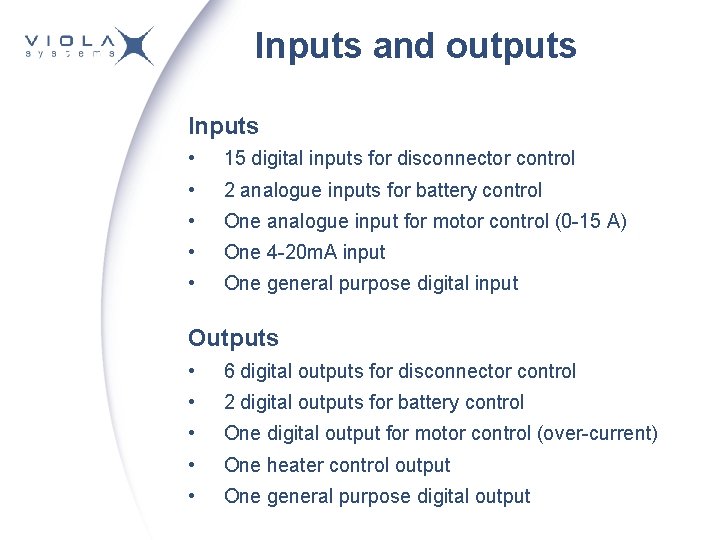

Inputs and outputs Inputs • 15 digital inputs for disconnector control • 2 analogue

Inputs and outputs Inputs • 15 digital inputs for disconnector control • 2 analogue inputs for battery control • One analogue input for motor control (0 -15 A) • One 4 -20 m. A input • One general purpose digital input Outputs • 6 digital outputs for disconnector control • 2 digital outputs for battery control • One digital output for motor control (over-current) • One heater control output • One general purpose digital output

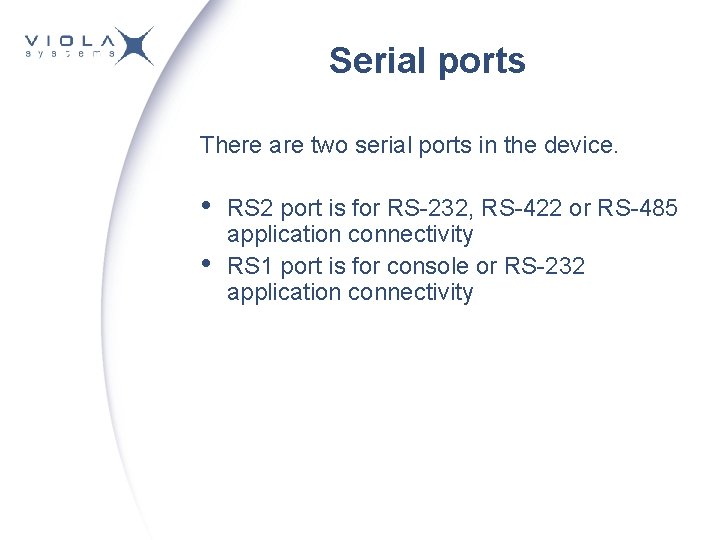

Serial ports There are two serial ports in the device. • • RS 2

Serial ports There are two serial ports in the device. • • RS 2 port is for RS-232, RS-422 or RS-485 application connectivity RS 1 port is for console or RS-232 application connectivity

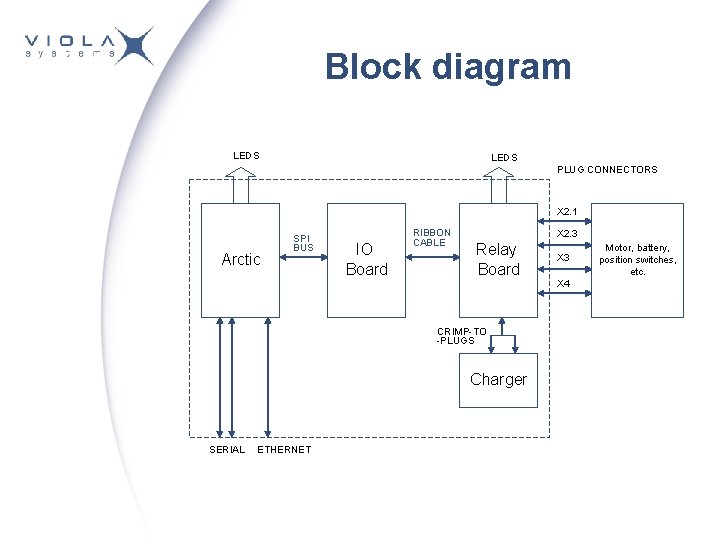

Block diagram LEDS PLUG CONNECTORS X 2. 1 Arctic SPI BUS IO Board RIBBON

Block diagram LEDS PLUG CONNECTORS X 2. 1 Arctic SPI BUS IO Board RIBBON CABLE X 2. 3 Relay Board CRIMP-TO -PLUGS Charger SERIAL ETHERNET X 3 X 4 Motor, battery, position switches, etc.

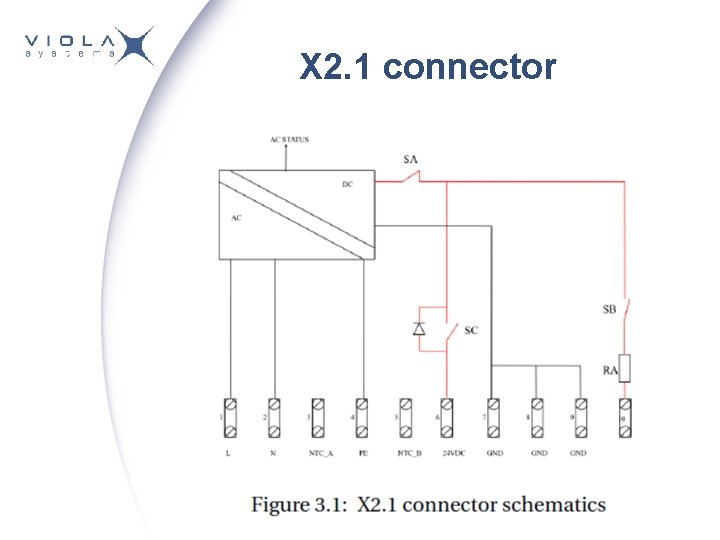

X 2. 1 connector

X 2. 1 connector

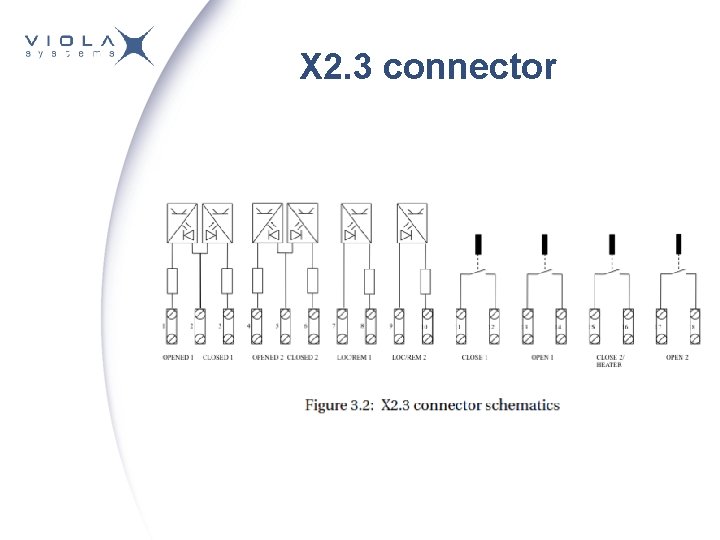

X 2. 3 connector

X 2. 3 connector

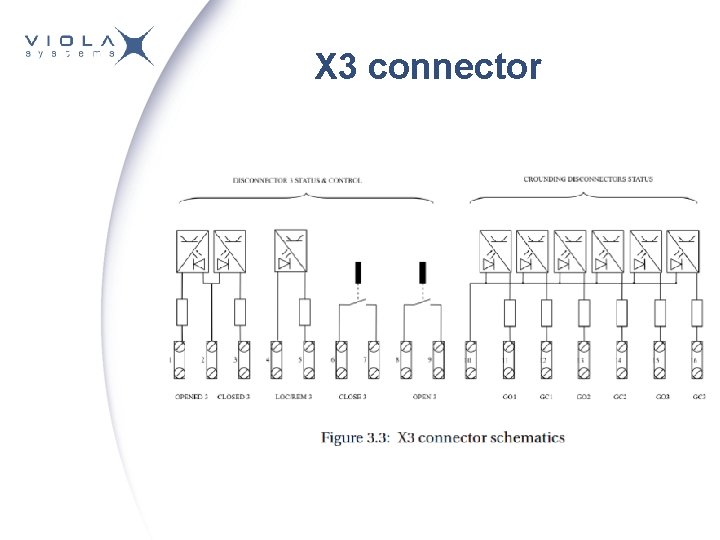

X 3 connector

X 3 connector

X 4 connector

X 4 connector

Technical specifications Processor 32 -bit RISC processor Memory 32 MB Mass memory 8 MB

Technical specifications Processor 32 -bit RISC processor Memory 32 MB Mass memory 8 MB flash Input voltage 90. . . 264 VAC or 85. . . 200 VDC 20. . . 30 VDC (external battery) Power consumption 10 W typical (when not charging battery) Casing Aluminium sheet Operating temperature -20. . . +55 C without external heater -40. . . +55 C with external heater Storage temperature -40. . . +70 C Humidity 5. . . 85 % non-condensing Ethernet connection 10/100 Mbits/s Approvals CE Size 175 x 108 x 160 mm (without DIN rail clips) Weight 1. 0 kg Protection class IP 20
