Arctic Boreal Vulnerability Experiment (ABo. VE) 2019 ABo. VE Airborne Flights 6 July 2019 (DOY 187) AVIRIS-NG: Ivotuk – Barrow – Atqasuk Charles Miller, Deputy Science Lead Jet Propulsion Laboratory, California Institute of Technology and the ABo. VE Science Team For Hank Margolis, Mike Falkowski, Bruce Tagg, Jack Kaye NASA HQ 2019
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk Daily Status: • AVIRIS-NG / Dynamic Aviation B-200 (N 53 W) • REPORT DATE: 6 July 2019 • Current Status of Aircraft: GREEN • Current Status of AVIRIS: GREEN • Current Deployment Location: Fairbanks AK (PAFA) • Crew: S Wilson (PIC), C Mc. Cann, M Eastwood, L Rios • Science Planning: A Thorpe • Data Processing: W Olsen-Duvall • Instrument Manager: M Eastwood • Instrument PI: R Green • Science Lead: C Miller
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk Daily Summary: • Mostly clear with some high cirrus • Coastal fog and low clouds absent • NEON AOP also operating at Barrow today • Best Barrow area data yet recorded by ABo. VE
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk Vis 1957 Z IR 1957 Z

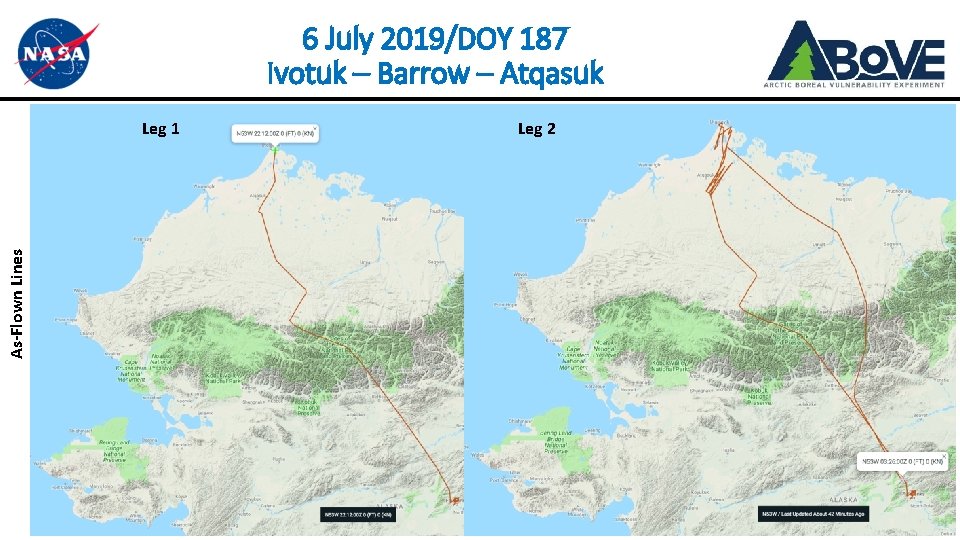

6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk As-Flown Lines Leg 1 Leg 2
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk Barrow - Atqasuk Area Planned Flight Lines Barrow - Atqasuk Area As-Flown Lines
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190706 t A. Line AB_CH 4_L 002_FL 072 , ang 20190706 t 191924_geo : Fairbanks area; Big Trail Lake B. Line AB_CH 4_L 002_FL 072 , ang 20190706 t 192454_geo : Fairbanks area; Big Trail Lake A B A. 2 km altitude sampling B. Repeat
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190706 t A. Line AB_CH 4_L 001_FL 183 , ang 20190706 t 193356_geo : Goldstream Valley/Fairbanks area; Big Trail Lake B. Line AVng_357 A-357 Z_FL 189 , ang 20190706 t 210739_geo : Ivotuk A B A. Normal 6 km altitude sampling B. Ivotuk airstrip seen at end of swath
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190706 t A. Line AVng_391 A-391 Z_FL 177 , ang 20190706 t 213057_geo : Atqasuk area B. Line Atqasuk_L 005_FL 176 , ang 20190706 t 214402_geo : Atqasuk grid A B A. Greening observed; aquamarine colored lake in middle of scan B. Mix of greening and areas still saturated and brown – window beginning to fog according to flight log
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190706 t A. Line Sukok. Lake_L 001_FL 175 , ang 20190706 t 233606_geo : Sukok Lake B. Line Pipe. Lake_L 002_FL 175 , ang 20190706 t 233851_geo : Pipeline Lake A B A. Active lake biology B. Differing lake productivity
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190706 t A. Line Barrow_L 001_FL 175 , ang 20190706 t 234547_geo : Barrow grid B. Line Barrow_L 002_FL 175 , ang 20190706 t 235120_geo : Barrow grid A B A. Barrow airport seen on left hand edge B. Arctic Ocean, Barrow infrastructure – best ABo. VE imagery of Barrow area
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190707 t A. Line Barrow_L 004_FL 175 , ang 20190707 t 000208_geo : Barrow grid B. Line Pipe. Lake_L 001_FL 175 , ang 20190707 t 000910_geo : Pipeline Lake A B A. Amazing imagery of Admiralty Bay B. Brilliant imagery
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190707 t A. Line Sukok. Lake_L 002_FL 175 , ang 20190707 t 001434_geo : Sukok Lake B. Line AVng_393 A-393 Z_FL 175 , ang 20190707 t 002307_geo : Transect A B A. Ice still observed attached to lakeshore B. Transect: Arctic ocean towards Atqasuk area
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190707 t A. Line AVng_384 A-384 Z_FL 175 , ang 20190707 t 002939_geo : Atqasuk B. Line Atqasuk_L 001_FL 176 , ang 20190707 t 003638_geo: Atqasuk grid A B A. Atqasuk village seen at left hand edge of image B. Many, varied lakes in Atqasuk area
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190707 t A. Line Atqasuk_L 002_FL 176 , ang 20190707 t 004725_geo : Atqasuk grid B. Line Atqasuk_L 003_FL 176 , ang 20190707 t 005706_geo : Atqasuk grid A B A. Many, varied lakes in Atqasuk area B. Many, varied lakes in Atqasuk area
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190707 t A. Line Atqasuk_L 004_FL 176 , ang 20190707 t 010559_geo : Atqasuk grid B. Line Atqasuk_L 005_FL 176 , ang 20190707 t 011602_geo : Atqasuk grid A B A. Many, varied lakes in Atqasuk area B. Many, varied lakes in Atqasuk area
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190707 t A. Line AVng_392 A-392 Z_FL 175 , ang 20190707 t 013009_geo : Lake Tusikovak, long transect SE of Barrow A B A. CALM site and large lake
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190707 t A. Line Avng_383 A-383 B_FL 179 , ang 20190707 t 020232_geo : Anauktuvuk River Fire Scar, long transect part 1 B. Line AVng_383 B-383 Z_FL 187 , ang 20190707 t 021158_geo : Anauktuvuk River Fire Scar long transect part 2 A B A. Looking for disturbance B. Many, varied lakes in Atqasuk area
6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk AVIRIS-NG Quick-look products https: //avirisng. jpl. nasa. gov/cgi/flights. cgi? step=view_flightlog&flight_id=ang 20190707 t A. Line AVng_335 D-335 Z_FL 190 , ang 20190707 t 023526_geo : Coldfoot-Wiseman B. Line AB_CH 4_L 002_FL 072 , ang 20190707 t 032100_geo : Fairbanks area; Big Trail Lake A B A. Some cloud interference B. Low altitude, high spatial resolution – compare to image from beginning of the day

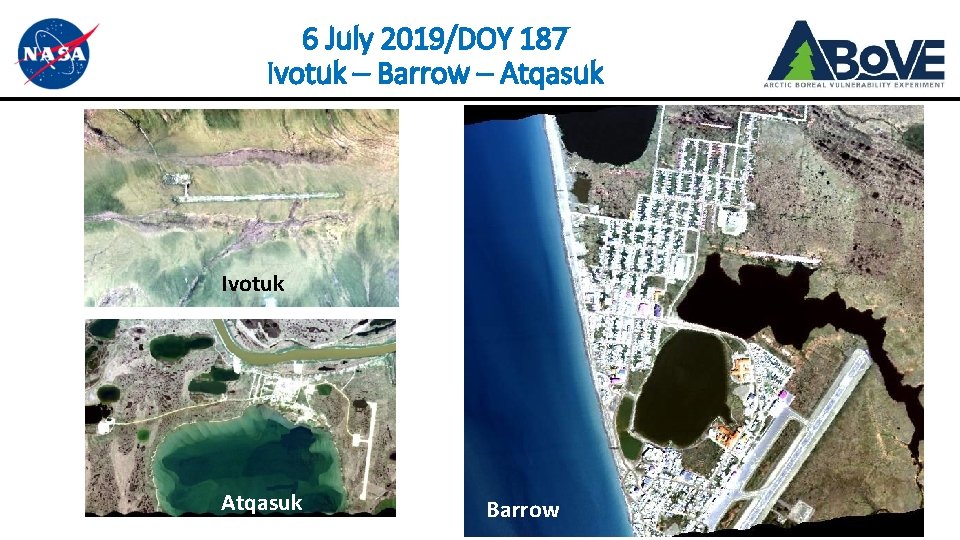

6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk Ivotuk Atqasuk Barrow
Backup
FAA Camera Locations
Barrow – 1330 AKDT/2130 UTC 6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk Northeast East Southwest South
Atqasuk – 1330 AKDT/2130 UTC 6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk North East Southwest South
Wainwright – 1330 AKDT/2130 UTC 6 July 2019/DOY 187 Ivotuk – Barrow – Atqasuk East Southwest Southeast South
