Arcs Sectors Higher GCSE Questions AQA These questions

Arcs & Sectors – Higher – GCSE Questions – AQA These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in 2 sizes.

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

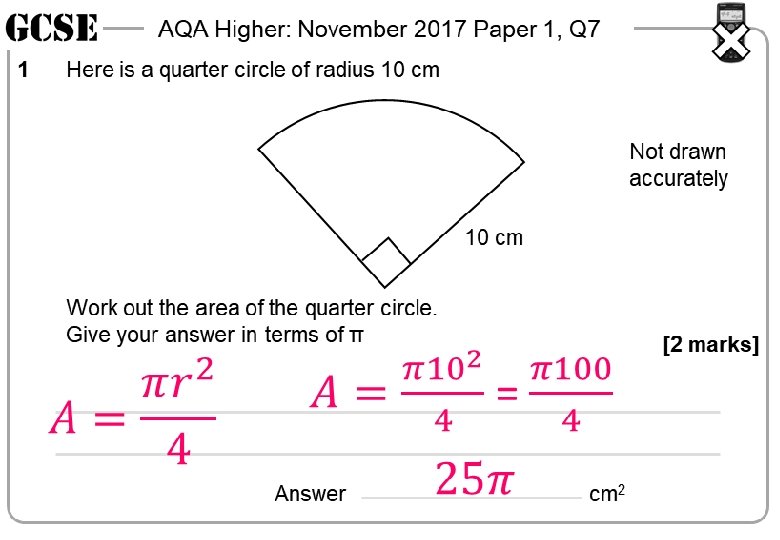

AQA Higher: November 2017 Paper 1, Q 7 1 AQA Higher: November 2017 Paper 1, Q 7 Here is a quarter circle of radius 10 cm 1 Here is a quarter circle of radius 10 cm Not drawn accurately 10 cm Work out the area of the quarter circle. Give your answer in terms of π [2 marks] Answer cm 2 Answer AQA Higher: November 2017 Paper 1, Q 7 1 [2 marks] cm 2 AQA Higher: November 2017 Paper 1, Q 7 Here is a quarter circle of radius 10 cm 1 Here is a quarter circle of radius 10 cm Not drawn accurately 10 cm Work out the area of the quarter circle. Give your answer in terms of π Answer [2 marks] cm 2

AQA Higher: November 2017 Paper 2, Q 22 1 AQA Higher: November 2017 Paper 2, Q 22 A logo is a semicircle, centre C, radius 11 mm The logo is black and white. The shaded area is black. 4 mm 1 A logo is a semicircle, centre C, radius 11 mm The logo is black and white. The shaded area is black. Not drawn accurately 48° 4 mm 48° C C 22 mm Is more than 10% of the semicircle white? You must show your working. Answer Not drawn accurately [5 marks] Is more than 10% of the semicircle white? You must show your working. Answer [5 marks]

AQA Higher: November 2017 Paper 2, Q 22 1 A logo is a semicircle, centre C, radius 11 mm The logo is black and white. The shaded area is black. 4 mm Not drawn accurately 48° C 22 mm Is more than 10% of the semicircle white? You must show your working. Answer [5 marks]

AQA Higher: November 2017 Paper 2, Q 22 1 A logo is a semicircle, centre C, radius 25 mm The logo is black and white. The shaded area is black. Not drawn accurately 4 mm 7 mm 48° C 22 mm 11 mm Is more than 10% of the semicircle white? You must show your working. Answer Yes [5 marks]

Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
