Arcs, Chords and Tangents (G. 11 c/2. 1, 12. 2) Obj: SWBAT find the lengths of chords, arc measures and tangent lines. (G. 11 a, b) WU: checkpoint G. 5 graded!!! **hw/hw log/foldable: “Arcs & Chords” and “Tangents” storybook: “Secants/Tangents/Chords in Circles” Regular- workbook p. 311 and 315 HW (day 56): Worksheet day 58 Self Evaluation Pkt (pages 1 -6) Pearsonsuccess. net (due Friday)
Obj �Check hw answers with key, after completing G. 9 �Answer hw questions �Give answers to 3 NW TEI/Sol packet �New lesson �Quiz day 57

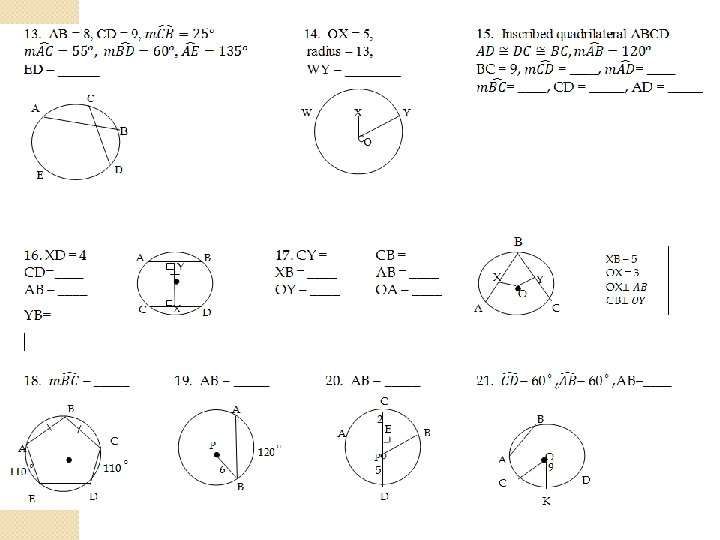

Thm: In a circle or in congruent circles, two chords are congruent iff their corresponding chords are congruent. Ex: In � A, if ___, then ___.
Thm: In a circle, if a diameter is perpendicular to a chord, then it bisects the chord and its arc.
Thm: In a circle or in congruent circles, two chords are congruent iff they are equidistant from the center.

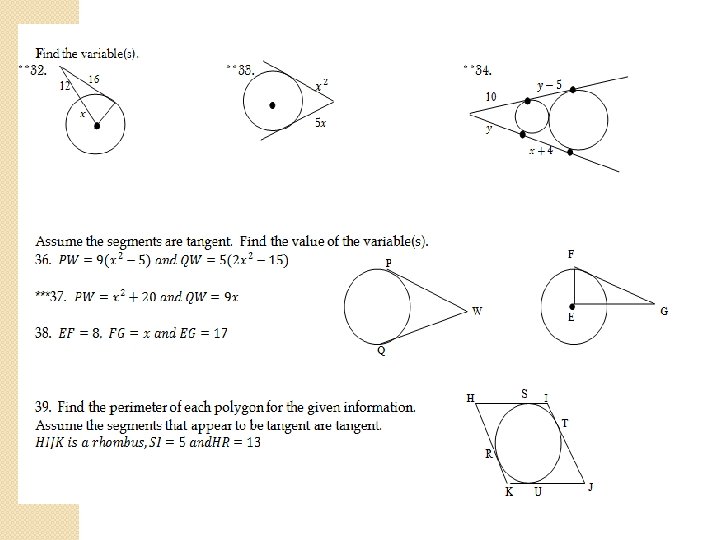

Tangent Line- a line that intersects a �in one point (pt of tangency) Thm: If a line is tangent to a � , then it is perpendicular to its radius. …. . is the converse true? ? Thm: If two segments form the same exterior pt are tangent, then they are then they .

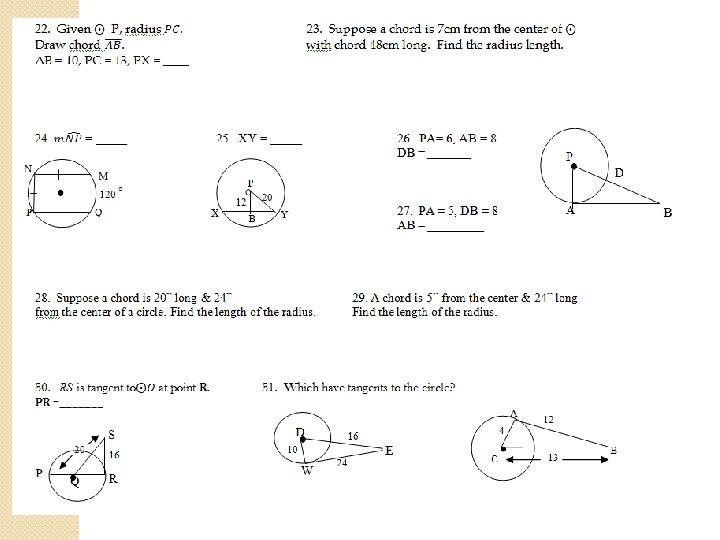

Find x. 1. 2. Suppose a chord of a circle is 10 inches long and is 12 inches from the center of the circle. Find the length of the diameter. 3. Suppose the diameter of a circle is 34 inches long and a chord is 30 inches long. Find the distance between the chord and the center of the circle. 4. Suppose a chord of a circle is 24 cm long and is 15 cm from the center of the circle. Find the length of the radius.
