Archiwizacja danych - przykłady Rozwiązania sprzętowe
ATL Company Biblioteka ATL 7100 DLT Reliable Libraries for the Open Enterprise
Przykładowe cechy 7100 z 2 to 7 DLT 4000, 7000 or 8000 drives z 68 to 100 cartridge capacity Window and light for z 2/68, 4/68, 7/68, 2/100, 4/100 and viewinginside robotic activity 7/100 configurations z Backup/restore up to 151 GB/hr native z 1. 36 TB to 4 TB native capacity User friendly control panel with fivez Intelli. Grip precision cartridge language LCD handling system z Industry standard bar code reader z Side doors for bulk loading z Load port for loading/unloading 1 Fibre Channel Ready 4 tape cartridges z Advanced cooling system z Fibre Channel Ready 4 TB in only six square feet of floor space Load and unload up to four tapes while the library is operating Door for easy servicing and upgrading DLT drives
Cechy świadczące o wysokiej niezawodności Linear bearings for less wear Welded Unibody frame prevents misalignment from shock and vibration 2 x 106 przeładowań ATL Specified DLT drives are 200% more reliable than manufacturers specifications Intelli. Grip robotic system places cartridges directly into drives without contact surfaces, reducing cartridge wear

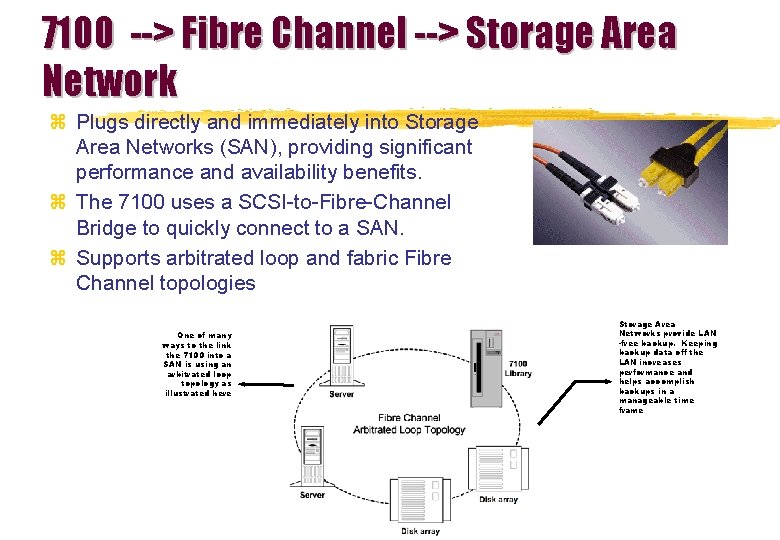

7100 --> Fibre Channel --> Storage Area Network z Plugs directly and immediately into Storage Area Networks (SAN), providing significant performance and availability benefits. z The 7100 uses a SCSI-to-Fibre-Channel Bridge to quickly connect to a SAN. z Supports arbitrated loop and fabric Fibre Channel topologies One of many ways to the link the 7100 into a SAN is using an arbitrated loop topology as illustrated here Storage Area Networks provide LAN -free backup. Keeping backup data off the LAN increases performance and helps accomplish backups in a manageable time frame
Zarządzanie SAN http: //www. atlp. com/san. htm
Dzielenie zasobów -- PL 50 Library Sharing z Accommodates heterogeneous servers z Reduces system cost when individual libraries are required for each OS technology z Performance solution for slow network backup This powerful GUI is the brains behind the PL 50 The PL 50 is powered by an Intel Workstation Easy to read 15 inch monitor included Keyboard and mouse included
Modele 7100 -- skalowalność i wydajność z Capacities ranging from 1. 36 TB to 4 TB z Native performance ranging from 11 GB/hour up to 151 GB/hour z Up to 1. 2 TB in an 8 hour backup window
Zarządzanie z pomocą przeglądarki Web. Admin z Remotely monitor library via standard browser z Point and click administration z View complete event log of library history z Alerts to Sys Admin via e-mail/paging z View drive and robot status y Error logs y Suggests corrective action y Device activity record
Obsługa Side panel door provides easy access for servicing and upgrading to future drive technology Load and unload up to four cartridges without interrupting library operations Operate from a user friendly control panel Modular drive carrier makes changing drives a snap
Chłodzenie Reliability is greatly enhanced with innovative cooling system that uniquely keeps DLTtape drives running 10 degrees below manufacturer’s spec.
Podsumowanie 7100 The choice for reliable storage in the open enterprise z Absolute reliability z Fibre Channel Connectivity z Library Sharing / Partitioning z Plug & play z 4 terabytes in six square ft. z Web remote GUI z Wide software compatibility z 1 -year on-site warranty
Linia bibliotek ATL z Library and service solutions z Desktop to datacenter z Best-of-breed technology and reliability L 200 280 GB* L 500 490 GB P 1000 1 TB 7100 3. 5 TB *capacity based on native DLT 7000 tape technology P 3000 11. 4 TB
Biblioteka ATL P 6000 • Trouble free backup within your backup window with multiple high performance DLTtape drives • None disruptive service with advanced features such as hot-swap drives, redundant hot swap fans and power and highly reliable robotics • Plug and play into a Storage Area Network with embedded PCI based Fibre channel bridges • Upgrade path to future drive technology for investment protection and increased performance High Availability (HA) DLTtape Library with FC interface
High Availability -- Podobieństwo do RAS i RAID z Reliable Intelli. Grip precision cartridge handling system z Redundant, Hot Swap, User Replaceable Modules y DLT drives y Power Supplies y Fans z Advanced cooling system z Shock absorbing casters z Unibody frame Hot-Swap, Hot-Plug Components
Cechy P 6000 : z Easy to Buy: Turn-key library solution includes library, service and admin software. Future: in the box server, networking and backup software z Easy to Use: Anyone can operate with touch screen z Easy to Service: User replaceable components bring RAID-like serviceability to the P 6000 Anyone can operate a P 6000
Prism Architecture z scalability, serviceability and performance to the P 6000 z Off-the-shelf host, network and channel adapters z PCI open architecture z Pluggable cards are easy to service and upgrade Prism accepts off-theshelf host, network and channel PCI adapters
P 6000 <---> SAN z Plugs directly and immediately into Storage Area Networks (SAN), providing significant performance and availability benefits. z The P 6000 uses Prism technology coupled with an internal SCSI-to-Fibre-Channel Bridge to quickly connect to a SAN. z Connects to arbitrated loop or switched fabric topologies One of many ways to link the P 6000 into a SAN is using an arbitrated loop topology as illustrated here Storage Area Networks provide LAN -free backup. Keeping backup data off the LAN increases performance and helps accomplish backups in a manageable time frame
Elementy podejscia zintegrowanego -- PRISM Traditional Library Products Automation Vs. Prism Library Architecture Externally Based Functions Fibre Channel Interface Network Interface Library Sharing Automation Monitor & Svc Volume Mgt Drive Mgt Prism lowers costs, is easier to operate, install and service File Mgt Interface Integrated Functionality
Prism -- cd.
P 6000 -- biblioteka korporacyjna z 652 cartridges y 23 TBs (DLT 7 K) z up to 32 drives y 576 GB/hr. (DLT 7 K) z High availability options y hot swap drives y redundant hot swap power supplies y redundant hot swap fans z Native Fibre z Scalability z Operator Ease-of-use P 6000 Hot Swap Components
Skalowalność P 6000 z Capacities ranging from 22. 4 TB to 57 TB* z Native performance ranging from 144 GB/hour up to 576 GB/hour* z The ATL P 6000 series supports a broad range of storage and high-performance requirements. * Native capacity and performance assumes DLT 7000 tape drives
Zarządzanie z pomocą przeglądarki z Touch screen with familiar browser interface z Easy management of the library z All service diagnostics from operator panel z Operator can easily diagnose problems z Multi-level security with password protection Complete library management from a friendly user interface
Podsumowanie P 6000 High Availability (HA) Library z Fibre Channel connectivity z Redundant, cable-less, hotswap, hot-plug components z Massive performance and capacity z Prism Library Architecture for PCI expansion z Browser-based administration for ease-ofuse z It all adds up to low total cost of ownership
Zarządzanie zbiorami Backup Archiwizacja HSM
Backup Dane są najcenniejszą rzeczą w działalności naukowej, przemysłowej i komercyjnej
Backup - po co ? Po co nam narzędzia do zarządzania backupem Utrata danych = straty finansowe • 94% firm, które utracily dane, doświadczylo poważnych kłopotów, z tego: . * Objętość Złożoność • 43% zaprzestało jakiejkolwiek działalności biznesowej!* Czas • 51% próbowało działać dalej, ale musiały zrezygnować po najwyżej 2 latach od awarii. * *Źrodło: University of Texas, Ontrack Data Int. Inc. , IDC and Infratest 6 -7/99 27
HP Omni. Back II -jako przykład systemu Ciągłość pracy Skalowalność Zapewnia ciągły dostęp do aplikacji/danych/plików Rośnie wraz z potrzebami użytkownika Maksymalna wydajność Skraca czas backupu oraz odtworzenia danych po awarii Zarządzanie usługami IT Monitoruje jakość i koszt usług IT Automatyzacja Redukuje obciążenie administratorów, odporny na awarie sprzętu
Skalowalność • Wsparcie dla Storage Area Network • Architektura modułowa • Dowolność w wyborze miejsca backupu • Centralne zarządzanie • Dostosowalny do potrzeb organizacji
Wydajność • SAN backup poprzez Fibre Channel • Współdzielenie bibliotek i dysków • Kompresja danych LAN • Multiplexing • Load balancing HP-UX Server Cluster FC Bridge SAN Robotic Control Tape Library
Zarządzanie usługami IT z Proaktywne planowanie /monitorowanie realizacji pracy z Integracja z HP Open. View z Zarządzanie jakościa i kosztami IT z Planowanie zmian 140 Za 4 miesiące zostanie przekroczona pojemność biblioteki DLT! 120 100 80 60 40 IT/Operations Manage. X 10 /7 9/ 7/ 97 0 /9 11 7 /7 /9 12 7 /7 /9 7 1/ 7/ 98 2/ 7/ 98 3/ 7/ 98 4/ 7/ 98 5/ 7/ 98 6/ 7/ 98 7/ 7/ 98 8/ 7/ 98 Za 6 miesięcy zostanie przekroczony maksymalny czas dostępny dla backupu! 20
Scheduling Automatyzacja • Zaawansowany scheduling w strukturze rozproszonej • Skalowalność i jednorodność • Raportowanie WWW • Odporność na błędy • Rozbudowane możliwości alarmowania • Backup otwartych plików* • Integracja z innymi narzędziami HP Open. View • Zaawansowane zarządzanie mediami centralne lub lokalne Centrala WAN Zdalne oddzialy O WAN LAN
Omniback II <--> SAP R/3 ochrona danych online • Wysoka dostępność SAP R/3 Application Server • Load balancing Users . . . LAN SAP R/3 Database Server + Omni. Back II Device Server Tape library • Równoległe odtwarzanie na wiele dysków • Zautomatyzowane zarządzanie mediami i bibliotekami minimalne zaangażowanie czasu administratora
Przykład 1 Współdzielenie biblioteki SCSI-II LAN Tape Library Net. Ware Server Data path (SCSI-II or FC) Control path (SCSI-II) UNIX Server NT/2000 Server • Redukcja kosztów sprzętu • Bezpośrednie połączenie SCSI-II • Brak wąskich gardeł w LAN • Maksymalna wydajność dzięki równoległemu backupowi z wielu dysków
Przykład 2 Środowisko klastrowe • Wsparcie dla Cluster Awareness LAN HP Sure. Store E Disk Array XP 256 Secondary HPUX Server Primary HP-UX Server Fibre Channel Bridge SCSI Library klastrów • Awaria systemu: Backup jest kontynuowany od punktu awarii • Odtworzenie systemu: Zawsze możliwe! • Backup online
Przykład 3 Storage Area Network Backup (SAN) • Odciążenie LAN z ruchu związanego z backupem LAN HP-UX Server Cluster FC Bridge SAN Robotic Control Tape Library • Wysoka wydajność • Współdzielenie urządzeń pomiędzy różnymi serwerami • Wykorzystanie istniejacych technologii
Przykład 4 Zero Impact Backup Admin Control • Wysoka dostepność LAN – Maksymalnie skrócony czas przestoju aplikacji Source Mirror DB Server • Integracja z HP Sure. Store E* Tape Library Disk Array Omni. Back II Server – Szybkie odtwarzanie – Możliwosc zabezpieczenia danych na wypadek kataklizmu
Zestaw elementów Systemy NT i UNIX: HP Net. Server, HP 9000 Server Urządzenia: HP Sure. Store E, Zarządzanie siecią, systemami, aplikacjami, pamięcia masową Zarządzanie backupami: HP Open. View Omni. Back II Usługi: Planowanie, Wdrożenia, Support
HP Open. View Omni. Back II 3. 1 Overview 3. Functional Extensions Single Server Edition (requires migration to the Starter Pack to use Extensions) of the Cell Manager Single Server Edition for NT, 2000 B 6955 AA B 7030 AA B 7031 AA - upgrade to B 6961 AA UNIX 1. Starter Packs On-line backup NT Manager-of-Managers (required once as initial starting points) B 6956 AA Cell Manager - Single Drive B 6966 AA HP-UX - B 6951 AA NT, 2000 - B 6961 AA NT, 2000 Libraries: • up to 60 slots per library: free • 61 to 250 slots: B 6957 AA B 6967 AA Cell Mgr. - Multi-Drive Server HP-UX - B 6952 AA NT, 2000 - B 6962 AA . . . UNIX • unlimited slots: B 6958 AA 2. Drive Extensions B 6953 AA B 6963 AA Single Drive UNIX B 6954 AA UNIX B 6965 AA . . . Multi-Drive Server UNIX NT, 2000, Net. Ware NEW B 6964 AA NT, 2000, Net. Ware . . . NT, 2000 B 6968 AA NT, 2000 Split Mirror HP Sure. Store E EMC - B 6959 AA
