Architectural Residential Drafting DT 1100 Scales Symbols Floor

Architectural (Residential) Drafting DT 1100 Scales, Symbols: Floor Plan, Materials in Section, and Door/Window Symbols

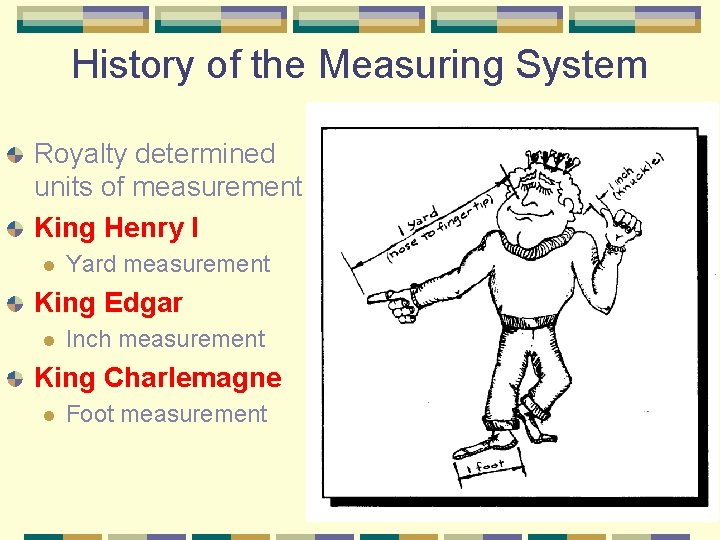

History of the Measuring System Royalty determined units of measurement King Henry I l Yard measurement King Edgar l Inch measurement King Charlemagne l Foot measurement

The Architectural Scale Measures Feet and Inches Two types or designs of scale divisions: Fully Divided l Openly Divided l

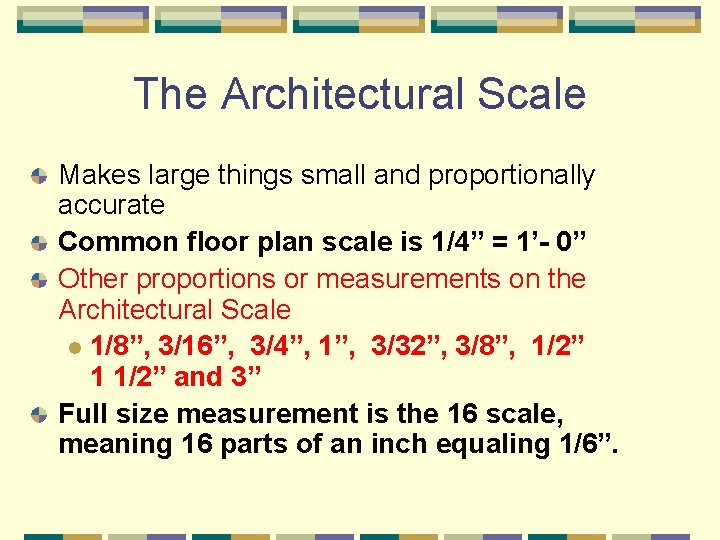

The Architectural Scale Makes large things small and proportionally accurate Common floor plan scale is 1/4” = 1’- 0” Other proportions or measurements on the Architectural Scale l 1/8”, 3/16”, 3/4”, 1”, 3/32”, 3/8”, 1/2” 1 1/2” and 3” Full size measurement is the 16 scale, meaning 16 parts of an inch equaling 1/6”.

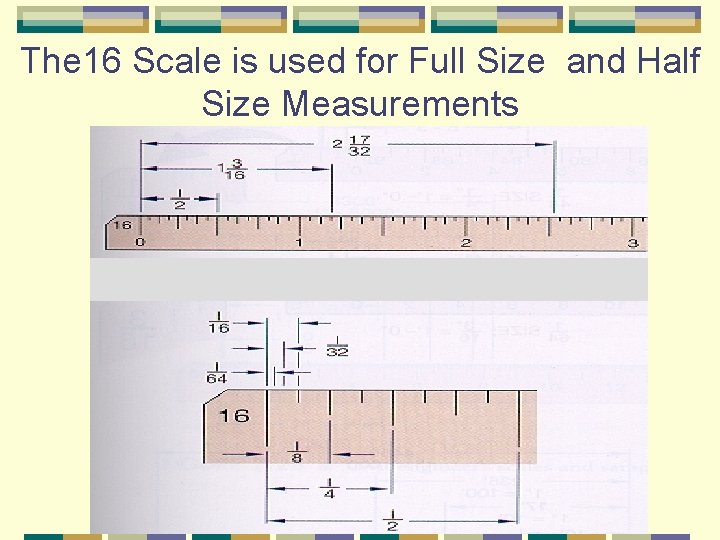

The 16 Scale is used for Full Size and Half Size Measurements

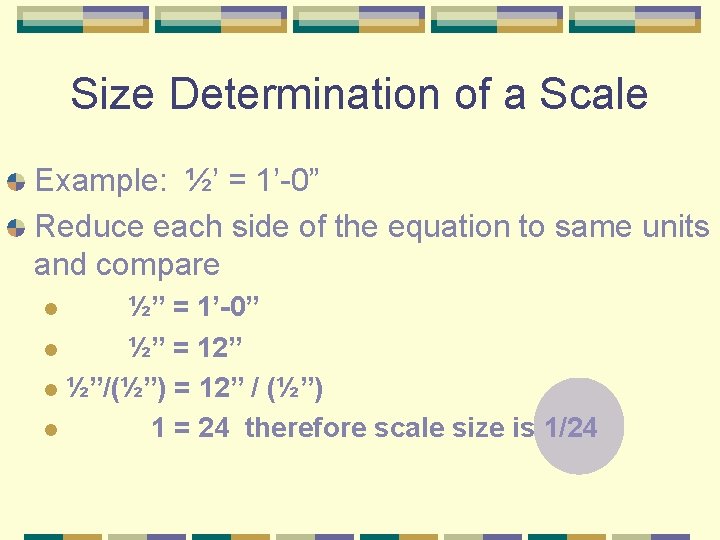

Size Determination of a Scale Example: ½’ = 1’-0” Reduce each side of the equation to same units and compare ½” = 1’-0” l ½” = 12” l ½”/(½”) = 12” / (½”) l 1 = 24 therefore scale size is 1/24 l

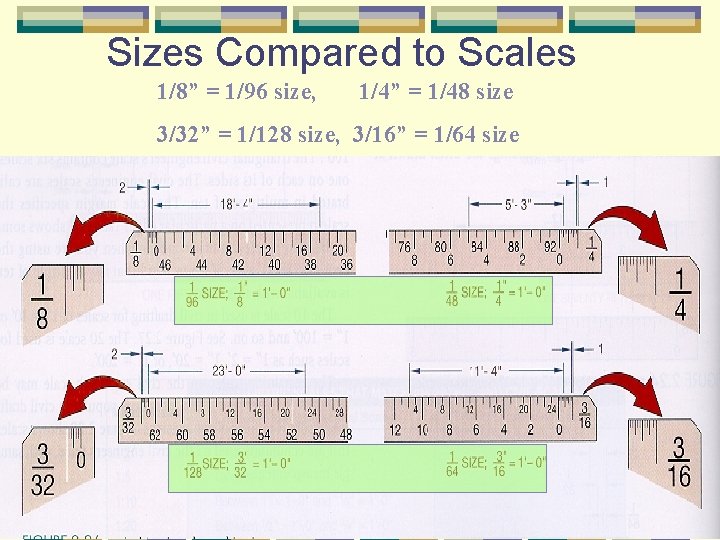

Sizes Compared to Scales 1/8” = 1/96 size, 1/4” = 1/48 size 3/32” = 1/128 size, 3/16” = 1/64 size

Writing the Actual Measurement 6’-7 1/2” Even feet no inches: 4’- 0” Feet and zero inches/fractions: 8’- 0 3/4” No feet only inches: 10” No feet only inches/fractions: 5 1/2” Only fractions of an inch: 3/4” Feet and Inch/fractions:

Architectural Symbols Architectural Materials in Section, Door and Window Symbols, and Floor Plan

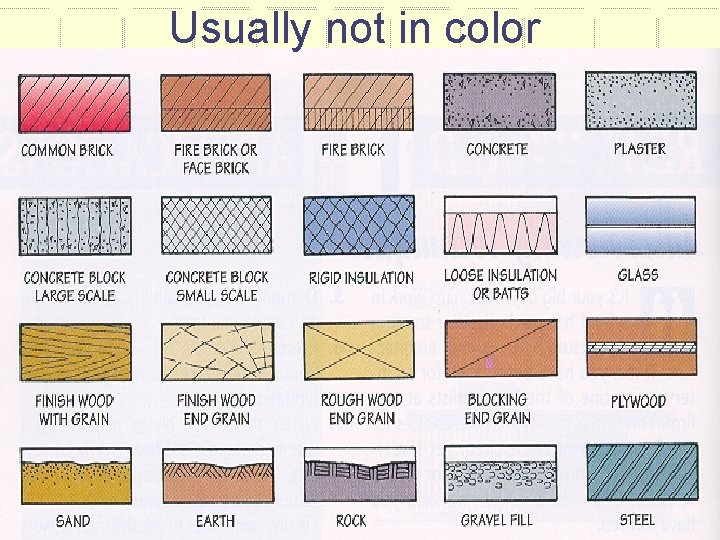

Usually not in color

Material Symbols in Section Used to represent construction material when sliced or cut by cutting plane The type of symbols used depends on the scale of the drawing Symbols may vary with each office. Common material symbols designations have been derived by: 1) Committee on Office Practice (AIA), 2)Task Force on Production Office Procedures North California Chapter AIA, 3)pamphlets, 4)manufacture literature, 5)textbooks, and 6)government agencies

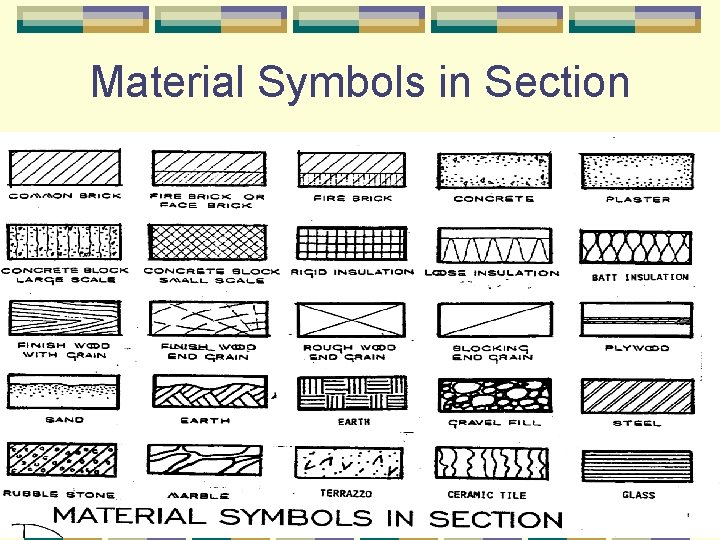

Material Symbols in Section

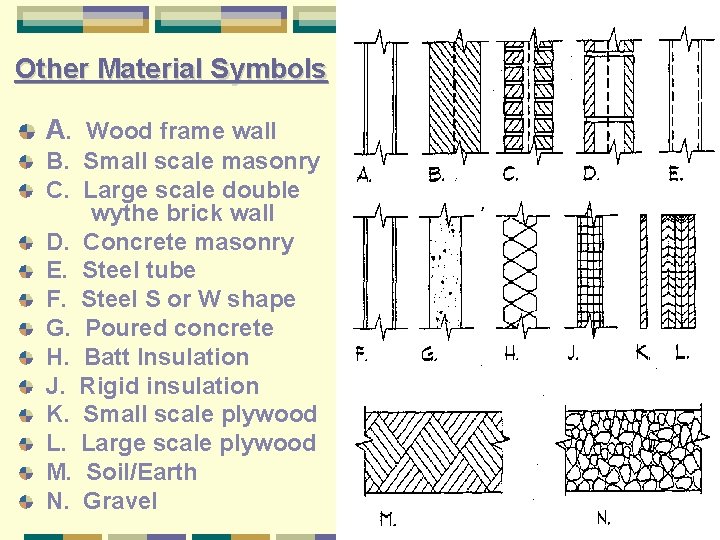

Other Material Symbols A. Wood frame wall B. Small scale masonry C. Large scale double wythe brick wall D. Concrete masonry E. Steel tube F. Steel S or W shape G. Poured concrete H. Batt Insulation J. Rigid insulation K. Small scale plywood L. Large scale plywood M. Soil/Earth N. Gravel

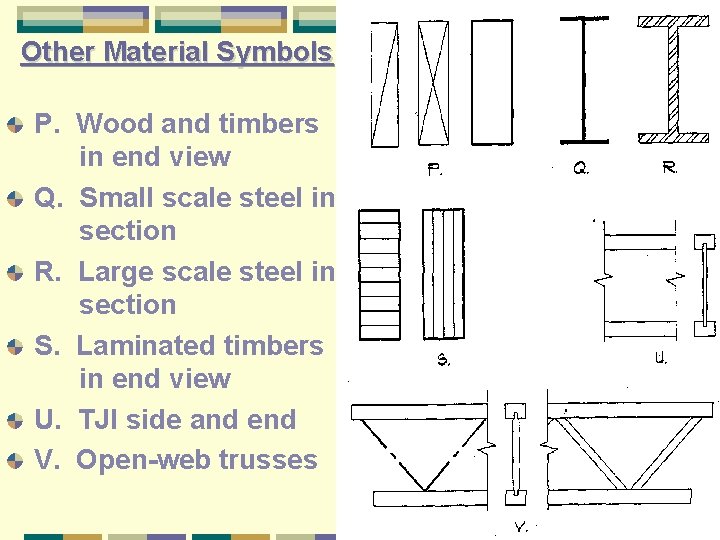

Other Material Symbols P. Wood and timbers in end view Q. Small scale steel in section R. Large scale steel in section S. Laminated timbers in end view U. TJI side and end V. Open-web trusses

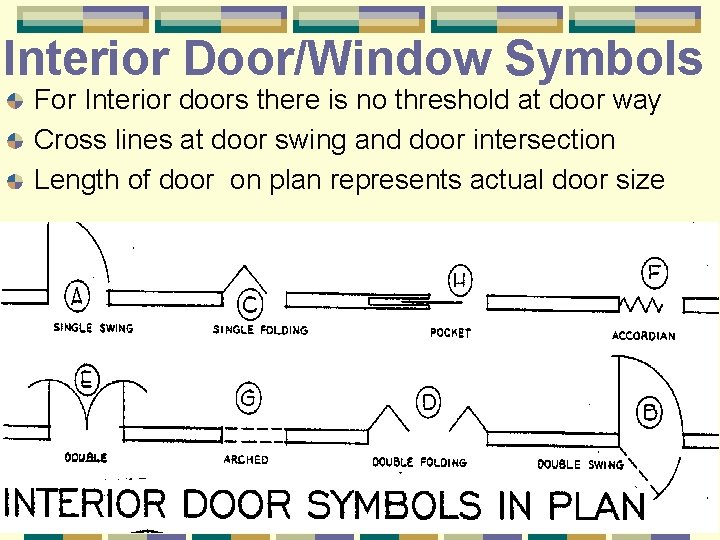

Interior Door/Window Symbols For Interior doors there is no threshold at door way Cross lines at door swing and door intersection Length of door on plan represents actual door size

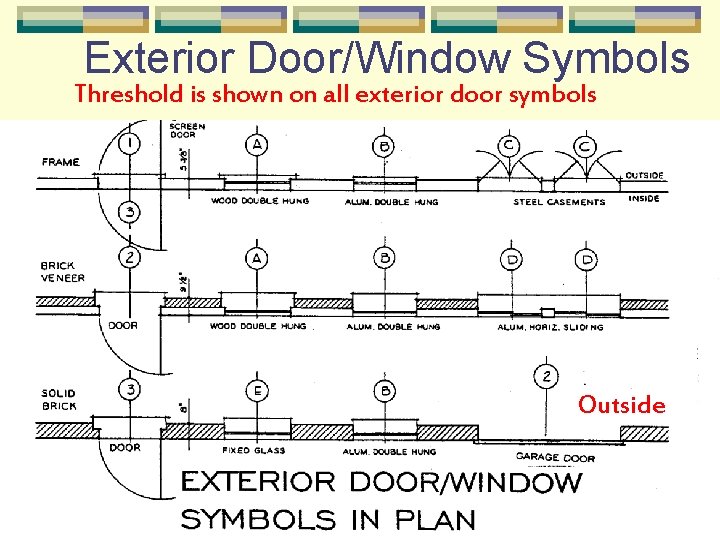

Exterior Door/Window Symbols Threshold is shown on all exterior door symbols Outside

Drawing the Door Symbol

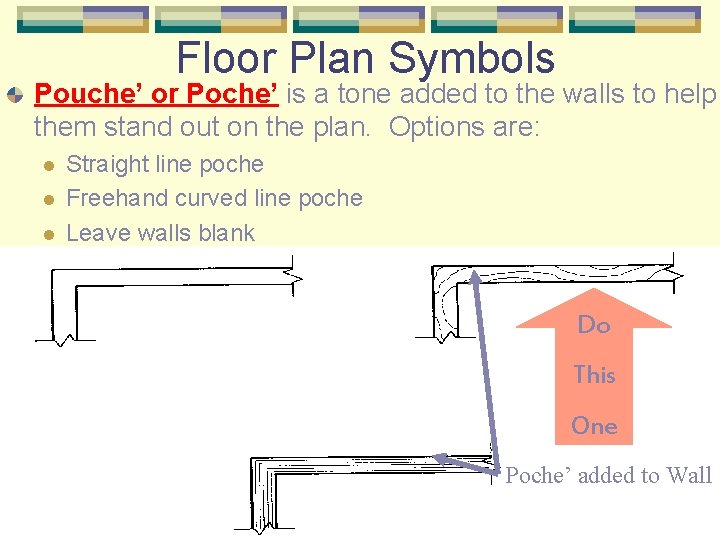

Floor Plan Symbols Pouche’ or Poche’ is a tone added to the walls to help them stand out on the plan. Options are: l l l Straight line poche Freehand curved line poche Leave walls blank Do This One Poche’ added to Wall

Floor Plan Symbols Profile line added to accent outside of wall Use. 9 mm pencil, usually done at the last so graphite will not smear Add Profile Line

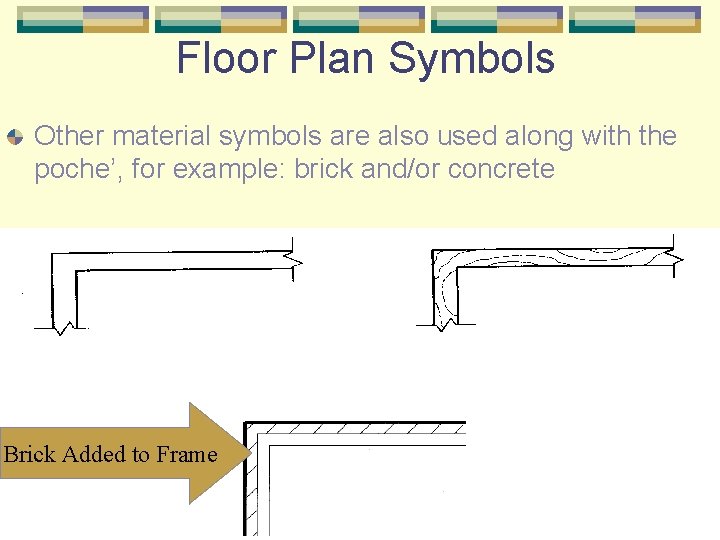

Floor Plan Symbols Other material symbols are also used along with the poche’, for example: brick and/or concrete Brick Added to Frame

Symbol Exercise Handout BATT (LARGE SCALE)

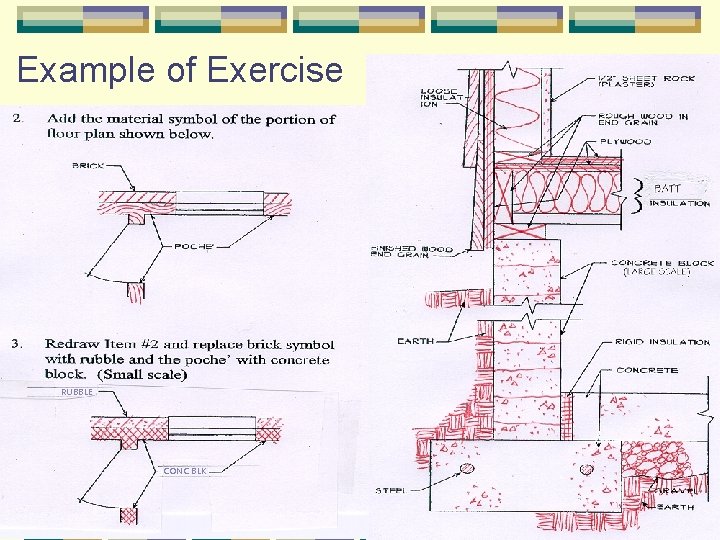

Example of Exercise RUBBLE CONC BLK

Lab Time to Work on Assignments
