Architectural Design based on Chapter 10 Software Engineering

Architectural Design based on Chapter 10 - Software Engineering: A Practitioner’s Approach, 6/e copyright © 1996, 2001, 2005 R. S. Pressman & Associates, Inc. For University Use Only May be reproduced ONLY for student use at the university level when used in conjunction with Software Engineering: A Practitioner's Approach. Any other reproduction or use is expressly prohibited. These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 1

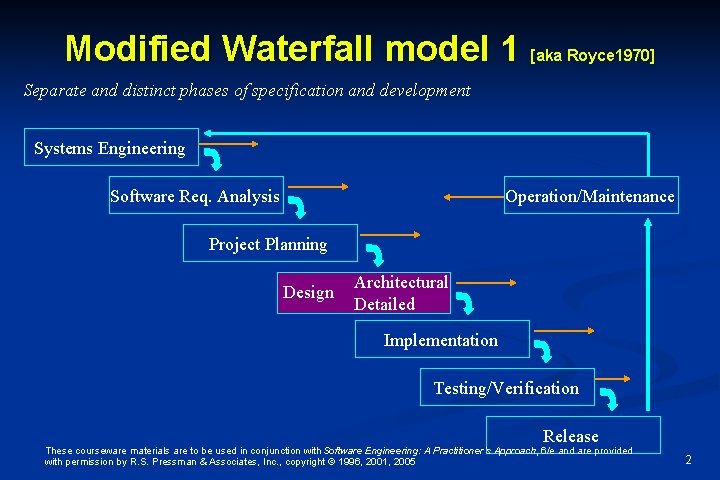

Modified Waterfall model 1 [aka Royce 1970] Separate and distinct phases of specification and development Systems Engineering Software Req. Analysis Operation/Maintenance Project Planning Design Architectural Detailed Implementation Testing/Verification Release These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 2

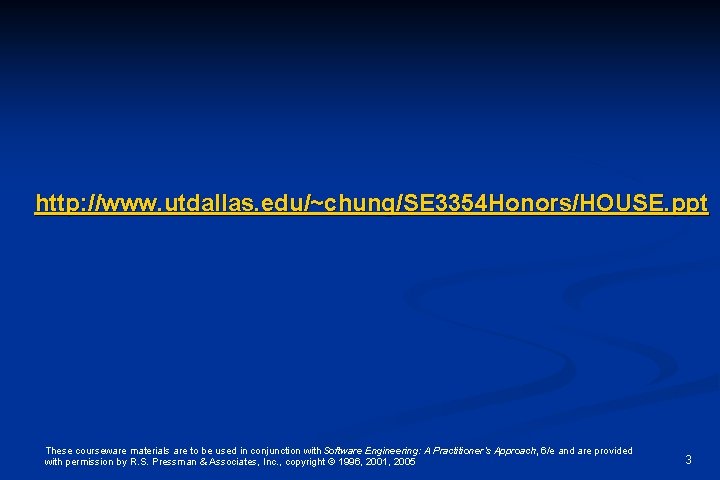

http: //www. utdallas. edu/~chung/SE 3354 Honors/HOUSE. ppt These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 3

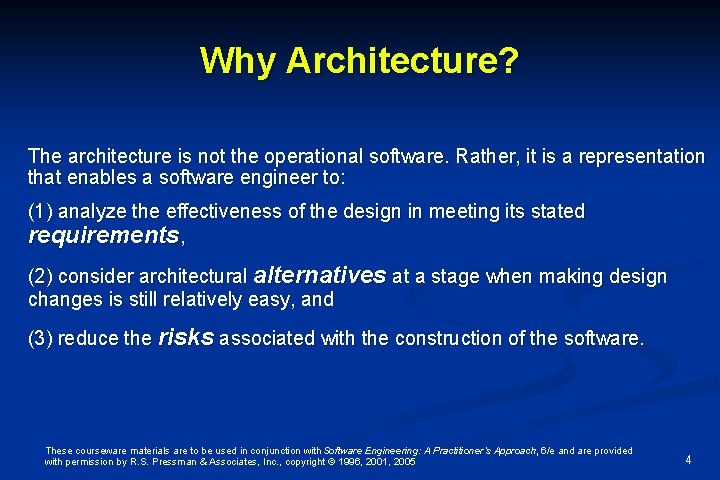

Why Architecture? The architecture is not the operational software. Rather, it is a representation that enables a software engineer to: (1) analyze the effectiveness of the design in meeting its stated requirements, (2) consider architectural alternatives at a stage when making design changes is still relatively easy, and (3) reduce the risks associated with the construction of the software. These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 4

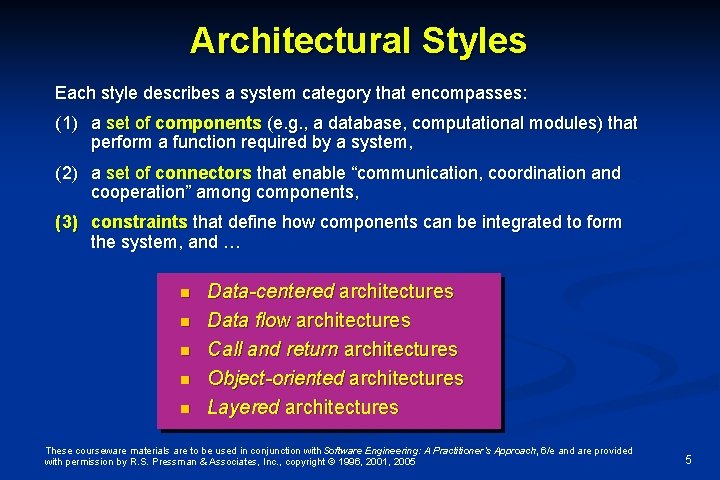

Architectural Styles Each style describes a system category that encompasses: (1) a set of components (e. g. , a database, computational modules) that perform a function required by a system, (2) a set of connectors that enable “communication, coordination and cooperation” among components, (3) constraints that define how components can be integrated to form the system, and … n n n Data-centered architectures Data flow architectures Call and return architectures Object-oriented architectures Layered architectures These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 5

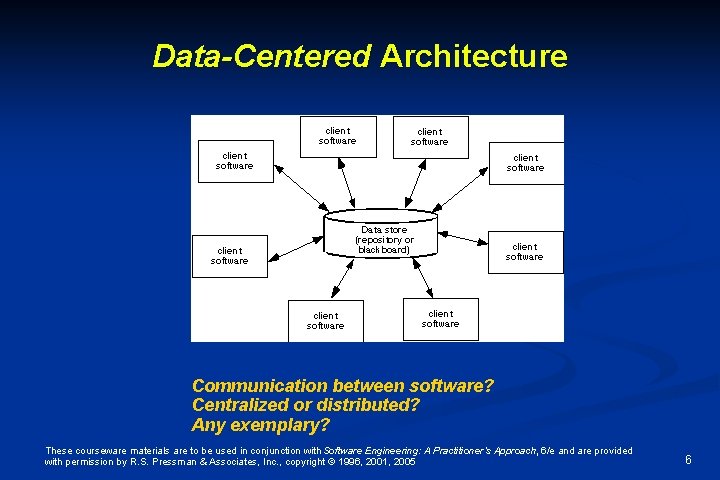

Data-Centered Architecture Communication between software? Centralized or distributed? Any exemplary? These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 6

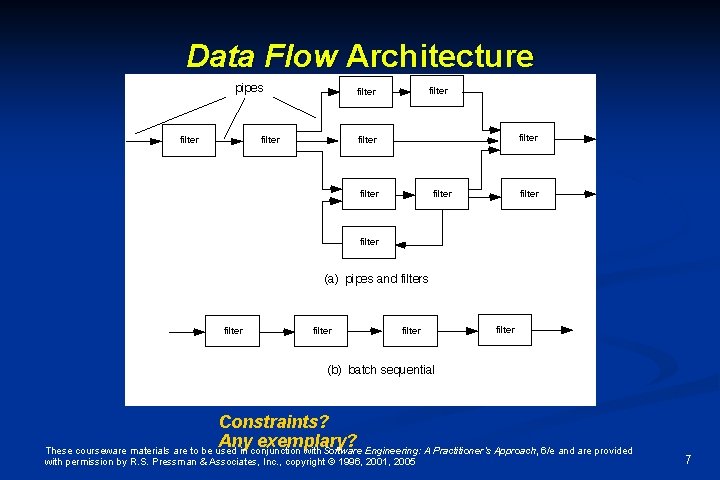

Data Flow Architecture Constraints? Any exemplary? These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 7

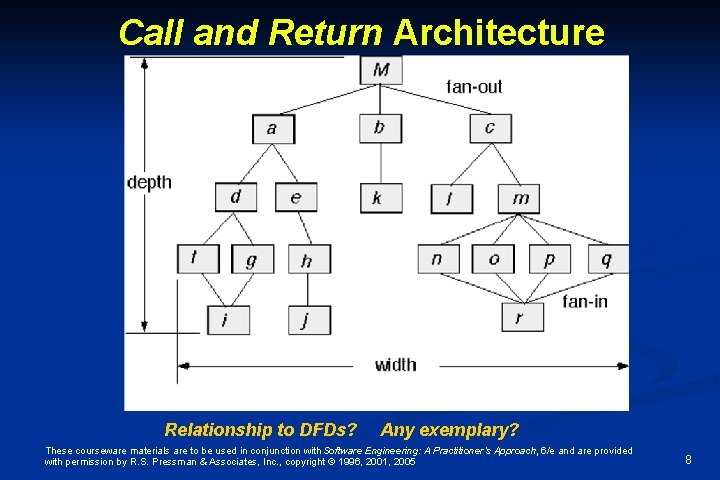

Call and Return Architecture Relationship to DFDs? Any exemplary? These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 8

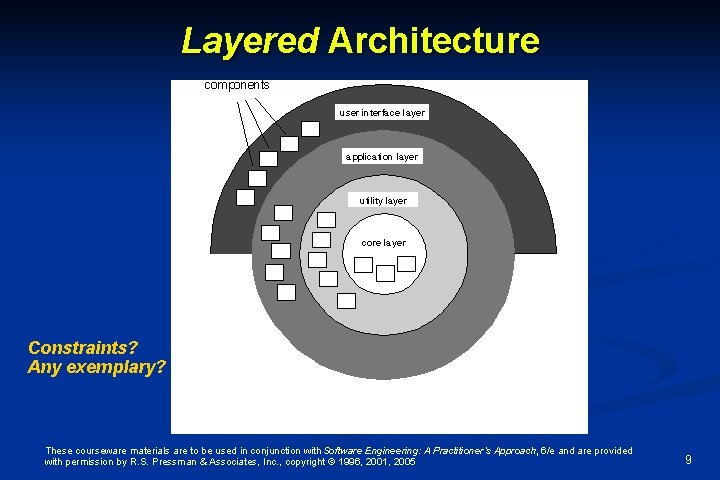

Layered Architecture Constraints? Any exemplary? These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 9

Architectural Context UML? DFD? What are small rectanlges? These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 10

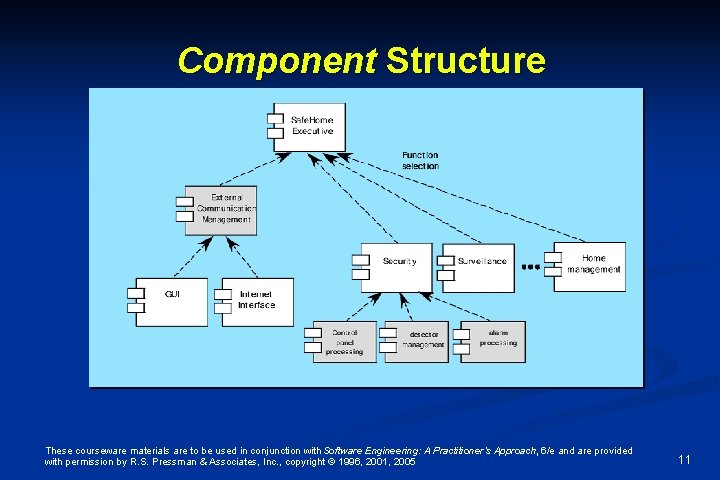

Component Structure These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 11

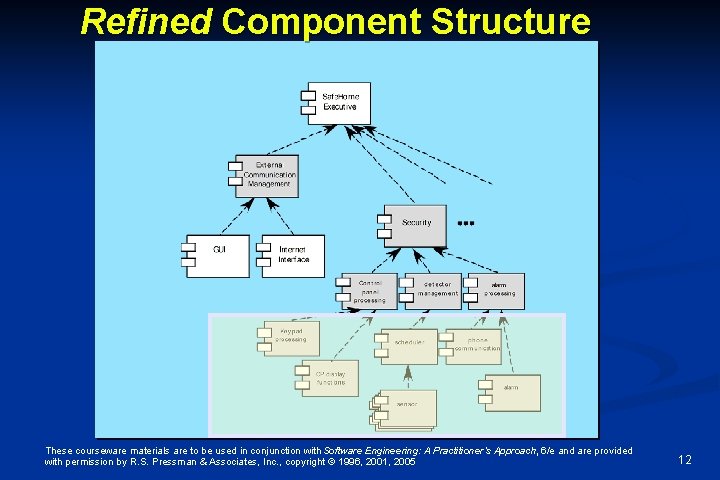

Refined Component Structure These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 12

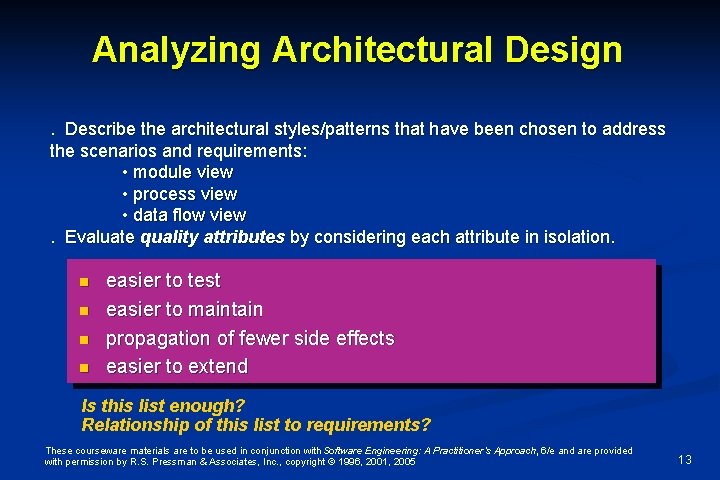

Analyzing Architectural Design. Describe the architectural styles/patterns that have been chosen to address the scenarios and requirements: • module view • process view • data flow view. Evaluate quality attributes by considering each attribute in isolation. n n easier to test easier to maintain propagation of fewer side effects easier to extend Is this list enough? Relationship of this list to requirements? These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 13

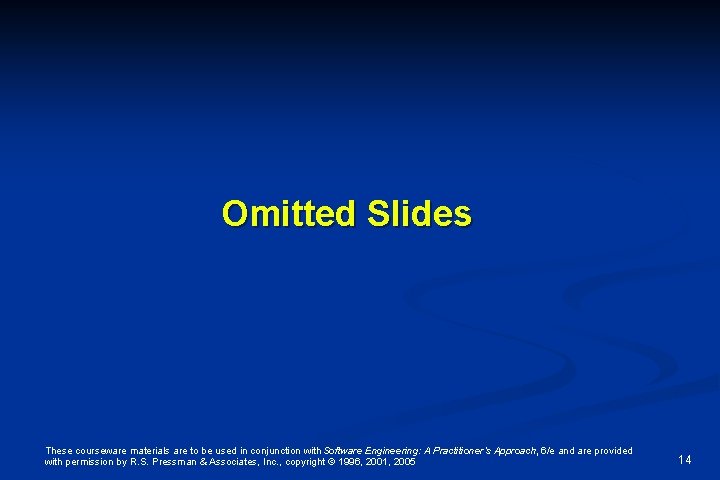

Omitted Slides These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 14

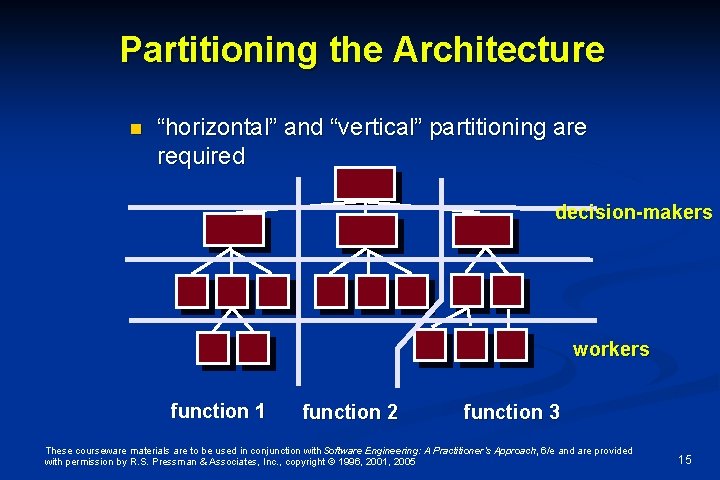

Partitioning the Architecture n “horizontal” and “vertical” partitioning are required decision-makers workers function 1 function 2 function 3 These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 15

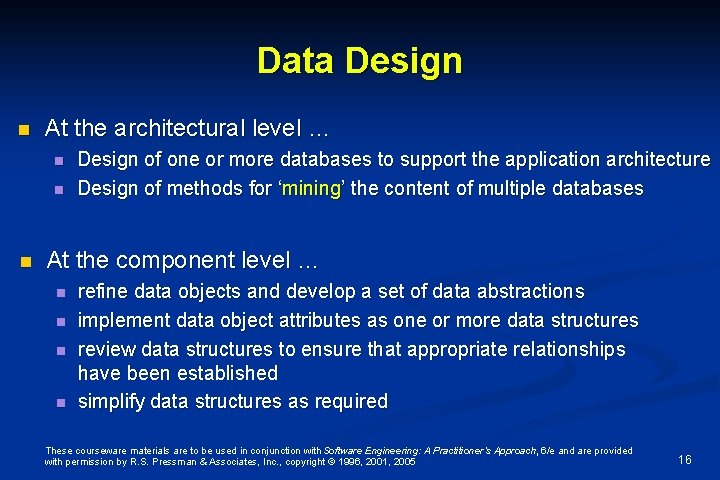

Data Design n At the architectural level … n n n Design of one or more databases to support the application architecture Design of methods for ‘mining’ the content of multiple databases At the component level … n n refine data objects and develop a set of data abstractions implement data object attributes as one or more data structures review data structures to ensure that appropriate relationships have been established simplify data structures as required These courseware materials are to be used in conjunction with Software Engineering: A Practitioner’s Approach, 6/e and are provided with permission by R. S. Pressman & Associates, Inc. , copyright © 1996, 2001, 2005 16
