Architectural Construction Engineering Project Architectural Construction Engineering focus

  • Slides: 43
Download presentation
Architectural Construction Engineering Project.

Architectural Construction Engineering Project.

Architectural Construction Engineering focus 이론 현장 실생활 적용

Architectural Construction Engineering focus 이론 현장 실생활 적용

Architectural Construction Engineering 2. 수장공사의 분류 천정 커튼 차양 수장 공사 바닥 벽

Architectural Construction Engineering 2. 수장공사의 분류 천정 커튼 차양 수장 공사 바닥 벽

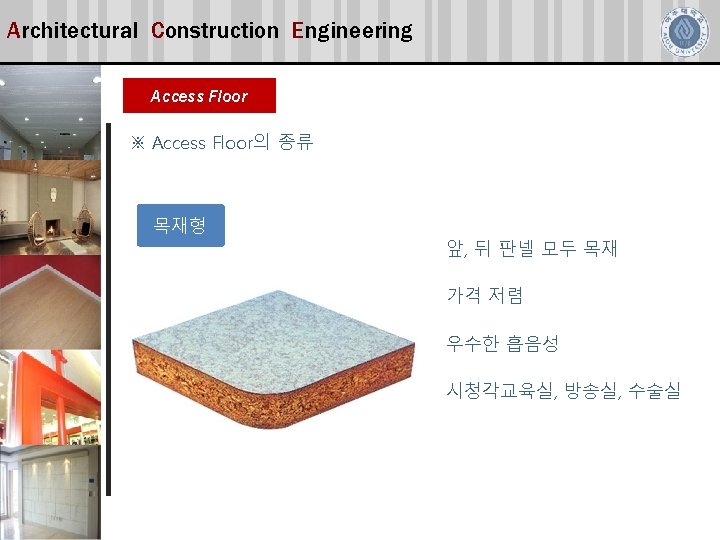

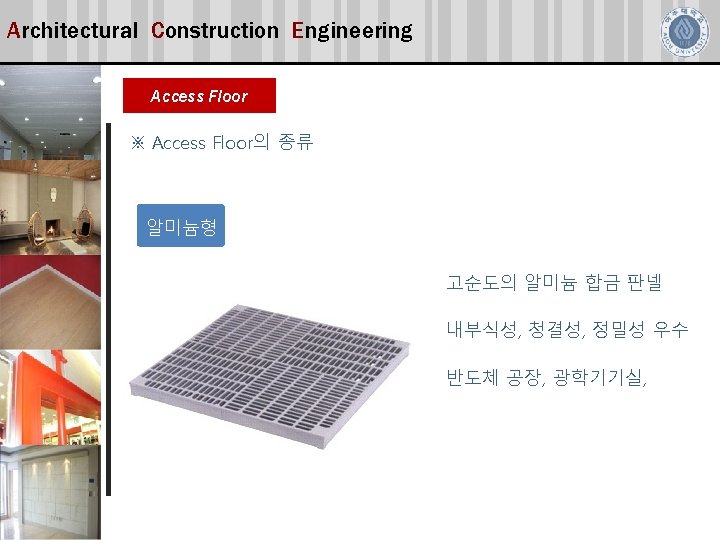

Architectural Construction Engineering Access Floor ※ Access Floor의 구성 마감재 – 판넬 – 스트링거(후렘)

Architectural Construction Engineering Access Floor ※ Access Floor의 구성 마감재 – 판넬 – 스트링거(후렘) – 지주대 세트(헤드+지주대+베이스)

Architectural Construction Engineering Access Floor ※ Access Floor의 시공과정

Architectural Construction Engineering Access Floor ※ Access Floor의 시공과정

Architectural Construction Engineering Access Floor ※ Access Floor 현장 시공 사례

Architectural Construction Engineering Access Floor ※ Access Floor 현장 시공 사례

Architectural Construction Engineering Access Floor ※ Access Floor 현장 시공 사례

Architectural Construction Engineering Access Floor ※ Access Floor 현장 시공 사례

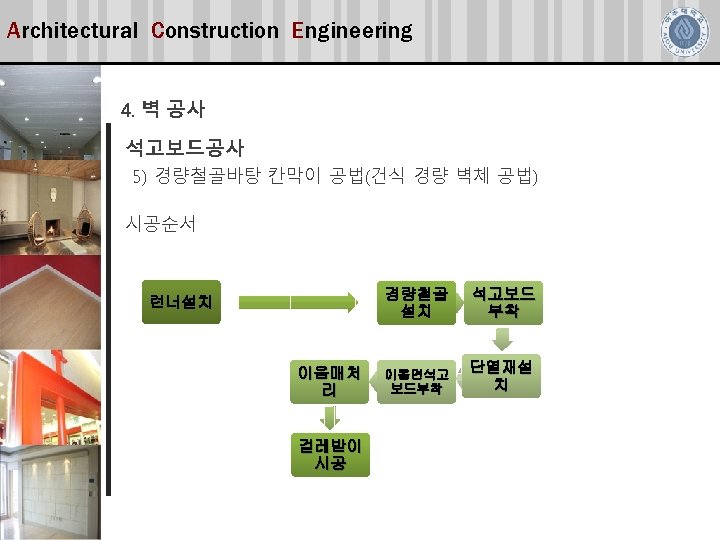

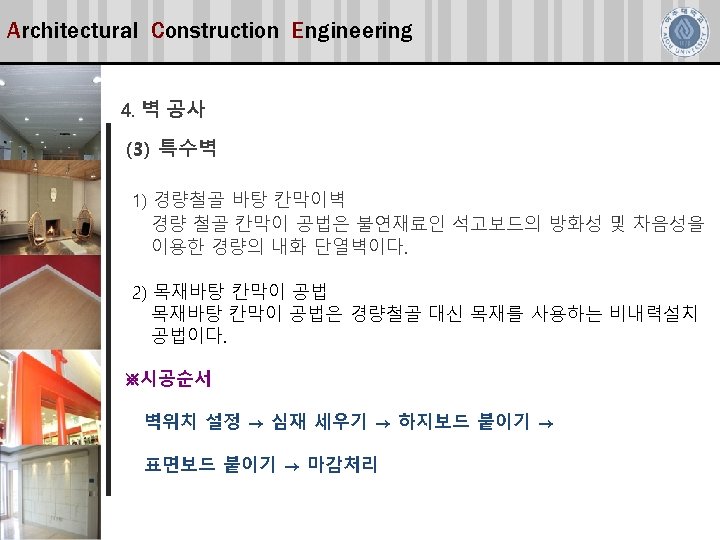

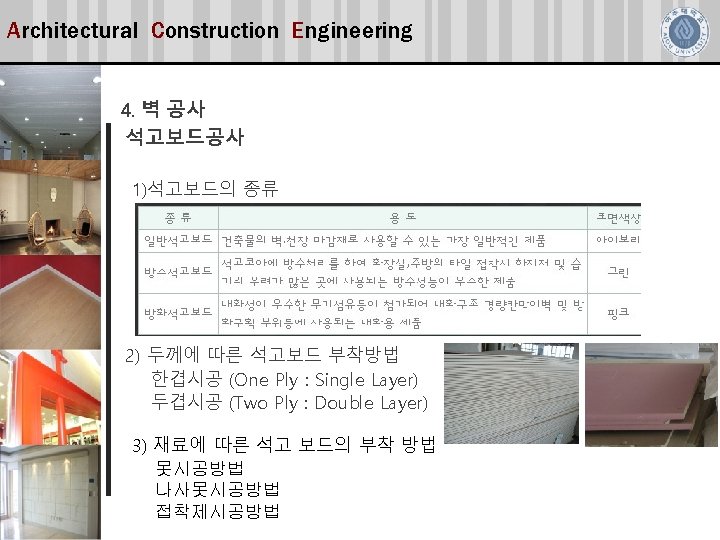

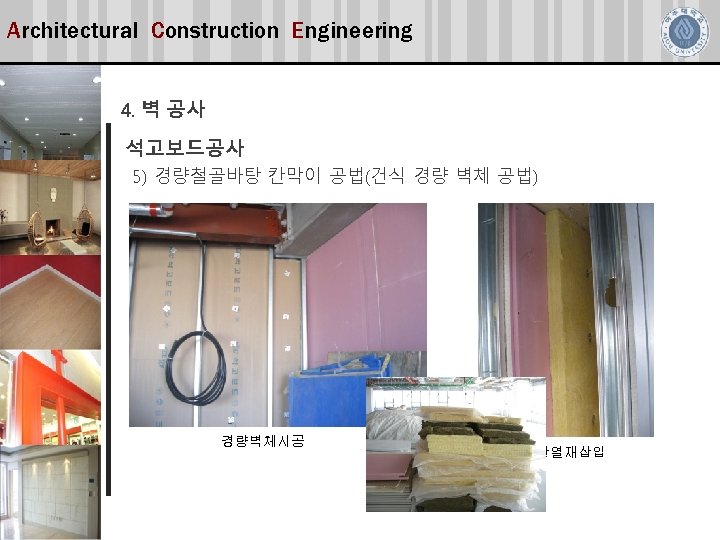

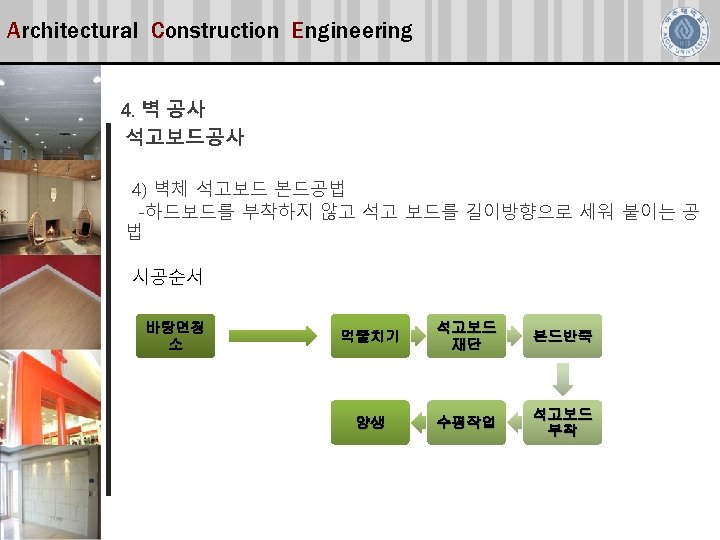

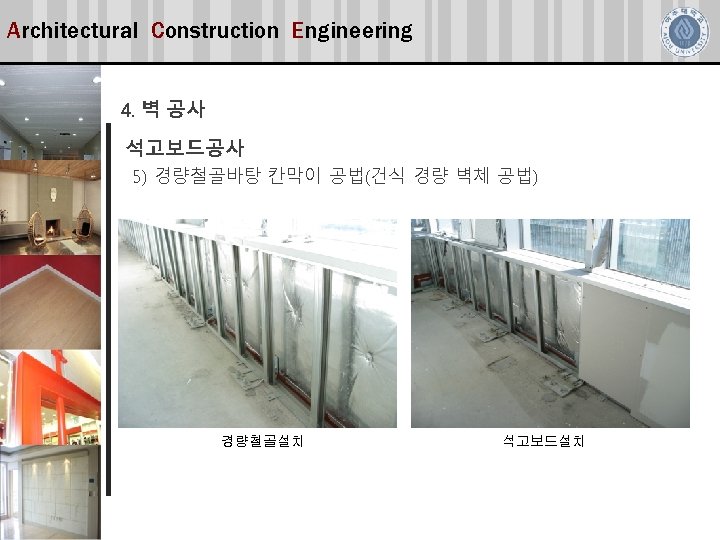

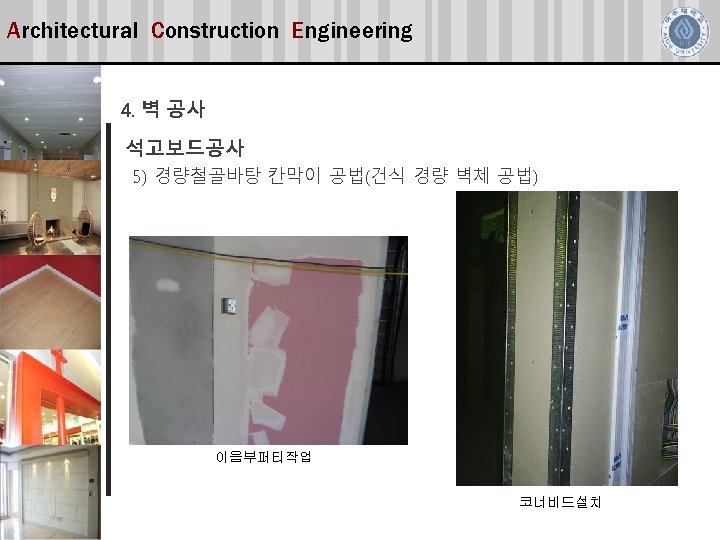

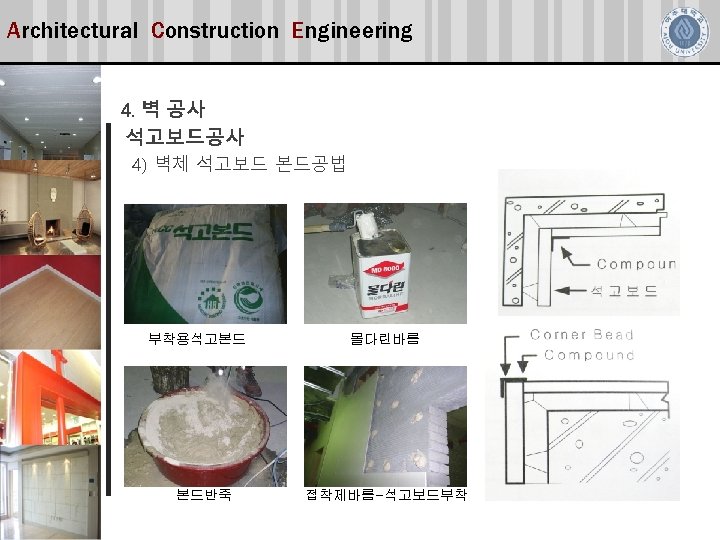

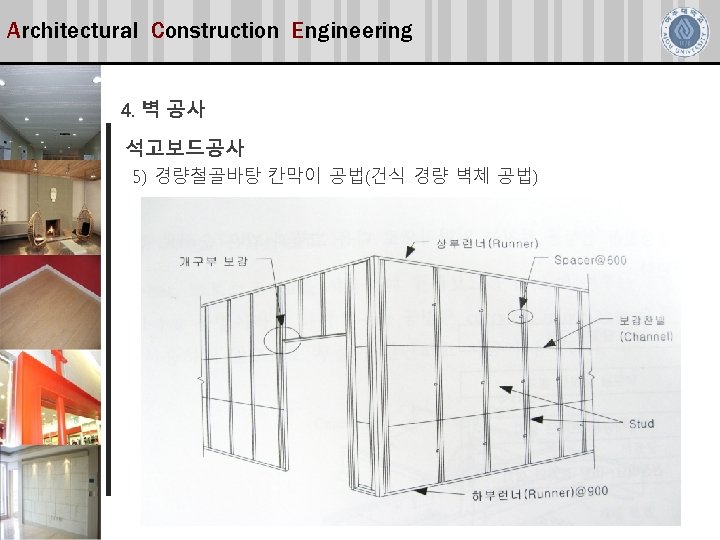

Architectural Construction Engineering 4. 벽 공사 석고보드공사 코너비드

Architectural Construction Engineering 4. 벽 공사 석고보드공사 코너비드

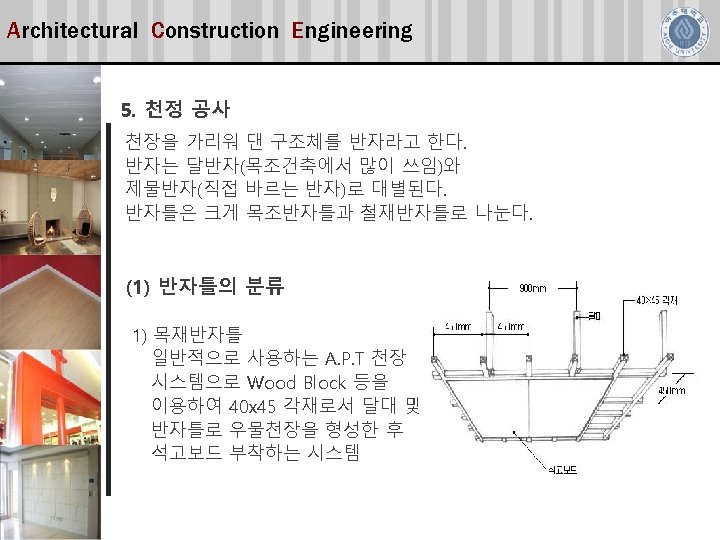

Architectural Construction Engineering 5. 천정 공사 2) 철재반자틀 목재 대신 Galvanized Steel로서 천장용 M-Bar,

Architectural Construction Engineering 5. 천정 공사 2) 철재반자틀 목재 대신 Galvanized Steel로서 천장용 M-Bar, Carrier를 성형하여 이들 부재를 Bracket 및 Pin 등으로 고정함으로서 천장틀을 형성

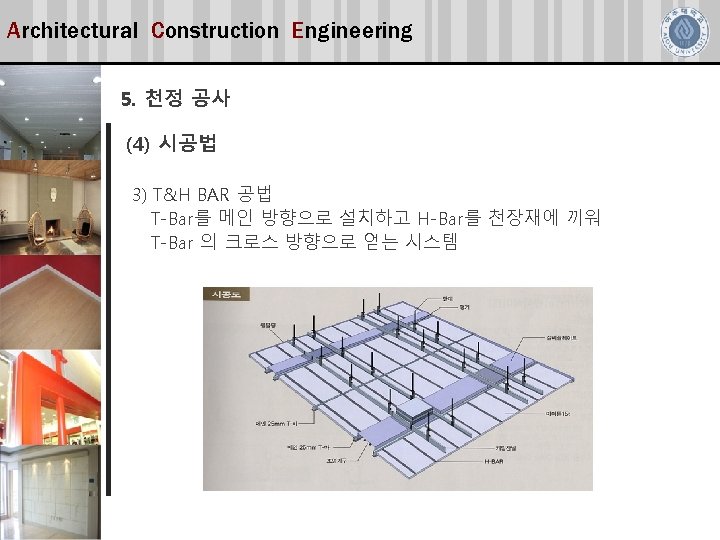

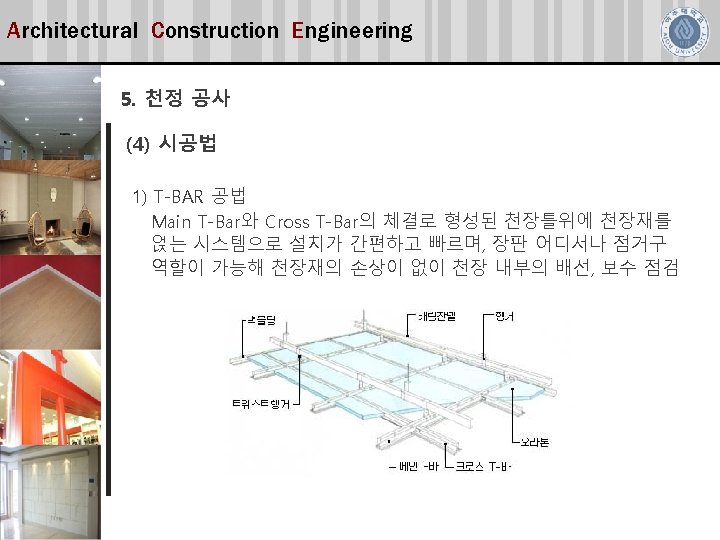

Architectural Construction Engineering 5. 천정 공사 (4) 시공법 3) T-BAR 공법 행거클립과에 행거설치 T-Bar설치

Architectural Construction Engineering 5. 천정 공사 (4) 시공법 3) T-BAR 공법 행거클립과에 행거설치 T-Bar설치

Architectural Construction Engineering 5. 천정 공사 (4) 시공법 3) T-BAR 공법 텍스설치 전구구멍 뚫음

Architectural Construction Engineering 5. 천정 공사 (4) 시공법 3) T-BAR 공법 텍스설치 전구구멍 뚫음

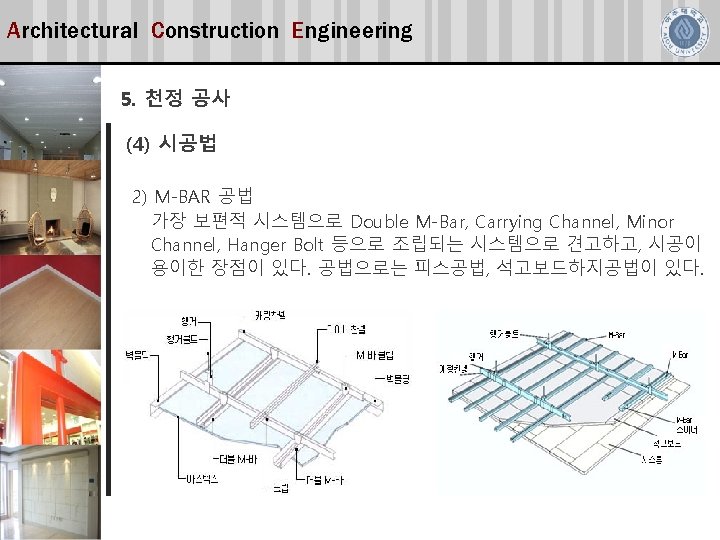

Architectural Construction Engineering 5. 천정 공사 (4) 시공법 3) M-BAR 공법 캐링에 바클립 설치

Architectural Construction Engineering 5. 천정 공사 (4) 시공법 3) M-BAR 공법 캐링에 바클립 설치 M-Bar설치

Architectural Construction Engineering 5. 천정 공사 (4) 시공법 3) M-BAR 공법 M-Bar 시공사진

Architectural Construction Engineering 5. 천정 공사 (4) 시공법 3) M-BAR 공법 M-Bar 시공사진
