Arc. GIS: Arc. Map Data View

Arc. GIS: Arc. Map Data View

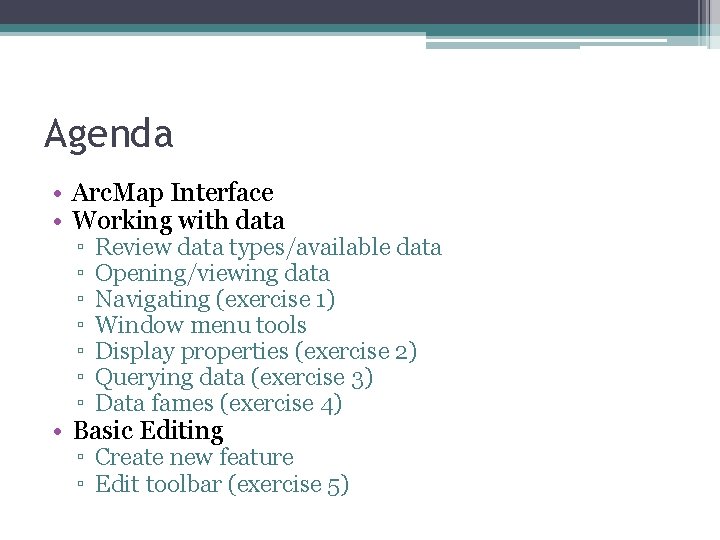

Agenda • Arc. Map Interface • Working with data ▫ ▫ ▫ ▫ Review

Agenda • Arc. Map Interface • Working with data ▫ ▫ ▫ ▫ Review data types/available data Opening/viewing data Navigating (exercise 1) Window menu tools Display properties (exercise 2) Querying data (exercise 3) Data fames (exercise 4) • Basic Editing ▫ Create new feature ▫ Edit toolbar (exercise 5)

Arc. Map: Map View Menu bar Standard Toolbar Tools Toolbar Table of Contents Canvas

Arc. Map: Map View Menu bar Standard Toolbar Tools Toolbar Table of Contents Canvas

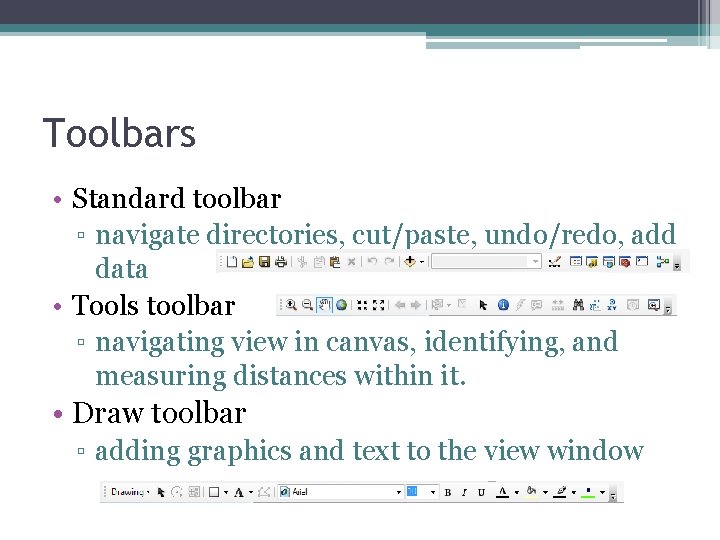

Toolbars • Standard toolbar ▫ navigate directories, cut/paste, undo/redo, add data • Tools toolbar

Toolbars • Standard toolbar ▫ navigate directories, cut/paste, undo/redo, add data • Tools toolbar ▫ navigating view in canvas, identifying, and measuring distances within it. • Draw toolbar ▫ adding graphics and text to the view window

Table of Contents • • Shows what layers are on the map Shows how

Table of Contents • • Shows what layers are on the map Shows how layers are displayed on the map Shows how data is organized into data frames Many commands available from “context menus” in the Table of Contents. • Display and Source Tabs

Map Display • Data view ▫ Use for browsing and analyzing geographic data ▫

Map Display • Data view ▫ Use for browsing and analyzing geographic data ▫ Focus on geographic elements • Layout view ▫ Use to prepare a presentation quality map ▫ Focus on cartographic elements

Working with data • • Review data types/available data Opening Data Viewing Data Navigating

Working with data • • Review data types/available data Opening Data Viewing Data Navigating Window Menu Tools Display Properties Querying Data Frames

Data Types of Arc. GIS • Vector data ▫ ▫ Arc. View shapefiles Arc.

Data Types of Arc. GIS • Vector data ▫ ▫ Arc. View shapefiles Arc. Info coverages Geodatabase CAD drawings • Raster Data ▫ Most common imagery formats can be read ▫ Arc. Info GRIDs, MRSID

Opening Data • Add Data ▫ Standard toolbar button ▫ File menu option ▫

Opening Data • Add Data ▫ Standard toolbar button ▫ File menu option ▫ Use to open raw data files (shapefiles, coverages, etc. ) and layer files (. lyr) • Arc. Catalog ▫ Drag and drop data from Arc. Catalog to Arc. Map • Open Map Document ▫ Previously organized data sets can be stored as map documents ▫ Open in Arc. Map using “Open” in standard toolbar or file menu ▫ Drag to Arc. Map from Arc. Catalog

Viewing Data • Turning Layers On/Off ▫ Click box next to layer name in

Viewing Data • Turning Layers On/Off ▫ Click box next to layer name in table of contents to toggle layer on/off ▫ Hold control key to toggle all layers • Show/hide legend ▫ Click on the minus box next to the layer name in the table of contents to hide the legend • Managing drawing order – default, etc. ▫ Items on the bottom of the table of contents draw first, those at the top draw last ▫ Click on the layer name and dray it up or down to change its position in the drawing order

Navigating (exercise 1) • Tools toolbar Zoom In Tool ▫ Zoom in/out Zoom Out

Navigating (exercise 1) • Tools toolbar Zoom In Tool ▫ Zoom in/out Zoom Out Tool ▫ Pan ▫ Previous/next extent Fixed Zoom in Pan Fixed Zoom out Full extent • Menu bar and context menu tools ▫ Right click on layer in TOC>Zoom to layer Go to Previous Extent Go to Next Extent

Window Menu Tools • Overview ▫ Opens a window showing extent of all data

Window Menu Tools • Overview ▫ Opens a window showing extent of all data in TOC ▫ Move and resize Area of Interest in Overview to change what is displayed in the Data View ▫ Right click on the top bar of the Overview window to change Overview window properties • Magnifier ▫ Opens a new window that you can drag over Map Display to enlarge features ▫ Right click on the top bar of the Magnify window to change Magnify window properties

Display Properties (exercise 2) • Access Layer Properties by double clicking on the layer

Display Properties (exercise 2) • Access Layer Properties by double clicking on the layer in the Table of Contents • Change Layer Symbology ▫ Click On the Symbology tab in the Layer Properties Dialog ▫ Select the type of Symbology to use from the “Show: ” Dialog �Single symbol is used to draw all features in a layer with the same symbol type �Categorical Data may be drawn using unique value Symbols �Quantitative data is often drawn using Graduated Color Symbols

Querying Data (exercise 3) Select Tool Identify Tool • Identify Tool ▫ With the

Querying Data (exercise 3) Select Tool Identify Tool • Identify Tool ▫ With the identify tool you can click on a point in the map display to see the attributes of all features at that point. ▫ Change the “Layers: ” in the identify results dialog to focus on information for a specific layer • Selection Tools ▫ The select tool on the tools toolbar allows you to click on a feature to select it. Selected features are outlined in blue ▫ The selection menu offers several other selection tools including a select by attributes option and a tool for setting selectable layers. • Find Tool ▫ The find dialog in the edit menu offers several tools for finding specific features ▫ Right click on results for shortcuts to common tools such as Zoom to Feature, Identify feature, and select feature.

Data Frames (exercise 4) • A map Document only has a single View window.

Data Frames (exercise 4) • A map Document only has a single View window. If you want to work with multiple data sets, you can create additional Data frames. • Data frames can be used to organize items in data view, and become even more important when using layout view • Properties affecting all layers in a view window such as Projection can be set at the data frame level • New Data Frames can be created from the Insert Menu • To make a data frame active, right click on it in the Table of Contents and click on “Activate”

Basic Editing (exercise 5) • Create new feature Shortcut to editor toolbar Editor toolbar

Basic Editing (exercise 5) • Create new feature Shortcut to editor toolbar Editor toolbar ▫ Not available in Arc. Map. You must create new feature in Arc. Catalog ▫ In Arc. Catalog, right click on a directory and select New>Shapefile • Editor toolbar ▫ Select from View>Toolbars, or use the shortcut button on the Standard toolbar to open the edit toolbar ▫ Several editing tools become available when you “start editing” from the editor menu. ▫ Begin a new shape using the “Create New Feature” tool. ▫ Modify a shape using the “Edit” tool ▫ Special editing functions available by right-clicking on the map display when using either the Edit or Create new feature tools ▫ Change the editing task with the task menu ▫ Edit a different data set by selecting a new Target item
