Arc Diagrams Visualizing Structures in Strings Martin Wattenberg

Arc Diagrams: Visualizing Structures in Strings Martin Wattenberg IBM Research One Rogers Street Cambridge MA 02142 mwatten@us. ibm. com

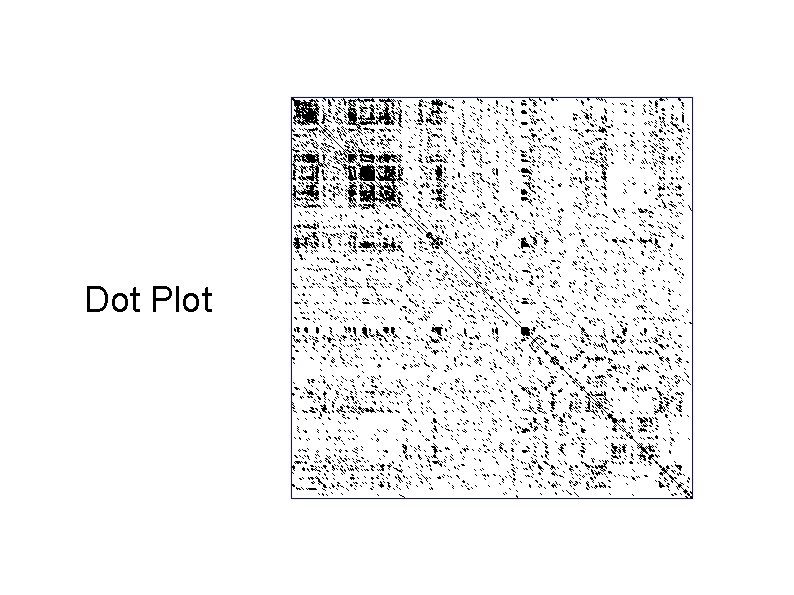

Dot Plot

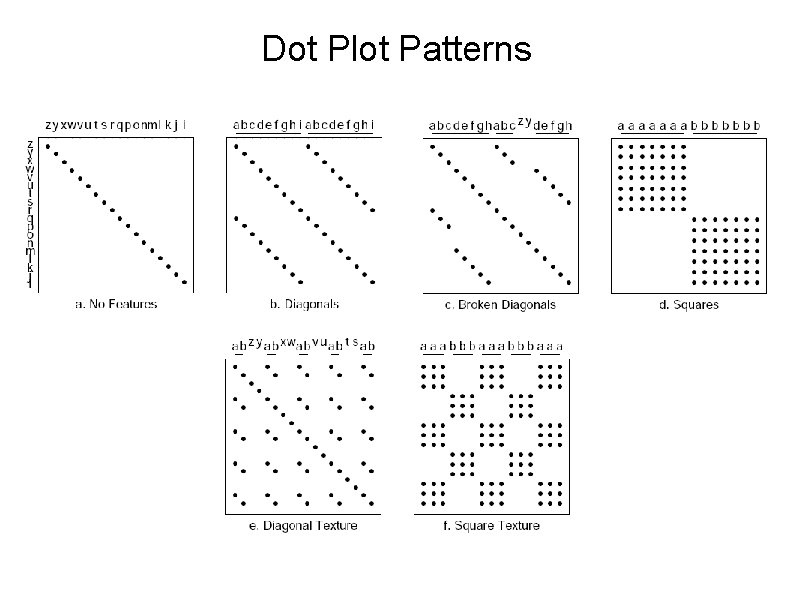

Dot Plot Patterns

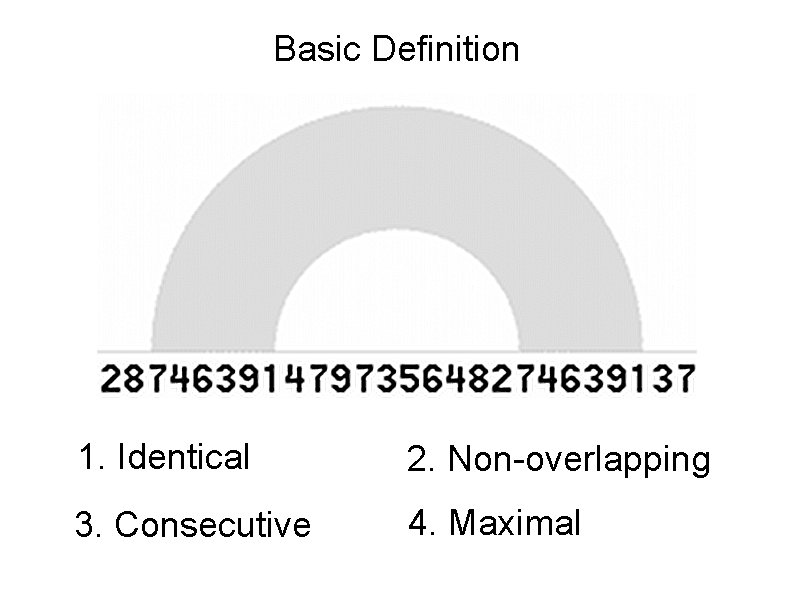

Basic Definition 1. Identical 2. Non-overlapping 3. Consecutive 4. Maximal

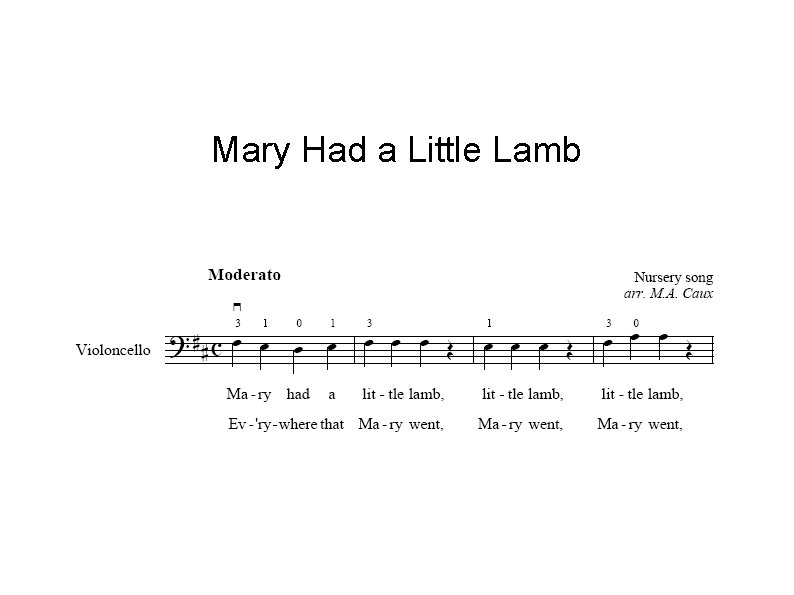

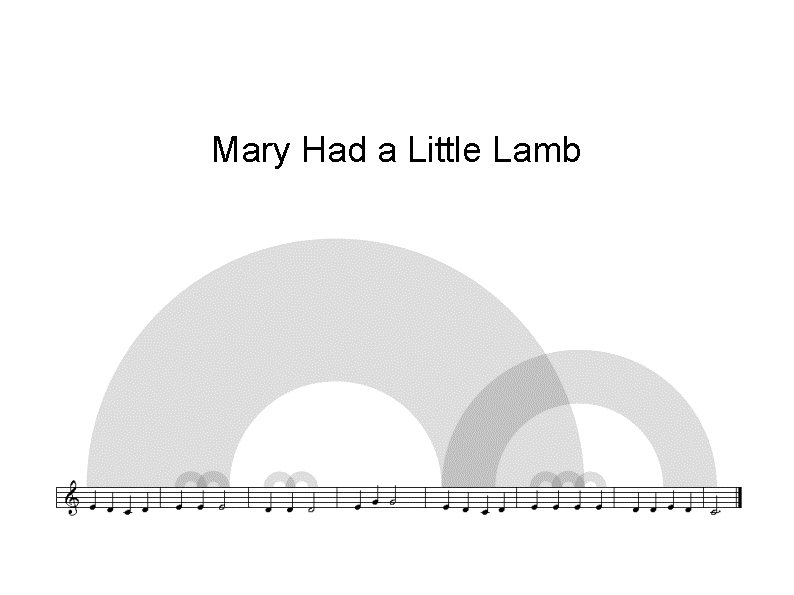

Mary Had a Little Lamb

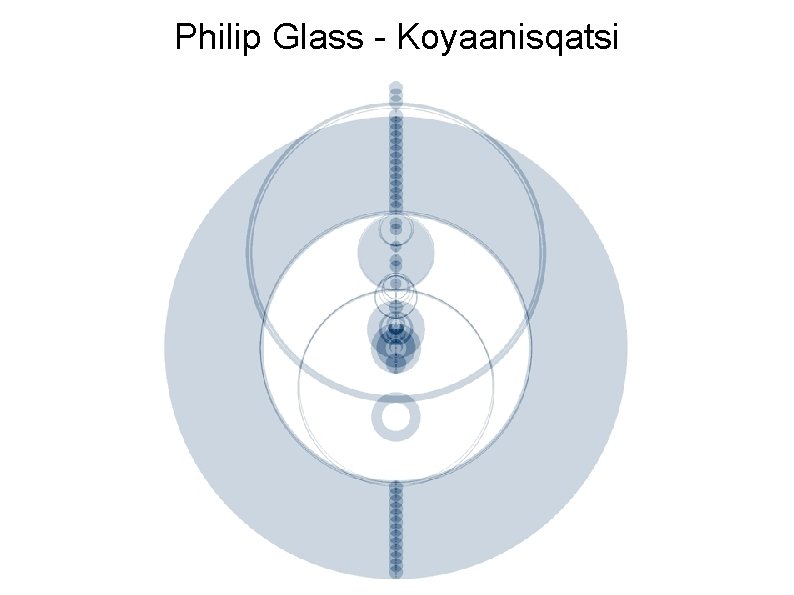

Philip Glass - Koyaanisqatsi

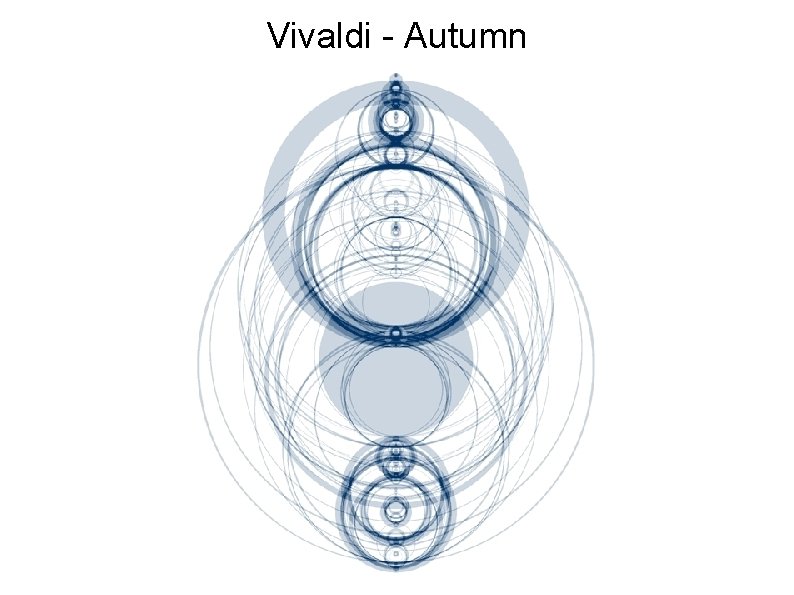

Vivaldi - Autumn

Cluster and Calendar based Visualization of Time Series Data Jarke J. van Wijk Eindhoven University of Technology Dept. of Mathematics and Computing Science P. O. Box 513, 5600 MB Eindhoven The Netherlands vanwijk@win. tue. nl Edward R. van Selow Neth. Energy Research Foundation ECN P. O. Box 1, 1755 ZG Petten The Netherlands vanselow@ecn. n

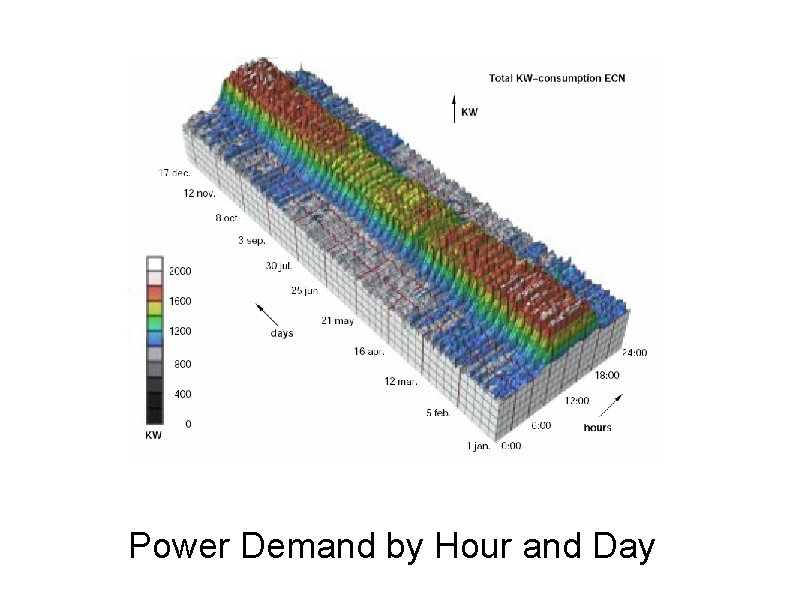

Power Demand by Hour and Day

Number of Employees in the Office over Time

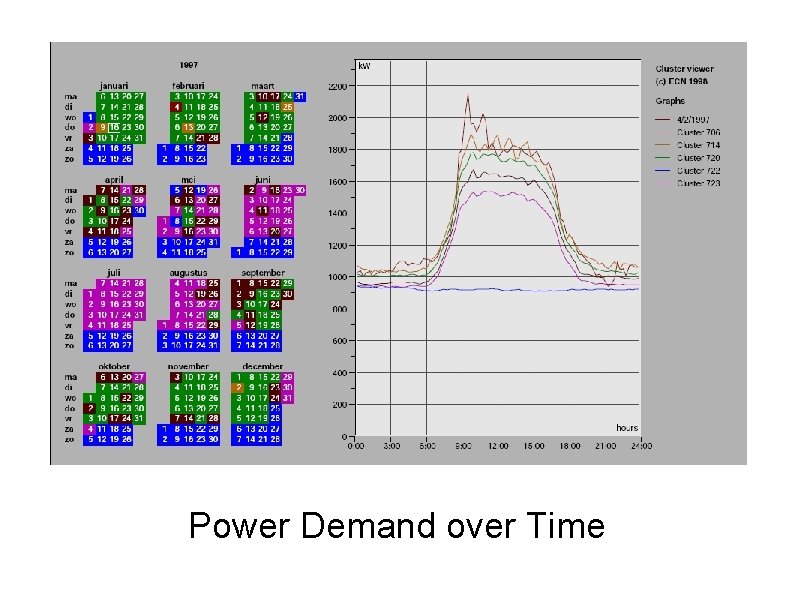

Power Demand over Time

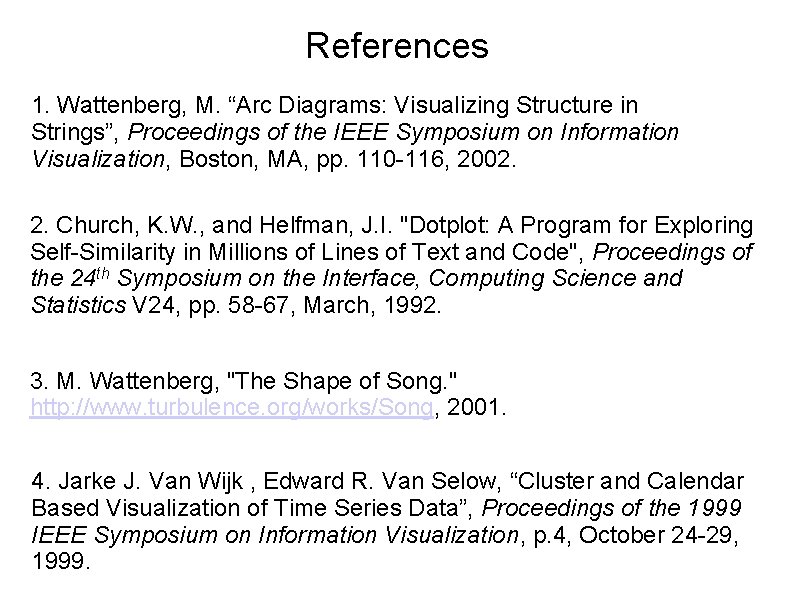

References 1. Wattenberg, M. “Arc Diagrams: Visualizing Structure in Strings”, Proceedings of the IEEE Symposium on Information Visualization, Boston, MA, pp. 110 -116, 2002. 2. Church, K. W. , and Helfman, J. I. "Dotplot: A Program for Exploring Self-Similarity in Millions of Lines of Text and Code", Proceedings of the 24 th Symposium on the Interface, Computing Science and Statistics V 24, pp. 58 -67, March, 1992. 3. M. Wattenberg, "The Shape of Song. " http: //www. turbulence. org/works/Song, 2001. 4. Jarke J. Van Wijk , Edward R. Van Selow, “Cluster and Calendar Based Visualization of Time Series Data”, Proceedings of the 1999 IEEE Symposium on Information Visualization, p. 4, October 24 -29, 1999.
