Aquatic Rehabilitation Device Kylene Kownurko Advisor Mollie Malone
Aquatic Rehabilitation Device Kylene Kownurko Advisor: Mollie Malone
Motivation Current aquatic belts have many disadvantages: l l Hold the body in an improper position Ride up on the torso Irritate the skin Do not offer enough buoyancy
Motivation Injured athletes have few rehabilitation options that offer: High intensity l Impact free workouts l Simulated running position l Unique properties of water offer these options and assist in the overall rehabilitation process
Market Potential 977 colleges and universities that offer NCAA sports Divisions I-III At these universities, the number of athletes totals 361, 175 Professional Athletes (football, hockey, basketball, baseball, soccer) Nearly all athletes are injured during their careers High school athletes
Benefits Faster rehabilitation Faster recovery from workouts Great cross-training activity (no impact) Calorie Burning (per 30 minute workout) Land Walking l Deep Water Walking l Jogging on Land l Deep Water Jogging l 135 Calories 264 Calories 240 Calories 340 Calories
Similar Products
Similar Products
Current Device Problems Improper exercise positioning Athlete sinks Rubbing and rug burn Not adjustable for different types of exercise
Qualities Made for the athletic body Positions the athlete upright Does not ride up Adjustable to different exercise Comfortable
Working Solution Shorts to keep belt in place Shorts made of durable swimsuit material Removable blocks of different sizes Specific positioning of blocks Buoyant foam pieces around whole body
Flow Chart of Design

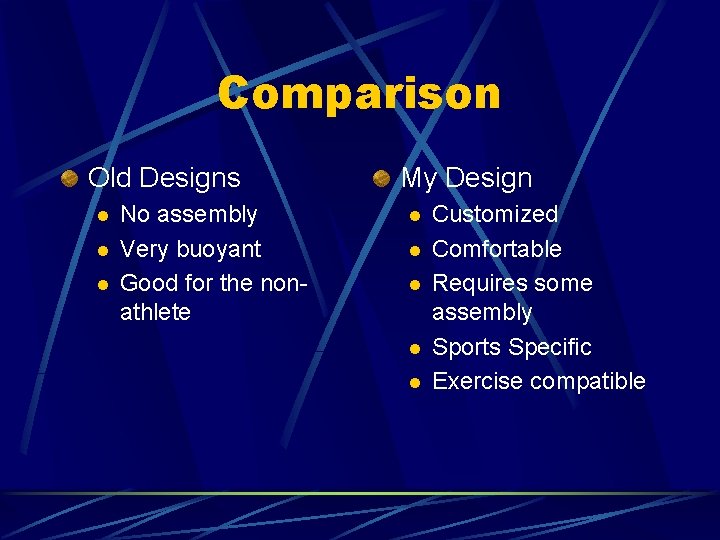

Comparison Old Designs l l l No assembly Very buoyant Good for the nonathlete My Design l l l Customized Comfortable Requires some assembly Sports Specific Exercise compatible
Ideas that won’t work Inflatable buoys l Too much buoyancy, reduce the natural movement of arms Aqua belt held down with strap l Uncomfortable, causes suit to bunch
Determining Foam Pieces
Determining Foam Pieces Female Subject l l l Fat % - 15. 9% Weight – 122 lbs Sinkable Mass – 102. 6 lbs Male Subject l l l Fat % - 11. 8% Weight – 251 lbs Sinkable Mass – 221. 4 lbs
Materials and Costs Multiple size foam blocks Adjustable waist band Spandex material Pool $40. 00 $5. 00 $10. 00 Free

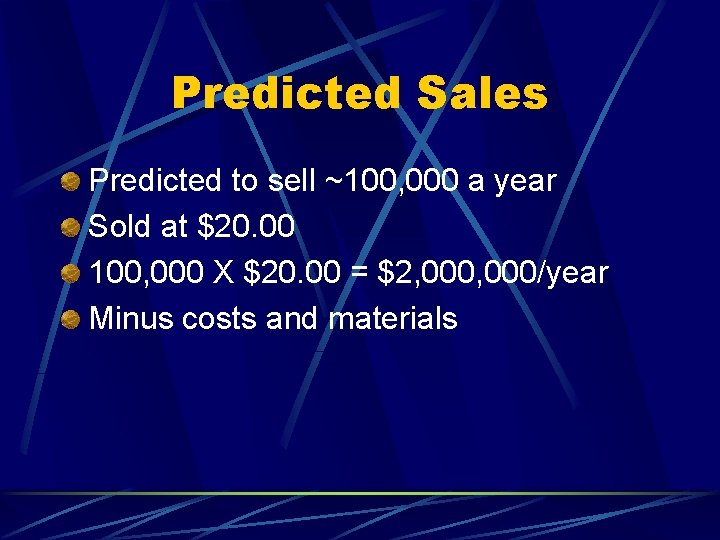

Predicted Sales Predicted to sell ~100, 000 a year Sold at $20. 00 100, 000 X $20. 00 = $2, 000/year Minus costs and materials
Current Work Calculations (fat/weight/buoyancy) Prototype testing Weekly advisor meetings

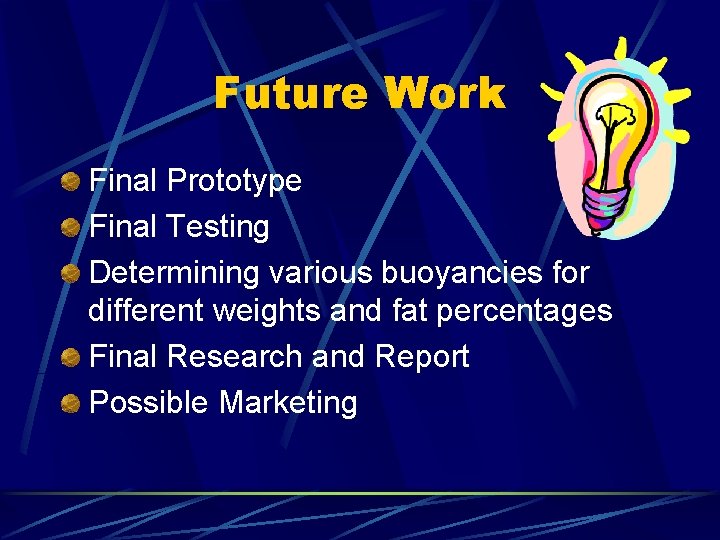

Future Work Final Prototype Final Testing Determining various buoyancies for different weights and fat percentages Final Research and Report Possible Marketing
Contact Information Kylene Kownurko kylene. b. kownurko@vanderbilt. edu Mollie Malone mollie. malone@vanderbilt. edu
References http: //www. coloradorapids. com/features/trainertalk/aquatic_ther apy. asp http: //www. beachesfoundation. org/PDF_articles/Water_Works_ Exercises. pdf http: //www. laurushealth. com/healthyliving/july 01 fitnesswaterwor ks. htm http: //www. marine-rescue. com/html/bodyoddsends. html http: //www. recsupply. com/myweb/products/water_runner. htm http: //www. activetics. com/content/water. htm http: //www. wbhswim. com/training_aids. html
