Aqua. Master 4 – Electromagnetic Flowmeter For Drinking water network management, abstraction and irrigation Joydip Sanyal, Global Product Manager – Water Electromagnetic Flowmeters

Agenda Challenges we all share November 30, 2020 Slide 2 Masters of flow measurement Values only we offer Our Vision everyone's’ future

Challenges we all share Access to clean and continuous water supply needs investment in water infrastructure. Typically a water utility needs to bill 30 – 50% more than their operational costs in order to recover capital costs.

Challenges we all share - Megatrends that are reshaping our world Choice is ours to be either an active or passive player as the human civilisation is at a crossroads Population growth Urbanisation & increase in demand Climate change & Water scarcity World Economic Forum states the 3 rd most important globally interconnected risk is Failure of climate-change and water crisis mitigation and adaption November 30, 2020 Slide 4

Masters of Flow Measurement

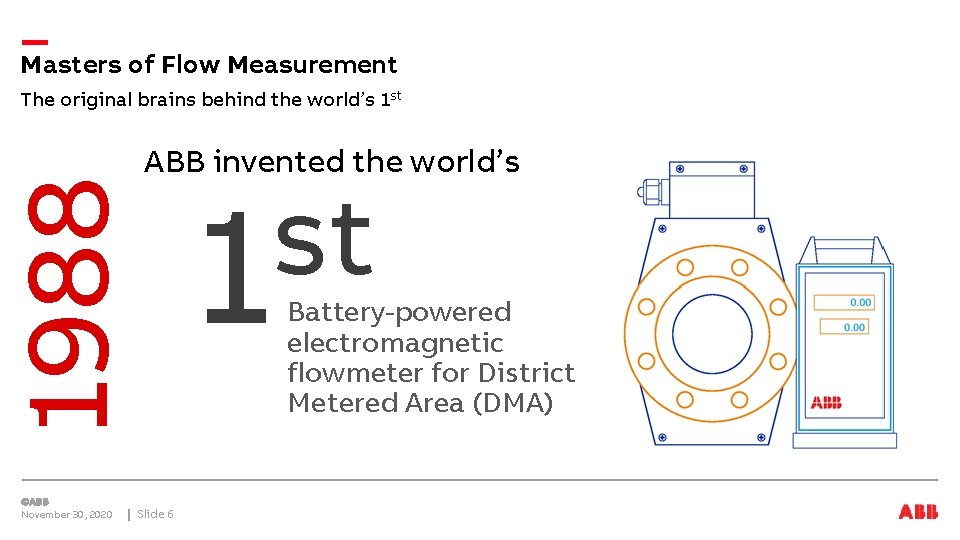

Masters of Flow Measurement 1988 The original brains behind the world’s 1 st November 30, 2020 ABB invented the world’s st 1 Battery-powered electromagnetic flowmeter for District Metered Area (DMA) Slide 6

Masters of Flow Measurement The original brains behind the world’s 1 st …. continued for decades 1995 2000 1 st Insertion electromagnetic flowmeter 1 st ‘integrated’ GSM communication technology in flow meters 2006 1996 1 st In-situ electromagnetic flow meter verification system 1 st 0 x diameter upstream and 0 x diameter downstream sensor technology 1 st self-verifying flow meter 2011 1 st flow meter powered with renewable energy 1 st Water Industry Telemetry Standards (WITS) integrated flow meter November 30, 2020 Slide 7 2004 2014

Aqua. Mater 4 Innovative. Evolutionary. Inspirational Values only we offer

Aqua. Master 4 – Network Management & Irrigation Values only we offer Applications November 30, 2020 Slide 9 § § Water supply in district / zonal metering area Leak monitoring in district / zonal metering area Survey and flow investigation Irrigation and abstraction

Aqua. Master 4 – Network Management & Irrigation Values only we offer Values to help your ‘top-line’ Values to help your ‘bottom-line’ Invest smartly through 'Single box' DMA (District Metered Areas) solution Increase confidence in your revenue billing Reduce losses from your bottom line – minimize NRW (Non-revenue Water) Achieve lowest TOTEX (Total expenditure) over complete lifecycle November 30, 2020 Slide 10

Values to help your ‘top-line’ Aqua. Master 4 - Increase confidence in your revenue billing meter Values only we offer Available in multiple sensor styles and sizes Aqua. Master 4 meets needs of all applications in Potable water distribution network Full/Octagonal Bore DN 40 to 2400 Reduced Bore DN 40 to 600 Probe 300 to 1000 mm With the widest flow range, highest accuracy and long-term stable calibration, Aqua. Master 4 is the only choice for network management and revenue billing Range [R] up to R 1000 Accuracy up to ± 0. 2% ± 0. 5 mm/sec Metrological performance to OIML R 49 (pending) Benefit November 30, 2020 Delivers accurate billing for true consumption – not estimates Slide 11

Values to help your ‘top-line’ Aqua. Master 4 - Increase confidence in your revenue billing meter Our breadth for the right application Reduced Bore Sensor DN 40 to 600 Pressure drop typically 0. 075 Bar @ 2. 5 m/s Inlet 0 x. DN / Outlet 0 x. DN Benefit November 30, 2020 Octagonal Bore Sensor DN 40 to 200 Pressure drop typically 0. 016 Bar @ 2. 5 m/s Inlet 3 x. DN / Outlet 0 x. DN Full Bore Sensor DN 250 to 2400 Minimum pressure drop Inlet 3 x. DN / Outlet 2 x. DN Insertion probe Sensor 300 to 1000 mm Minimum pressure drop Inlet ≥ 25 x. DN/Outlet 5 x. DN One size doesn’t fit all. Hence we offer the right sensor for the right application Slide 12

Values to help your ‘top-line’ Aqua. Master 4 - Increase confidence in your revenue billing meter Values only we offer ABB's flow calibration facilities are certified by various national independent accredited bodies / laboratories. Advantages of ABB’s calibration rig and therefore the accuracy of your flow meter: § ABB has one of the largest calibration facilities in the world, capable of pumping 2. 5 m 3/s, enabling larger meters to be calibrated at high flowrates § ABB's high turndown flowmeters (those with a high R number) can be calibrated over an extended flow range, guaranteeing accurate flowmeter performance over its full operating range. Calibration rig approvals Traceable November 30, 2020 Slide 13 Benefit Have complete confidence in the accuracy of our flow meters

Values to help your ‘bottom-line’ Aqua. Master 4 - Invest smartly through 'Single box' DMA solution Values only we offer Flow Pressure Logger Verification Flow rate, flow velocity, volume flow (forward, reverse and net) M 12 male threaded quick release fitting with 0 to 40 bar absolute range In-built high speed logger, with flexibility to download (typically 15 minutes) logger data In-built self checking every 30 minutes against digitally stored fingerprint November 30, 2020 Slide 14

Values to help your ‘bottom-line’ Aqua. Master 4 - Reduce losses by minimising NRW Values only we offer § Low flow rate capability with a high turndown range (R) enables minimal night flow rates to be metered accurately. § External pressure transducer with no requirements for any additional transmitter Accuracy <± 0. 3% of span Benefit Source: Macclesfield Express November 30, 2020 Slide 15 Manage leaks and pressure in your distribution network - reduce waste and prioritise OPEX strategically

Values to help your ‘bottom-line’ Aqua. Master 4 - Invest smartly through 'Single box' DMA solution In-built data logger to allow investigation in detail when needed Logs three parameters in non-volatile memory – Flow rate, Pressure, Volume flow (forward, reverse and net). All records fully retained in the event of power loss. Note: real time clock will need resetting after total power loss. Internal memory capacity Benefit November 30, 2020 Slide 16 § § Flow & Pressure = 45, 871 records or 31 days at 1 minute or 477 days at 15 minutes Volume Totals = 3120 records or 8 years at 24 hours fixed Data can be requested for any time window Oldest data is overwritten once full Reduce CAPEX through a single box solution

Values to help your ‘bottom-line’ Aqua. Master 4 - Invest smartly through 'Single box' DMA solution In-built Verification function keeping an hawkish eye Every 30 minutes the following are checked against the factory fingerprint to ensure the flowmeter is performing to the same standard when it was manufactured. § Sensor coil inductance and Coil resistance are re-measured and compared against fingerprint to confirm the general performance of the sensor § Coil isolation is re-measured to confirm water ingress into the sensor or the cable § Transmitter span is re-measured and compared against fingerprint to confirm transmitter accuracy Benefit November 30, 2020 Slide 17 Detecting deviations in flow measurement at an early stage helps reducing unscheduled downtime and maintenance.

Values to help your ‘bottom-line’ Aqua. Master 4 - Achieve lowest TOTEX over complete lifecycle Values only we offer Increase productivity with the use of ABB’s Velox app and Fit and Flow technology Reduce OPEX by extending the life of consumables or eliminating the need for one Eliminate health & safety hazard by not accessing confined chambers Seamless changeover from Aqua. Master 3 to Aqua. Master 4 November 30, 2020 Slide 18

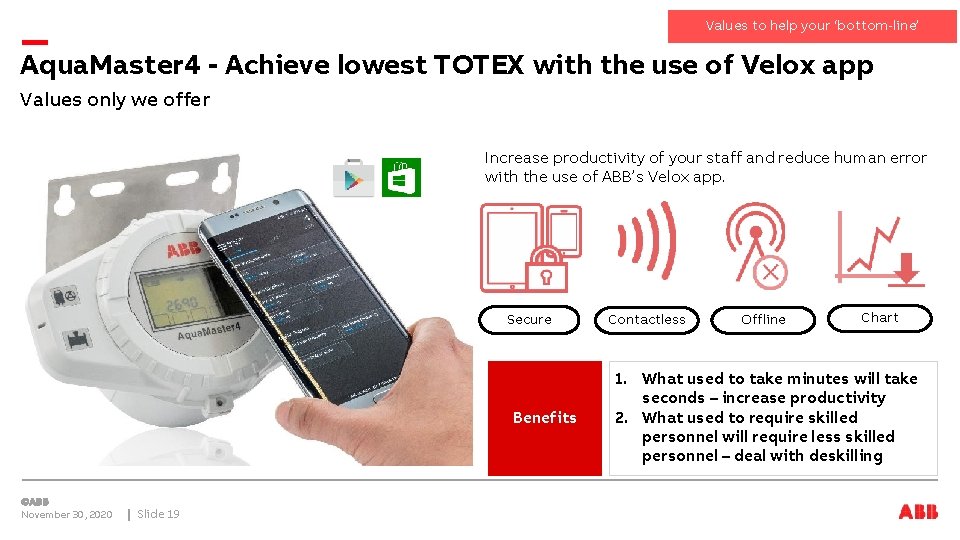

Values to help your ‘bottom-line’ Aqua. Master 4 - Achieve lowest TOTEX with the use of Velox app Values only we offer Increase productivity of your staff and reduce human error with the use of ABB’s Velox app. Secure Benefits November 30, 2020 Slide 19 Contactless Offline Chart 1. What used to take minutes will take seconds – increase productivity 2. What used to require skilled personnel will require less skilled personnel – deal with deskilling

Values to help your ‘bottom-line’ Aqua. Master 4 - Achieve lowest TOTEX with range of outputs Increase productivity of your staff and reduce human error Options for Outputs in Aqua. Master 4 November 30, 2020 Digital output Sensus communication Modbus RTU over RS 485 Designed for use with third party pulse counting loggers (e. g. Technolog, Cello, etc. ) Designed for use with 3 -wire Sensus compatible Automatic Meter Reader Designed for use with third party Modbus capable logging devices (eg Metasphere Point, Orange) Slide 20

Values to help your ‘bottom-line’ Aqua. Master 4 - Achieve lowest TOTEX with Fit and Flow Values only we offer Sensor memory enabling fit & flow IP 68 to 10 m and up to 5 m buriable Comparable to DIN – 20 to 60 °C ISO 12944 corrosion resistance Reduce time and cost during installation and commissioning § Sensory memory stores all calibration factors, site settings and serial numbers enabling users to fit and flow § All sensors are IP 68 NEMA 6 P as standard. This allows sensors to be submersible or for installations in chambers and metering pits that are prone to flooding. Potable water approvals 1. Benefits November 30, 2020 Slide 21 2. Reduce cost of poor quality by eliminating human error during commissioning Increase uptime of your assets in ardours applications

Values to help your ‘bottom-line’ Aqua. Master 4 - Achieve lowest TOTEX with longer consumables’ life Reduce OPEX by extending the life of consumables or eliminating the need for one Up to 10 years life from 2 x standard Li batteries Solar November 30, 2020 Powered from Industry standard Lithium D Cells ( 2 off) up to 10 years life, batteries are user fitted and replaceable. Each battery can be replaced without loss of logger contents enabling smooth switchover. § Mains-only option with a built-in rechargeable super capacitor backup power source can operate for up to 16 days without power (depending on operating conditions) § Solar/Wind power option uses a simple DC (6 to 22 V) connection from as small as a 5 W solar panel/wind generator. With a built-in rechargeable super capacitor backup power source can operate for up to 48 days without power (depending on operating conditions) AC Mains Wind Slide 22 § Benefit Extend life of consumables without sacrificing performance

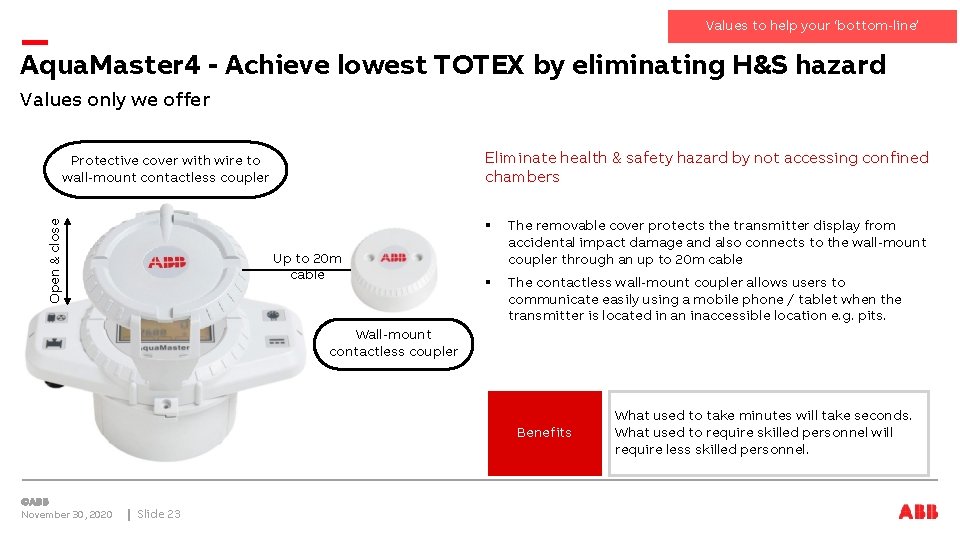

Values to help your ‘bottom-line’ Aqua. Master 4 - Achieve lowest TOTEX by eliminating H&S hazard Values only we offer Eliminate health & safety hazard by not accessing confined chambers Open & close Protective cover with wire to wall-mount contactless coupler Up to 20 m cable § The removable cover protects the transmitter display from accidental impact damage and also connects to the wall-mount coupler through an up to 20 m cable § The contactless wall-mount coupler allows users to communicate easily using a mobile phone / tablet when the transmitter is located in an inaccessible location e. g. pits. Wall-mount contactless coupler Benefits November 30, 2020 Slide 23 What used to take minutes will take seconds. What used to require skilled personnel will require less skilled personnel.

Values to help your ‘bottom-line’ Aqua. Master 4 - Achieve lowest TOTEX with lifecycle support Value we only offer Reduce cost with seamless changeover from Aqua. Master 3 to Aqua. Master 4 Change over couldn’t be simpler: Benefit November 30, 2020 § Backwards compatible with Aqua. Master 3 sensor memory for Fit & Flow § Electrically same MIL connectors Take advantage of new features, whilst minimising the cost to change the entire flowmeter. Slide 24

Aqua. Master 4 – Innovative. Evolutionary. Inspirational Summary - Values only we offer Values to help your ‘top-line’ Values to help your ‘bottom-line’ Invest smartly through 'Single box' DMA (District Metered Areas) solution Increase confidence in your revenue billing Reduce losses from your bottom line – minimize NRW (Non-revenue Water) Achieve lowest TOTEX (Total expenditure) over complete lifecycle November 30, 2020 Slide 25 Increase productivity with the use of ABB’s Velox app and Fit and Flow technology Reduce OPEX by extending the life of consumables or eliminating the need for one Eliminate health & safety hazard by not accessing confined chambers Seamless changeover from Aqua. Master 3 to Aqua. Master 4

Our vision everyone’s future

Sustainable future for water begins with us Let’s write the future. Together November 30, 2020 Slide 27
